Issue 50, 2021

Structural, optical and dielectric properties of tellurium-based double perovskite Sr2Ni1−xZnxTeO6

Abstract

In this paper, Sr2Ni1−xZnxTeO6 (x = 0.0, 0.2, 0.4, 0.6, 0.8, 1.0) double perovskite compounds were synthesised by the conventional solid-state method, and the structural, optical and dielectric properties were investigated. The Rietveld refinement of X-ray diffraction data shows that all compounds were crystallised in monoclinic symmetry with the I2/m space group. Morphological scanning electron microscopy reported that the grain sizes decreased as the dopant increased. The UV-vis diffuse reflectance spectroscopy conducted for all samples found that the optical band gap energy, Eg, increased from 3.71 eV to 4.14 eV. The dielectric permittivity ε′ values increased for the highest Zn-doped composition, Sr2Ni0.2Zn0.8TeO6, being ∼1000 and ∼60 in the low- and high-frequency range, respectively. All samples exhibited low dielectric loss (tan δ ≤ 0.20) in the range of 104–105 Hz frequency. Impedance measurement revealed that grain resistance decreased with enhancement in Zn content in the Sr2NiTeO6 crystal lattice.

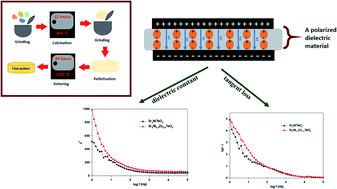

Graphical abstract: Structural, optical and dielectric properties of tellurium-based double perovskite Sr2Ni1−xZnxTeO6

Article information

Article type
Paper
Submitted
10 May 2021
Accepted
18 Sep 2021
First published
27 Sep 2021
This article is Open Access
Creative Commons BY-NC license

RSC Adv., 2021,11, 31631-31640

Structural, optical and dielectric properties of tellurium-based double perovskite Sr2Ni1−xZnxTeO6

F. I. H. Alias, R. Rajmi, M. F. Maulud and Z. Mohamed, RSC Adv., 2021, 11, 31631 DOI: 10.1039/D1RA03662A

This article is licensed under a Creative Commons Attribution-NonCommercial 3.0 Unported Licence. You can use material from this article in other publications, without requesting further permission from the RSC, provided that the correct acknowledgement is given and it is not used for commercial purposes.

To request permission to reproduce material from this article in a commercial publication, please go to the Copyright Clearance Center request page.

If you are an author contributing to an RSC publication, you do not need to request permission provided correct acknowledgement is given.

If you are the author of this article, you do not need to request permission to reproduce figures and diagrams provided correct acknowledgement is given. If you want to reproduce the whole article in a third-party commercial publication (excluding your thesis/dissertation for which permission is not required) please go to the Copyright Clearance Center request page.

Read more about how to correctly acknowledge RSC content.

Social activity

Spotlight

Advertisements
