The effect of electrode design parameters on battery performance and optimization of electrode thickness based on the electrochemical–thermal coupling model

Author affiliations

Abstract

Electrodes are the most important components in the lithium-ion battery, and their design, which ultimately determines the quantity and speed of lithium storage, directly affects the capacity, power density, and energy density of the battery. Herein, an electrochemical–thermal coupling model was established for an 18.5 A h lithium-ion battery, and the model was validated by experiment at four discharge rates. Based on this model, the effects of the electrode design parameters (electrode thickness, volume fraction of active material and particle size) on the battery performance (electrochemical characteristics, thermal behavior, energy density and power density) were initially investigated. It was found that as the electrode thickness and volume fraction of the active material increased, the polarization, heat generation rate and energy density increased, while the power density degraded. In addition, as the particle size decreased, both the energy density and power density improved, which can provide guidance for the design of electrodes. Subsequently, a multi-parameter (thickness of the positive and negative electrodes) and multi-objective (energy density and power density) optimization procedure was performed via two optimization methods, and the positive electrode thickness of 55.335 μm and negative electrode thickness of 63.188 μm were determined to be the optimized parameters.

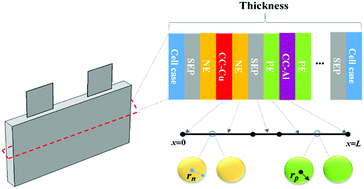

Graphical abstract: The effect of electrode design parameters on battery performance and optimization of electrode thickness based on the electrochemical–thermal coupling model

Back to tab navigation

Publication details

The article was received on 16 Oct 2018, accepted on 10 Nov 2018 and first published on 12 Nov 2018


Article type: Paper
DOI: 10.1039/C8SE00503F
Citation: Sustainable Energy Fuels, 2019, Advance Article
  •   Request permissions

    The effect of electrode design parameters on battery performance and optimization of electrode thickness based on the electrochemical–thermal coupling model

    W. Mei, H. Chen, J. Sun and Q. Wang, Sustainable Energy Fuels, 2019, Advance Article , DOI: 10.1039/C8SE00503F
