A surface-modified EDTA-reduced graphene oxide membrane for nanofiltration and anti-biofouling prepared by plasma post-treatment

Author affiliations

Abstract

Surface-modified EDTA-reduced graphene oxide (EDTA-rGO) membranes with high rejection rates, for monovalent ions, in particular, were fabricated from graphene oxide (GO) for nanofiltration. The EDTA-rGO membrane surface was treated with oxygen plasma to enhance its water permeability (P-EDTA-rGO). The resulting P-EDTA-rGO membrane demonstrated rejection rates of more than 80% for NaCl and water permeabilities of approximately 150 LMH bar−1, which are approximately 15 times higher than those before the treatment, without sacrificing the ion rejection performance for small ions. The high rejection rates and permeabilities of the P-EDTA-rGO membrane are presumed to originate from the small interlayer spacing (remains comparably small even in a wetted state; 5.7 Å) resulting from EDTA functionalization and the enhanced hydrophilicity due to plasma treatment. In addition, the membrane impeded bacterial adhesion.

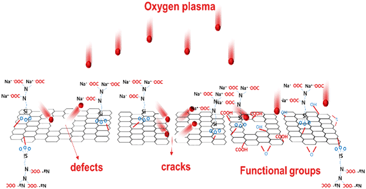

Graphical abstract: A surface-modified EDTA-reduced graphene oxide membrane for nanofiltration and anti-biofouling prepared by plasma post-treatment

Back to tab navigation

Supplementary files

Publication details

The article was received on 11 Dec 2018, accepted on 31 May 2019 and first published on 12 Jun 2019


Article type: Paper
DOI: 10.1039/C8EN01400K
Environ. Sci.: Nano, 2019,6, 2292-2298

  •   Request permissions

    A surface-modified EDTA-reduced graphene oxide membrane for nanofiltration and anti-biofouling prepared by plasma post-treatment

    B. Lee, D. W. Suh, S. P. Hong and J. Yoon, Environ. Sci.: Nano, 2019, 6, 2292
    DOI: 10.1039/C8EN01400K
