Hydrogen radical enhanced atomic layer deposition of TaOx: saturation studies and methods for oxygen deficiency control

Author affiliations

Abstract

The growth per cycle saturation behaviors depending on the precursor pulse duration, reactant pulse duration, and reactant concentration were examined for hydrogen radical enhanced atomic layer deposition (REALD) of TaOx using tantalum-ethoxide as the precursor and plasma-activated hydrogen as the reactant. The chemical state of the TaOx film was dependent on the active hydrogen pulse duration and hydrogen volume fraction in the H2/Ar plasma mixture. The density of the electronic states in the dielectric band gap increased with the increase in the plasma exposure time (6–50 s) and hydrogen volume fraction (7–70%) whereas Ta4f core-level X-ray photoelectron spectroscopy indicated that the observed defects in the TaOx band gap are related to the oxygen deficiency. The ab initio calculations of oxygen deficiency concentrations and the energy spectrum satisfactorily correlated with the experimental data. The demonstrated combination of the growth saturation availability with the precise control of oxygen deficiency concentrations in the PEALD process could be highly useful in fields in which oxide dielectrics with adjustable oxygen deficiencies are required.

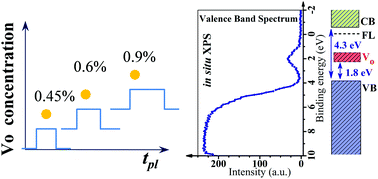

Graphical abstract: Hydrogen radical enhanced atomic layer deposition of TaOx: saturation studies and methods for oxygen deficiency control

Back to tab navigation

Supplementary files

Publication details

The article was received on 07 Feb 2018, accepted on 14 Aug 2018 and first published on 16 Aug 2018


Article type: Paper
DOI: 10.1039/C8TC00679B
Citation: J. Mater. Chem. C, 2018,6, 9667-9674

  •   Request permissions

    Hydrogen radical enhanced atomic layer deposition of TaOx: saturation studies and methods for oxygen deficiency control

    K. V. Egorov, D. S. Kuzmichev, A. A. Sigarev, D. I. Myakota, S. S. Zarubin, P. S. Chizov, T. V. Perevalov, V. A. Gritsenko, C. S. Hwang and A. M. Markeev, J. Mater. Chem. C, 2018, 6, 9667
    DOI: 10.1039/C8TC00679B
