Encapsulating perovskite solar cells to withstand damp heat and thermal cycling

Author affiliations

Abstract

Perovskite solar cells (PSCs) are highly promising, but they are mechanically fragile, composed of layers with mismatches in thermal expansion coefficients, and known to decompose in the presence of heat and moisture. Here we show the development of a glass–glass encapsulation methodology for PSCs that enables them to pass the industry standard IEC 61646 damp heat and thermal cycling tests. It is important to select a thermally stable perovskite composition to withstand the encapsulation process at 150 °C and design a cell that minimizes metal diffusion. Moreover, the package needs an edge seal to effectively prevent moisture ingress and an inert encapsulant with an appropriate elastic modulus to hold the package together while allowing for compliance during temperature fluctuations. Our work demonstrates that industrially relevant encapsulation techniques have the potential to enable the commercial viability of PSCs.

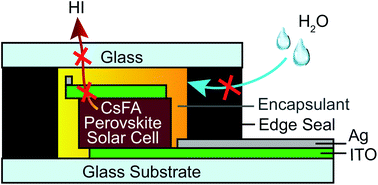

Graphical abstract: Encapsulating perovskite solar cells to withstand damp heat and thermal cycling

Back to tab navigation

Supplementary files

Publication details

The article was received on 30 May 2018, accepted on 03 Jul 2018 and first published on 03 Jul 2018


Article type: Communication
DOI: 10.1039/C8SE00250A
Citation: Sustainable Energy Fuels, 2018,2, 2398-2406
  •   Request permissions

    Encapsulating perovskite solar cells to withstand damp heat and thermal cycling

    R. Cheacharoen, C. C. Boyd, G. F. Burkhard, T. Leijtens, J. A. Raiford, K. A. Bush, S. F. Bent and M. D. McGehee, Sustainable Energy Fuels, 2018, 2, 2398
    DOI: 10.1039/C8SE00250A
