Synthesis and characterization of a tin(iv) antimonophosphate nano-composite membrane incorporating 1-dodecyl-3-methylimidazolium bromide ionic liquid

Abstract

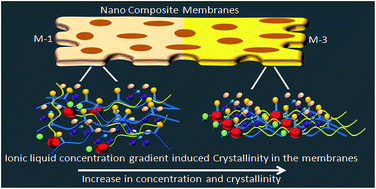

The fabrication of polyvinyl chloride (PVC) based cation exchange nano-composite membranes by the solution casting technique using tetrahydrofuran as solvent and tin(IV) antimonophosphate as cation exchanger has been achieved. An ionic liquid (IL), 1-dodecyl-3-methylimidazolium bromide, [C₁₂mim][Br], was used as a filler additive, which has been found to affect the properties of the composite membrane. From X-ray diffraction (XRD), it has been observed that membrane with a mass ratio of tin(IV) antimonophosphate (exchanger) : PVC (binder) : IL of 1 : 1 : 0.3 (M-3) has higher crystallinity than other membranes having a composition of 1 : 1 : 0.1 (M-1), 1 : 1 : 0.2 (M-2), 1 : 1 : 0.4 (M-4), and 1 : 1 : 0.5 (M-5). The nano-composite membranes are composed of interconnecting networks of near spherical to hexagonal nano-particles of 30–40 nm with nanophase separations at the surface, specifically in the case of M-3. An increase in the concentration of the IL in the casting solution led to a decrease in water content of the membrane and ion exchange capacity (IEC). The membrane potential, transport number, permselectivity and fixed charge density have been found to be higher for monovalent metal ions as compared to that of bivalent metal ions. The membrane M-3 has shown the best results among the investigated membranes.
