Quality of graphene on sapphire: long-range order from helium diffraction versus lattice defects from Raman spectroscopy

Author affiliations

Abstract

We report a new method to produce high-quality, transparent graphene/sapphire samples, using Cu as a catalyst. The starting point is a high-quality graphene layer prepared by CVD on Cu(111)/Al2O3. Graphene on sapphire is obtained in situ by evaporation of the Cu film in UHV. He-diffraction, atomic force microscopy (AFM), Raman spectroscopy and optical transmission have been used to assess the quality of graphene in a metal free area. We used helium atom scattering as a sensitive probe of the crystallinity of the graphene on sapphire. The observation of high reflectivity and clear diffraction peaks demonstrates the presence of flat and homogeneous graphene domains over lateral scales of microns, consistent with the AFM results. Surprisingly, putting graphene on sapphire improves the quality of the He-diffraction spectra. Graphene forms a moiré pattern with a (11 × 11) periodicity, aligned with the (1 × 1) sapphire unit cell. The lattice constant of graphene on sapphire is a = (2.44 ± 0.02) Å. The phonon dispersion of the graphene flexural mode has been measured. This allowed the determination of the bending rigidity k = 0.61 ± 0.15 eV, and the graphene–sapphire coupling strength g = (5.8 ± 0.4) × 1019 N m−3. The uniformity of the graphene has also been investigated by Raman mapping. Judging by the ratio of the 2D to G peaks, the quality of the graphene is not degraded by Cu removal. The high transparency (80%) measured in the visible range makes this system suitable for many applications that require hybrid properties commonly associated with metals (conductivity) and insulators (transparency). Our study shows that He-diffraction and Raman provide crucial information on quite different, complementary aspects of the same samples.

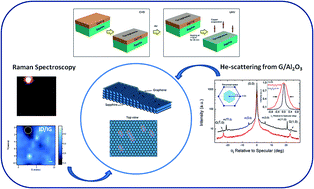

Graphical abstract: Quality of graphene on sapphire: long-range order from helium diffraction versus lattice defects from Raman spectroscopy

Back to tab navigation

Supplementary files

Publication details

The article was received on 22 Dec 2015, accepted on 04 Feb 2016 and first published on 12 Feb 2016


Article type: Paper
DOI: 10.1039/C5RA27452D
Author version
available:
Download author version (PDF)
Citation: RSC Adv., 2016,6, 21235-21245
  • Open access: Creative Commons BY-NC license
  •   Request permissions

    Quality of graphene on sapphire: long-range order from helium diffraction versus lattice defects from Raman spectroscopy

    G. Anemone, E. Climent-Pascual, H. K. Yu, A. Al Taleb, F. Jiménez-Villacorta, C. Prieto, A. M. Wodtke, A. De Andrés and D. Farías, RSC Adv., 2016, 6, 21235
    DOI: 10.1039/C5RA27452D
