Issue 15, 2015

Assembly of multiple cell gradients directed by three-dimensional microfluidic channels

Abstract

Active control over the cell gradient is essential for understanding biological systems and the reconstitution of the functionality of many types of tissues, particularly for organ-on-a-chip. Here, we propose a three-dimensional (3D) microfluidic strategy for generating controllable cell gradients. In this approach, a homogeneous cell suspension is loaded into a 3D stair-shaped PDMS microchannel to generate a cell gradient within 10 min by sedimentation. We demonstrate that cell gradients of various profiles (exponential and piecewise linear) can be achieved by precisely controlling the height of each layer during the fabrication. With sequential seeding, we further demonstrate the generation of two overlapping cell gradients on the same glass substrate with pre-defined designs. The cell gradient-based QD cytotoxicity assay also demonstrated that cell behaviors and resistances were regulated by the changes in cell density. These results reveal that the proposed 3D microfluidic strategy provides a simple and versatile means for establishing controllable gradients in cell density, opening up a new avenue for reconstructing functional tissues.

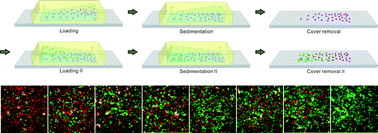

Graphical abstract: Assembly of multiple cell gradients directed by three-dimensional microfluidic channels

Supplementary files

Article information

Article type
Paper
Submitted
04 Jun 2015
Accepted
10 Jun 2015
First published
10 Jun 2015

Lab Chip, 2015,15, 3203-3210

Assembly of multiple cell gradients directed by three-dimensional microfluidic channels

Y. Li, X. Feng, Y. Wang, W. Du, P. Chen, C. Liu and B. Liu, Lab Chip, 2015, 15, 3203 DOI: 10.1039/C5LC00618J

To request permission to reproduce material from this article, please go to the Copyright Clearance Center request page.

If you are an author contributing to an RSC publication, you do not need to request permission provided correct acknowledgement is given.

If you are the author of this article, you do not need to request permission to reproduce figures and diagrams provided correct acknowledgement is given. If you want to reproduce the whole article in a third-party publication (excluding your thesis/dissertation for which permission is not required) please go to the Copyright Clearance Center request page.

Read more about how to correctly acknowledge RSC content.
