Potentiometric sensing array for monitoring aquatic systems

Author affiliations

Abstract

Since aquatic environments are highly heterogeneous and dynamic, there is the need in aquatic ecosystem monitoring to replace traditional approaches based on periodical sampling followed by laboratory analysis with new automated techniques that allow one to obtain monitoring data with high spatial and temporal resolution. We report here on a potentiometric sensing array based on polymeric membrane materials for the continuous monitoring of nutrients and chemical species relevant for the carbon cycle in freshwater ecosystems. The proposed setup operates autonomously, with measurement, calibration, fluidic control and acquisition triggers all integrated into a self-contained instrument. Experimental validation was performed on an automated monitoring platform on lake Greifensee (Switzerland) using potentiometric sensors selective for hydrogen ions, carbonate, calcium, nitrate and ammonium. Results from the field tests were compared with those obtained by traditional laboratory analysis. A linear correlation between calcium and nitrate activities measured with ISEs and relevant concentrations measured in the laboratory was found, with the slopes corresponding to apparent single ion activity coefficients Image ID:c5em00038f-t1.gif and Image ID:c5em00038f-t2.gif. Good correlation between pH values measured with ISE and CTD probes (SD = 0.2 pH) suggests adequate reliability of the methodology.

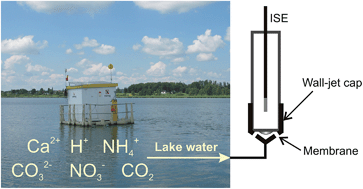

Graphical abstract: Potentiometric sensing array for monitoring aquatic systems

Back to tab navigation

Supplementary files

Publication details

The article was received on 21 Jan 2015, accepted on 24 Mar 2015 and first published on 25 Mar 2015


Article type: Paper
DOI: 10.1039/C5EM00038F
Author version
available:
Download author version (PDF)
Citation: Environ. Sci.: Processes Impacts, 2015,17, 906-914
  • Open access: Creative Commons BY-NC license
  •   Request permissions

    Potentiometric sensing array for monitoring aquatic systems

    N. Pankratova, G. A. Crespo, M. G. Afshar, M. C. Crespi, S. Jeanneret, T. Cherubini, M. Tercier-Waeber, F. Pomati and E. Bakker, Environ. Sci.: Processes Impacts, 2015, 17, 906
    DOI: 10.1039/C5EM00038F
