A study of dye anchoring points in half-squarylium dyes for dye-sensitized solar cells

Abstract

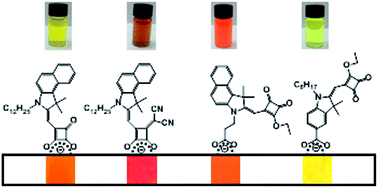

This paper reports the synthesis of a series of new half-squaraine dyes (Hf-SQ) based around a common chromophoric unit consisting of linked indoline and squaric acid moieties. Carboxylate groups have been incorporated onto this core structure at four different points to study the influence of the anchoring group position on dye-sensitized solar cell (DSC) device performance. Dyes have been linked to TiO₂ directly through the squaric acid moiety, through a modified squaric acid unit where a vinyl dicyano group has replaced one carbonyl, via an alkyl carboxylate attached to the indole N or through a carboxylate attached to the 4 position of a benzyl indole. Contact angle measurements have been studied to investigate the hydrophobic/hydrophilic properties of the dyes and the results have been compared to N719 and Z907. Full characterization data of all the dyes and synthetic intermediates are reported including single-crystal X-ray structural analysis for dye precursors; the indole (2a) and the half-squarylium esters (3a) and (6b), as well as the dyes (4c), (8) and (12). Dye colours range from yellow to red/brown in solution (λ_max range from 430 to 476 nm) with ε ranging from 38 000 to 133 100 M⁻¹ cm⁻¹. The performance of the dyes in DSCs shows the highest efficiency yet reported for a Hf-SQ dye (η = 5.0%) for 1 cm² devices with a spectral response ranging from 400 to 700 nm depending on the dye substituents. Co-sensitization of half-squarylium dye (7b) with squaraine dye (SQ2) resulted in a broader spectral response and an improved device efficiency (η = 6.1%). Density functional theory (DFT) calculations and cyclic voltammetry have been used to study the influence of linker position on dye HOMO–LUMO levels and the data has been correlated with I–V and EQE data.
