Nanoscale spatially resolved infrared spectra from single microdroplets

Author affiliations

Abstract

Droplet microfluidics has emerged as a powerful platform allowing a large number of individual reactions to be carried out in spatially distinct microcompartments. Due to their small size, however, the spectroscopic characterisation of species encapsulated in such systems remains challenging. In this paper, we demonstrate the acquisition of infrared spectra from single microdroplets containing aggregation-prone proteins. To this effect, droplets are generated in a microfluidic flow-focussing device and subsequently deposited in a square array onto a ZnSe prism using a micro stamp. After drying, the solutes present in the droplets are illuminated locally by an infrared laser through the prism, and their thermal expansion upon absorption of infrared radiation is measured with an atomic force microscopy tip, granting nanoscale resolution. Using this approach, we resolve structural differences in the amide bands of the spectra of monomeric and aggregated lysozyme from single microdroplets with picolitre volume.

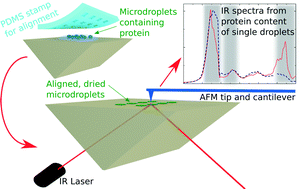

Graphical abstract: Nanoscale spatially resolved infrared spectra from single microdroplets

Back to tab navigation

Supplementary files

Publication details

The article was received on 29 Oct 2013, accepted on 29 Jan 2014 and first published on 29 Jan 2014


Article type: Paper
DOI: 10.1039/C3LC51219C
Author version
available:
Download author version (PDF)
Citation: Lab Chip, 2014,14, 1315-1319
  • Open access: Creative Commons BY license
  •   Request permissions

    Nanoscale spatially resolved infrared spectra from single microdroplets

    T. Müller, F. S. Ruggeri, A. J. Kulik, U. Shimanovich, T. O. Mason, T. P. J. Knowles and G. Dietler, Lab Chip, 2014, 14, 1315
    DOI: 10.1039/C3LC51219C
