Synthesis of stable AuAg bimetallic nanoparticles encapsulated by diblock copolymer micelles

Abstract

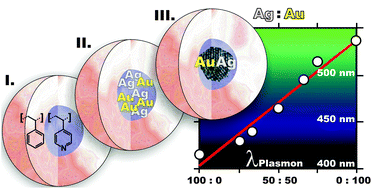

We present a facile method for the preparation of bimetallic AuAg nanoparticles (NPs) with controlled size and composition rendering them ideally suitable for optical and catalytic applications. In analogy to methods for the generation of monometallic Au and Ag NPs, AuAg NPs were prepared inside polystyrene-b-poly(4-vinylpyridine) (PS-b-P4VP) block-copolymer micelles formed in toluene, by loading the P4VP cores of the micelles first with AgNO₃ and then with HAuCl₄. In contrast to the reverse sequence of loading, homogenously bimetallic AuAg particle arrays were achieved after reduction carried out in solution with hydrazine monohydrate as the reducing agent. TEM reveals that stable and spherical NPs can be prepared well separated from one another and with a narrow size distribution with diameters of ∼3 nm. The bimetallic NP composition was confirmed by energy-dispersive X-ray spectroscopy (EDX) of single NPs. The atomic ratio of Ag and Au contained in single particles is in good agreement with the relative concentrations of both metals used in the synthesis which was confirmed by atomic absorption spectroscopy. The atomic ratio Au : Ag was systematically varied between 3 : 1 and 1 : 3. For all ratios UV-vis spectra showed a single plasmon band. Its wavelength varied from 430 for Au : Ag = 1 : 3 to 515 nm for Au : Ag = 3 : 1, showing a linear dependence on the relative amount of gold within the range of plasmon wavelengths from monometallic gold (538 nm) to silver (415 nm).
