A supramolecular structure with an alternating arrangement of donors and acceptors constructed by a trans-di-C60-substituted Zn porphyrin derivative in the solid state

Abstract

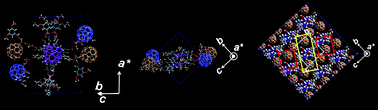

When a molecule is constructed from geometrically isotropic [such as [60]fullerene (C₆₀)] and anisotropic (such as porphyrin) units, as in the case of a trans-di-C₆₀-substituted Zn porphyrin derivative (diZnCPD), great interest lies in the understanding of their individual contributions to structural formations and phase transitions. For this purpose, the compound, diZnCPD, was designed and synthesized. Its phase behavior was investigated viadifferential scanning calorimetry (DSC) and polarized light optical microscopy (POM) and its supramolecular structure was elucidated viawide-angle X-ray diffraction (WAXD) and selective area electron diffraction (SAED) in transmission electron microscopy (TEM). The diZnCPD possesses a polymorphism in its ordered structures. When cooled from the isotropic (I) phase with experimentally accessible rates, instead of transferring into its ultimate stable phase, this compound formed a less ordered, metastable phase with a layered structure at 152 °C. Annealing this metastable phase enabled a further transformation into a stable phase with a higher transition temperature. As such, this metastable phase is monotropic. The formation of the stable phase was thus thermodynamically favorable, but kinetically more difficult (with a higher barrier for the transformation). Direct formation of this stable phase from the I state was unsuccessful even after prolonged isothermal experiments over several days above 152 °C, indicating that the formation barrier of this stable phase is extremely high. The thermally stable phase possessed a supramolecular structure with a triclinic unit cell of a = 3.34 nm, b = 2.01 nm, c = 1.88 nm, α = 89°, β = 98°, and γ = 90°. Detailed structural analysis revealed that this is a donor–acceptor separated structure of C₆₀s and porphyrins nearly along the [01] direction within which the zig-zag shaped C₆₀ channels are along the [001] direction of the unit cell. We believe this is the first example of generating a donor–acceptor separated structure of C₆₀s and porphyrins in the bulk through a thermal annealing process. This structure provides promising potential for the use of this material to fabricate supramolecular electronic devices without utilizing a solvent process.
