Effect of electrocrystallization medium on quality, structural features, and conducting properties of single crystals of the (BEDT-TTF)4AI[FeIII(C2O4)3]·G family

Abstract

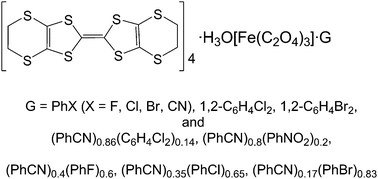

A modified procedure for the electrocrystallization of organic conductors with paramagnetic anions of the (BEDT-TTF)₄A^I[M^III(C₂O₄)₃]·G family has been proposed. It is found that single crystals of different phases of the family can be prepared if the electrocrystallization medium is represented by the mixture of 1,2,4-trichlorobenzene (or 1,3-dibromobenzene), 96% ethanol and different solvents (G), only the latter being included into the composition of the resulting salts as neutral guest molecules (G = benzonitrile, fluorobenzene, chlorobenzene, 1,2-dichlorobenzene, bromobenzene, nitrobenzene). Using this approach, a number of known and new BEDT-TTF salts with the tris(oxalato)ferrate anion have been synthesized. Among them, there are superconducting crystals of monoclinic β′′-series with different guest solvents (G) and their mixtures. For the first time, crystals of a triclinic phase (G = 1,2-dibromobenzene), with alternating α- and ‘pseudo-κ’ BEDT-TTF layers and metallic behaviour down to 1.5 K, were obtained. Additionally, monoclinic crystals having another stoichiometry and α-type donor packing were prepared.
