A microfluidic platform for complete mammalian cell culture

Abstract

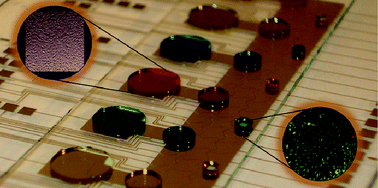

We introduce the first lab-on-a-chip platform for complete mammalian cell culture. The new method is powered by digital microfluidics (DMF), a technique in which nanolitre-sized droplets are manipulated on an open surface of an array of electrodes. This is the first application of DMF to adherent cell culture and analysis, and more importantly, represents the first microfluidic platform capable of implementing all of the steps required for mammalian cell culture—cell seeding, growth, detachment, and re-seeding on a fresh surface. Three key innovations were required to implement complete cell culture on a microfluidic device: (1) a technique for growing cells on patterned islands (or “adhesion pads”) positioned on an array of DMF actuation electrodes; (2) a method for rapidly and efficiently exchanging media and other reagents on cells grown on adhesion pads; and (3) a system capable of detachment and collection of cells from an (old) origin site and delivery to a (new) destination site for subculture. The new technique was applied to cells from several different lines which were seeded and repeatedly subcultured for weeks at a time in 150 nL droplets. Cells handled in this manner exhibited growth characteristics and morphology comparable to those cultured in standard tissue culture vessels. To illustrate an application for this system, a microfluidic method was developed to implement transient transfection—we propose that the combination of this technique with multigenerational culture allows for “on-demand” generation of transiently transfected cells. Broadly, we anticipate that the automated cell microculture technique presented here will be useful in myriad applications that would benefit from automated mammalian cell culture.
