Dynamics of colloidal crystals in shear flow

Author affiliations


We investigate particle dynamics in nearly hard sphere colloidal crystals submitted to a steady shear flow. Both the fluctuations of single colloids and the collective motion of crystalline layers as a whole are studied by using a home-built counter rotating shear cell in combination with confocal microscopy. Firstly, our real space observations confirm the global structure and orientation as well as the collective zigzag motion as found by early scattering experiments. Secondly, dynamic processes accompanying the shear melting transition are followed on the particle level. Local rearrangements in the crystal are seen to occur more frequently with increasing shear rate. This shear-enhanced particle mobility is quantified by measuring the random particle displacements from time-tracked particle coordinates. We find that shear induced melting takes place when these random displacements reach 12% of the particle separation, reminiscent of the Lindemann criterion for melting in equilibrium systems. In addition, a dynamic criterion for melting, based on the relative importance of the long time self diffusion compared to the short time self diffusion, is discussed.

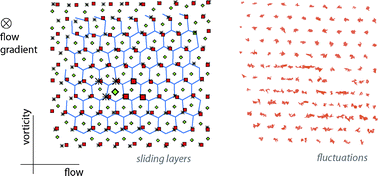

Graphical abstract: Dynamics of colloidal crystals in shear flow

Back to tab navigation

Supplementary files

Publication details

The article was received on 12 Sep 2008, accepted on 01 Dec 2008 and first published on 03 Feb 2009

Article type: Paper
DOI: 10.1039/B816026K
Citation: Soft Matter, 2009,5, 1060-1065
  •   Request permissions

    Dynamics of colloidal crystals in shear flow

    D. Derks, Y. L. Wu, A. van Blaaderen and A. Imhof, Soft Matter, 2009, 5, 1060
    DOI: 10.1039/B816026K
