Origins of enantioselectivity in the chiral Brønsted acid catalyzed hydrophosphonylation of imines

Abstract

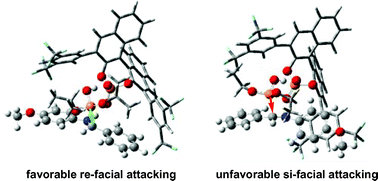

The results of an experimental and ONIOM-based computational investigation of the mechanism and the origins of enantioselectivity in the asymmetric synthesis of α-amino phosphonates by an enantioselective hydrophosphonylation of imines catalyzed by chiral Brønsted acids are reported. It was found that the enantioselectivity observed in the enantioselective hydrophosphonylation of the imine with a benzothiazole moiety was poor. A detailed computational study with a two-layer ONIOM (B3LYP/6–31G(d)/AM1) method on the mechanism of the investigated reaction was carried out to explore the origins of the enantioselectivity. Calculations indicate that the investigated reaction is a two-step process involving proton-transfer and nucleophilic addition, which is the stereo-controlling step. The investigated reaction prefers a di-coordination pathway to a mono-coordination pathway. The different enantioselectivities exhibited by three kinds of catalyst and two kinds of nucleophile were rationalized. Calculations indicate that si-facial attack is higher in energy than re-facial attack by only 0.1 kcal/mol, which accounts well for the low ee value observed in the enantioselective hydrophosphonylation of the imine with a benzothiazole moiety. The energy barrier for phosphonate–phosphite tautomerism catalyzed by chiral Brønsted acid in toluene is only 1.8 kcal/mol, which could explain why the investigated reaction can take place at room temperature.
