Porous 2D coordination polymeric formate built up by Mn(ii) linking of Fe3O units: influence of guest molecules on magnetic properties

Author affiliations

Abstract

A first representative of coordination polymers, built from polynuclear carboxylate bridged by mononuclear carboxylate, has been synthesised and structurally characterized. The compound [{Fe3O(HCOO)6}{Mn(HCOO)3(H2O)3}]·3.5HCOOH crystallised in the hexagonal system (space groupP63), a = b = 12.369(5) Å, c = 12.992(5) Å, α = β = 90°, γ = 120°, V = 1721.4(12) Å3. The crystal structure is built from 2D layers, which are formed by the linking of trinuclear {Fe3O(HCOO)6}+ units by mononuclear {Mn(HCOO)3(H2O)3} bridges. These 2D honeycomb layers are connected by molecules of formic acid through a hydrogen bond network. The compound has the voids at the centre of the hexagons. These voids are filled by captured solvent molecules. Solvate molecules are also located between the 2D layers, linking them through a system of H-bonds. All these solvates can be easily removed and/or exchanged, which results in the formation of [{Fe3O(HCOO)6}{Mn(HCOO)3(H2O)3}]·0.5HCOOH·H2O and [{Fe3O(HCOO)6}{Mn(HCOO)3(H2O)3}]. Magnetic properties of the compounds can be considered as the superposition of magnetism of Fe3O trinuclear units, for which magnetism is governed by the superexchange interaction between Fe3+ spins (with one Fe–Fe superexchange parameter J) and the magnetism of spins of Mn2+ ions, the interactions between these units can be taken into account by molecular field, zJ′. The destruction of the hydrogen bond network caused by evacuation of solvent molecules significantly modifies the overall magnetism. It was found that zJ′ depends on the presence of solvent molecules in the structure.

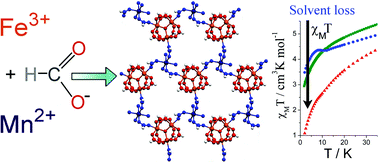

Graphical abstract: Porous 2D coordination polymeric formate built up by Mn(ii) linking of Fe3O units: influence of guest molecules on magnetic properties

Back to tab navigation

Supplementary files

Publication details

The article was received on 08 Jan 2009, accepted on 20 Feb 2009 and first published on 26 Mar 2009


Article type: Paper
DOI: 10.1039/B900359B
Dalton Trans., 2009, 3503-3509

  •   Request permissions

    Porous 2D coordination polymeric formate built up by Mn(II) linking of Fe3O units: influence of guest molecules on magnetic properties

    A. S. Lytvynenko, S. V. Kolotilov, O. Cador, K. S. Gavrilenko, S. Golhen, L. Ouahab and V. V. Pavlishchuk, Dalton Trans., 2009, 3503
    DOI: 10.1039/B900359B
