Effect of the length of polyoxyethylene substituents on luminescent bimetallic lanthanide bioprobes

Abstract

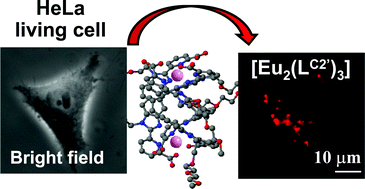

The new homoditopic ligand H₂L^C2′ self-assembles with lanthanide ions (Ln^III) to yield neutral bimetallic helicates of overall composition [Ln₂(L^C2′)₃]; it is fitted with two hexakis(oxyethylene) chains to test their effects on the thermodynamic, photophysical and biochemical properties of these complexes, with particular emphasis on their uptake by living cells. At physiological pH and under stoichiometric conditions, the conditional stability constants log β₂₃ are around 28 resulting in the speciation of the Eu^III helicate being >92% for a total ligand concentration of 1 mM. The ligand triplet state features adequate energy (0-phonon transition at ≈21 800 cm⁻¹) for sensitising the luminescence of Eu^III (Q = 19%) and Tb^III (Q = 10%) in aerated water at pH 7.4. The Eu(⁵D₀) emission spectrum and lifetime (2.43 ms) are characteristic of a species with pseudo-D₃ symmetry and without bound water in the inner coordination sphere. The viability of HeLa cancerous cells is unaffected when incubated with up to 500 μM [Eu₂(L^C2′)₃] during 24 h. The Eu^III helicate permeates into the cytoplasm of these cells by endocytosis and remains essentially undissociated, despite a low intracellular concentration of 0.28 μM. In addition, the leakage of the Eu^III helicate out of HeLa cells is very minimal over long periods of time. With respect to similar complexes with ligands bearing shorter tris(oxyethylene) chains, no substantial changes are observed, which opens the way for targeting experiments. This study also demonstrates that the [Ln₂(L^CX)₃] helicates are fairly robust entities since their core is unaffected by the substitution in the pyridine 4-position.
