Facile cyanamide–ammonia coupling mediated by cis- and trans-[PtIIL2] centers and giving metal-bound guanidines

Marina R. Tyan; Nadezhda A. Bokach; Meng-Jiy Wang; Matti Haukka; Maxim L. Kuznetsov; Vadim Yu. Kukushkin

doi:10.1039/B806862C

Facile cyanamide–ammonia coupling mediated by cis- and trans-[Pt^IIL₂] centers and giving metal-bound guanidines†

Marina R. Tyan,^a Nadezhda A. Bokach,*^a Meng-Jiy Wang,^b Matti Haukka,^c Maxim L. Kuznetsov^d and Vadim Yu. Kukushkin*^ae

Author affiliations

* Corresponding authors

^a Department of Chemistry, St.Petersburg State University, 198504 Stary Petergof, Russian Federation
E-mail: bokach@nb17701.spb.edu
Fax: +7 (812) 428 6939

^b Department of Chemical Engineering, National Taiwan University of Science and Technology, 43, Keelung Road, Section 4, Taipei, 106 Taiwan

^c Department of Chemistry, University of Joensuu, P.O. Box 111, Joensuu, Finland

^d Department of Chemistry, Moscow Pedagogical State University, 3, Nesvigskiy per., 119021 Moscow, Russian Federation

^e Institute of Macromolecular Compounds of the Russian Academy of Sciences, V. O. Bolshoi Pr. 31, 199004 St.Petersburg, Russian Federation
E-mail: kukushkin@VK2100.spb.edu

Abstract

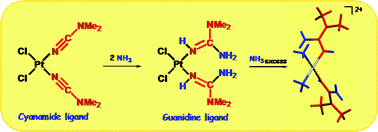

Diffusion of ammonia into CH₂Cl₂ solutions of the dialkylcyanamide complexes cis- or trans-[PtCl₂(RCN)₂] (R = NMe₂, NEt₂, NC₅H₁₀) at 20–25 °C leads to metal-mediated cyanamide–ammonia coupling to furnish, depending on reaction time, one or another type of novel bisguanidine compound, i.e. the molecular cis- or trans-[PtCl₂{NH [double bond, length as m-dash] C(NH₂)R}₂] (cis-1–3 and trans-1–3) and the cationic cis- or trans-[Pt(NH₃)₂{NHC(NH₂)R}₂](Cl)₂ (cis-4–6 and trans-4–6) complexes. Compounds cis-1–3 or trans-1–3 were converted to cis-4–6 or trans-4–6, accordingly, upon prolonged treatment with NH₃ in CH₂Cl₂. The ammination of the relevant nitrile complexes cis- or trans-[PtCl₂(RCN)₂] (R = Et, CH₂Ph, Ph) in CH₂Cl₂ solutions affords only the cationic compounds cis- or trans-[Pt(NH₃)₂{NH [double bond, length as m-dash] C(NH₂)R}₂](Cl)₂ (cis-7–9 and trans-7–9). The formulation of 1–9 was supported by satisfactory C, H and N elemental analyses, agreeable ESI⁺-MS (or FAB⁺-MS), IR, ¹H and ¹³C NMR spectroscopies. The structures of trans-1, trans-3, cis-4, trans-4, cis-7, and cis-9 were determined by single-crystal X-ray diffraction disclosing structural features and showing that the ammination gives ligated guanidines and amidines in the E- and Z-forms, respectively, where both correspond to the trans-addition of NH₃ to the nitrile species.

Supplementary files

Article information

DOI: https://doi.org/10.1039/B806862C
Article type: Paper
Submitted: 23 Apr 2008
Accepted: 18 Jun 2008
First published: 11 Aug 2008

Download Citation

Dalton Trans., 2008, 5178-5188

Permissions

Request permissions

Facile cyanamide–ammonia coupling mediated by cis- and trans-[Pt^IIL₂] centers and giving metal-bound guanidines

M. R. Tyan, N. A. Bokach, M. Wang, M. Haukka, M. L. Kuznetsov and V. Yu. Kukushkin, Dalton Trans., 2008, 5178 DOI: 10.1039/B806862C
