Issue 39, 2008
From the journal:

Dalton Transactions

Diversification of hydrothermal reaction products induced by temperature: syntheses, structures and properties of four La(iii)–Cu(ii) metal frameworks constructed from rod-shaped molecular building blocks†

Junwei Ye,*a   Jingying Zhang,b   Ling Ye,b   Dong Xie,a   Tao Xu,a   Gang Lia  and  Guiling Ning*a

* Corresponding authors

a State Key Laboratory of Fine Chemicals, School of Chemical Engineering, Dalian University of Technology, 158 Zhongshan Road, Dalian 116012, P. R. China
E-mail: junweiye@dlut.edu.cn, ninggl@dlut.edu.cn
Fax: +86 411 8899 3609

b State Key Laboratory of Supramolecular Structure and Materials, Jilin University, College of Chemistry, Jilin University, Changchun 130012, P. R. China.

Abstract

The hydrothermal reaction of La(III), Cu(II) and 5-nitroisophthalic acid (H2NIPH) at different temperatures produced four novel coordination polymers, [LaCu(NIPH)(ONIPH)(H2O)4]·H2O (1), [La2Cu(NIPH)4(H2O)6] (2), [La2Cu(NIPH)4(H2O)2] (3) and [LaCu(NIPH)2(HNIPH)(H2O)2]·2H2O (4), (HONIPH = 2-hydroxy-5-nitroisophthalate), these 2D and 3D frameworks are the first La(III)–Cu(II) heterometallic frameworks based on infinite rod-shaped molecular building blocks. In 1, a 2D layer is composed of infinite La–O–C–O–Cu rods consisting of alternating [La2O14(CO2)2] and [Cu2O8] units by corner sharing. The 3D frameworks of 2–4 are constructed from different rod-shaped molecular building blocks, which are linked by NIPH ligands to form a pcu-type rod packing arrangement. Interestingly, HONIPH came from the in situhydroxylation of H2NIPH in the hydrothermal reaction.

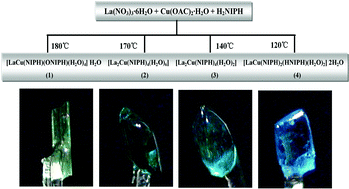

Graphical abstract: Diversification of hydrothermal reaction products induced by temperature: syntheses, structures and properties of four La(iii)–Cu(ii) metal frameworks constructed from rod-shaped molecular building blocks

About
Cited by
Related
Download options Please wait...

Supplementary files

Article information

DOI
https://doi.org/10.1039/B806502K
Article type
Paper
Submitted
17 Apr 2008
Accepted
23 Jun 2008
First published
19 Aug 2008

Dalton Trans., 2008, 5342-5349

Permissions

Request permissions

Diversification of hydrothermal reaction products induced by temperature: syntheses, structures and properties of four La(III)–Cu(II) metal frameworks constructed from rod-shaped molecular building blocks

J. Ye, J. Zhang, L. Ye, D. Xie, T. Xu, G. Li and G. Ning, Dalton Trans., 2008, 5342 DOI: 10.1039/B806502K

To request permission to reproduce material from this article, please go to the Copyright Clearance Center request page.

If you are an author contributing to an RSC publication, you do not need to request permission provided correct acknowledgement is given.

If you are the author of this article, you do not need to request permission to reproduce figures and diagrams provided correct acknowledgement is given. If you want to reproduce the whole article in a third-party publication (excluding your thesis/dissertation for which permission is not required) please go to the Copyright Clearance Center request page.

Read more about how to correctly acknowledge RSC content.
