A virtual valve for smooth contamination-free flow switching

Author affiliations


We present a channel geometry that allows for clean switching between different inlets of a microchip without any contamination of the inlets or the downstream flow. We drive this virtual valve with a pneumatic pressure setup that minimizes disturbance of the downstream flow during the switching procedure by simultaneous variation of the pressures applied to the different inlets. We assess the efficiency of the setup by spectroscopic measurement of downstream dye concentrations, and demonstrate its practical utility by sequentially constructing multiple layers of alginate hydrogel. The method is potentially useful for a whole series of further applications, such as changing perfusion liquids for cell culture and cell analysis, metering, chemical-reaction initiation and multi-sample chromatography, to name a few.

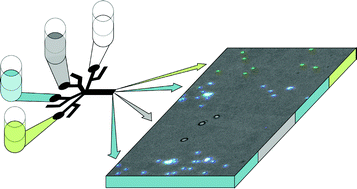

Graphical abstract: A virtual valve for smooth contamination-free flow switching

Back to tab navigation

Publication details

The article was received on 04 Jun 2007, accepted on 12 Jul 2007 and first published on 20 Jul 2007

Article type: Communication
DOI: 10.1039/B708360B
Citation: Lab Chip, 2007,7, 1111-1113

  •   Request permissions

    A virtual valve for smooth contamination-free flow switching

    T. Braschler, J. Theytaz, R. Zvitov-Marabi, H. V. Lintel, G. Loche, A. Kunze, N. Demierre, R. Tornay, M. Schlund and P. Renaud, Lab Chip, 2007, 7, 1111
