Purification of Hf in silicate materials using extraction chromatographic resin, and its application to precise determination of 176Hf/177Hf by MC-ICP-MS with 179Hf spike

Author affiliations

Abstract

A two-stage column purification method for Hf from Zr and other elements in silicate samples using the extraction chromatographic resin, UTEVA has been developed. In the first column, using an anion-exchange resin, AG 1X8, Hf, Zr and Ti were collected. In the second, using UTEVA, and after eliminating F by evaporation with HClO4 and re-dissolution with H2O2HNO3, Hf was purified from Ti and Zr, based on characteristic of the UTEVA resin that Hf distribution coefficient (Kd) decreases from 770 to 40, while Kd of Zr decreases less from 890 to 200, in 9 and 6 mol l−1 HNO3, respectively. The recovery yield of Hf was ∼88% and total blank was ∼4 pg. A MC-ICP-MS Hf isotope ratio determination method was also developed, which uses 179Hf spike for simultaneous determination of the Hf concentration and 176Hf/177Hf ratio. Combining the chemistry and ICP-MS techniques, 176Hf/177Hf ratios in silicate reference materials were determined with and without the spike, which gave identical results, showing the applicability of this method.

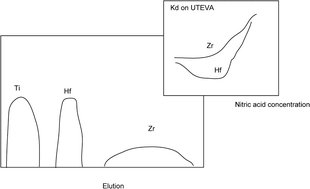

Graphical abstract: Purification of Hf in silicate materials using extraction chromatographic resin, and its application to precise determination of 176Hf/177Hf by MC-ICP-MS with 179Hf spike

Back to tab navigation

Publication details

The article was received on 17 Jul 2006, accepted on 29 Aug 2006 and first published on 22 Sep 2006


Article type: Paper
DOI: 10.1039/B610197F
Citation: J. Anal. At. Spectrom., 2007,22, 69-76
  •   Request permissions

    Purification of Hf in silicate materials using extraction chromatographic resin, and its application to precise determination of 176Hf/177Hf by MC-ICP-MS with 179Hf spike

    Y. Lu, A. Makishima and E. Nakamura, J. Anal. At. Spectrom., 2007, 22, 69
    DOI: 10.1039/B610197F
