Here, we present the synthesis of diblock copolymers of poly(ethylene glycol) methyl ether-b-poly(ε-caprolactone) (mPEG-b-PCL) with prop-2-ynyl (propargyl) substituents on ε-caprolactone (ε-CL) units. The copolymerization of ε-CL with its propargylated derivative initiated by mPEG, followed by a thiol–yne click reaction with 1-thioglycerol, results in copolymers featuring vicinal diols capable of reversibly binding boronic acid derivatives. Detailed kinetic experiments were conducted to monitor the homo- and copolymerization of ε-CL with 7-(prop-2-ynyl)oxepan-2-one. By analyzing the kinetic data, we calculated the copolymerization parameters and mapped the composition profile of the resulting copolymers. The resulting gradient copolymers exhibited a lightly tapered composition profile, with an increase in ε-CL consumption at higher conversions where the more reactive 7-(prop-2-ynyl)oxepan-2-one is almost depleted. These findings were further validated through quantum chemical calculations, providing insights into the precise structure and composition of the copolymers. Characterization of the self-assembled nanoparticles was performed using static and dynamic light scattering, and their morphology was visualized via conventional and cryogenic transmission electron microscopy, confirming the formation of small, homogeneous spherical micelles. To demonstrate their potential in drug delivery, we combined a model drug consisting of a phenylboronic acid-conjugated metallacarborane cluster with diblock copolymer, utilizing reversible bonding between diols and phenylboronic acid and investigated the impact of drug loading on nanoparticle properties. Our comprehensive study underscores the importance of precise synthesis and structural prediction in the development of biodegradable diblock copolymers, offering valuable insights into their synthesis, kinetic behavior, and nanoscale assembly for advanced drug delivery applications.
Considerable research efforts have been made to modify synthetic polyesters to tackle their main limitations, namely inherent hydrophobicity and lack of chemical functionalities between the backbone ester groups.13 The solution is the modification of the polyester backbone with adequate functional groups that can be attached via polymerization of pre-functionalized monomers,14–17 post-polymerization modifications18–20 or the combination of both methods.21–25 Combined synthetic pathways are based on functionalized monomers that are suitable for subsequent click reactions, such as thiol–ene or thiol–yne click reactions.26–29 One of the appropriate monomers for the thiol–yne click reaction is propargyl substituted ε-caprolactone (PgCL). This monomer is typically produced as an isomeric mixture of 3- and 7-(prop-2-ynyl)oxepan-2-ones (3- and 7-isomers) containing 30% of the 3-isomer and it has been widely used in biomedical applications of the respective (co)polymers.29–36
In cancer therapy, conventional low-molecular therapeutics exhibit unfavorable pharmacokinetics, suboptimal biodistribution, short blood half-life and prominent off-target, resulting in severe side effects. In comparison, nanoparticle formulations of the desired size (over 40 kDa to exceed the renal clearance threshold) show reduced kidney excretion and therefore prolonged circulation half-life. The half-life can be further improved by coating the nanoparticles with stealth polymers. Notably, poly(ethylene glycol) coatings are extensively used to prevent aggregation and opsonization with plasma proteins.37 Several types of boron-containing compounds are frequently considered for cancer treatment, such as boronic acids and boron clusters.38 Boronic acids (BAs) are inherently electron-deficient organoboron compounds due to a vacant p-orbital on the boron atom. In aqueous media, hydroxyl groups act as Lewis bases interconverting the sp2-hybridized form of BAs to a tetrahedral sp3 hydroxyboronate anion in a pH-dependent equilibrium. Although both forms bind to 1,2- and 1,3-diols, boronate esters formed by the latter are more hydrolytically stable.39 Despite being highly reactive, BAs show remarkable stability and a very low toxicology profile.40 Owing to these properties, BAs are employed as stimuli-responsive groups, as targeting ligands, and as therapeutics. In BA-containing materials for drug delivery, not only pH but also reactive oxygen species (ROS) and diols such as sugars and adenosine triphosphate (ATP) can be used as release triggers.41–43
Boron clusters are polyhedral boron hydrides whose high boron content makes them suitable for boron neutron capture therapy (BNCT).38 Upon irradiation with thermal neutrons, boron-10 atoms yield recoiling lithium-7 nuclei and alpha particles which destroy biologically active molecules, such as DNA, RNA, and proteins. The short path of these particles (approximately one cell in diameter – 10–14 μm) and the weak hydrogen and nitrogen capture cross-section limit damage to normal tissue.44 Nevertheless, delivering boronated compounds to a tumor while avoiding significant uptake in normal tissues and adsorption to plasma proteins remains a challenge.45 A promising strategy for overcoming these drawbacks is integrating boron clusters with polymeric delivery systems.38
Thus, we prepared several diblock copolymers mPEG-b-P(ε-CL-co-PgCL) bearing propargyl pendant groups. The subsequent modification of reactive triple bonds via a thiol–yne click reaction with 1-thioglycerol yielded copolymers bearing vicinal diols, which can reversibly bind to boronic acid derivatives. Additionally, we studied the kinetic profile of ε-CL/PgCL copolymerization and characterized the self-assembled nanoparticles by static and dynamic light scattering. The formation of small, homogeneous spherical micelles was visualized using conventional (negatively stained samples) and cryogenic transmission electron microscopy. Finally, we encapsulated a newly synthesized model drug, COSAN-pyridinium-3-boronic acid conjugate, into spherical micelles and investigated the effect of drug loading on these particles.
Entry | n mPEG (mmol) | PgCL (eq.) | t (h) | Conv.b (%) | N ε-CL | N PgCL | DSd (%) |
M
n![]() |
Đ |
M
n
NMR![]() |
---|---|---|---|---|---|---|---|---|---|---|
a ε-CL/PgCL = 3/1, mPEG/SnOct2 = 1/0.5, Mn(mPEG) = 5 kg mol−1, and Vtoluene = 3 ml. b Total monomer conversion determined by 1H NMR. c Number of repeating units determined by 1H NMR. d Degree of substitution determined by 1H NMR. e Apparent number-average molar masses (Mn) and dispersities (Đ) determined by SEC-ELS with PS calibration in THF at 25 °C. f Determined by 1H NMR. | ||||||||||
1a | 0.2 | 11 | 3 | 89 | 33 | 6 | 15 | 12.0 | 1.19 | 9.6 |
1b2 | 0.2 | 26 | 8 | 91 | 65 | 11 | 15 | 15.1 | 1.21 | 14.1 |
1c | 0.1 | 71 | 14 | 94 | 202 | 34 | 15 | 30.3 | 1.27 | 32.9 |

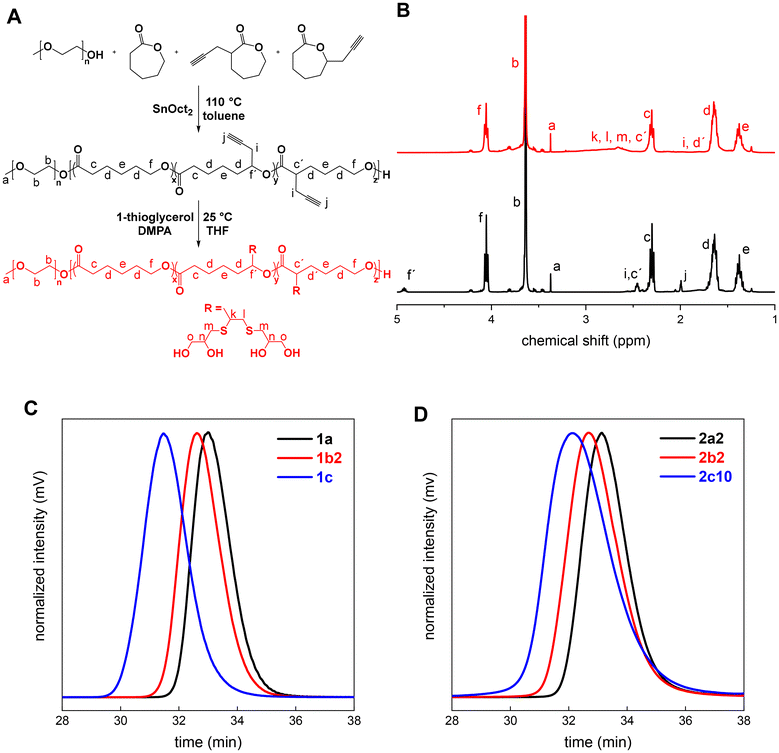

All three copolymerization experiments showed the controlled polymerization behavior with the dispersity values increasing from 1.20 to 1.30 with prolongation of the polymerization time (Table 1). The total monomer conversion was constantly around 90% for different polymerization times, which was accompanied by the same degree of substitution (DS) for all copolymers (15%). This further indicates the well-controlled polymerization process, even at longer polymerization times (entries 1b2 and 1c, Table 1), which enabled the subsequent modification of the synthesized diblock copolymers via a thiol–yne click reaction.
Entry | n PgCL (mmol) | DSb (%) |
M
n![]() |
Đ |
M
n
NMR![]() |
---|---|---|---|---|---|
a m mPEG-b-P(ε-CL-co-PgCL) = 0.4 g, VTHF = 4 ml, PgCL/α-TG/DMPA = 1/15/0.5, I = 9 mW cm−2, and t = 65 min. b Degree of substitution determined by 1H NMR. c Apparent number-average molar masses (Mn) and dispersities (Đ) determined by SEC-ELS with PS calibration in THF at 25 °C. d Determined by 1H NMR. | |||||
2a2 | 0.25 | 16 | 9.9 | 1.35 | 8.6 |
2b2 | 0.31 | 15 | 12.4 | 1.42 | 13.6 |
2c10 | 0.41 | 15 | 14.5 | 1.70 | — |
The adopted reaction conditions resulted in negligible degradation within the modification of diblock copolymers 1a and 1b2 (Table 1). Only a slight decrease of molar mass accompanied by mild broadening of its distribution was observed (Table 2), as shown in Fig. S1(A and B).† The only exception was sample 2c10, containing the longest hydrophobic block, that showed twice lower molar mass with the increase of dispersity from 1.27 to 1.70 after UV exposure (C, Fig. S1†). This behavior is in line with the previously published data, describing that longer PCL chains are more inclinable to undergo UV degradation.46 However, all diblock copolymers modified with 1-thioglycerol (Table 2) exhibited the same degree of substitution as the starting copolymers (Table 1). Moreover, no double bonds were detected in the 1H NMR spectra (B, Fig. 1). This indicates that each alkyne functional group was reacted with two thiol species, generating a dithioether. These findings are in line with previous observations, upon monitoring the concentration of functional groups by IR spectroscopy.47
Linear dependency of ln([M0]/[Mt]) (Fig. 2) on time showed that the propagation reaction of ε-CL and 7-isomer copolymerization is first order with respect to the monomer concentration, confirming the controlled character of copolymerization (Fig. 2). Living/controlled copolymerization behavior was further suggested by increasing molar mass with reaction time, showing narrow SEC-ELS traces (right part of Fig. S2†) with low dispersities, which were below 1.20 (Table S1†). Apparent molar masses (SEC-ELS with PS calibration) of the synthesized copolymer displayed linear dependencies when plotted with conversion (left part of Fig. S2†), which is also a crucial factor of living/controlled copolymerization.48
![]() | ||

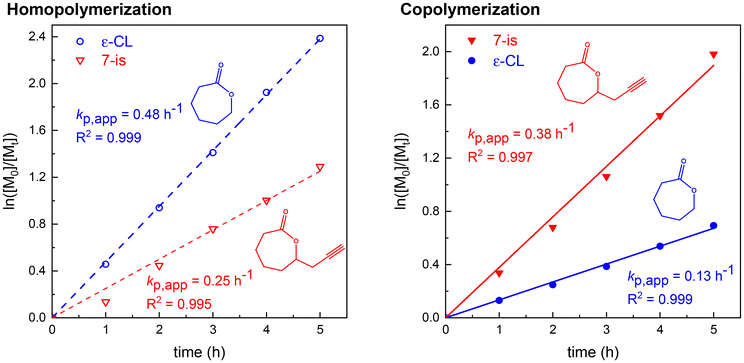

Fig. 2 Kinetic plots of the homopolymerization of ε-CL and 7-(prop-2-ynyl)oxepan-2-one (left) and their mutual copolymerization (right) in toluene catalyzed by BnOH/TBD at 30 °C. |
Data from kinetic experiments were also utilized in the calculations of the copolymerization parameters of ε-CL and 7-(prop-2-ynyl)oxepan-2-one. The reactivity ratio of both comonomers was identified by 1H NMR analysis of the reaction mixtures that provided the total monomer conversion and the evolution of monomer feed composition within the copolymerization reaction. This set of experimental data was processed with the Integrated Ideal Model (A, Fig. 3). The Integrated Ideal Model was developed by Frey et al.49 and it is derived from Wall's non-terminal (“ideal”) model,50 describing the ideal copolymerization (r1·r2 = 1). The calculated copolymerization parameters of the ε-CL and 7-isomer couple obtained from the Integrated Ideal Model (rε-CL = 0.36; r7-is = 2.79) confirmed the higher reactivity of the 7-isomer (A, Fig. 3).
The same data set (total conversion vs. monomer feed composition) was also evaluated with the more complex terminal model originally proposed by Mayo and Lewis.51 The differential Mayo–Lewis equation was combined with the Skeist relation52 and converted to the integrated model by Meyer and Lowry.53 The Meyer–Lowry model (Fig. S3†) provided similar copolymerization parameters (rε-CL = 0.28; r7-is = 2.05) to the Integrated Ideal Model (rε-CL = 0.36; r7-is = 2.79, Fig. 3A) without a significant change in the fit quality. Overall, the Integrated Ideal Model can sufficiently describe the experimental data, which clearly indicates the ideal copolymerization of ε-CL with the 7-isomer. The similar copolymerization behavior has been already studied for different monomer systems.49,54,55

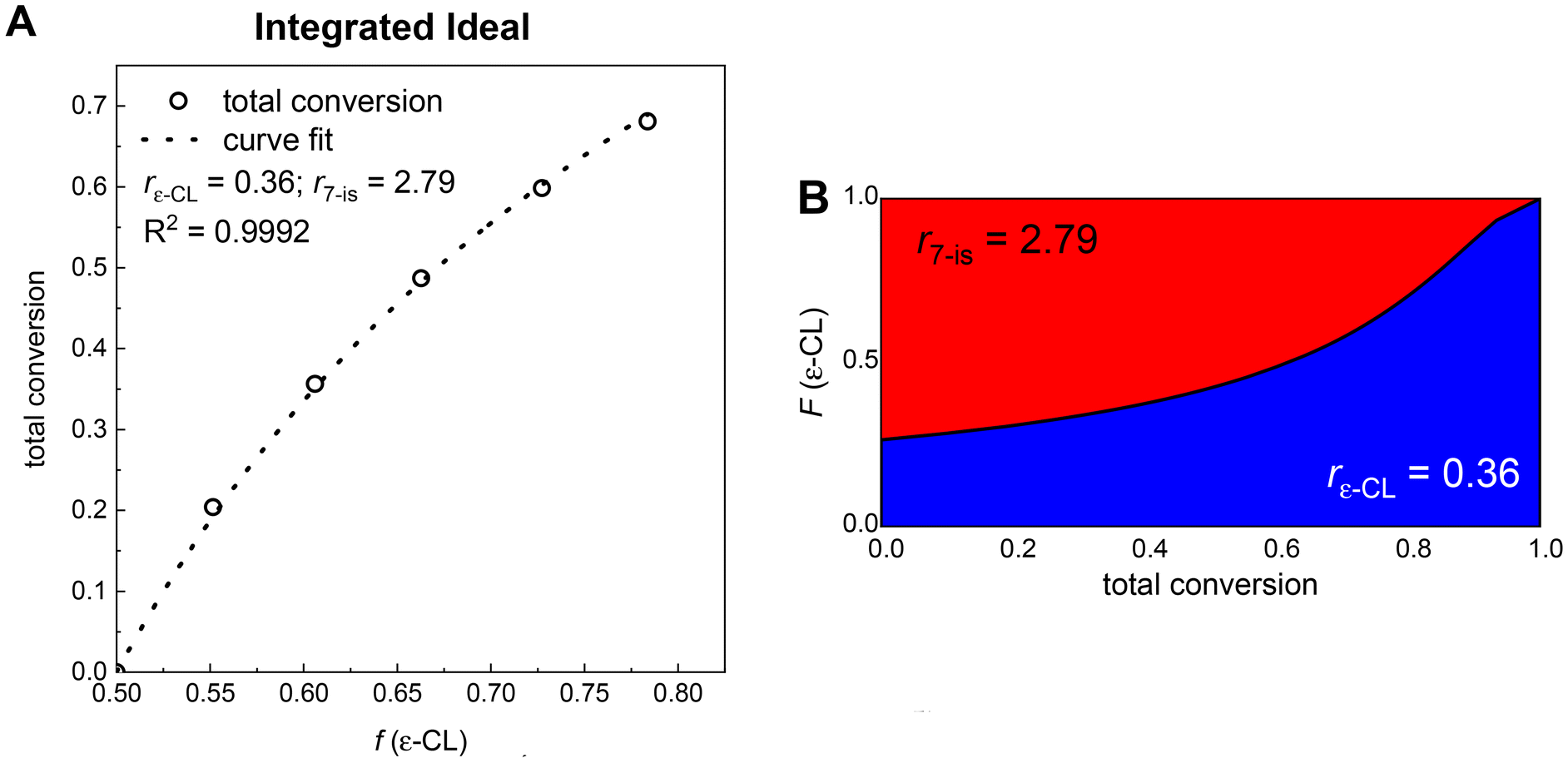

Copolymerization parameters obtained from the Integrated Ideal Model49 enabled the calculation and further precise display of structural composition along the polymer chain by applying the Skeist model (Table S2† and Fig. 3B).52 The resulting gradient copolymer showed a lightly tapered composition profile with an increase of the ε-CL consumption at higher conversions where the more reactive 7-isomer is almost enervated (B, Fig. 3). Moreover, our kinetic experiments were further supported by quantum chemical calculations.
The calculation of the energy profiles (Table S3a†) of the initial step of the ε-CL ROP started with the conformational analysis of the initial structure I1 and the first transition structure TS12 (see Scheme 1). From all obtained conformers, the one showing the lowest Gibbs free energy of TS12 was selected for a detailed study of the ROP mechanism (Scheme 1). The free energy of the starting structure I1 under vacuum is 2.5 kcal mol−1 above the ground state, which agrees very well with the value of 2.8 kcal mol−1 found by Nifant'ev et al.59 for an analogical complex of ε-CL with methanol and TBD. In toluene, this value increases to 4.6 kcal mol−1. This value is only slightly lower than the free energies of the structure I1 of the 3-isomer and 7-isomer found in our previous study.55 The free energy of the first transition state TS12 of ε-CL was found to be 21.5 kcal mol−1 under vacuum and 22.3 kcal mol−1 in toluene. Both these values lie between the corresponding energies of the TS12 state of the 3-isomer and 7-isomer. This finding indicates that initiation of the ε-CL as well as 7-isomer reaction will be easier than initiation of the 3-isomer one, which is sterically disfavored by the propargyl group bound next to the reactive carbonyl group. Transformation of the structure I2 into I3 proceeds with a small energy barrier of ca. 2 kcal mol−1 and negligible reaction energy. Then, the structure I3 relaxes to its conformers I3r and I3r2. The free energy of the last transition state TS34 is comparable to that of the first transition state TS12. In toluene solution, the last transition state TS34 is the highest one in energy on the whole reaction path. Thus, similarly to the 7-isomer,55 ε-CL may undergo several forward and reverse reactions between the initial state I1 and the intermediate state I3r2 before crossing the TS34 transition state. However, the energy difference between the first transition state TS12 and the highest transition state on the whole reaction path is only ca. 0.3 kcal mol−1 for ε-CL (in toluene), while it is 1.1 kcal mol−1 for the 7-isomer. Thus, we expect that the reverse reaction and its impact on the polymerization rate are much less significant for ε-CL than for the 7-isomer which is in agreement with the homopolymerization kinetic study (left, Fig. 2). Note that for ε-CL under vacuum, TS12 is the highest transition state. The free energy of the I4 state is 4.2 kcal mol−1 under vacuum and 7.5 kcal mol−1 in toluene, respectively, i.e. it is much lower than that of the TS34 state. The exothermic reaction from the I4 state to the I5 state consists of straightening of the opened ε-CL ring after cleavage of the weak NH–O hydrogen bond. The free energy of the final state I5 is −1.5 kcal mol−1 under vacuum and 1.2 kcal mol−1 in toluene, respectively, with respect to the ground state. Thus, the entire reaction from I1 to I5 is exothermic with a reaction energy of −3 to −4 kcal mol−1. It should be pointed out that in a solution, the hydrogen bond cleaved in the reaction I4 → I5 can be replaced by a hydrogen bond to surrounding molecules, which further decreases the reaction energy and disfavors the reverse reaction I5 → I1. The complete set of the thermodynamic data (Table S4a†) and optimized Cartesian coordinates of all intermediates and transition states (Table S5†) are shown in the ESI.†
The energy barrier of the subsequent step of the ε-CL homopolymerization reaction (24.9 kcal mol−1) is considerably smaller than that of both other compounds (27.7 and 26.0 kcal mol−1), which agrees with the experimental finding that ε-CL homopolymerization is the fastest one (Fig. 4). It should be noted that although the reverse reaction is possible in the initial step of ε-CL homopolymerization, its effect on the rate of homopolymerization is less significant than for the 7-isomer (vide supra).
![]() | ||
Fig. 4 Kinetic plot of the homopolymerization of ε-CL and 3- and 7-(prop-2-ynyl)oxepan-2-ones in toluene catalyzed by BnOH/TBD at 30 °C. |
Regarding the copolymerization of ε-CL with the 7-isomer, the energy barrier of addition of a 7-isomer unit is lower than that of addition of a ε-CL unit for both the ε-CL chain end (24.2 vs. 24.9 kcal mol−1) and 7-isomer chain end (26.0 vs. 26.3 kcal mol−1), which explains the observed greater reactivity of the 7-isomer in this copolymerization despite less reactivity of this compound during homopolymerization (Fig. 2). The same effect was previously observed in the copolymerization of the 3-isomer with the 7-isomer.55 On the other hand, in the copolymerization of ε-CL with the 3-isomer, the reactivity of the 3-isomer is expected to be lower than the reactivity of ε-CL, similarly to homopolymerization. The complete set of the thermodynamic data (Table S4b†) and the optimized Cartesian coordinates of all intermediates and transition states (Table S6†) are shown in the ESI.†
To compare the obtained theoretical results with the observed reaction rates of ε-CL and the 7-isomer during homopolymerization (left, Fig. 2), we will describe the entire observed ROP reaction simply as a 1st order reaction with a single activation energy determined according to the Eyring–Polanyi equation
![]() | (1) |
(a) Homopolymerization | ||||
---|---|---|---|---|
k (h−1) | ΔG‡exp (kcal mol−1) | ΔG‡ini (kcal mol−1) | ΔG‡next (kcal mol−1) | |
Toluene | ||||
ε-CL | 0.48 | 23.12 | 22.60 | 24.87 |
7-Isomer | 0.25 | 23.51 | 22.70 | 25.96 |
(b) Copolymerization | |||||
---|---|---|---|---|---|
k (h−1) | ΔG‡exp (kcal mol−1) | ΔG‡ini (kcal mol−1) | ΔG‡next (end = ε-CL) (kcal mol−1) | ΔG‡next (end = 7-is) (kcal mol−1) | |
Toluene | |||||
ε-CL | 0.13 | 23.91 | 22.60 | 24.87 | 26.30 |
7-Isomer | 0.38 | 23.26 | 22.70 | 24.16 | 25.96 |
The experimental values of the Gibbs energies of activation ΔG‡exp lie between the theoretical values for the initial step ΔG‡ini and for the subsequent steps ΔG‡next. Since the weight of the subsequent steps in the polymerization is probably greater than the initial one, theoretical values can be considered slightly overestimated. Nevertheless, for absolute values of activation energies, such differences between the DFT and experimental results are fully acceptable.
To compare the rate constants of both compounds ε-CL and the 7-isomer, we assume the same value of the transmission coefficient κ and the same temperature T. Then, eqn (1) can be rewritten as
![]() | (2) |
We see that the experimental value of the ratio of rate constants kCL/k7-is is about 1.9, lying between the theoretical values for the initial step 1.2 and for the subsequent steps 6.1, determined from the DFT-calculated activation energies (Table 3) using eqn (2).
The experimental (right, Fig. 2) and theoretical (Table S3†) results obtained for copolymerization of ε-CL and the 7-isomer can be compared in the same way. The experimental activation energies ΔG‡exp lie again between the theoretical values for the initial and subsequent steps. The experimental value of the ratio kCL/k7-is is about 0.34. While the theoretical value of this ratio for the initial step is essentially the same as for the homopolymerization (i.e., 1.2), the more important values calculated for the subsequent steps are 0.57 and 0.31, depending on the type of chain end. Since both values are significantly less than one, we conclude that the quantum chemical calculations support the experimentally observed reverse reactivity of ε-CL and the 7-isomer during their homo- and copolymerization.

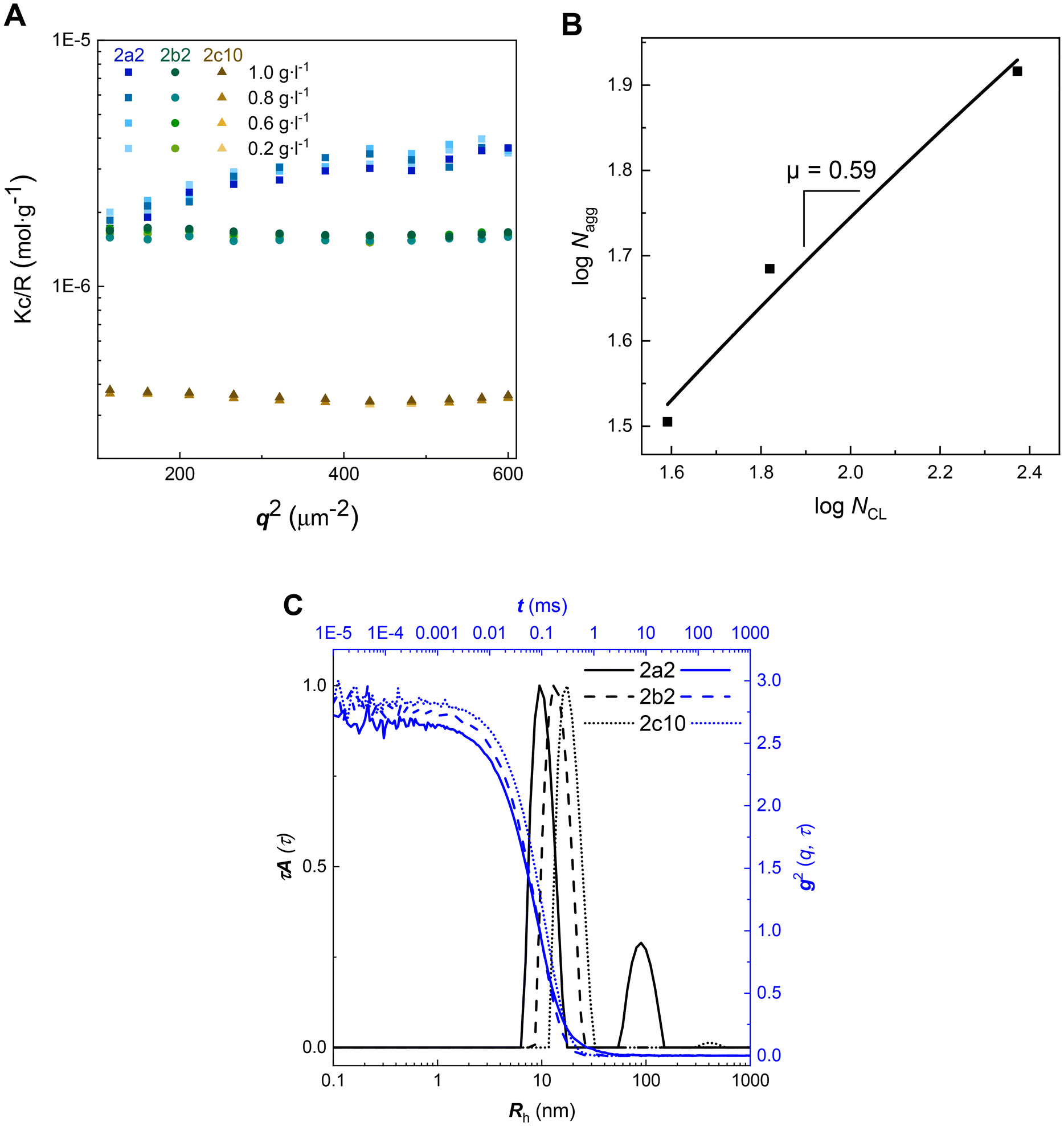

Light scattering (LS) is a powerful technique for analyzing nanoparticles in solution.62 Static light scattering (SLS), utilizing the angle-independent scattering data enabled the determination of the molecular weight of nanoparticles (Fig. 5A and Table 4), however, it did not provide information on the radius of gyration, as the size of nanoparticles is below the limit of λ/20 (λ = 660 nm as described in the Methods section in the ESI†). To assess how many polymer chains comprise one nanoparticle, we determined the aggregation number Nagg by dividing the molar mass of a nanoparticle by the molar mass of an unimer.
The scaling of the mean aggregation number was predicted for diblock copolymers A–B (A represents corona) that form micelles with thin dense coronas (NB ≫ NA) and for star-like micelles with extended coronas (NB ≪ NA).63,64 Fitting a plot of logNagg as a function of the logarithm of the number of PCL units (NCL) (B, Fig. 5) yielded the scaling relation Nagg ≈ NCLμ where μ = 0.59. Our experimental scaling exponent was lower than those determined theoretically for either micellar type (μ = 1.0 for micelles with thin coronas and μ = 0.8 for micelles with extended coronas).63 The discrepancy between our experiments and theory could be explained by the fact that only sample 2c10 (Table 2) fits to the theoretical condition NB ≫ NA. Moreover, our hydrophobic (B) block does not consist of one type of monomer unit, which is in contrast with the theoretical data.63
The apparent size distributions of nanoparticles 2a2, 2b2, and 2c10 calculated from the dynamic light scattering (DLS) data measured at a finite scattering angle 90° were unimodal and very narrow (C, Fig. 5). The only exception was sample 2a2; however, the second distribution is minor, as it is intensity weighted (C, Fig. 5). Their hydrodynamic radii were rather small (in agreement with the angle-independent scattering observed in SLS), increasing slightly with the length of the hydrophobic block (Table 4). The average nanoparticle density was determined according to the following relationship: ρ = 3Mw/(4πNARh3), where Mw stands for the molar mass of the nanoparticles determined by SLS, Rh stands for the corresponding hydrodynamic radius of the nanoparticles, and NA is the Avogadro number. The average densities of the nanoparticles were relatively low. Small hydrodynamic radii accompanied by low aggregation numbers indicate the formation of “fluffy” solvent-swollen nanoparticles. It can be concluded that 2a2, 2b2, and 2c10 formed small spherical micelles.
In light scattering, particle size and shape are determined indirectly. Thus, we visualized the prepared nanoparticles for direct and unambiguous size and shape determination via transmission electron microscopy (TEM). We performed TEM using negative staining with uranyl acetate to improve the TEM contrast65 and we also performed cryo-TEM. Both of these techniques depicted small, well-dispersed, and homogeneous spherical micelles of sample 2b2 (Fig. 6) with a micellar core of about 7 nm in diameter (as observed in cryo-TEM), shrinked to approximately 4 nm when the sample was dried (classical TEM). The value obtained from cryo-TEM is in a good agreement with the hydrodynamic radius determined by DLS (RH = 14 nm, Table 4), as it corresponds to the whole core–shell nanoparticle, while the PEG hydrophilic corona cannot be visualized by TEM techniques, as soft materials with low atomic numbers do not deflect electron beam sufficiently and exhibit poor scattering contrast.66,67
![]() | ||
Fig. 6 Sample 2b2 visualized by TEM with negative uranyl acetate staining (left) and cryo-TEM (right, the inset shows the histogram of micelle size distribution). |
A solution of polymer 2a2, the redox probe CosBA and pyridine in dry acetonitrile-d3 was prepared and analyzed using 1H and DOSY NMR in order to investigate the CosBA binding to the diol-decorated polymer. Pyridine was added as a ligand that facilitates the formation of boronic acid ester.68 DOSY signals of the polymer and CosBA were integrated manually for each experiment and fitted with the exponential decay of signal intensities, demonstrating that CosBA is attached to polymer 2a2 (A, Fig. 7).
![]() | ||
Fig. 7 DOSY (A and B) and 1H (C) NMR monitoring of CosBA encapsulation, and a simplified scheme of the interaction between polymer 2a2, CosBA and glycerol (D). |
Furthermore, we added glycerol (20 eq. with respect to CosBA) to the solution of the polymer and CosBA. Glycerol has a higher binding affinity towards CosBA in comparison with the diol-decorated polymer,41 resulting in CosBA release from the polymer, as visualized in Fig. 7B. This process was also monitored by 1H NMR (C, Fig. 7), showing the disappearance/shift of the characteristic CosBA signal at 4.66 ppm when attached to the polymer (black and red curves, Fig. 7). The same signal was observed again after the addition of glycerol (blue curve, Fig. 7C).
Finally, we studied how the encapsulation of CosBA affects the nanoparticle characteristics. We dissolved 2a2, 2b2, and 2c10 (1 eq.) and CosBA (0.7, 0.5 and 0.4 eq. per diol-modified ε-CL unit respectively) in THF and then proceeded according to the previously used protocol to prepare nanoparticle solutions (Experimental section). The THF/water solutions containing CosBA were intensively yellow. During the dialysis, the dialysate remained colorless while the sample inside the dialysis membrane retained its yellow color. No precipitation occurred when the solvent was gradually changed from THF-rich to deionized water and for at least two weeks after the nanoparticle preparation. These observations visually confirmed the encapsulation of CosBA into polymeric micelles as the small molecules did not diffuse through the porous membrane or precipitate due to its limited solubility.
The SLS and DLS experiments of the loaded nanoparticles are summarized in Table 4. Apparent distributions of hydrodynamic radii at 130° were calculated from the corresponding autocorrelation functions (Fig. S4†).
The dispersity of loaded nanoparticles is higher in comparison with neat ones (C, Fig. 5vs. Fig. S4†) and, interestingly, significantly decreases with nanoparticle size (Fig. S4†). We observed virtually no effect of drug loading on the smallest micelles (P2a2, Table 4); however, the asymmetric shape of the distribution curve indicates the presence of a particle fraction with larger hydrodynamic radii, unresolved by the applied fit (size ratio below 2 is beyond the resolution of DLS).62 Conversely, loading with CosBA significantly affects the other samples. Regarding P2b2 and P2c10, CosBA incorporation results in approximately 20% and 100% increase of hydrodynamic radii and the molecular weight with the corresponding aggregation number, respectively. The growth of the micelle does not compensate fully the increase in the number of chains; consequently, the micellar density also increases by approximately 50% (Table 4).
The synthesized amphiphilic diblock copolymers mPEG-b-P(ε-CL-co-PgCL) decorated with vicinal diols allowed the preparation of self-assembled nanoparticles in water, which were characterized by static and dynamic light scattering. The formation of small, homogeneous spherical micelles was visualized by using conventional and cryogenic transmission electron microscopy.
Finally, we encapsulated a newly synthesized model drug, COSAN-pyridinium-3-boronic acid conjugate, into spherical micelles and investigated the effect of drug loading on these particles. The interplay between the model drug and our diblock copolymer was observed by DOSY NMR and light scattering methods. Ultimately, these findings will lead to the reproducible preparation of fine-tuned amphiphilic block copolymers capable of binding to boronic acid-based anticancer agents.
