Integrated assessment of the elimination of particle-associated fecal indicators in algal–bacterial granule photobioreactors

Abstract

Two photo-sequencing batch reactors (PSBR) fed with real wastewater were evaluated to understand the elimination and particle association of fecal indicator bacteria (FIB) and coliphages. The average log₁₀ removal of E. coli and Enterococcus spp. were 3.2 and 2.9, respectively, for the PSBR with a low airflow rate of 0.2 LPM (PSBR-L), and 2.8 and 2.7, respectively, for the PSBR with a high airflow rate of 0.5 LPM (PSBR-H). The average log₁₀ removals of F-specific and somatic coliphages were 2.9 and 3.2, respectively, for the PSBR-L reactor, and 2.5 and 3.1, respectively, for the PSBR-H reactor. FIB had a maximum association on the 20–0.45 μm particles (46.1–63.3%), while the coliphages had the highest association on the 0.45–0.03 μm particles (44.7–51.2%). The dynamic adaptations in the microbial community structure (16S rRNA gene) were also investigated during the operation period. Genera involved in nutrient removal, such as Thauer spp., and Nitrospira spp., were detected across samples. The outcomes reveal the efficiency of photobioreactors in removing pathogen indicators from real wastewater.

---

Water impact

The contamination of water sources with fecal indicators is a significant public health concern, as these organisms indicate the presence of pathogens in water. Algal–bacterial systems offer a sustainable approach for removing fecal indicator bacteria (FIB) and coliphages from wastewater. This study investigates the particle association patterns of these indicators and identifies nutrient-removing bacteria, such as Thauer spp. and Nitrospira spp., that enhance the ecological benefits of this technology. The research contributes to sustainable water treatment solutions and aligns with the global objective of improving water quality through innovative photobioreactor technology. We anticipate that our findings, published in Environmental Science: Water Research & Technology, will inspire further research and practical applications in sustainable water treatment.

1. Introduction

Algal–bacterial granular systems have shown promise as an innovative approach for biological wastewater treatment.¹ The synergistic effects of algae and bacteria in these systems can improve the treatment processes by enhancing the settleability of the granules and removing contaminants such as nitrogen, chemical oxygen demand (COD), heavy metals, and pathogens from wastewater.² Through promoting algal–bacterial aggregation and forming dense granules, biomass can be separated from treated water via sedimentation.^3,4 Despite the effectiveness of this approach in terms of contaminant removal efficiency, the efficiency of algal–bacterial granules in pathogen removal has yet to be fully explored.

The World Health Organization (WHO) guidelines recognize the critical impact that pathogenic microorganisms have in the transmission of disease via water resources and agricultural reuse. Enterococcus spp. and Escherichia coli are commonly used as indicators of fecal contamination in water resources, as well as in agricultural and aquaculture water reuse.⁵ However, they may not be adequate indicators of the presence of enteric viruses, which are more tolerant to treatment processes than bacteria.⁶ Coliphages, specifically somatic and F-specific coliphages, have been suggested as appropriate indicators of the microbiological quality of treated wastewater.⁶ Somatic coliphages are a diverse group of bacteriophages that can infect E. coli and other coliform bacteria, making them the most abundant group of indicator bacteriophages in environmental samples.⁷ F-specific coliphages, on the other hand, can infect E. coli and other coliform bacteria through the transferable F-plasmid, which is encoded in the sexual pili and can be transferred to enteric bacteria via conjugation.⁸ These coliphages are considered to be more suitable indicators of fecal pollution in bodies of water and may provide a more accurate and reliable means of evaluating the safety of water resources for reuse in agriculture and aquaculture.⁹

Previous studies have focused on the growth of microalgae in photobioreactors and biofilm reactors for disinfection purposes, but little is known about the removal of coliphages in these systems.^10,11 Most studies of wastewater pathogens only consider the concentrations of pathogens in the fluid, and thus underestimate the levels of pathogens in the biomass, which can be highly contaminated.¹² Wastewater treatment processes generate biomass that is often reused for land application.^13,14 However, there is a knowledge gap regarding the particle association behavior of potential pathogens. Although several studies have characterized particles in wastewater, the nature of the associations between pathogens and particles remains unclear.^15,16 In particular, little is known about the particle association with algal–bacterial granules, whose compact structure and biofilm layers provide an ideal environment for pathogens to attach and become part of the ecosystem. Elucidating the partitioning of pathogens is essential to facilitate system optimization to improve the efficiency, stability, and effectiveness of pathogen removal in granular reactors.

In this study, two photobioreactors with different airflow rates were operated to facilitate the formation of algal–bacterial granules for wastewater treatment. The specific objectives of this research are (1) to assess the impact of different airflow rates on the removal of fecal indicator bacteria (E. coli and Enterococcus spp.) and coliphages; (2) to understand the association of these microbial indicators with particles of various sizes; (3) to reveal the relationship between airflow rates, reactive oxygen species (ROS) generation and indicator bacteria and coliphage removal in wastewater treatment photobioreactors; and (4) to elucidate the impact of airflow rates on the migration of the microbial community compositions.

2. Materials and methods

2.1. Reactor operation and sample collection

The design and operation of the algal–bacterial granular photobioreactors was detailed by Zhang et al.¹⁷ Briefly, two laboratory-scale photo-sequencing batch reactors (PSBRs) with a 2.5 L working volume were operated at room temperature (25 ± 2 °C). The airflow rates for PSBR-L and PSBR-H were set at 0.2 L min⁻¹ and 0.5 L min⁻¹, respectively. The PSBRs were fed with real wastewater collected from the Penn State Water Reclamation Facility (WRF) every week and stored in a refrigerator at 4 °C for further feed. The NH₄⁺ concentrations of the influent were measured using an ion chromatography (IC) system (DIONEX AQUINO, Thermo Scientific). The COD was determined using Orbeco-Hellige mid-range (0–1500 mg L⁻¹) COD kits following standard method 5200B, while the total suspended solids (TSS) and volatile suspended solids (VSS) were measured according to standard methods.¹⁸ The influent wastewater had average TSS and VSS concentrations of 59.5 ± 34.5 mg L⁻¹, and 39.4 ± 15.1 mg L⁻¹, respectively. The average COD and NH₄⁺-N concentrations were 155.6 ± 48.8 mg L⁻¹ and 52.4 ± 18.2 mg L⁻¹, respectively. Three stages of operations (set-up stage, stage 1, and stage 2) were implemented with varying light phases and feeding conditions. FIB and viruses were monitored during stage 2 (day 75–day 198), when the reactors achieved complete denitrification. Influent and effluent samples were collected weekly for FIB and virus analysis. 18 samples were collected for FIB analysis and 9 for virus analysis. All samples were stored at 4 °C and analyzed within 24 hours of collection. Each measurement was conducted in triplicate.

2.2. Quantification of fecal indicator bacteria and coliphages

The quantification of E. coli and Enterococcus spp. was conducted using membrane filtration based on Environmental Protection Agency (EPA) Methods 1103.1 and 1600, respectively. Coliphages were evaluated using a double agar plaque assay based on the protocols described in Standard Methods 9224B and 9224C. The host bacteria E. coli Famp (ATCC#700891) and E. coli CN13 (ATCC#700609) were used for F-specific and somatic coliphages, respectively. The details of the quantification of FIB and coliphages are provided in the ESI.†

The log₁₀ removal of the four indicator groups was calculated from the difference between their concentrations in the wastewater influent and the effluent according to eqn (1).

where C_o,liq is the pathogen concentration in the influent, C_e,liq is the pathogen concentration in the effluent, and N-liq is the number of samples (number of influent samples = number of effluent samples). Statistical comparisons were performed using paired t-tests to compare the log₁₀ removal rates between both PSBRs. The standard deviations of the log₁₀-transformed concentrations and log₁₀ removal values were calculated based on paired samples collected simultaneously from both reactors.¹⁹

2.3. Particle association and size fraction of the fecal indicator bacteria and coliphages in the photobioreactor

Samples collected from PSBRs were filtered via cascade filtration for the particle association study (Fig. S1†).^20,21 Briefly, 10 mL of each sample was sequentially filtered through 180 μm and 20 μm nylon net filters (Millipore) and 0.45 μm and 0.03 μm polyethersulfone membrane filters (Sterlitech). The qualified influence of each size portion was obtained by dividing the FIB and coliphage concentrations on each filter by the totality of the concentrations on all the filters for that sample.

2.4. Detection of reactive oxygen species

The presence of ROS was detected using the K936-100-250 ROS detection assay kit (BioVision) according to the manufacturer's protocol. The method is briefly described in the supplementary material, and the results using fluorescence microscopy are illustrated in Fig. S2 and S3.† Additionally, the quantification of the ROS “superoxide” was determined by adding 0.5 mL of acetonitrile to a cuvette containing a wastewater sample. The mixture's absorbance was determined using a UV spectrophotometer at a wavelength of 255 nm. The molar concentration of superoxide was determined using Beer's law²² according to eqn (2):where A is absorbance (no units), ε is the molar absorptivity with extinction coefficient units (L mol⁻¹ cm⁻¹), b is the path length of the sample expressed in cm and C is the concentration of superoxide in solution, expressed in mol L⁻¹.

2.5. Impact of wastewater on reactive oxygen species production

Batch experiments of ROS production by algal–bacterial consortia in real and synthetic wastewater systems were set up to evaluate the kinetics of ROS production. Algal–bacterial consortia collected from a stock culture (originally obtained from the settling tank of the Penn State WRF and grown in BG11 medium for over a year), which was also the inoculum for the PSBRs, were inoculated in real wastewater and synthetic wastewater under light with an intensity of 200 ± 15 μmol m⁻² s⁻¹ and dark conditions on a shaking table at 120 rpm for 48 h. The synthetic wastewater composition is detailed in the ESI.† Superoxide was monitored as an indicator of ROS levels, and the data was collected in triplicate. The kinetics of the ROS production were evaluated using a first-order reaction model (eqn (3)) and the Gompertz model (eqn (4)) implemented by Matlab (R2023b).

[A] = a − be^−k₁t (3)

[A] = A exp(−exp(B − k₂t)) (4)

where [A] is the concentration of superoxide, a, b, A, and B are constants in the equations, and k₁ and k₂ are the production rate coefficients (h⁻¹) for the two equations, respectively.

2.6. Microbial community analysis

Biomass samples from both bioreactors, and influent and effluent samples were collected on day 189 for 16S rRNA analysis. The method for DNA extraction and sequencing is described in the ESI.† Alpha diversity indices, including Alpha Shannon, Simpson, Chao1, and ACE, were used to estimate within-species diversity.²³ The “Venn diagram” package was used to visualize the relationships among distinct samples of the microbial community at the genus level (Chen and Boutros, 2011). The Silva 138.1 database was used as a reference database for taxonomic classification. All sequence data was submitted to the Sequence Read Archive (SRA) database at the NCBI under the accession number PRJNA1100726.

2.7. Data analysis

The obtained data were compared via t-test using Microsoft Office Excel 2019, or one-way analysis of variance (ANOVA) at an alpha statistical significance level of 0.05 using Minitab statistical software. Using SPSS 26.0, the correlation coefficient between ROS production and pathogen indicators in mixed liquor samples was checked using Spearman's rank correlation coefficient (r > 0.5, p < 0.05).

3. Result and discussion

3.1. Removal of fecal indicator bacteria and coliphages in the PSBRs

The effects of airflow rates on photobioreactor performance and microbial communities were reported in Zhang et al.¹⁷ In summary, higher air flow rates enhanced the nitrification rate and promoted the formation of compact, stable granules by increasing shear forces within the reactor. A nitrification rate of 4.3 mg N L⁻¹ h⁻¹ was achieved for PSBR-H (0.5 LPM), which was associated with an increase in the relative abundance of Nitrospira spp. and a decrease in the relative abundances of cyanobacteria and Chlorella spp. The average particle sizes for PSBR-L and PSBR-H were 0.29 ± 0.07 mm and 0.25 ± 0.1 mm, respectively. However, no significant differences were observed (p > 0.05).

The coliphage and FIB concentrations in the raw wastewater (influent) remained constant over the experimental period (day 75–day 198) (Table 1). In the influent, E. coli had the highest average concentration, followed by Enterococcus spp. and then F-specific and somatic coliphages (Table 1). The concentrations of coliphages in raw wastewater have been observed to be in the range of 1.00 × 10⁴ to 1.00 × 10⁶ PFU per 100 mL.^24–26 The concentration of E. coli and Enterococcus spp. in raw wastewater ranges from 1.00 × 10⁴ to 1.00 × 10⁹ CFU per 100 mL,^16,27,28 depending on the evaluation method, geographic location, population, and wastewater characteristics.

Table 1 Microbial concentrations and log₁₀ removal throughout the distinct stages of the wastewater treatment system

Stage	Pathogen indicator	Microbial concentrations CFU/100 ml or PFU/100 ml			log10 removal	N
		Mean	Maximum	Minimum
N = number of measurements. Means reported are the geometric means of the concentrations (mean ± SD).
Influent (raw wastewater)	Escherichia coli	5.10 × 10^7	4.61 × 10^8	8.10 × 10^6	—	18
	Enterococcus spp.	1.36 × 10^7	3.63 × 10^7	2.75 × 10^6	—	18
	F-specific coliphages	1.11 × 10^7	2.06 × 10^7	4.35 × 10^5	—	9
	Somatic coliphages	1.05 × 10^7	1.82 × 10^7	5.56 × 10^6	—	9
Effluent PSBR-L	Escherichia coli	9.46 × 10^4	5.50 × 10^5	2.50 × 10^2	3.2 ± 0.39	18
	Enterococcus spp.	9.62 × 10^4	5.20 × 10^5	1.00 × 10^3	2.9 ± 0.19	18
	F-specific coliphages	2.01 × 10^4	1.05 × 10^5	3.67 × 10^3	2.9 ± 0.19	9
	Somatic coliphages	4.8 × 10^3	9.50 × 10^3	2.00 × 10^3	3.4 ± 0.07	9
Effluent PSBR-H	Escherichia coli	1.82 × 10^5	1.65 × 10^6	6.67 × 10^2	2.8 ± 0.36	18
	Enterococcus spp.	1.08 × 10^5	5.05 × 10^5	1.50 × 10^3	2.7 ± 0.21	18
	F-specific coliphages	4.64 × 10^4	2.53 × 10^5	9.00 × 10^3	2.5 ± 0.15	9
	Somatic coliphages	7.28 × 10^3	1.15 × 10^4	1.00 × 10^3	3.2 ± 0.05	9

---

The mean concentrations of the FIB and coliphages in the effluent of PSBR-L were slightly lower than those in the effluent of PSBR-H and exhibited a statistically significant difference, with p-values of 8.72 × 10⁻³, 5.07 × 10⁻³, 4.49 × 10⁻⁴, and 6.11 × 10⁻⁶ for E. coli, Enterococcus spp., F-specific and somatic coliphages, respectively. The PSBR-L had a higher concentration of chlorophyll and more diverse algae composition,¹⁷ which may contribute to the removal of FIB and viruses. E. coli and Enterococcus spp. removal may be impacted by the secondary metabolites generated by algae, including fatty acids, peptides, polysaccharides, and alkaloids.²⁹ Based on 18S amplicon sequencing analysis,¹⁷ two species found in the PSBR, Scenedesmus spp. and Chlorella spp., are well-known to have robust antibacterial activity against both Gram-negative and Gram-positive bacteria.²⁹ The relative abundance of Chlorella spp. ranged from 8–12% for PSBR-L and 1–6% for PSBR-H,¹⁷ while the relative abundance of Desmodesmus spp. was 32% and 74% for PSBR-L and PSBR-H, respectively.¹⁷ The air flow rate significantly affects the relative abundance of the dominant microalgae species (Chlorella spp. and Desmodesmus spp.). Increased aeration enhances oxygen availability and influences microbe–algae interactions, which are essential for nutrient cycling and pathogen removal. The bactericidal activity of Chlorella spp. and Desmodesmus spp. can be attributed to their production of reactive oxygen species and organic compounds, which contribute to the overall pathogen removal efficiency of the photobioreactor system.

Algae in aquatic environments have been reported to trap fine particles, which might include pathogenic bacteria (Fig. S4†). Filamentous algae might produce exopolysaccharides, which facilitate the adhesion of microbes to the algal filaments. This process is considered to be one of the potentially significant mechanisms for pathogen removal from wastewater in PSBR. Additionally, filamentous algae have been observed to harbor enteric bacteria, suggesting that these bacteria can survive for extended periods, sustained by algal exudates and shielded from UV radiation.³⁰

The log₁₀ removals of F-specific and somatic coliphages in PSBR-L were higher than that those in PSBR-H. There was a significant difference between the log₁₀ removal of E. coli, F-specific and somatic coliphages between the two PSBRs, with p-values of 8.65 × 10⁻³, 1.17 × 10⁻³, 8.80 × 10⁻⁵, respectively. However, there was no significant difference in Enterococcus spp. removal between the two PSBRs (p-value = 5.98 × 10⁻²).

One of the potential removal mechanisms of indicators in the PSBRs is biological predation by protozoa organisms. 18S rRNA sequencing analysis illustrated an increase in the abundance of parasites such as rotifers and ciliated taxa during the operation of these algal–bacterial granular PSBRs.¹⁷ Predation might affect coliphages and FIB, and a further biological removal mechanism might occur for FIB, namely, cell lysis due to the use of E. coli or Enterococcus spp. as potential hosts for bacteriophage replication.³¹

Previous studies have demonstrated the efficacy of algae-based and other wastewater treatment systems for pathogenic indicator removal (Table 2). For example, Espinosa et al.,³² used high-rate algal ponds (HRAPs) for the post-treatment of an up-flow anaerobic sludge blanket reactor (UASB) effluent and achieved 4.06 log₁₀ removal of E. coli, which is higher than that in the current study. However, the present study achieved higher log₁₀ removals of FIB and coliphages compared to other HRAP studies.^32–35 The higher FIB and coliphage log₁₀ removal units in the present study could be attributed to the better-controlled environmental conditions, which allowed for optimal growth and activity of the algal–bacterial consortia.³⁶ Furthermore, the granular structure in the PSBRs facilitated the formation of biofilms, which effectively absorbed and removed pathogens from the wastewater. The high surface-area-to-volume ratio of the granules provided ample opportunities for adsorption and subsequent inactivation or removal of FIB and coliphages. Additionally, the variations in influent strength, with the possibility of a lower strength in the present study compared to other field studies, may have influenced the observed results.

Table 2 Comparison of pathogen removal efficiency in effluents of different wastewater treatment systems, (* mean ± SD)

Pathogen Indicator	Treatment system	Size/scale	Source of wastewater	Influent conc. log10 pathogen 100 mL^−1*	log10 removal	Ref.
E. coli	UASB	Pilot-scale (343 L)	Domestic sewage	7.84 ± 1.1	1.09	32
	HRAP	Two HRAPs, each 205 L	Effluent from UASB	4.69 ± 0.63	4.06	32
	HRAP	Two HRAPs, each 860 L	Domestic wastewater	6.7 ± 0.42	1.77	33
	HRAP	Loop raceway 30 m length and 2.5 m width	Septic tank treated effluent	6.35 ± 0.37	1.75	34
	HRAP	Loop raceway 30 m length and 2.5 m width	Facultative pond treated effluent	3.71 ± 0.53	2.75	34
	Horizontal flow constructed wetlands (HFCW)	470–1800 m^2	Decentralized wastewater	7.45 ± 0.21	2.70	37
	Vertical flow constructed wetlands (VFCW)	16–90 m^2	Decentralized wastewater	5.8 ± 0.7	3.35	37
	Biological sand filters (BSF)	26 m^2	Decentralized wastewater	5.7 ± 0.28	4.12	37
	Biofilters (BF)	50 m^2	Decentralized wastewater	5.75 ± 0.49	4.06	37
	CAS	Full-scale	Pre-treated effluent (domestic wastewater)	6.85 ± 0.44	2.3	24
	Membrane bioreactor (MBR)	Full-scale	Pre-treated effluent (domestic wastewater)	6.85 ± 0.44	6.8	24
	CAS	27 m^3	Domestic wastewater	—	3.2	38
	PSBR-L	Lab-scale 2.5 L	Domestic wastewater	7.41 ± 0.33	3.2	Current study
	PSBR-H	Lab-scale 2.5 L	Domestic wastewater	7.41 ± 0.33	2.8	Current study
Enterococcus spp.	HFCW	470–1800 m^2	Decentralized wastewater	6.0 ± 0.28	2.3	37
	VFCW	16–90 m^2	Decentralized wastewater	5.23 ± 1.44	2.41	37
	BSF	26 m^2	Decentralized wastewater	4.9 ± 0.98	2.91	37
	BF	50 m^2	Decentralized wastewater	5.4 ± 0.28	3.16	37
	CAS	Full-scale	Pre-treated effluent (domestic wastewater)	5.90 ± 0.22	1.4	24
	MBR	Full-scale	Pre-treated effluent (domestic wastewater)	5.90 ± 0.22	5.8	24
	CAS	27 m^3	Domestic wastewater	—	3.2	38
	PSBR-L	Lab-scale 2.5 L	Domestic wastewater	7.03 ± 0.23	2.9	Current study
	PSBR-H	Lab-scale 2.5 L	Domestic wastewater	7.03 ± 0.23	2.7	Current study
F-specific coliphages	UASB	Pilot-scale (343 L)	Raw sewage	5.21 ± 0.39	0.56	32
	HRAP	Two HRAPs, each 205 L	Effluent from UASB	4.87 ± 0.59	1.70	32
	HRAP1	Loop raceway 30 m length and 2.5 m width	Septic tank treated effluent	3.88 ± 0.5	0.07	35
	HRAP2	Loop raceway 30 m length and 2.5 m width	Effluent from HRAP2	2.43 ± 1.06	0.24	35
	CAS	Full-scale	Pre-treated effluent (domestic wastewater)	5.94 ± 0.43	3.1	24
	MBR	Full-scale	Pre-treated effluent (domestic wastewater)	5.94 ± 0.43	1.7	24
	CAS	27 m^3	Domestic wastewater	—	3.5	38
	PSBR-L	Lab-scale 2.5 L	Domestic wastewater	6.74 ± 0.27	2.9	Current study
	PSBR-H	Lab-scale 2.5 L	Domestic wastewater	6.74 ± 0.27	2.5	Current study
Somatic coliphages	UASB	Pilot-scale (343 L)	Raw sewage	5.67 ± 0.53	0.40	32
	HRAP	Two HRAPs, each 205 L	Effluent from UASB	5.28 ± 0.53	1.15	32
	CAS	Full-scale	Pre-treated effluent (domestic wastewater)	6.02 ± 0.41	2.7	24
	MBR	Full-scale	Pre-treated effluent (domestic wastewater)	6.02 ± 0.41	2.7	24
	PSBR-L	Lab-scale 2.5 L	Domestic wastewater	6.16 ± 0.36	3.2	Current study
	PSBR-H	Lab-scale 2.5 L	Domestic wastewater	6.16 ± 0.36	3.1	Current study

---

We also compared the FIB and coliphage removal of the PSBRs with those of other biological wastewater treatment systems (Table 2). The PSBRs in the current study demonstrated competitive performance in pathogen removal, particularly for coliphages. For F-specific coliphages, PSBR-L achieved a 2.9 log₁₀ removal, while PSBR-H achieved a 2.5 log₁₀ removal, both of which exceeded the membrane bioreactor (MBR) system rate of 1.7 log₁₀.²⁴ For somatic coliphages, PSBR-L achieved a 3.2 log₁₀ removal, and PSBR-H achieved a 3.1 log₁₀ removal, which were comparable to those of the conventional activated sludge (CAS) and MBR systems, which demonstrated a 2.7 log₁₀ removal.²⁴ The MBRs achieved even higher removal efficiencies for E. coli and Enterococcus spp.^24,38 The performance of the MBRs can be attributed to the physical separation provided by the membrane filtration system, which effectively removes pathogens and other contaminants through size exclusion and adsorption onto the membrane surface. Moreover, MBRs operate with an extended solid retention time (SRT), allowing for the development of a more diverse and abundant microbial community capable of effectively degrading organic matter and inactivating pathogens. Although PSBRs may not achieve the same level of bacterial removal as MBRs, they perform competitively and frequently more effectively than many other systems, particularly in coliphage removal. This suggests that PSBRs could be advantageous in situations in which the costs or operational complexities of MBRs are prohibitive, particularly when viral pathogen removal is a major concern.

3.2. Particle association of fecal indicator bacteria and coliphages

E. coli and Enterococcus spp. demonstrated the highest association with the particles in the size fraction 20–0.45 μm (46% and 57% for PSBR-L and 49% and 63% for PSBR-H), followed by the 180–20 μm, >180 μm, and 0.45–0.03 μm size fractions (Fig. 1). Prior study showed that 95% of FIB were attached to particles in the 30–0.45 μm size range, while less than 5% were retained on filters with particles >30 μm.³⁹ Similarly, a study by Walters et al.⁴⁰ illustrated that 91% of E. coli and 83% of Enterococcus spp. were associated with particle sizes ≤12 μm in the water column. There were no significant differences in the concentrations of E. coli and Enterococcus spp. among the 180–20 μm, >180 μm, and 0.45–0.03 μm particle size fractions for either reactor (p-value > 0.05).

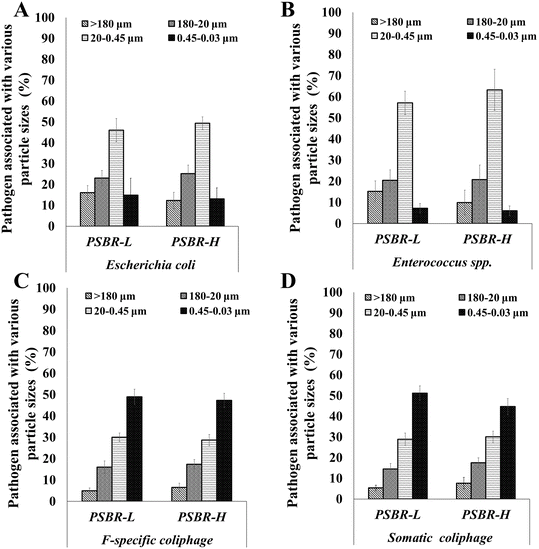

Fig. 1 Particle association of (A) Escherichia coli, (B) Enterococcus spp., (C) F-specific coliphages and (D) somatic coliphages. Pathogen indicators were not detected in the filtrate of the 0.03 μm membrane.

F-specific and somatic coliphages exhibited the highest concentrations on the 0.45–0.03 μm size fraction (48% and 51% for PSBR-L, and 47% and 44% for PSBR-H) compared to the particles retained on the other three filters. For both reactors, F-specific and somatic coliphages demonstrated a significant difference between the 20–0.45 μm and 180–20 μm size fractions. The current study highlights that most FIB were retained on filters with a 0.45 μm pore size, while coliphages were mainly retained on filters with pore sizes as small as 0.03 μm. Coliphages are smaller than bacteria and can pass through the pores of a 0.45 μm membrane unless they adsorb to the membrane or are associated with larger particles. Additionally, FIB and coliphages were not detected in the filtrate of the 0.03 μm membrane (<0.03 μm).

The association of bacterial cells with particles protects the cells from environmental stressors and provides them with organic matter and/or nutrients, enabling their survival and growth.⁴¹ As Chahal et al.¹⁶ demonstrated, larger particles settle due to gravity. The larger size of E. coli and Enterococcus spp. (0.5–5 μm) explains their retention on the 0.45 μm membrane.

On the other hand, coliphages, whose sizes range between 24–200 nm, are considerably smaller than bacteria and are typically associated with much smaller particles.^16,42 The association of coliphages with particles is influenced by environmental factors, such as the pH, which affects the isoelectric point of their capsids. The significant portion (44–51%) of the viruses retained on membrane filters with a pore size of 0.03 μm indicated that the virus could remain in the liquid effluent after treatment, suggesting that their functional hydrodynamic diameter would be larger than that of the free coliphage particles.²⁵ The functional hydrodynamic diameter phenomenon, known as apparent size, refers to the size of particles in fluid dispersions, which can differ from their individual size when they are associated with other materials and aggregates.⁴³ Bacteria may be drawn toward nutrients released from the surfaces of various particles, leading them to migrate, attach, and ultimately colonize the surfaces of those particles.¹⁶

The absence of a difference in the 0.45–0.03 μm fraction between the two PSBRs, as shown in Fig. 1C, can be attributed to the similar operating conditions. Both reactors were exposed to comparable environmental parameters, such as temperature, light intensity, and nutrient availability. Although the differing aeration flow rates of PSBR-L and PSBR-H induced different dynamics in their microbial communities, no significant differences in the size or the settling ability of the granules of the two reactors were observed. The average particle sizes of PSBR-L and PSBR-H were 0.29 (SD = 0.07) mm and 0.25 (SD = 0.1) mm, respectively.¹⁷ Although the average particle size of PSBR-L was higher than that of PSBR-H, no significant differences were observed over long-term operation (P > 0.05). The size distribution indicated that over 80% of the particles in PSBR-L and PSBR-H were within the 0.1–0.5 mm range during long-term operation. These observations highlight the complex interactions between the operational parameters and granule morphology in PSBRs. 45.6% and 35.9% of the granules had a diameter of over 0.2 mm in PSBR-L and PSBR-H, respectively, while these granules contributed less than 20% of the FIB and coliphage indicator removal in both reactors. This signals that the flocs with smaller sizes (<0.2 mm) may have exhibited higher microbial adsorption capacity, which can be attributed to their higher specific surface area (m² m⁻³). This increased surface area enhances the mass transfer rate of substrates and promotes more effective microbial adsorption capacity, contributing significantly to the removal of FIB and coliphages.

3.3. Superoxide production in PSBRs

The superoxide anion production was monitored from Day 130 to the end of the experiment. The average concentrations of superoxide in PSBR-L and PSBR-H were 0.179 (SD = 0.024) mmol L⁻¹ and 0.206 (SD = 0.011) mmol L⁻¹, respectively, which were nearly six times higher than those in the influent. The elevated aeration in PSBR-H resulted its having significantly higher ROS concentrations than PSBR-L. The increased airflow rate in PSBR-H enhanced the dissolved oxygen levels, stimulating metabolic activity and leading to increased production of ROS, such as superoxide and hydrogen peroxide.^44,45 The superoxide concentrations varied with the operation time, from 0.110 to 0.213 mmol L⁻¹ and 0.194 to 0.225 mmol L⁻¹ for PSBR-L and PSBR-H, respectively. Ugya et al.⁴⁶ reported superoxide production values of 0.261 (SD = 0.039) and 0.251 (SD = 0.148) mmol L⁻¹ in Chlorella vulgaris and Aphanizomenon flos-aquae dominated biofilms, which are comparable to the high superoxide accumulation observed for PSBR-L and PSBR-H in the current study. The significant variation observed during treatment could be attributed to the complex microbial community, which stimulated superoxide generation through synergistic relationships between the algal–bacterial granules and endogenous microorganisms in real wastewater.⁴⁷

The FIB and coliphage concentrations showed relatively weak positive relationships with the ROS production in the reactors (Table S2†). Although no statistically significant correlations were found, these investigations contribute to our understanding of the complex interactions within the treatment process. The complex microbial ecologies lead to intricate interactions influencing reactive oxygen species production and pathogen indicators. While ROS can damage lipids, proteins, and DNA, leading to cell death, there is no direct evidence yet of their selectivity towards certain microorganisms over others. Previous studies revealed that algal–bacterial granules serve as inducible defenses against pathogens in wastewater treatment systems via ROS.⁴⁸

Recent research shows that microalgae in wastewater produce antibacterial ROS under stresses such as nutrient deprivation.⁴⁹ Moreover, ROS could suppress the growth of pathogens retained in the granules through oxidative damage. The treatment process may involve mechanisms that consume ROS or result in ROS-independent inactivation of pathogens.⁵⁰ Further investigations are needed to understand the specific mechanisms governing ROS dynamics and their impact on pathogen inactivation.

3.4. Impact of light conditions and exposure to wastewater on ROS production in algal–bacterial consortia

Time-phased experiments were set up in real wastewater and synthetic wastewater for 48 h to examine the kinetics of ROS production. The initial algal–bacterial biomass concentration was standardized to ensure consistency between experiments, with an inoculum concentration of 1.2 × 10⁷ cells per mL, while the mixed liquor suspended solids concentrations were 780 ± 53 mg L⁻¹. The superoxide concentrations produced in real wastewater at 48 h were 0.159 (SD = 0.012) mmol L⁻¹ and 0.124 (SD = 0.014) mmol L⁻¹ under light and dark conditions, respectively. The ROS concentrations in synthetic wastewater were 0.067 (SD = 0.007) mmol L⁻¹ and 0.026 (SD = 0.003) mmol L⁻¹ under light and dark conditions, respectively (Fig. 2).

Fig. 2 Superoxide production profiles in the photobioreactors and raw wastewater during the stage 2 experimental period of reactor operation.

Both the first-order model and the Gompertz model fit the experimental data for ROS production in synthetic wastewater well (Fig. 3), with R² values of 0.98. However, in real wastewater, the Gompertz model demonstrated a better fit to the experimental data than the first-order reaction model (Fig. 3 and Table 3), with R² values of 0.97 and 0.90, respectively. The reaction rate coefficients for real wastewater obtained from both models were higher than those for synthetic wastewater (Table 3), indicating that the complex substrates in real wastewater promoted superoxide production.

Fig. 3 Sequential evolution of superoxide production by algal–bacterial consortia in real and synthetic wastewater systems over 48 h. Superoxide production curves fit by the (A) first-order reaction model and (B) Gompertz model.

Table 3 Kinetic models calculated for ROS production in real and synthetic wastewater

Media	First-order reaction model				Gompertz model
	a (mmol L^−1)	b (mmol L^−1)	k 1 (h^−1)	R ^2	A (mmol L^−1)	B (mmol L^−1)	k 2 (h^−1)	R ^2
Real wastewater	0.67	0.55	0.002	0.90	0.16	−0.96	0.06	0.97
Synthetic wastewater	0.67	0.65	0.002	0.98	0.09	0.43	0.04	0.98

---

Significant amounts of ROS were produced under light conditions. Light-induced ROS production in algal–bacterial consortia is mainly due to algae photosynthesis. In a photobioreactor, light-induced ROS from algae occurs via generation of electrons during photosynthesis, forming superoxide radicals in the thylakoid membrane.⁵¹ Simultaneously, oxygen is produced as a byproduct when water molecules split. Several studies have shown that exposure to light, especially high-intensity visible light and ultraviolet radiation, can trigger oxidative stress and ROS accumulation in photosynthetic organisms, including microalgae and cyanobacteria.⁵²

Exposure to real wastewater induced significantly higher ROS production under both light and dark conditions (Fig. 2 and 3). Algae and bacteria have mechanisms, including enzymes like superoxide dismutase and catalase, to detoxify ROS and protect cells.^53,54 These insights highlight how the wastewater composition profoundly impacts algal–bacterial oxidative stress and ROS responses.^55,56

3.5. Microbial community analysis

3.5.1. Diversity of microbial communities. The microbial community in the photobioreactors demonstrated changes in composition across different treatment stages while maintaining some genera constituents. There was a substantial overlap in the microbial genera in the influent, PSBR-L, PSBR-H, effluent-PSBR-L, and effluent-PSBR-H, with 77 shared genera (Fig. 4), indicating the presence of a core microbial community that was consistent throughout the treatment process and influenced both particle association dynamics and oxidative stress responses.

Fig. 4 Venn diagram of the microbial communities at the genus level, showing the relationships among the microbial community compositions in the different samples (influent, PSBR-L, PSBR-H, effluent-PSBR-L, and effluent-PSBR-H).

The influent samples had a diverse microbial population, with 38 distinct genera that were not detected in the other stages. In PSBR-L, there was a change in community composition, with 6 distinct genera detected. At a low airflow rate, the complex multilayered structure of the algal–bacterial granules provides varied microenvironments for different bacterial species, enabling the maintenance of microbial diversity and potentially improving the system's capacity to eliminate a wide range of particle-associated fecal indicators.

Interestingly, the PSBR-L effluent shared 50 genera with the sludge in the PSBR-L reactor, indicating that a significant portion of the microbial community was carried over from the PSBR-L reactor to the effluent. Similarly, the effluent-PSBR-H stage shared 17 genera with the PSBR-H stage, but also had 5 unique genera. The presence of shared genera across multiple stages indicates that certain microbial populations were able to adapt and thrive under the varying conditions encountered during the treatment process.

Alpha diversity and richness were evaluated using the Shannon and Chao1 indices (Table S1†). The analysis indicated that all samples had diverse and complex microbial communities, as supported by high OTU counts (32 847–50 241). The Shannon diversity indices ranged from 4.97 to 5.29. The influent sample had the highest OTU count of 50 241 and richness. The sludge in PSBR-L showed the highest Shannon diversity, while the PSBR-H sludge sample had the lowest estimate.

3.5.2. Dynamics of the microbial community. The 16S rRNA amplicon sequencing showed notable microbial dynamics in the wastewater treatment process (Fig. 5). Cyanobacteria, specifically Nodosilinea spp. and Leptolyngbya spp., dominated in PSBR-L and PSBR-H with varied abundance (26% and 4%, and 23% and 8%, respectively), contributing to granule formation and associated FIB and coliphage removal. These genera were not detected in the influent, effluent-PSBR-L, or effluent-PSBR-H, indicating that these cyanobacteria were mainly retained in the reactor through settling. Nodosilinea spp. play a crucial role in promoting algal–bacterial flocculation through extracellular polymeric substance (EPS) secretion, enhancing settleability and potentially improving the capture of particle-associated fecal indicators in the treatment process.^57,58 This aligns with our findings in section 3.2, where we observed that flocs with smaller sizes (<0.2 mm) demonstrated higher microbial adsorption capacity. Nodosilinea spp. may exhibit antibacterial properties against pathogenic bacteria, such as Staphylococcus aureus and E. coli.^58,59 Additionally, Leptolyngbya spp. has been reported to produce secondary metabolites with antimicrobial activity against some pathogenic bacteria.⁶⁰ The symbiotic relationships within the algal–bacterial granules, particularly between cyanobacteria (Nodosilinea spp. and Leptolyngbya spp.) and heterotrophic bacteria, created microenvironments that enhanced both particle capture and pathogen inactivation. This is evidenced by the higher removal rates observed in the smaller size fractions (section 3.2) and the elevated ROS production in both reactors compared to the influent (section 3.3). Arcobacter spp. were present in effluent-PSBR-H at 7%, compared to 1% in the influent and less than 0.1% in PSBR-L, PSBR-H and effluent-PSBR-L. Arcobacter spp. has previously been recorded in several wastewater treatment plants as the most dominant bacteria in the influent.^61,62Thauera spp. were present in the PSBR-L and PSBR-H samples with 10% and 4% relative abundance, respectively, while their abundance was only 0.5% in the influent and effluent-PSBR-H, and 11% in effluent-PSBR-L. The limited airflow rate in PSBR-L may have promoted the growth of Thauera spp. due to the lower oxygen levels. Thauera spp. have been found in several wastewater treatment plants,⁶³ and can perform simultaneous nitrification, denitrification, and phosphate removal from wastewater.⁶⁴Trichococcus spp. was detected in effluent-PSBR-H at 16% relative abundance, compared to 11% in the influent, and even lower abundance in the PSBR-L, PSBR-H and effluent-PSBR-L samples (ranging from 0.01% to 2.6%).

Fig. 5 Microbial community composition plots at the phylum level (left) and genus level (right) as determined by 16S rRNA amplicon sequencing of influent, PSBR-L, PSBR-H, effluent PSBR-L and effluent PSBR-H.

Flavobacterium spp. and Solibacillus spp., which have been identified as significant players in potential pathogen removal, showed relative abundances of less than 1% in all samples.^65,66Flavobacterium causes fish diseases, but also exhibits antagonistic properties against pathogens. Flavobacterium can inhibit the growth of human pathogen bacteria by producing antibiotics, bacteriocins, or siderophores.⁶⁷ Earlier studies revealed that Flavobacterium, an EPS-secreting bacterium with strong self-agglomeration ability, could assist in the removal of nitrogen and phosphate as a denitrifying phosphate-accumulating organism.^68,69 On the other hand, Solibacillus spp. exhibits antimicrobial activity, indicating its potential contribution to the elimination of particle-associated fecal indicators.⁶⁶ Noteworthily, the presence of genera such as Escherichia, Enterococcus spp., Streptococcus spp., Aeromonas spp., and Clostridium spp., was detected in the influent, PSBRs, and their effluents with relative abundances below 1.0%.

Algal–bacterial granules make contributions to wastewater treatment, including the elimination of particle-associated fecal indicators. These granules facilitate symbiotic relationships within the microbial community, enhancing the capture and inactivation of fecal indicators.⁷⁰ For instance, the interaction between cyanobacteria (as Nodosilinea spp. and Leptolyngbya spp.) and the coexistence of nitrifying and denitrifying bacteria within the granules may have permitted efficient nitrogen cycling and elimination of FIB.^71,72

Furthermore, based on 18S amplicon sequencing analysis,¹⁷ the abundance of algae as Chlorella spp., Desmodesmus spp. and Scenedesmus spp. are vital for the effective decomposition of complex organic matter as well as pathogen removal. The effective exchange of O₂ and CO₂ between algae and bacteria in these interactions is vital for enhancing the removal efficiency of organics in the photobioreactor. The impact of the symbiotic interactions and the metabolic activity of the algal–bacterial granules on the environmental conditions of the photobioreactor, such as pH, might impact the elimination or inactivation rates of the FIB and coliphages. These microbial interactions and species-specific contributions are closely linked to the observed trends in particle association, pathogen removal, and ROS production, emphasizing the critical role of community structure in determining photobioreactor performance. However, further investigation is required to fully understand the mechanisms of pathogen removal using algal–bacterial granules and to characterize the nutrient dynamics.

4. Conclusion

PSBRs with different airflow rates effectively removed fecal bacteria and viral indicators from wastewater, and it was revealed that the airflow rate had no significant impact on the removal of pathogen indicators. FIB was primarily retained on 0.45 μm pore size membranes, while viruses were retained on 0.03 μm pore size membranes. Association with particles plays a crucial role in the persistence and transportation of FIB in the environment. The superoxide levels produced in the PSBRs were higher than in the influent due to complex microbial interactions during treatment. Furthermore, under light conditions, the levels of superoxide in real wastewater were significantly higher than those in synthetic wastewater. The microbial community structure shifted at different stages of the treatment in the photobioreactors, while the key nutrient-removal genera remained consistent. PSBRs have the potential to produce high-quality effluents with reduced pathogens, indicating promising applications in water reuse. Further research is necessary to optimize the community structure–function relationships in photobioreactors.

Data availability

Sequencing data has been deposited to the NCBI Sequence Read Archive under BioProject accession number: PRJNA1100726.

Conflicts of interest

There are no conflicts to declare.

Acknowledgements

This material is based upon work supported by the Penn State Institute of Energy and the Environment (IEE) seed grant program. Any opinions, findings, and conclusions or recommendations expressed in this material are those of the authors and do not necessarily reflect the views of the sponsors.
