Issue 38, 2022

3D printing of soft fluidic actuators with graded porosity

Abstract

New additive manufacturing methods are needed to realize more complex soft robots. One example is soft fluidic robotics, which exploits fluidic power and stiffness gradients. Porous structures are an interesting type for this approach, as they are flexible and allow for fluid transport. In this work, the infill foam (InFoam) method is proposed to print structures with graded porosity by liquid rope coiling (LRC). By exploiting LRC, the InFoam method could exploit the repeatable coiling patterns to print structures. To this end, only the characterization of the relationship between nozzle height and coil radius and the extruded length was necessary (at a fixed temperature). Then by adjusting the nozzle height and/or extrusion speed the porosity of the printed structure could be set. The InFoam method was demonstrated by printing porous structures using styrene–ethylene–butylene–styrene (SEBS) with porosities ranging from 46% to 89%. In compression tests, the cubes showed large changes in compression modulus (more than 200 times), density (−89% compared to bulk), and energy dissipation. The InFoam method combined coiling and normal plotting to realize a large range of porosity gradients. This grading was exploited to realize rectangular structures with varying deformation patterns, which included twisting, contraction, and bending. Furthermore, the InFoam method was shown to be capable of programming the behavior of bending actuators by varying the porosity. Both the output force and stroke showed correlations similar to those of the cubes. Thus, the InFoam method can fabricate and program the mechanical behavior of a soft fluidic (porous) actuator by grading porosity.

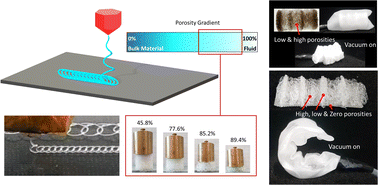

Graphical abstract: 3D printing of soft fluidic actuators with graded porosity

Supplementary files

Article information

Article type
Paper
Submitted
25 Apr 2022
Accepted
19 Aug 2022
First published
22 Aug 2022
This article is Open Access
Creative Commons BY license

Soft Matter, 2022,18, 7269-7279

3D printing of soft fluidic actuators with graded porosity

N. Willemstein, H. van der Kooij and A. Sadeghi, Soft Matter, 2022, 18, 7269 DOI: 10.1039/D2SM00524G

This article is licensed under a Creative Commons Attribution 3.0 Unported Licence. You can use material from this article in other publications without requesting further permissions from the RSC, provided that the correct acknowledgement is given.

Read more about how to correctly acknowledge RSC content.
