Lattice variations in CaTiO3 cubes and cuboids and their use in photocatalytic benzimidazole formation†
Received
20th January 2025
, Accepted 10th March 2025
First published on 11th March 2025
Abstract
CaTiO3 perovskite cubes with tunable sizes of 90 to 886 nm, as well as 156 and 725 nm cuboids, have been hydrothermally synthesized. Remarkably, despite their similar appearance, only cubes show a preferred orientation effect in X-ray diffraction (XRD) patterns. Peak positions also shift slightly with particle size and shape. Synchrotron XRD analysis reveals the presence of bulk and surface layer lattices with clearly shifted peaks. Unexpectedly, while a CaTiO3 cube presents (002) lattice fringes in transmission electron microscopy (TEM) images, a cuboid shows (001) lattice fringes. They also have discernably different lattice point patterns. These lattice features give rise to dissimilar dielectric constants and optical facet dependence. The cuboid crystals show stronger piezoelectric and ferroelectric responses than cubic particles do. Their surface properties differ completely with cuboidal particles being moderately active toward rhodamine B photodegradation, while cubes are inactive from floating above the dye solution with stirring. The CaTiO3 cuboids are more effective than cubes in photocatalyzing the formation of benzimidazole. This work demonstrates that interior lattice variations can significantly tune various materials properties, so detailed structural analysis is necessary to explain shape-related behaviors.
Introduction
Electrical conductivity, photocatalytic activity, and optical properties of semiconductor crystals have been found to depend on the exposed faces.1–9 Moreover, magnetic and piezoelectric responses of oxide nanocrystals also exhibit facet dependence.10–13 These phenomena have been found to originate from the presence of a surface layer region inside crystals with notable variations in lattice deviations, plus slight lattice constant changes in the interior bulk, as evidenced by synchrotron XRD patterns and fast Fourier transform (FFT)-processed high-resolution transmission electron microscopy (HR-TEM) images.9–11,14 Because of the notably different lattice point variations in the surface layer region, charge carrier transport across a particular surface should encounter dissimilar energy barriers, and light with somewhat different wavelengths gets absorbed to tune the band gap. Since SrTiO3 crystals show large lattice constant changes and various facet-dependent behaviors, including use as a photocatalyst, it is highly interesting to prepare other oxide perovskites such as calcium titanate to explore more facet-related behaviors and for use in photocatalysis.3,5,6,12,13 CaTiO3, with known band gaps in the range of 3.50–3.65 eV, has an orthorhombic crystal structure at room temperature, and can change to a tetragonal phase at 1498 K.15–17 Some applications of CaTiO3 including photocatalytic dye degradation, CO2 reduction, and piezoelectric ceramics have been reported.18–20 Previously, CaTiO3 cubes and square bars have been synthesized by forming a Ti-triethanolamine (TEOA) complex first.21 A hydrogel-based growth of CaTiO3 rectangular blocks through the use of titanium isopropoxide and titanium n-butoxide in a basic solution environment is a common synthetic approach.15 However, cuboids with sizes less than 500 nm have generally not been obtained. Hence, a research goal is to make much smaller CaTiO3 crystals for optical size effect demonstration and TEM characterization. Furthermore, it is desirable to produce CaTiO3 crystals with some interior lattice variations to observe changes in photocatalytic activity, piezoelectricity and ferroelectricity, as facet-dependent properties of CaTiO3 crystals have not been demonstrated.
In addition to typical photocatalytic dye degradation, the photogenerated electrons, holes, and radicals can be utilized to catalyze some organic oxidative reactions.22 For example, Cu2O polyhedral nanocrystals have been used to photocatalyze arylboronic acid hydroxylation, aryl sulfide oxidation, oxidative amine coupling, and aromatic thioamide cyclization reactions.4,23–27 Dimethylacrylamide photopolymerization can also be improved using Cu2O crystals.28 Considering the higher structural stability of oxide perovskites than cuprous oxide, CaTiO3 crystals should promote some organic reactions such as the formation of 2-aryl benzimidazoles.29 2-Aryl benzimidazoles are important structural motifs in agrochemicals and various pharmaceuticals.28–31 Benzimidazoles have been synthesized by condensing o-phenylenediamine with aldehydes or alcohols, followed by oxidative cyclodehydrogenation. However, strong acidic/alkaline conditions and large amounts of oxidants may be required.32–36 Pd-loaded TiO2 nanospheres and ZnO nanosheets have also been employed for benzimidazole synthesis.37,38 Alternatively, a hyper-crosslinked polymer was employed for the photocatalytic synthesis of benzimidazoles.39 Photoirradiation on quinoline-bridged covalent organic frameworks also catalyzes benzimidazole formation.40 These materials need elaborate synthesis steps and are costly, compared to using simple semiconductor crystals.
In this work, size-tunable CaTiO3 cubes and cuboids have been synthesized for synchrotron XRD and TEM characterization. The interior lattice differences between cubes and cuboids suggest exposure of somewhat different crystal faces, supported by distinct variations in dye photodegradation, dielectric constant, and piezoelectric and ferroelectric responses. CaTiO3 cuboids are more reactive than cubes toward photo-oxidative generation of benzimidazole, showing the benefit of interior lattice control to photocatalytic activity.
Results and discussion
Synthesis and structural characterization of CaTiO3 cubes and cuboids
Large 695 and 886 nm CaTiO3 cubes were synthesized in water, while 393 nm cubes and 725 nm cuboids were respectively prepared in butanol and hexanol, by adopting synthetic conditions used to make SrTiO3 and BaTiO3 nanocrystals.5,12 After mixing triethanolamine (TEOA) and TiCl4 in a vial to form complex species, CaCl2 and KOH solutions were added with stirring and transferred to an oven for crystal growth at 190–200 °C for 3 h. Fine adjustments in the concentration of reagents enable particle size and shape variation (Fig. S1 and Table S1, ESI†). Chloride ions have been introduced to give perovskite crystal shape control.41 Addition of KCl in a water/ethanol solution was found effective to reducing the particle size (Table S2, ESI†). 90 and 212 nm CaTiO3 nanocubes and 156 nm cuboids were synthesized. Varying the reagent concentration tunes the reaction quotient Q and the Gibbs free energy ΔG. If ΔH is similar in making different particle shapes, ΔG should come from ΔS, inferring that the interior lattice cannot be identical, and this yields the semiconductor facet and optical size effects. This analysis means that some lattice variations should naturally occur, particularly for particles exposing different surfaces.
Fig. 1 shows scanning electron microscopy (SEM) images of the synthesized 212 and 695 nm CaTiO3 cubes and 156 and 725 nm cuboids. Table S3, ESI† gives their average dimensions along the three edges. SEM images of other-sized cubes are provided in Fig. S2, ESI.† Fig. S3, ESI† offers size distribution histograms of all the samples. Because of the orthorhombic nature of this material, the cube samples do not always contain perfect cubes; some elongated particles are also present. For the cuboid samples, the particles are mostly rectangular blocks. Other than this particle morphology difference, cubes and cuboids are primarily distinguished by differences in their XRD patterns and lattice plane images. Fig. 2 presents XRD patterns of CaTiO3 cubes and cuboids. XRD patterns of size-tunable CaTiO3 cubes are shown in Fig. S4, ESI.† All peaks match to the orthorhombic phase of CaTiO3 without any impurity (space group: Pbnm). Fig. S4, ESI† shows slight peak shifts to lower 2θ angles with increasing cube sizes, meaning the cell constants expand for larger cubes. Moreover, for all the cube samples, the (002)/(110) and (004)/(220) peaks have much stronger intensities than the (020)/(112)/(200) peaks, while all other peaks are not observed. This indicates that the exposed faces of cubes are likely the {002} and {110} faces. By contrast, all the expected peaks are observed in the 156 and 725 nm cuboid samples. The (112)/(200) peak has the highest intensity, resembling that of the reference diffraction pattern. The results suggest that the exposed crystal faces for cuboids may be different. Further structural characterization is needed.
 |

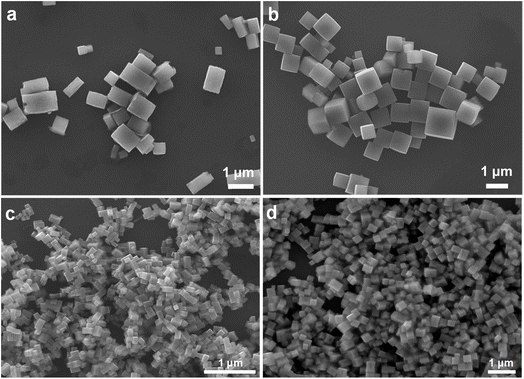

| Fig. 1 SEM images of (a and c) 725 and 156 nm CaTiO3 cuboids and (b and d) 695 and 212 nm CaTiO3 cubes. | |
 |

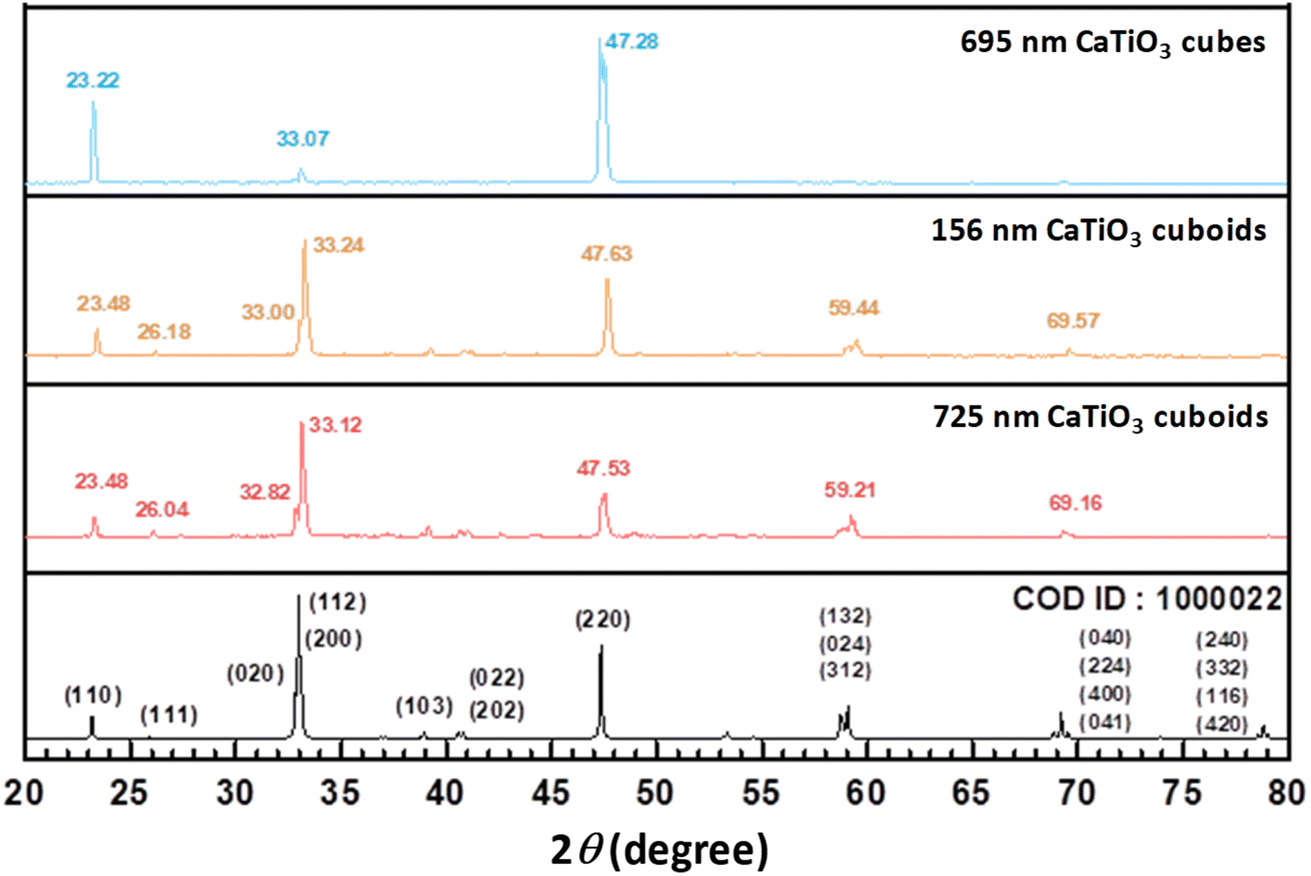

| Fig. 2 XRD patterns of CaTiO3 cubes and cuboids and a reference XRD pattern. | |
An important aspect of XRD analysis is to observe the presence of bulk and surface layer lattices from splitting or deconvolution of diffraction peaks. The surface layer lattice likely originates from temperature-induced lattice deviations, and the crystal surfaces are most affected by the reaction temperature. Heating crystals resembles barbequing steak, but the temperature effect is often not considered when explaining crystal properties. High-resolution diffraction signals were collected at the TPS19A beamline of the Taiwan photon source. CaTiO3 powder was packed into a 0.2 mm diameter capillary tube. Data were collected using X-ray radiation with a wavelength of 0.56025 Å (X-ray energy of 28.56 keV) under a 30 second exposure condition. The peak positions have been adjusted for a 2θ zero-point shift. Close examination reveals the peaks are broadened or appear asymmetric, especially for the (110) and (220) peaks. To address the issue of peak asymmetry, a multi-phase Rietveld refinement incorporating a generalized microstrain model was employed to improve fitting of the diffraction patterns. This refinement approach allows for the resolution of two lattice components for both cuboids and cubes, representing bulk and surface layer lattices. Fig. 3 and S5, ESI† display Rietveld refinement results of the synchrotron XRD patterns for 725 nm CaTiO3 cuboids and 695 nm cubes. Table S4, ESI† summarizes the refinement results. The bulk and surface phases are determined based on the magnitude of the mean microstrain value. Typically, a higher microstrain value is assigned to the surface phase, whereas a lower value is designated to the interior bulk. For cubes, the surface phase accounts for 27.7% by weight. Remarkably, the surface phase represents 54.0% by weight for cuboids. The presence of bulk and surface layer lattices should be broadly observable in ionic solids, as thermal lattice stress during crystal growth cannot be fully relaxed when the particles are returned to room temperature.
 |
| Fig. 3 (a) Rietveld refinement of XRD pattern of 725 nm CaTiO3 cuboids to yield bulk and surface layer lattices and (b–d) the expanded peaks. | |
TEM characterization was found important to the assignment of the faces of CaTiO3 cubes and cuboids. As seen in Fig. 4, the selected-area electron diffraction (SAED) patterns, recorded along the [110] zone axis, give discrete spots, confirming the single-crystalline nature of these particles. Please note that the small spots are only observed along the c-axis for both samples, showing the six crystal faces are not all equivalent even for the cube. The viewing zone axis and the diffraction spots are assigned following a report on CaTiO3.42 The HR-TEM images reveal lattice fringes. The (002) planes of the cube are perpendicular to the (002) spot direction with a d-spacing of 3.8 Å. The cuboid presents lattice fringes along the c-axis measuring 7.6 Å, and are assigned (001) planes. The fact lattice fringe distance of the cuboid is twice that of the cube indicates that these two samples are not identical, despite having the same SAED pattern. On the basis of TEM and XRD results, it is concluded that both shapes expose equivalent {110}/{
10} faces, with the cuboid and cube exposing {001} and {002} faces, respectively. This assignment also takes into account that their various properties are not the same, so there must be intrinsic lattice differences to understand such behaviors.
 |

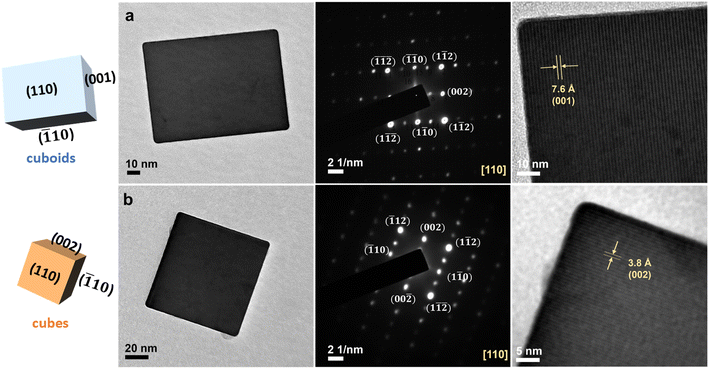

| Fig. 4 TEM images, SAED patterns, and high-resolution TEM images of a single CaTiO3 (a) cuboid and (b) cube. The exposed crystal faces are marked. | |
Fig. 5 shows again that the fringe spacings and lattice features look strikingly different between a cube and a cuboid, with fringes more widely separated for the cuboid. The lattice deviations can be directly observed by FFT processing of the collected HR-TEM images. For the cuboid (Fig. 5c), the spots appear to align diagonally to the crystal edges, and become more stretched in the interior region. By contrast, the cube shows less spot deviations, yet strangely the adjacent spots point in alternate directions. Similar criss-cross lattice pattern has been observed in {111}-exposing Cu2O crystals.14 These lattice spot patterns further suggest that the interior lattices are distinctly different for the CaTiO3 cubes and cuboids, which should reflect in their properties. As a way to probe the interior lattice, dielectric constant measurements on CaTiO3 cubes and cuboids were performed (see Fig. 6). The cuboids consistently have higher dielectric constants across the measured frequency range (0–300 kHz). The appreciable dielectric constant differences between the two samples illustrate again that interior lattice variations can significantly affect the crystal properties.
 |

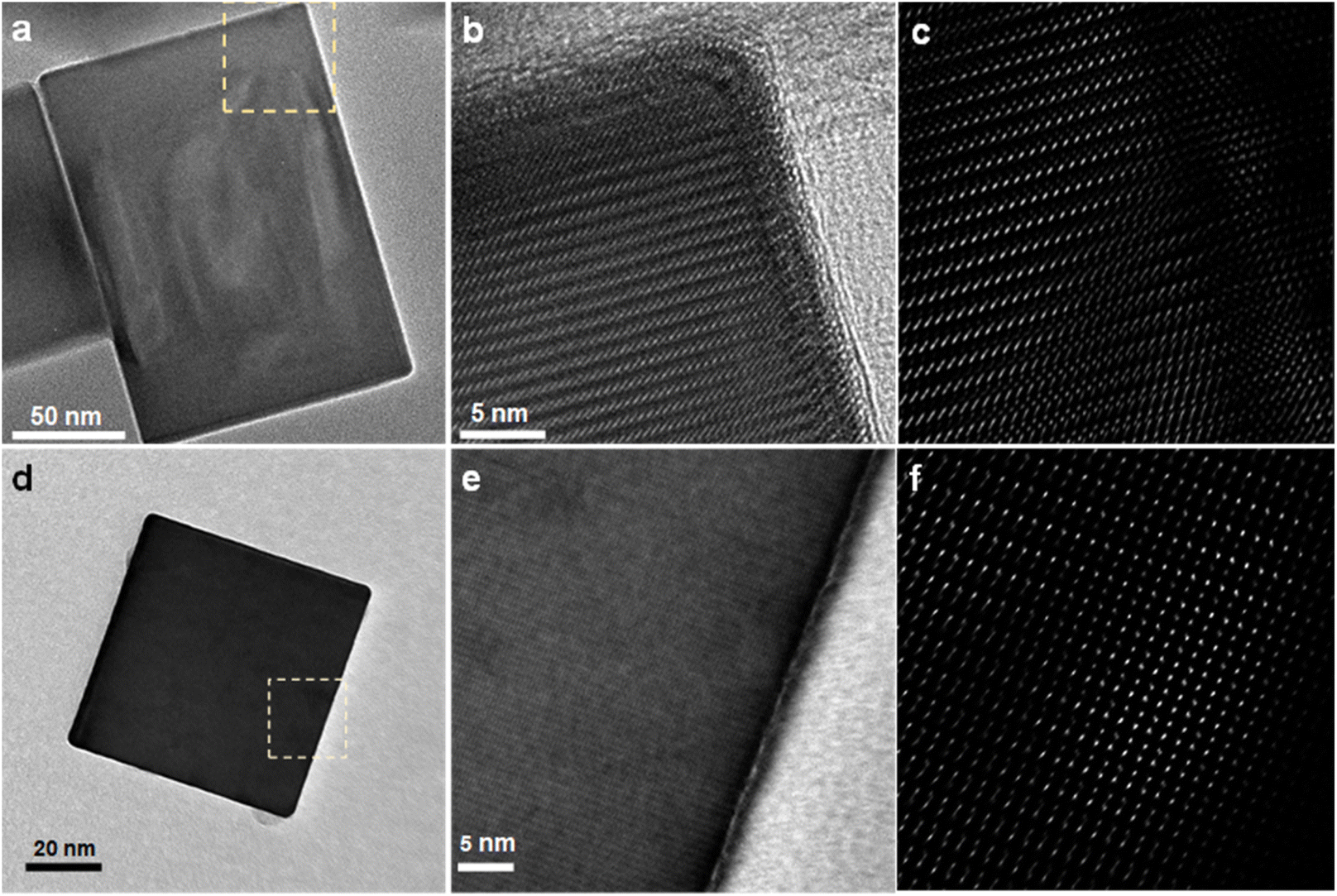

| Fig. 5 High-magnification TEM images of (a) a CaTiO3 cuboid and (d) a CaTiO3 cube and (b and e) the expanded TEM images of the dashed regions. (c and f) FFT-processed lattice images of panels b and e. | |
 |

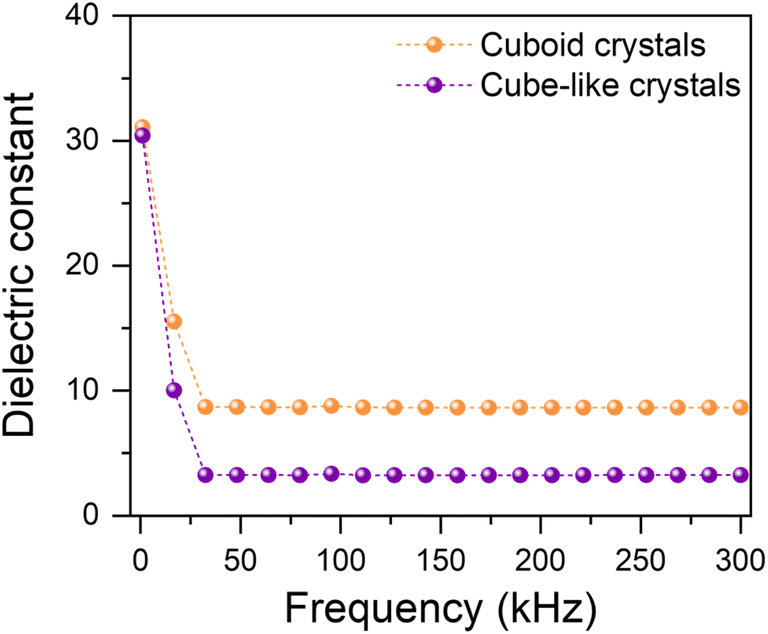

| Fig. 6 Frequency-dependent dielectric constants of small-sized CaTiO3 cubes and cuboids. | |
X-ray photoelectron spectroscopy (XPS) was utilized to check the chemical state of the CaTiO3 crystals. The complete XPS data for 725 nm CaTiO3 cuboids are shown in Fig. S6, ESI.† The Ca 2p3/2 and Ca 2p1/2 peaks are centered at 346.5 eV and 350.1 eV, respectively. The Ti 2p3/2 and 2p1/2 peaks are respectively located at 458.4 eV and 464.2 eV. The major O 1s peak at 529.8 eV comes from CaTiO3, while the minor peak at 531.3 eV is attributed to chemisorbed oxygen resulting from surface hydroxyl (OH) groups. These binding energies closely align with the reported XPS data of CaTiO3.43
Optical, piezoelectric, and ferroelectric property characterization
Fig. S7, ESI† presents diffuse reflectance spectra of the size-tunable CaTiO3 cubes, acquired using an integrating sphere. The converted Tauc plot gives their band gaps. Band gaps for 90, 253, 393, and 886 nm cubes are 3.61, 3.58, 3.49, and 3.46 eV, respectively. With increasing particle sizes, band gap continues to decrease even with large crystals. This is the general observation for semiconductor crystals. This happens partly because of the slight lattice constant changes with particle size. Fig. 7 shows the similarly-sized 695 nm CaTiO3 cubes and 725 nm cuboids have band gaps of 3.49 and 3.41 eV, respectively. The band gap difference still exists for these large crystals, suggesting that the internal lattice variations result in such an optical effect.
 |

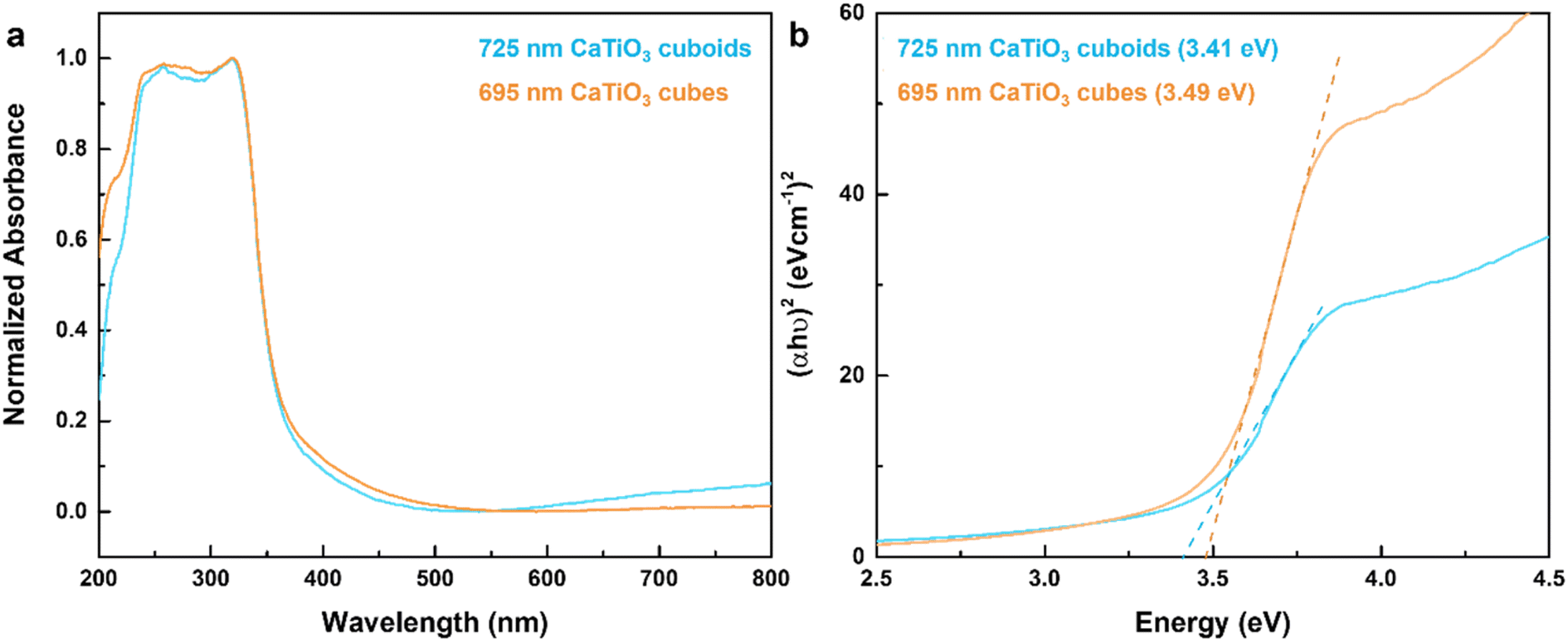

| Fig. 7 (a) Diffuse reflectance spectra of CaTiO3 cubes and cuboids and (b) the corresponding Tauc plot. | |
Since CaTiO3 has the same crystal structure as BaTiO3, the synthesized particles were examined for possession of piezoelectricity and ferroelectricity properties. Piezoelectric force microscopy (PFM) measurements reveal that the cuboid generates a notably higher voltage than that of the cube, indicating the effect of internal lattice variations to piezoelectricity (Fig. 8).44 The phase-voltage hysteresis measurements show a ferroelectric switching behavior with a sharp phase transition around 0 V bias. A cuboid gives a larger hysteresis loop, further validating the interior lattice effect on ferroelectric response.
 |

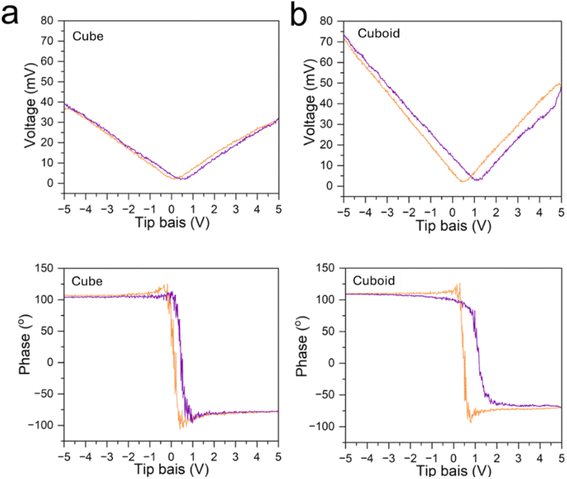

| Fig. 8 Piezoelectric and ferroelectric characterization of a single CaTiO3 (a) cube and (b) cuboid. The voltage-amplitude butterfly loops (top panels) reveal the piezoelectric response under applied tip bias from −5 V to +5 V, and the corresponding phase-voltage hysteresis loops demonstrate their ferroelectric switching behavior. | |
Photocatalytic dye photodegradation and benzimidazole formation
The surface facet difference between CaTiO3 cubes and cuboids is also manifested in their response to photodegradation of rhodamine B. The band positions of CaTiO3 is well situated to photogenerate hydroxyl radicals (˙OH) and superoxide anion radicals (O2˙−) for dye degradation.15 For fair comparison, the total surface area of different samples was fixed (Table S3, ESI†). Fig. 9 presents time-dependent UV-vis absorption spectra of rhodamine B photodegraded by various CaTiO3 crystals in a pH 4 solution. An acidic solution has been found to enhance photocatalytic activity.45 Cuboids are apparently much more photocatalytically active than cubes. Interestingly, while 156 nm cuboids show a slowly decreasing absorption band at 556 nm, 725 nm cuboids display a progressive blue-shifted absorption band to 525 nm after 2 h. This is due to continuous de-ethylation of rhodamine B.46 The cuboid morphology can be preserved after the reaction (Fig. S8, ESI†). By contrast, CaTiO3 cubes were practically inactive toward rhodamine B degradation; the slight absorbance drop may be attributed to molecular adsorption on the particles. After some stirring, the cubes were found to become floated to the solution surface possibly from some electrostatic repulsion with the {002} faces of cubes, so light could not reach the particles. A similar behavior has been observed in Cu2O crystals.47,48 Thus, exposure of some different surfaces can have profound effect on surface and photocatalytic properties.
 |
| Fig. 9 Time-dependent UV-vis absorption spectra of rhodamine B photodegraded by (a) 695 nm cubes, (b) 212 nm cubes, (c) 725 nm cuboids, and (d) 156 nm cuboids. | |
The photogenerated charge carriers and radicals can be utilized to catalyze some organic reactions producing higher-value chemicals. We consider the coupling reaction between o-phenylenediamine and benzaldehyde to form benzimidazole. Fig. S9, ESI† illustrates the procedure for the synthesis of benzimidazoles with air purged. An oxygen balloon was employed. In the absence of any CaTiO3 crystals, the reaction still occurred in ethanol at room temperature (30 °C from 390 nm light irradiation with fan cooling) with a 60% product yield in 3 h (Table 1). The use of 156 and 725 nm CaTiO3 cuboids to photocatalysis this reaction delivered exceptional 94% and 99% product yields in 3 h, respectively. Using the same amount of 212 nm cubes gave a product yield of 83%. Adding 3.5 mg of 695 nm cubes, having the same particle surface area as that of 2.7 mg of 725 nm cuboids, produced a yield of just 66%. Apparently, the cuboids are more effective for this reaction. SEM image indicates retention of cuboid particle morphology after the reaction (Fig. S10, ESI†). Moreover, 2.7 mg of micron-sized CaTiO3 cubes were employed for three cycles of the photocatalytic benzimidazole synthesis (Fig. S11, ESI†). Product yields of 67, 63 and 62% were obtained, demonstrating the recyclability of the photocatalyst. Subsequently, benzaldehydes with bromo and methyl group substituents were introduced for the reaction using 725 nm cuboids as the photocatalyst (Table 2). The 2-(4-bromophenyl)-benzimidazole yield was 84%, while 2-(4-methylphenyl)-1H-benzimidazole yield was 67%. These results demonstrate that CaTiO3 crystals can be used to synthesize different benzimidazoles.
Table 1 CaTiO3-photocatalyzed formation of benzimidazolea

|
Entry |
Crystals |
Amount (mg) |
Yield (%) |
Reagents: o-phenylenediamine (0.2 mmol), benzaldehyde (0.2 mmol), and ethanol (3 mL). Triphenylmethane was used as the internal standard.
|
1 |
725 nm cuboids |
2.7 |
99 |
2 |
156 nm cuboids |
2.7 |
94 |
3 |
212 nm cubes |
2.7 |
83 |
4 |
695 nm cubes |
3.5 |
66 |
5 |
No catalyst |
0 |
60 |

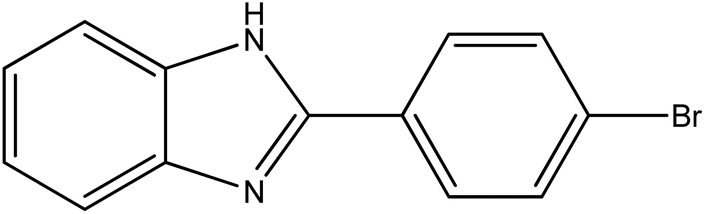

Table 2 Substrate scope for CaTiO3-photocatalyzed formation of benzimidazolesa
To propose a reaction mechanism, electron, hole and radical trapping experiments were performed using 725 nm cuboids (Table 3). In the presence of KBrO3, acting as an electron scavenger in the reaction, product formation dropped from 99% to just 68%. The photoexcited electrons should migrate to the crystal surface and react with oxygen to form superoxide anion radicals. N,N-Diisopropylethylamine (DIPEA), introduced as a hole scavenger, greatly inhibited the reaction to a yield of only 20%. Hole transfer should take part in the reaction mechanism. Next, tert-butanol, a common hydroxyl radical scavenger, was added into the reaction. A relatively small decrease in yield was observed, so ˙OH radicals are less important for this reaction. The yield dropped sharply to 27% upon adding 1,4-diazabicyclo[2,2,2]octane (DABCO), suggesting the involvement of singlet oxygen in the formation of benzimidazoles. Singlet oxygen may gain an electron to form a superoxide anion radical. Removal of singlet oxygen can mean less superoxide radicals are available. Finally, addition of 1,4-benzoquinone as a superoxide anion radical scavenger resulted in 57.5% yield. Superoxide radicals are involved in the photocatalytic reaction.
Table 3 Reactive oxygen species and hole trapping experimentsa

|
Entry |
Trapping reagent |
Yields (%) |
Reagents: o-phenylenediamine (0.2 mmol), benzaldehyde (0.2 mmol), and ethanol (3 mL). Triphenylmethane was used as the internal standard. DIPEA = N,N-diisopropylethylamine. DABCO = 1,4-diazabicyclo [2,2,2]octane.
|
1 |
KBrO3 |
68 |
2 |
DIPEA |
20 |
3 |
tert-Butanol |
82 |
4 |
DABCO |
27 |
5 |
1,4-Benzoquinone |
57.5 |
Electron paramagnetic resonance (EPR) measurement was performed to further establish the involved radicals. Due to the short lifetime of free radicals, we employed a spin-trapping reagent DMPO to stabilize them. DMPO captures superoxide radicals, forming a DMPO-OOH adduct that displays a 12-line EPR spectrum. This adduct is highly unstable and rapidly degrades into the DMPO-OH adduct, which gives a 4-line EPR spectrum with a relative intensity ratio of 1
:
2
:
2
:
1.49 Fig. S12, ESI† is the EPR spectrum obtained in methanol to prolong the adduct lifetime. The signal corresponds to DMPO-OOH adducts, indicating that mainly superoxide radicals are generated.
From the trapping experiments and EPR result, two pathways for the formation of benzimidazole are proposed (Fig. 10). In the absence of any photocatalyst, o-phenylenediamine and benzaldehyde first condense to form an imine (intermediate I).50 Intramolecular cyclization takes place to produce intermediate II, which undergoes aerobic oxidation to yield a benzimidazole. The second pathway involves CaTiO3 nanocrystals under light irradiation to generate electron–hole pairs. Holes primarily facilitate the oxidation of intermediate II into the corresponding cationic radicals. Simultaneously, the photoexcited electrons would reduce oxygen to form superoxide radicals. Singlet oxygen may gain an electron to form a superoxide anion radical. Upon deprotonation of intermediate II by O2˙− and subsequent dehydrogenation using the hydroperoxyl radical HOO˙, benzimidazole is produced along with the formation of hydrogen peroxide.39,40
 |
| Fig. 10 Proposed reaction mechanism of CaTiO3-photocatalyzed formation of benzimidazoles. | |
Conclusions
Size-tunable CaTiO3 perovskite cubes and cuboids have been hydrothermally synthesized. Despite they have the same crystal structure, all the cube samples show particularly strong (002)/(110) set of peaks in their XRD patterns. Synchrotron XRD analysis also reveals distinct bulk and surface layer lattices for cubes and cuboids. Interestingly, while (002) planes are observed in the TEM images of a cube, a cuboid only exhibits (001) planes, suggesting exposure of different crystal surfaces for cubes and cuboids. Their lattice point patterns also differ considerably. These lattice variations can explain their optical facet effect and changes in dielectric constant. A cuboid generally shows stronger piezoelectric and ferroelectric responses than a cube does. The different surface properties of cubes and cuboids have been demonstrated in the photodegradation of rhodamine B with active cuboids and inactive/floating cubes. Cuboids are more effective than cubes toward photocatalytic formation of benzimidazole from coupling of o-phenylenediamine and benzaldehyde. This work shows that significant interior lattice variations can exist in semiconductor particles with the same crystal structure. The lattice variations greatly influence their various properties and can be capitalized for enhanced performance.
Experimental
Chemicals
Titanium tetrachloride (TiCl4, 99%, Acros Organics), calcium chloride dihydrate (CaCl2·2H2O, 99+%, Honeywell), calcium nitrate tetrahydrate (Ca(NO3)2·4H2O, 99+%, Alfa Aesar), potassium hydroxide (KOH, 85%, Honeywell), ethanol (C2H5OH, 99.8%), potassium chloride (KCl, 99%, SHOWA), triethanolamine (C6H15NO3, >99%, Sigma), nitric acid (HNO3, 70%, Acros Organics), o-phenylenediamine (C6H8N2, 98%, Thermo Scientific), benzaldehyde (C6H5CHO, 98%, Sigma), triphenylmethane ((C6H5)3CH, 98%, NOVA), methanol (CH3OH, 99.8%, Honeywell), tert-butanol (C4H10O, >99%, Sigma-Aldrich), DABCO (C6H12N2, 98%, Alfa Aesar), DMPO (C6H11NO, 98%, Matrix Scientific), 1,4-benzoquinone (C6H4O2, 98%, Alfa Aesar), N,N-diisopropylethylamine (C8H19N, 99.5%, Acros Organics), and potassium bromate (KBrO3, 99%, Alfa Aesar) were used as received.
Synthesis of CaTiO3 cubes and cuboids
The reagent amounts used and procedure for growing 393, 695 and 886 nm CaTiO3 cubes and 725 nm CaTiO3 cuboids are shown in Table S1 and Fig. S1, ESI.† The reagent amounts and reaction time and temperature were carefully adjusted, including the use of butanol and hexanol for growing 383 nm CaTiO3 cubes and 735 nm cuboids. Using the formation of 886 nm cubes as an example, 15.7 mL of 2.0 M triethanolamine solution and 4.033 mL of water were added to a vial. The mixed solution was stirred for 5 min, and 0.041 mL of TiCl4 solution was added slowly under vigorous stirring for 5 min. Next, 0.314 mL of 1.187 M CaCl2·2H2O solution was introduced and stirred for 30 min, followed by dropwise addition of 0.5 mL of 5 M aqueous KOH solution with stirring for 1 min. The solution was transferred to a 25 mL Teflon autoclave and heated at 200 °C in an oven for 3 h. After cooling to ambient temperature, the precipitate was recovered by centrifugation and washed several times with 2 M HNO3 solution, distilled water, and ethanol. Table S2, ESI† provides the reagent amounts used to make 212 and 90 nm CaTiO3 cubes and 156 nm CaTiO3 cuboids. Procedure for making these smaller particles are also available in the ESI.†
Piezoelectric and ferroelectric measurements
These measurements were carried out via piezoelectric force microscopy using a ScanAsyst-enabled Bruker dimension icon atomic force microscope with a Pt/Ir-coated silicon cantilever (OSCM-PIT) as the conductive probe.51 The high-speed pulse repetition drive frequency for the piezo response measurements was set at 189 kHz. An externally applied tip bias of 200 mV was used to enhance the piezo-response difference among different crystal shapes. All the measurements were done in ambient conditions.
Photocatalytic synthesis of benzimidazole using CaTiO3 cuboids
In this experiment, o-phenylenediamine (0.2 mmol) and CaTiO3 cuboids weighing 2.7 mg were placed in a 15 mL oven-dried quartz tube along with a stir bar, and the tube was sealed with a rubber septum (Fig. S2, ESI†). The tube was evacuated using a vacuum pump and refilled with oxygen three times using an oxygen balloon, then 3 mL of ethanol containing 0.2 mmol of benzaldehyde was introduced into the tube. The mixture underwent sonication for 1 min, followed by exposure to light from a 40 W LED (λ = 390 nm). The light power density reaching the sample has been measured to be 0.51 W cm−2. The reaction mixture was stirred for 3 h at room temperature. After the reaction, the solution underwent centrifugation at 11
000 rpm for 2.5 min to facilitate separation. The supernatant was collected with care and concentrated using a rotary evaporator under vacuum.
Instrumentation
A thermal field emission scanning electron microscope (JEOL JSM-70000F) was used to check particle morphology. A D2 Phaser powder X-ray diffractometer with Cu Kα radiation was used to identify the crystalline structure of CaTiO3 powder. Synchrotron XRD data were collected at the Taiwan Photon Source 19A beamline (TPS19A). The hard X-ray source was delivered from an in-vacuum cryogenic undulator (CU15), and the powder diffraction patterns were recorded using a position-sensitive detector MYTHEN 18 K. Surface analysis was performed using a high-resolution X-ray photoelectron spectrometer (HR-XPS, PHI QuanteraII). TEM characterization was conducted on a JEOL JEM-F200 electron microscope. UV-vis absorption spectra were collected using a JASCO V-670 spectrometer with a solid sample holder attached. The dielectric constant measurements were performed using a GW Instek LCR-6300 high-precision meter. A Bruker ELEXSYSE 580 CW/Pulse spectrometer was used to obtain EPR spectra. 1H NMR spectra were obtained with the use of a Bruker Avance II 400 MHz NMR spectrometer. Chemical shifts (δ) are reported in ppm with the residual solvent signal as internal standard (d-DMSO at 2.5 ppm for 1H NMR).
Data availability
All the data have been presented in the manuscript and ESI.†
Conflicts of interest
There are no conflicts to declare.
Acknowledgements
Financial support is provided by the National Science and Technology Council of Taiwan (NSTC 112-2113-M-007-016-MY3 and 113-2628-E-002-010-MY3). Ms. Swee-Lan Cheah of the NTHU Instrumentation Center assisted in the XPS analysis.
References
- A.-T. Lee, C.-S. Tan and M. H. Huang, ACS Cent. Sci., 2021, 7, 1929–1937 CrossRef CAS PubMed.
- G. Kumar, C.-R. Chen, B.-H. Chen, J.-W. Chen and M. H. Huang, J. Mater. Chem. C, 2022, 10, 12125–12131 RSC.
- G. Kumar, Z.-L. Chen, S. Jena and M. H. Huang, J. Mater. Chem. C, 2023, 11, 3885–3888 RSC.
- K.-C. Chien, W.-Y. Yu, J.-C. Kao, Y.-C. Lo, J.-P. Chou and M. H. Huang, J. Mater. Chem. A, 2024, 12, 5429–5438 Search PubMed.
- P.-L. Hsieh, G. Naresh, Y.-S. Huang, C.-W. Tsao, Y.-J. Hsu, L.-J. Chen and M. H. Huang, J. Phys. Chem. C, 2019, 123, 13664–13671 CrossRef CAS.
- Z.-L. Chen and M. H. Huang, J. Mater. Chem. A, 2023, 11, 22198–22205 RSC.
- H.-H. Ma and M. H. Huang, J. Mater. Chem. C, 2023, 11, 5857–5866 RSC.
- Y.-C. Yang, Y.-W. Peng, A.-T. Lee, G. Kumar and M. H. Huang, Inorg. Chem. Front., 2021, 8, 4685–4695 RSC.
- P.-S. Chang, B.-H. Chen, Y.-C. Lin, W.-T. Dai, G. Kumar, Y.-G. Lin and M. H. Huang, Small, 2024, 20, 2401558 CrossRef CAS PubMed.
- G. Kumar, H.-W. Sun and M. H. Huang, ACS Appl. Nano Mater., 2024, 7, 2155–2163 CrossRef CAS.
- C.-K. Chen, B.-H. Chen and M. H. Huang, Chem. Mater., 2023, 35, 7859–7866 CrossRef CAS.
- J.-W. Chen, A. Pal, B.-H. Chen, G. Kumar, S. Chatterjee, K. Peringeth, Z.-H. Lin and M. H. Huang, Small, 2023, 19, 2205920 Search PubMed.
- Y.-J. Chuang, A. Pal, B.-H. Chen, S. Jena, S. Suresh, Z.-H. Lin and M. H. Huang, Chem. Sci., 2025, 16, 3285–3295 RSC.
- B.-H. Chen, G. Kumar, Y.-J. Wei, H.-H. Ma, J.-C. Kao, P.-J. Chou, Y.-C. Chuang, I.-C. Chen, J.-P. Chou, Y.-C. Lo and M. H. Huang, Small, 2023, 19, 2303491 CrossRef CAS PubMed.
- J. Zhuang, Q. Tian, S. Lin, W. Yang, L. Chen and P. Liu, Appl. Catal., B, 2014, 156–157, 108–115 CrossRef CAS.
- Q. Zhang, Y. Wang, Y. Jia, W. Yan, Q. Li, J. Zhou and K. Wu, Molecules, 2023, 28, 7134 CrossRef CAS PubMed.
- R. Ali and M. Yashima, J. Solid State Chem., 2005, 178, 2867–2872 CrossRef CAS.
- T. Křenek, T. Kovářík, J. Pola, T. Stich and D. Docheva, Open Ceram., 2021, 8, 100177 CrossRef.
- M. Passi and B. Pal, Powder Technol., 2021, 388, 274–304 CrossRef CAS.
- H. Qiu, A. Yamamoto and H. Yoshida, ChemCatChem, 2024, 16, e202301736 CrossRef CAS.
- T. Kimijima, K. Kanie, M. Nakaya and A. Muramatsu, CrystEngComm, 2014, 16, 5591–5597 RSC.
- S. Rej, M. Bisetto, A. Naldoni and P. Fornasiero, J. Mater. Chem. A, 2021, 9, 5915–5951 RSC.
- Z.-H. Su, M.-H. Hsieh, Z.-L. Chen, W.-T. Dai, E.-T. Wu and M. H. Huang, Chem. Mater., 2023, 35, 2782–2789 CrossRef CAS.
- P.-J. Chou, W.-Y. Yu, J.-C. Kao, Y.-C. Lo, J.-P. Chou and M. H. Huang, J. Mater. Chem. A, 2023, 11, 19514–19523 RSC.
- M.-H. Hsieh, Z.-H. Su, E.-T. Wu and M. H. Huang, ACS Appl. Mater. Interfaces, 2023, 15, 11662–11669 CrossRef CAS PubMed.
- E.-T. Wu and M. H. Huang, ACS Catal., 2023, 13, 14746–14752 CrossRef CAS.
- G.-R. Wang and M. H. Huang, J. Mater. Chem. A, 2024, 12, 13792–13799 Search PubMed.
- Y.-C. Chen, X.-F. Huang, H.-T. Hsu, E.-T. Wu, C.-H. Peng and M. H. Huang, J. Mater. Chem. A, 2024, 12, 14792–14800 Search PubMed.
- P. Anandaraj, R. Ramesh and J. G. Malecki, J. Organomet. Chem., 2023, 985, 122577 CrossRef CAS.
- T. Roth, M. L. Morningstar, P. L. Boyer, S. H. Hughes, R. W. Buckheit and C. J. Michejda, J. Med. Chem., 1997, 40, 4199–4207 CrossRef CAS PubMed.
- P. Tamang, Asian J. Pharm. Sci., 2020, 8, 26–32 Search PubMed.
- X. Han, H. Ma and Y. Wang, Russ. J. Org. Chem., 2008, 44, 863–865 CrossRef CAS.
- C. Zhang, Z. Zhang and N. Jiao, Green Chem., 2012, 14, 3273–3276 RSC.
- Z. Wang, T. Song and Y. Yang, Synlett, 2019, 30, 319–324 CrossRef CAS.
- Q. Guan, Q. Sun, L. Wen, Z. Zha, Y. Yang and Z. Wang, Org. Biomol. Chem., 2018, 16, 2088–2096 RSC.
- K. Sun, H. Shan, G. P. Lu, C. Cai and M. Beller, Angew. Chem., Int. Ed., 2021, 60, 25188–25202 CrossRef CAS PubMed.
- Z.-S. Huang, Y.-F. Wang, M.-Y. Qi, M. Conte, Z.-R. Tang and Y.-J. Xu, Angew. Chem., Int. Ed., 2024, 63, e202412707 CrossRef CAS PubMed.
- Y.-F. Wang, M.-Y. Qi, M. Conte, Z.-R. Tang and Y.-J. Xu, Angew. Chem., Int. Ed., 2023, 62, e202304306 CrossRef CAS PubMed.
- W.-K. An, S.-J. Zheng, H.-X. Zhang, H.-T. Shang, H.-R. Wang, X.-J. Xu, Q. Jin, Y. Qin, Y. Ren, S. Jiang, C.-L. Xu, M.-S. Hou and Z. Pan, Green Chem., 2021, 23, 1292–1299 RSC.
- H. Pang, D. Huang, Y. Zhu, X. Zhao and Y. Xiang, Chem. Sci., 2023, 14, 1543–1550 RSC.
- X. Wang, K. Huang, L. Yuan, S. Li, W. Ma, Z. Liu and S. Feng, ACS Appl. Mater. Interfaces, 2018, 10, 28219–28231 CrossRef CAS PubMed.
- X. Yang, J. Fu, C. Jin, J. Chen, C. Liang, M. Wu and W. Zhou, J. Am. Chem. Soc., 2010, 40, 14279–14287 CrossRef PubMed.
- M. A. Ehsan, R. Naeem, V. McKee, A. Rehman, A. S. Hakeem and M. Mazhar, J. Mater. Sci.: Mater. Electron., 2018, 30, 1411–1424 CrossRef.
- M. J. Polking, M.-G. Han, A. Yourdkhani, V. Petkov, C. F. Kisielowski, V. V. Volkov, Y. Zhu, G. Caruntu, A. P. Alivisatos and R. Ramesh, Nat. Mater., 2012, 11, 700–709 CrossRef CAS PubMed.
- C. Han, J. Liu, W. Yang, Q. Wu, H. Yang and X. Xue, J. Photochem. Photobiol. A, 2016, 322–323, 1–9 CAS.
- Y.-H. Chiu, F.-F. M. Chang, C.-Y. Chen, M. Sone and Y.-J. Hsu, Catalysts, 2019, 9, 430 CrossRef CAS.
- J.-Y. Ho and M. H. Huang, J. Phys. Chem. C, 2009, 113, 14159–14164 CrossRef CAS.
- W.-C. Huang, L.-M. Lyu, Y.-C. Yang and M. H. Huang, J. Am. Chem. Soc., 2012, 134, 1261–1267 CrossRef CAS PubMed.
- H. Togashi, H. Shinzawa, T. Matsuo, Y. Takeda, T. Takahashi and M. Aoyama, Free Radic. Biol. Med., 2000, 28, 846–853 CrossRef CAS PubMed.
- M. A. Tzani, C. Gabriel and I. N. Lykakis, Nanomater, 2020, 10, 2405 CrossRef CAS PubMed.
- A. Pal, A. Ganguly, P.-H. Wei, S. R. Barman, C.-C. Chang and Z.-H. Lin, Adv. Sci., 2024, 11, 2307266 CrossRef CAS PubMed.
|
