Formation of C(sp2)–S bonds through decarboxylation of α-oxocarboxylic acids with disulfides or thiophenols

Guangwei Ronga, Jincheng Mao*ab, Defu Liua, Hong Yana, Yang Zhenga and Jie Chena
aKey Laboratory of Organic Synthesis of Jiangsu Province, College of Chemistry, Chemical Engineering and Materials Science, Soochow University, Suzhou 215123, P. R. China. E-mail: jcmao@suda.edu.cn
bState Key Laboratory of Oil and Gas Reservoir Geology and Exploitation, Southwest Petroleum University, Chengdu 610500, P. R. China

Received 3rd December 2014 , Accepted 10th March 2015

First published on 10th March 2015


Abstract

Copper-catalyzed decarboxylative coupling between α-oxocarboxylic acids and diphenyl disulfides or thiophenols is presented, which provided an effective and direct approach for the preparation of useful thioesters through C(sp2)–S bond formation.


In recent years, transition-metal-catalyzed decarboxylative cross-coupling has attracted great attention in the formation of carbon–carbon and carbon–heteroatom bonds, since acids and their derivatives are usually stable, low-cost and commercially available substrates.1 Different from the traditional cross-coupling methods, which need pre-activated partners such as organometallic reagents and thus generate toxic metal wastes, transition-metal-catalyzed decarboxylative cross-coupling reactions generally prefer to employ a catalytic amount of metal catalysts such as palladium, copper, iron salts, etc.2 Among these atom economical and green protocols, arylcarboxylic acids or arylcarboxylates were often used as aryl sources.3 Excellent work on decarboxylative coupling reactions using benzoic acids and cinnamic acids has been extensively studied in the past several years.4 However, the area of decarboxylative reactions of benzoylformic acids has not been fully explored.5 It was firstly reported by Elena Vismara and his coworkers about silver-catalyzed decarboxylative acylation reaction in 1991.5a Then, the related decarboxylative couplings were developed by different groups as shown in Scheme 1. For example, Goossen and co-workers have reported Cu/Pd-catalyzed decarboxylation of α-oxocarboxylates and aryl bromides.5b,5c Ge and Li showed an example of Pd(II)-catalyzed decarboxylative cross-coupling of potassium aryltrifluoroborates with α-oxocarboxylic acids.5d After that, many researches focused on the combination of decarboxylation and C–H activation or functionalization, since this is a more straightforward way.5e–5i In 2009, Ge and co-workers just described a Pd-Catalyzed decarboxylative ortho-acylation of acetanilides with α-oxocarboxylic acids.5j From then on, a series of works on C–C formation via directed ortho-direction from decarboxylation of α-oxocarboxylic acids came out.5k–5r Recently, Duan and co-workers disclosed silver-catalyzed decarboxylative acylarylation of acrylamides with α-oxocarboxylic acids in aqueous media.5s Based on the above examples, it can be seen that C–C formation reactions were performed smoothly via decarboxylation of α-oxocarboxylic acids. However, researches on carbon–heteroatom formation were less reported till now. Thus, in this paper, we will present our results on copper-catalyzed decarboxylation of α-oxocarboxylic acids with disulfides or thiophenols to prepare the useful thioesters through C(sp2)–S bond formations.
image file: c4ra15751f-s1.tif

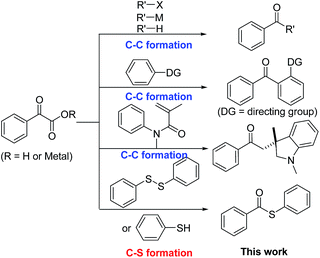

Scheme 1 Decarboxylation of benzoylformic acid.

As we know that thioesters play pivotal roles in biology as they are important structure units in various natural compounds. Besides, they also serves as essential synthetic intermediates for a range of acyl transfer reactions.6 Traditionally, thioester was prepared from benzoyl chloride and thiophenol. Considering the hygroscopicity and instability of benzoyl chloride, more practical approaches were developed using benzaldehydes as starting materials in recent years.7 Unlike previous reported protocols, thioesterification also can also be achieved through α-oxocarboxylic acids and disulfides with our method, which provides an alternative way to access thioesters.

In our initial attempt, benzoylformic acid and diphenyl disulfide were chosen as model substrates to screen the optimal reaction conditions and the results are shown in Table 1. Using 20 mol% of cupric acetate as catalyst, stoichiometric (NH4)2S2O8 as oxidant and acetonitrile as solvent, desired product was achieved in the yield of 28% (Table 1, entry 1). Controlled experiments confirmed that the reaction can not occur without catalyst or oxidant. The reaction also can not proceed smoothly using the traditional system of Ag(I)/(NH4)2S2O8. Then, we screened various copper catalysts and CuO showed best catalytic efficiency, affording the product 3a in 33% yield (Table 1, entry 7). Different oxidant were tested and (NH4)2S2O8 was proved to be one of the best (Table 1, entires 12–14). Most solvents were not suitable to this reaction during the process of optimization, only DMSO showed good effect and 65% 3a was achieved (Table 1, entry 12). Given that mixed solvent was widely adopted in decarboxylative reactions, we next tried various co-solvent such as DMSO/CH3CN and DMSO/dioxane in a ratio of 10[thin space (1/6-em)]:[thin space (1/6-em)]1. We were pleased to find that 3a was obtained in 74% yield when DMSO/H2O as solvent (Table 1, entry 15). Through the adjustment of the proportion of solvent, we found that the optimum solvent ratio of DMSO/H2O was 5[thin space (1/6-em)]:[thin space (1/6-em)]1 and the yield was increased to 83% (Table 1, entry 18). The amount of 2a was also tested (Table 1, entries 19 and 20) and 2 equivalents proved to be the best. S-Phenyl benzenesulfonothioate was detected after the reaction which can explain why disulfide should be excessive.

Table 1 Optimization of reaction conditions for the decarboxylative coupling of benzoylformic acid with diphenyl disulfidea

image file: c4ra15751f-u1.tif

Entry Cat. Oxidant Solvent Yieldb (%)
a Catalytic conditions: benzoylformic acid (0.3 mmol), diphenyl disulfide (0.3 mmol), cat. (20 mol%), oxidant (0.6 mmol), solvent (2 mL), 80 °C, 12 h, air.b Isolated yield.c 2a (0.15 mmol).d 2a (045 mmol).
1 Cu(OAc)2 (NH4)2S2O8 CH3CN 28
2 Cu (NH4)2S2O8 CH3CN 29
3 CuI (NH4)2S2O8 CH3CN Trace
4 CuCl2 (NH4)2S2O8 CH3CN <10
5 CuSO4 (NH4)2S2O8 CH3CN 31
6 CuF2 (NH4)2S2O8 CH3CN 31
7 CuO (NH4)2S2O8 CH3CN 33
8 CuO (NH4)2S2O8 Dioxane NR
9 CuO (NH4)2S2O8 Toluene NR
10 CuO (NH4)2S2O8 DCE NR
11 CuO (NH4)2S2O8 DMF NR
12 CuO (NH4)2S2O8 DMSO 65
13 CuO K2S2O8 DMSO 50
14 CuO Na2S2O8 DMSO 45
15 CuO (NH4)2S2O8 DMSO/H2O = 20/1 74
16 CuO (NH4)2S2O8 DMSO/H2O = 10/1 78
17 CuO (NH4)2S2O8 DMSO/H2O = 7/1 82
18 CuO (NH4)2S2O8 DMSO/H2O = 5/1 83
19c CuO (NH4)2S2O8 DMSO/H2O = 5/1 72
20d CuO (NH4)2S2O8 DMSO/H2O = 5/1 83


With optimized reaction conditions in hand, we next investigated the scope of different α-oxocarboxylic acids. As shown in Table 2, various substituted α-oxocarboxylic acids, including methyl, halogen and methoxy groups, were tolerable under the optimal conditions. Generally, α-oxocarboxylic acids bearing an electron-donating group gave the products in higher yields than those with electron-withdrawing analogues. Methyl-substituted from 3b to 3d all proceeded well and gave in good yields (Table 2, entries 2–4). The yields of p-halogen substrates were decreased from 3e to 3g (Table 2, entries 5–7). It is the same situation for o-halogen substrates 3k and 3l (Table 2, entries 11 and 12). Meta-bromine benzoylformic acid afforded product (Table 2, entry 8) in lower yield than ortho and para-bromine acids. We guess that the poor conjugated effect perhaps caused the difference when bromine located in the meta position. For heterocyclic and fused ring substrates, 3m and 3n can be achieved in good yields of 79% and 82%, respectively. Furthermore, aliphatic α-oxocarboxylic acid was also suitable substrate in this reaction, giving a moderate yield (3o) (Table 2, entry 15).

Table 2 Copper-catalyzed decarboxylative coupling between various α-oxocarboxylic acids and diphenyl disulfide (2a)a

image file: c4ra15751f-u2.tif

Entry R Product Yieldb [%]
a Catalytic conditions: benzoylformic acid (0.3 mmol), diphenyl disulfide (0.3 mmol), (NH4)2S2O8 (0.6 mmol), CuO (20 mol%), (NH4)2S2O8 (0.6 mmol), DMSO/water (5/1) (2 mL), 80 °C, 12 h, air.b Isolated yield.
1 C6H5 3a 83
2 4-MeC6H4 3b 84
3 3-MeC6H4 3c 86
4 2-MeC6H4 3d 82
5 4-FC6H4 3e 81
6 4-ClC6H4 3f 60
7 4-BrC6H4 3g 51
8 3-BrC6H4 3h 34
9 2-BrC6H4 3i 54
10 4-MeOC6H4 3j 86
11 2-FC6H4 3k 60
12 2-ClC6H4 3l 53
13 2-Thienyl 3m 79
14 2-Naphtyl 3n 82
15 Methyl 3o 56


As shown in Table 3, we then applied the optimal reaction conditions to decarboxylations of benzoylformic acid with various disulfides. Aromatic disulfides can afford the desired esters in good yields. Disulfide bearing strong electron donating group such as methoxy was converted into the corresponding thioester 3q in 86% yield (Table 3, entry 2). However, the reaction was almost inhibited when p-nitro substituted disulfide was chosen as the substrate (Table 3, entry 3). It is pleased to find that aliphatic disulfides are good substrates, giving moderate yields (3r and 3s) (Table 3, entries 4 and 5).

Table 3 Copper-catalyzed decarboxylation of benzoylformic acid and various disulfidesa

image file: c4ra15751f-u3.tif

Entry R Product Yieldb [%]
a Catalytic conditions: benzoylformic acid (0.3 mmol), disulfide (0.3 mmol), CuO (20 mol%), (NH4)2S2O8 (0.6 mmol), DMSO/water (5/1) (2 mL), 80 °C, 12 h, air.b Isolated yield.
1 4-MeC6H4 3p 80
2 4-MeOC6H4 3q 86
3 4-NO2C6H4 NR
4 Benzyl 3r 65
5 n-Propyl 3s 52


As we know that thiols have disadvantages of operating inconvenience and unpleasant odour in comparison to disulfides. Considering the similarity of their structure, we further extended the reaction to a series of thiols. Various substituted thiols all gave the corresponding products in moderate to good yields as shown in Table 4. It is obvious to find that the desired thiols show less efficiency in thioesterification compared to disulfides. Anyway, it provides alternative choice of substrates as thiols are more cheaper and commercially available. It was found that disulfide was detected after reaction, which indicated that the reaction may go through a process that thiophenol was converted into the corresponding disulfide before reacting with benzoylformic acid.

Table 4 Copper-catalyzed decarboxylative coupling between benzoylformic acid and various thiophenols (2a)a

image file: c4ra15751f-u4.tif

Entry R Product Yieldb [%]
a Catalytic conditions: benzoylformic acid (0.3 mmol), thiophenol (0.6 mmol), CuO (20 mol%), (NH4)2S2O8 (0.6 mmol), DMSO/water (5/1) (2 mL), 80 °C, 12 h, air.b Isolated yield.
1 C6H5 3a 74
2 2-MeC6H4 3t 73
3 2,6-Me2C6H3 3u 75
4 2-ClC6H4 3v 66
5 2-FC6H4 3w 72
6 2-Thienyl 3x 45


Based on previous reports about decarboxylations,5a,7 we proposed a possible mechanism as shown in Scheme 2. Firstly benzoylformic acid generates benzoyl radical in the presence of copper(II) catalyst. The radical then further reacts with disulfide or thiophenol to give the thioester. The copper(I) ion will be next oxidized to copper(II) by ammonium persulfate and back into the reaction.


image file: c4ra15751f-s2.tif
Scheme 2 Plausible mechanism.

In conclusion, we have presented an efficient method to prepare thioesters involving C(sp2)–S bonds formation through decarboxylative coupling of α-oxocarboxylic acids and disulfides or thiophenols. Furthermore, the thioesters prepared by our method will show valuable properties such as nucleophile acceptors, which means they can serve as one of the most important intermediates in organic synthesis.8 Further application of the reaction will be the key point of our future work.

Acknowledgements

We are grateful to the grants from the Scientific Research Foundation for the Returned Overseas Chinese Scholars, State Education Ministry, the Priority Academic Program Development of Jiangsu Higher Education Institutions, and the Key Laboratory of Organic Synthesis of Jiangsu Province.

Notes and references

  1. (a) O. Baudoin, Angew. Chem., Int. Ed., 2007, 46, 1373 CrossRef CAS PubMed; (b) L. J. Goossen, K. Goossen, N. Rodriguez, M. Blanchot, C. Linde and B. Zimmermann, Pure Appl. Chem., 2008, 80, 1725 CrossRef CAS; (c) L. J. Goossen, N. Rodriguez and K. Goossen, Angew. Chem., Int. Ed., 2008, 47, 3100 CrossRef CAS PubMed; (d) J. D. Weaver, A. Recio III, A. J. Grenning and J. A. Tunge, Chem. Rev., 2011, 111, 1846 CrossRef CAS PubMed; (e) T. Satoh and M. Miura, Synthesis, 2010, 3395 CrossRef CAS PubMed.
  2. Metal-Catalyzed Cross-Coupling Reactions, ed. A. de Meijere and F. Diederich, Wiley-VCH, Weinheim, 2nd edn, vol. 1 and 2, 2004 Search PubMed.
  3. (a) J. Cornella and I. Larrosa, Synthesis, 2012, 44, 653 CrossRef CAS PubMed; (b) N. Rodriguez and L. J. Goossen, Chem. Soc. Rev., 2011, 40, 5030 RSC.
  4. (a) L. J. Goossen, N. Rodriguez, P. P. Lange and C. Linder, Angew. Chem., Int. Ed., 2010, 49, 1111 CrossRef CAS PubMed; (b) S. Bhadra, W. I. Dzik and L. J. Goossen, J. Am. Chem. Soc., 2012, 134, 9938 CrossRef CAS PubMed; (c) B. Song, T. Knauber and L. J. Goossen, Angew. Chem., Int. Ed., 2013, 52, 2954 CrossRef CAS PubMed; (d) J. Cornella, P. Lu and I. Larrosa, Org. Lett., 2009, 11, 5506 CrossRef CAS PubMed; (e) C. Arroniz, A. Ironmonger, G. Rassias and I. Larrosa, Org. Lett., 2013, 15, 910 CrossRef CAS PubMed; (f) P. Hu, M. Zhang, X. M. Jie and W. Su, Angew. Chem., Int. Ed., 2012, 51, 227 CrossRef CAS PubMed; (g) P. Hu, J. Kan, W. Su and M. Hong, Org. Lett., 2009, 11, 2341 CrossRef CAS PubMed; (h) Z. Fu, S. Huang, W. Su and M. Hong, Org. Lett., 2010, 12, 4992 CrossRef CAS PubMed.
  5. (a) F. Fontana, F. Minisci, M. Claudia, N. Barbosa and E. Vismara, J. Org. Chem., 1991, 56, 2866 CrossRef CAS; (b) L. J. Goossen, F. Rudolphi, C. Oppel and N. Rodriguez, Angew. Chem., Int. Ed., 2008, 47, 3043 CrossRef CAS PubMed; (c) F. Collet, B. Song, F. Rudolphi and L. J. Gooßen, Eur. J. Org. Chem., 2011, 6486 CrossRef CAS; (d) M. Li, C. Wang and H. Ge, Org. Lett., 2011, 13, 2062 CrossRef CAS PubMed; (e) L. Yu, P. Li and L. Wang, Chem. Commun., 2013, 49, 2368 RSC; (f) C. Pan, H. Jin, X. Liu, Y. Cheng and C. Zhu, Chem. Commun., 2013, 49, 2933 RSC; (g) S. Zhang, L.-N. Cuo, H. Wang and X.-H. Duan, Org. Biomol. Chem., 2013, 11, 4308 RSC; (h) F. Manjolinho, M. F. Grünberg, N. Rodríguez and L. J. Gooßen, Eur. J. Org. Chem., 2012, 4680 CrossRef CAS; (i) D. Li, M. Wang, J. Liu, Q. Zhao and L. Wang, Chem. Commun., 2013, 49, 3640 RSC; (j) P. Fang, M. Li and H. Ge, J. Am. Chem. Soc., 2010, 132, 11898 CrossRef CAS PubMed; (k) H. Wang, L.-N. Guo and X.-H. Duan, Chem. Commun., 2014, 50, 7382 RSC; (l) S. Sharma, A. Kim, E. Park, J. Park, M. Kim, J. H. Kwak, S. H. Lee, Y. H. Jung and I. S. Kim, Adv. Synth. Catal., 2013, 355, 667 CrossRef CAS; (m) S. Sharma, I. A. Khan and A. K. Saxena, Adv. Synth. Catal., 2013, 355, 673 CrossRef CAS; (n) B. Xu, W. Liu and C. Kuang, Eur. J. Org. Chem., 2014, 2576 CrossRef CAS; (o) J. Park, M. Kim, S. Sharma, E. Park, A. Kim, S. H. Lee, J. H. Kwak, Y. H. Jung and I. S. Kim, Chem. Commun., 2013, 49, 1654 RSC; (p) H. Wang, L.-N. Cuo and X.-H. Duan, Org. Lett., 2012, 14, 4358 CrossRef CAS PubMed; (q) J. Miao and H. Ge, Org. Lett., 2013, 15, 2930 CrossRef CAS PubMed; (r) M. Li and H. Ge, Org. Lett., 2010, 12, 3464 CrossRef CAS PubMed; (s) H. Wang, L.-N. Guo and X.-H. Duan, Adv. Synth. Catal., 2013, 355, 2222 CrossRef CAS.
  6. (a) B. L. Wilkinson, S. R. Stone, C. J. Capicciotti, M. T. Andersen, J. M. Matthews, N. H. Packer, R. N. Ben and R. J. Payne, Angew. Chem., Int. Ed., 2012, 51, 3606 CrossRef CAS PubMed; (b) H. Fuwa, M. Nakajima, J. Shi, Y. Takeda, T. Saito and M. Sasaki, Org. Lett., 2011, 13, 1106 CrossRef CAS PubMed; (c) T. Mukaiyama, M. Araki and H. Takei, J. Am. Chem. Soc., 1973, 95, 4763 CrossRef CAS.
  7. (a) B. Basu, S. Paul and A. K. Nanda, Green Chem., 2010, 12, 767 RSC; (b) S. Singh and L. D. S. Yadav, Tetrahedron Lett., 2012, 53, 5136 CrossRef CAS PubMed; (c) X. Zhu, Y. Shi, H. Mao, Y. Cheng and C. Zhu, Adv. Synth. Catal., 2014, 335, 3558 Search PubMed; (d) H. Nambu, K. Hata, M. Matsugi and Y. Kita, Chem.–Eur. J., 2005, 11, 719 CrossRef CAS PubMed; (e) J.-W. Zeng, Y.-C. Liu, P.-A. Hsieh, Y.-T. Huang, C.-L. Yi, S. S. Badsara and C.-F. Lee, Green Chem., 2014, 16, 2644 RSC; (f) Y.-T. Huang, S.-Y. Lu, C.-L. Yi and C.-F. Lee, J. Org. Chem., 2014, 79, 4561 CrossRef CAS PubMed; (g) W. Ali, S. Guin, S. K. Rout, A. Gogoi and B. K. Patel, Adv. Synth. Catal., 2014, 356, 3099 CrossRef CAS.
  8. (a) A. P. Davis, S. Menzer, J. J. Walsh and D. J. Williams, Chem. Commun., 1996, 453 RSC; (b) C. Alvarez-Ibarra, M. Mendoza, G. Orellana and M. L. Quiroga, Synthesis, 1989, 560 CrossRef CAS PubMed.

Footnote

Electronic supplementary information (ESI) available: Experimental procedures, 1H, 13C, spectral data and analytical data for the products. See DOI: 10.1039/c4ra15751f
