Hydrogen production through water splitting using transition metal-based phosphide electrocatalysts represents a highly promising and sustainable energy conversion strategy. In this study, phosphating and vacancy engineering are achieved via a single-step Ar plasma-assisted process. CoFePv with phosphorus vacancies (Pv) as a bifunctional electrocatalyst effectively promotes both the oxygen evolution reaction (OER) and the hydrogen evolution reaction (HER), thereby significantly facilitating overall water splitting (OWS) in alkaline media. In the OER and HER processes, the driving overpotentials needed to attain a current density of 1 A cm−2 are only 382 and 367 mV, respectively. Furthermore, the CoFePv (+, −) OWS electrolyzer is capable of maintaining a current density of 2 A cm−2 at 1.98 V under simulated industrial settings (6 M KOH and 80 °C). It also demonstrates stable performance at a current density of 0.5 A cm−2 for a duration of 100 hours. In situ Raman spectroscopy observations show that Pv induce rapid catalyst phase reconstruction, thereby significantly enhancing the OER performance of CoFePv. Density functional theory (DFT) calculations demonstrate that phosphorus vacancies can modulate the electronic configuration of Co–Fe–P, facilitate electron transfer, and optimize the adsorption and desorption of reaction intermediates.
Pt and Ru/Ir-oxides are well known as benchmark catalysts for water splitting.10–12 Nevertheless, the high cost, limited availability, and instability at high current densities restrict their industrial applications.13 In recent decades, researchers have developed a diverse array of cost-effective transition metal (TM) compounds,14 such as transition metal phosphides (TMPs),15 transition metal oxides (TMOs),16 transition metal sulfides (TMSs),17 transition metal nitrides (TMNs),18 and transition metal carbides (TMCs).19 Studies have shown that these materials exhibit substantial catalytic activity for water electrolysis.
Among these, TMPs exhibit excellent electrical conductivity, a flexible and tunable structure characterized by the stoichiometric ratio of phosphorus and metals, rapid charge transfer, and enhanced reaction kinetics.20 Some investigations indicate that negatively charged phosphorus atoms promote the dissociation of H2O molecules into *H or *OH species, thereby regulating the binding affinity of intermediates during the HER.21 During the OER process, phosphorus oxidation facilitates the transformation of active species into oxides/hydroxides, enhancing catalytic efficiency.22 This demonstrates the potential application of TMPs as bifunctional catalysts.
In recent years, scholars have employed a variety of strategies to conduct in-depth investigations into the dual-functional properties of TMPs. Heterogeneous structure engineering is one of the effective approaches for constructing efficient catalysts. Li et al. employed hydrothermal and chemical vapor deposition (CVD) phosphating methods to in situ construct a hybrid structure of CeO2/NiCoPx on Ni–Co foam, acting as a robust and efficient bifunctional catalyst in water splitting. The electrolyzer coupled with CeO2–NiCoPx/NCF only needs a low cell potential of 1.49 V to obtain a current density of 10 mA cm−2 and maintain stability for over 50 hours.23
Motivated by the concept that heteroatom doping can enhance electrical conductivity and expose more active sites, Ru-doped NiCoP was synthesized via etching and CVD phosphidation approaches. Notably, Ru–NiCoP@NF exhibits nearly 100% faradaic efficiency during overall water splitting.24
Defect-rich Ni-doped CoP3 was synthesized via plasma-assisted phosphorization, requiring overpotentials of only 107 mV and 306 mV to drive the HER and OER, respectively.25 Jiang et al. employed atmospheric pressure O2 plasma- and N2 plasma-assisted phosphating to develop p-VNiCoPy/NiFeOx with abundant phosphorus and oxygen vacancies.26 This catalyst demonstrated excellent durability and stability for both the HER and the OER for 100 hours of water electrolysis at 50 mA cm−2. These findings indicate that engineering defects and vacancies is an efficient approach for improving the bifunctional catalytic performance of phosphides.
However, although TMP catalysts exhibit remarkable catalytic activity and reliability under laboratory conditions (1 M KOH and ∼25 °C) to achieve industrial applications, they must exhibit reliable performance at high current densities (≥0.2 A cm−2) for over 100 hours under harsh conditions (20–30 wt% KOH and 60–90 °C). Ideal catalysts should possess superior robust bifunctional catalytic activity under industrial conditions.27,28
It is worth noting that under industrial conditions, solid–liquid–gas mass transfer kinetics and reaction rate kinetics are critical factors influencing the performance of OWS.29,30 In scenarios of large current density, the extensive production of bubbles on the surface of electrodes may obstruct mass transfer, thereby slowing down ion diffusion rates.31 Hence, constructing nanostructures with superhydrophilic and underwater superaerophobic properties can effectively promote mass transport during the OWS process at high current densities.32
In this work, for the development of facile and controllable synthesis methods for self-supported TMPs, electrochemical deposition and plasma-assisted phosphorization were employed to rapidly synthesize CoFeP with phosphorus vacancies (CoFePv). In situ Raman spectroscopy was employed to examine the dynamic evolution during the OER process, confirming that P vacancies accelerate phase reconstruction from CoFeP to CoFeOOH. DFT calculations disclosed that P vacancies modulate the electronic configuration of CoFeP, thereby lowering the energy barrier of the rate-determining steps (RDS) for the HER (*H2O → *OH + *H). Additionally, the superhydrophilic/superaerophobic nature of CoFePv facilitates efficient electrolyte penetration and expedites bubble detachment. The self-assembled CoFePv/NF (+, −) electrolyzer demonstrated excellent 100-hour stability at a current density of 500 mA cm−2 in 6 M KOH at 80 °C. This technique offers an efficient and convenient means to develop stable, high-performance bifunctional TMP catalysts, specifically tailored for industrial alkaline water splitting.
The comprehensive details about reagents, substrate preparation, general material characterization, electrochemical characterization and density functional theory (DFT) calculations are presented in the ESI.†
The TEM images of CoFePv revealed that the edges of the CoFePv nanosheets were rough (Fig. 1c). As evidenced by the high-resolution transmission electron microscopy (HRTEM) images presented in Fig. 1d, the images revealed characteristic interplanar distances of 0.19 and 0.18 nm, aligning with the (211) and (103) lattice planes of CoP, respectively. The lattice spacing of 0.20 nm aligned with the (112) plane of FeP. HRTEM analysis also confirmed the presence of phosphorus vacancies, as indicated by the bright red spots representing phosphorus atoms and the darker, smaller spots signifying phosphorus vacancies (Fig. 1e and 1f). The TEM image and the corresponding EDS mapping presented in Fig. 1h indicate that Co, Fe, P, and O elements were uniformly distributed throughout the structure. As shown in Fig. 2a, the main peaks in the XRD pattern of CoFePv correspond to CoP (PDF#29-0497) and FeP (PDF#65-4899), suggesting that phosphorus vacancies do not significantly alter the main crystalline phase.33 The mechanism of phosphorus vacancy generation during plasma-induced phosphating is illustrated in Fig. 2b. Under high-energy Ar plasma bombardment, NaH2PO2 rapidly decomposes into PH3, which subsequently reacts with the precursor to form CoFeP. Simultaneously, the Ar plasma induces the desorption of surface P atoms from CoFeP as PH3, thereby creating phosphorus vacancies in situ within the material.
The P content in the CoFeP@NF and CoFePv@NF electrodes was precisely determined using inductively coupled ICP-OES (Table S1†). The analysis shows that CoFeP@NF has a P mass percentage of 1.13% compared to 0.74% in CoFePv@NF (Fig. 2c). This confirms successful phosphating via both strategies, with the plasma-induced method yielding lower P content due to its shorter duration.
EPR spectroscopy in Fig. 2d shows that CoFePv exhibits a strong peak with a g value of 2.004, compared with the weak signal from CoFeP. This indicates the successful introduction of phosphorus vacancies during plasma-assisted phosphating.34
The full XPS spectra (Fig. S5†) of CoFeP and CoFePv verified the coexistence of Fe, Co, P, and O elements. Notably, CoFePv exhibited a lower phosphorus content compared to that of CoFeP. In the high-resolution XPS spectrum of Co 2p for CoFeP (Fig. 2e), peaks at 777.4 and 792.8 eV are indicative of the presence of Co–P bonds,35 while those at 785.3 and 802.6 eV are satellite (Sat.) peaks.36 The observed peaks at 779.8 and 792.8 eV are associated with Co2+, whereas those at 781.6 and 798.3 eV are assigned to Co3+.37 Notably, the Co2+ peak at 797.1 eV of CoFePv shifts 0.5 eV higher in energy compared to that of CoFeP, while the Co3+ peak at 798.9 eV exhibits a similar shift of approximately 0.6 eV.
In Fig. 2f, the Fe 2p spectrum of CoFeP shows that the peaks at 734.4 and 718.2 eV are satellite peaks. The peaks located at 712.2 and 721.8 eV are associated with Fe2+, whereas the peaks at 714.2 and 726.5 eV correspond to Fe3+.38,39 The peak located at 706.6 eV is the characteristic peak of the Fe–P bond,40 which is 0.3 eV higher than that of CoFePv. Compared with CoFeP, the binding energy of Fe3+ in CoFePv shifts to a lower value by 0.3 eV, while that of Fe2+ is shifted to a higher value by 0.2 eV. The introduction of P vacancies promotes electron transfer between Fe and Co. In Fig. 2g, the P 2p of CoFePv shows peaks at 130.5 eV (P 2p1/2), 129.6 eV (P 2p3/2), and 134.5 eV (P–O bond).41,42 Compared to CoFeP, the P–O peak in CoFePv exhibits a downshift of 0.4 eV and the P 2p3/2 peak shows a decrease of 0.3 eV. These shifts suggest that the introduction of phosphorus vacancies results in substantial electron accumulation around the phosphorus atoms within the catalyst.
Contact angle (CA) measurements were performed to evaluate the electrode's interaction with electrolytes and gases. The CoFePv@NF electrode showed rapid spreading upon contact with a water droplet, indicating its superhydrophilic nature (CA ≈ 0°) (Fig. 2h). The CA of CoFeP@NF was 44°, showing poorer hydrophilicity compared to the phosphorus-vacancy electrode. Additionally, the gas contact angle of CoFePv@NF was 141°, higher than that of CoFeP@NF (130°) (Fig. 2i), indicating superior hydrophobicity to CoFeP@NF. The superior hydrophilicity towards liquids and superaerophobicity towards gases exhibited by CoFePv@NF will enhance reactant diffusion, thereby promoting rapid chemical reaction kinetics.43
Furthermore, as shown in Fig. S7,† the catalytic kinetics of the electrodes were evaluated using Tafel slopes. During the OER process, the Tafel slope of CoFePv@NF is 45.8 mV dec−1, which is substantially lower compared to the values observed for CoFeP@NF (68.3 mV dec−1), CoFe@NF (77.4 mV dec−1), and RuO2@NF (72.0 mV dec−1). For the HER process, the Tafel slopes followed the order: Pt/C@NF (60.9 mV dec−1) < CoFePv@NF (74.9 mV dec−1) < CoFeP@NF (88.3 mV dec−1) < CoFe@NF (92.4 mV dec−1). These findings indicate that the CoFePv@NF catalyst exhibits excellent charge transfer kinetics.44
As shown in Fig. S8,† the Nyquist plots reveal that at an overpotential of 200 mV, the charge transfer resistance (Rct) for CoFePv@NF during the HER and OER is 15.1 Ω and 4.5 Ω, respectively. These values are lower than those of CoFeP@NF (30.1/8.1 Ω) and CoFe@NF (42.4/13.2 Ω). Moreover, the Rct values of CoFePv@NF are comparable to those of RuO2@NF and Pt/C@NF. This indicates that the CoFePv@NF catalyst exhibits reduced charge transfer resistance during electrochemical reactions.
The cyclic voltammetry (CV) measurements conducted in the non-faradaic region are provided in the ESI (Fig. S9 and 10†). The Cdl value of CoFePv@NF during the HER/OER is 22.0/23.5 mF cm−2, while the corresponding calculated ECSA values for the HER and OER are 55.0 cm2 and 58.8 cm2, respectively. To gain a comprehensive understanding of the inherent activity of the as-prepared electrodes, the current density (j) normalized by the ECSA and the turnover frequency (TOF) were assessed, following established methodologies in the literature.45 As illustrated in Fig. S11,† the ECSA-normalized polarization curves revealed that at an overpotential of 300 mV, CoFePv@NF reached current densities of 1.22 mA cm−2ECSA and 1.01 mA cm−2ECSA during the HER and OER, respectively. This indicates a higher intrinsic electrocatalytic activity compared to other samples.46
The TOF was calculated at an overpotential of 300 mV for the HER/OER. As shown in Fig. S12,† the TOF for CoFePv@NF in the HER process is 3.81 s−1, which is comparable to that of Pt/C@NF (4.20 s−1). For the OER, the TOF of CoFePv@NF was 2.14 s−1, approximately twice that of RuO2@NF. It is also higher than that of any other reference samples. These findings verify that CoFePv@NF possesses abundant active sites and exhibits high intrinsic catalytic activity.47

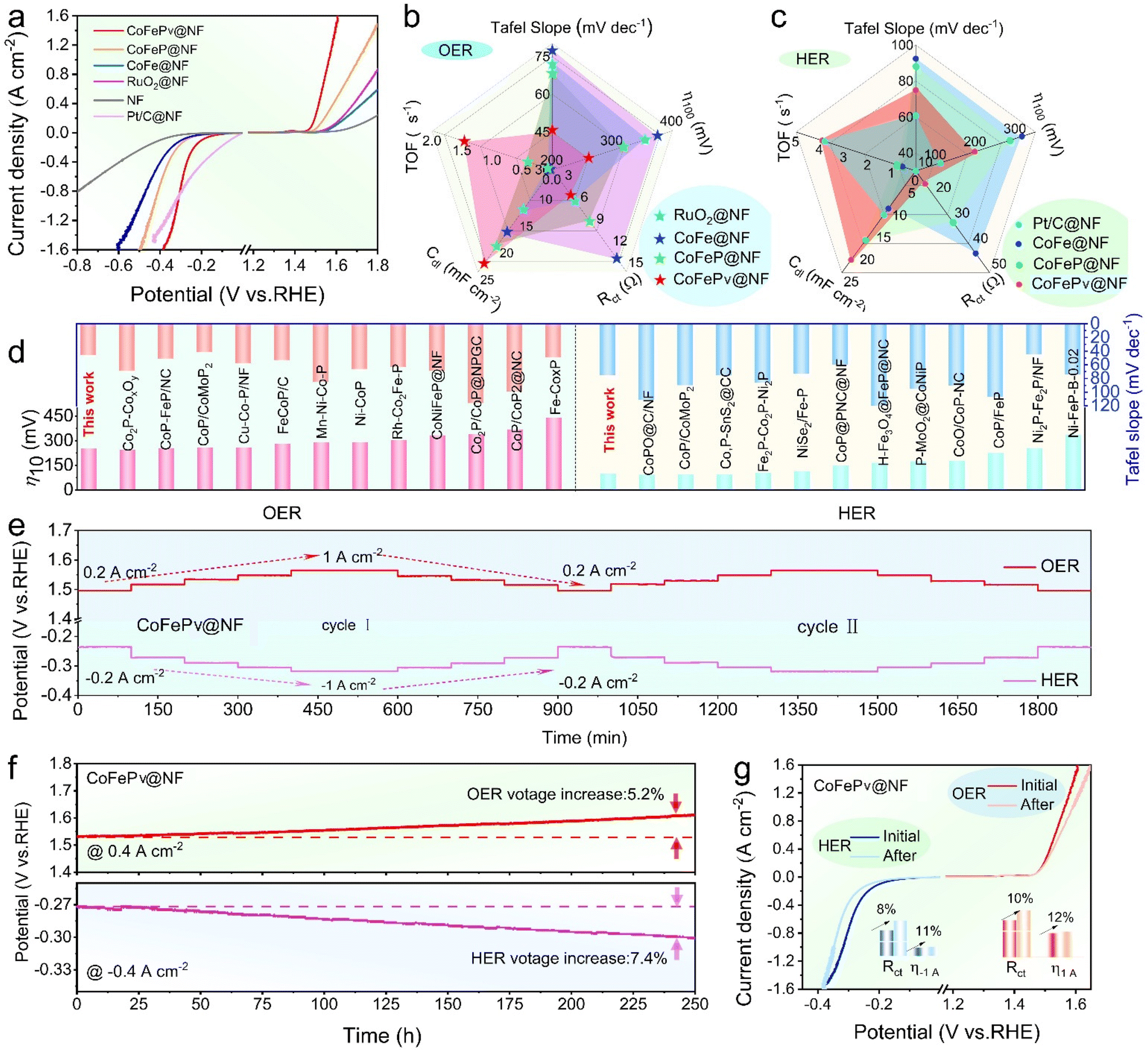

The test results were summarized to comprehensively compare the catalytic performance of CoFePv@NF, CoFeP@NF, CoFe@NF, and commercial electrodes in the OER (Fig. 3b) and HER (Fig. 3c) processes. The radar chart clearly demonstrates that the HER/OER catalytic performance of CoFePv@NF is significantly enhanced due to the synergistic effect of the components and phosphorus vacancies.
By comparing the HER/OER overpotentials at a current density of 0.2 A cm−2 (η200) and the Tafel slope with those of bifunctional phosphides, the superior alkaline water-splitting capability of CoFePv@NF is confirmed (Fig. 3d and Tables S2, S3†). Fig. 3e illustrates the multi-step current density curves of CoFePv@NF. The testing current density ranges for the HER are from −0.2 to −1.0 A cm−2, while those for the OER are from 0.2 to 1.0 A cm−2. At each current density step, the required voltage remains constant and the curves show negligible variation during the HER/OER cycling tests, indicating superior stability. Additionally, the durability of the electrode was assessed through chronopotentiometry at a fixed current density of 0.4 A cm−2. As illustrated in Fig. 3f, the final potential of CoFePv@NF exhibited only a 5.2% increase for the OER and a 7.4% increase for the HER compared to the initial values, demonstrating its stable performance over a 250-hour duration.
To further assess the stability of CoFePv@NF, its LSV curves were compared before and after the durability tests. In Fig. 3g, the LSV curves exhibit negligible changes. As evidenced by the inset in Fig. 3g, at an overpotential of 200 mV, the Rct for the HER increased by 8%, while that for the OER increased by 11%. Additionally, the overpotentials required to achieve a current density of 1 A cm−2 increased by 10% for the HER and 12% for the OER.
For unveiling the superior activity and stability, the phase composition, morphology, microstructure, and valence state of CoFePv@NF after stabilization in the HER/OER processes were comprehensively characterized. The XRD patterns of CoFePv@NF after the HER/OER still exhibit peaks for FeP (011) and (211) and CoP (011), (111), (112), and (211) planes (Fig. S13†). After the OER, new peaks appear at 20.2° and 65.4° for CoOOH (003) and (110) planes and at 14.2° for the FeOOH (020) plane.
The SEM images (Fig. S14†) indicate that CoFePv@NF retains its original nanoflake skeleton morphology after undergoing the HER/OER. The HRTEM images of CoFePv@NF show distinct lattice fringes for the (112) plane of CoP and the (212) plane of FeP (Fig. S15†). After the OER process, lattice fringes for the (101) plane of CoOOH and the (130) plane of FeOOH become evident (Fig. S16†).
The XPS spectra of CoFePv@NF after stability testing are shown in Fig. S17.† After the HER, the Co 2p, Fe 2p, and P 2p spectra exhibit a resemblance to their pre-HER states, maintaining clear Co/Fe–P peaks. However, after the OER, the Co 2p, Fe 2p, and P 2p spectra differ from those before the OER. The Co/Fe–P peaks disappear, while the intensities of the Co3+ and Fe3+ peaks increase significantly. These results suggest that CoFePv@NF undergoes surface reconstruction during the OER. Previous studies indicate that phosphides act as pre-catalysts, forming oxide layers on their surfaces in oxidative environments.25

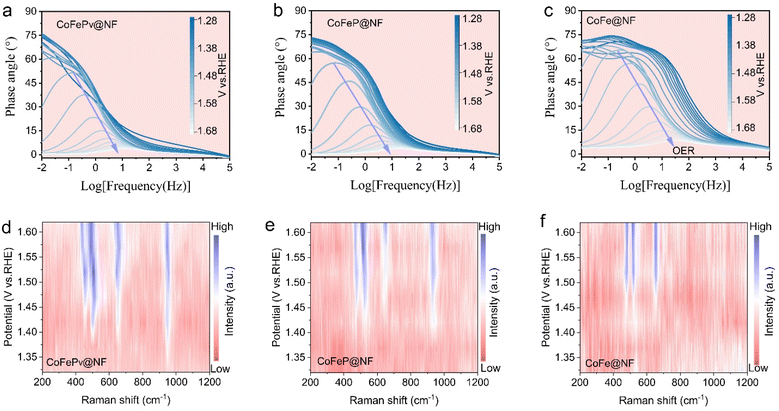

A smaller phase angle drop indicates faster electron transfer.49 When an electric potential was applied, CoFePv@NF showed a rapid phase angle decrease in the mid-frequency region, whereas CoFeP@NF showed a slower decline. For CoFe@NF, the phase angle decreased gradually from high to low frequencies. This suggests that the electrooxidation process of CoFePv@NF is significantly faster and more intense than that of the other catalysts.50 Once the applied voltage reached 1.42 V vs. RHE, CoFePv@NF initiated the OER, while CoFeP@NF and CoFe@NF required 1.46 and 1.50 V vs. RHE, respectively.
Nyquist plots (Fig. S19†) show that within the same potential range, CoFePv@NF has a significantly lower charge transfer resistance. This indicates that Pv enhance interfacial charge transfer and surface activation, thereby improving the OER electrocatalytic performance.
To further elucidate the role of Pv in the CoFePv@NF catalyst, in situ Raman analysis during the OER was performed (Fig. 4d and e). In the OER process, the crystal surface of Co/Fe transformed into a more defective or disordered CoFeOOH phase. For CoFePv@NF, a peak emerged between 900 and 1000 cm−1 at 1.37 V vs. RHE, suggesting the initial formation and adsorption of PO43− on the surface of the electrode in the electrolysis process.16 In contrast, for the CoFeP@NF electrode, the PO43− peak was observed at a potential of 1.42 V vs. RHE. This indicates that the presence of vacancies in CoFePv@NF promotes earlier oxidation and activation of the electrode.51
CoFePv@NF exhibits a Raman band attributed to CoOOH (450–550 cm−1)52–54 and FeOOH (600–700 cm−1),55,56 which begins to appear at 1.37 V vs. RHE and progressively intensifies with increasing voltage. In contrast, the CoFeOOH Raman bands for CoFeP@NF and CoFe@NF start to emerge at 1.42 and 1.47 V vs. RHE, respectively. This suggests that the presence of Pv significantly facilitates the local transformation of the crystal structure into active hydroxide oxides. Specifically, Pv reduce the surface electrochemical reorganization energy barrier during the OER process, thereby accelerating its oxidation and enhancing the overall water splitting catalytic performance.

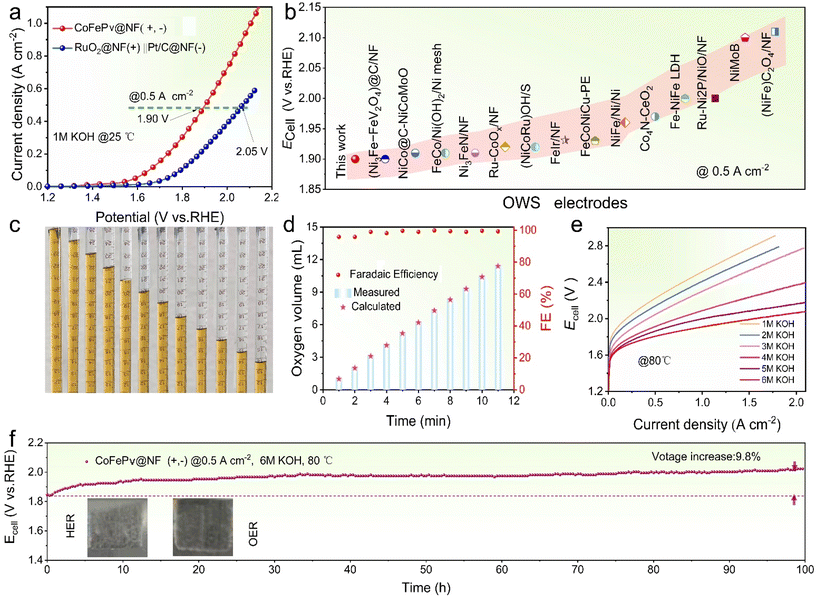

The OWS performance was assessed in 1 M KOH aqueous solution at room temperature. As shown in Fig. 5a, the LSV curve of CFPE demonstrates a marked superiority compared to that of the RPE. The CFPE requires 1.90 V to achieve a current density of 0.5 A cm−2, lower than the 2.05 V needed for the RPE. Additionally, the CFPE reaches 1 A cm−2 at only 2.09 V.
The catalytic performance of the CFPE was evaluated against recently reported bifunctional electrolyzers, as illustrated in Fig. 5b and Table S6.† The results indicate that the CFPE operates at a lower voltage in comparison with the others. The drainage method (Fig. S19†) was employed to further evaluate the Faraday efficiency (FE) of the CFPE. Fig. 5c shows detailed images documenting the time-dependent oxygen collection process. Theoretical calculations in Fig. 5d show that the average FE for OWS in the CFPE is 98.2%.
To assess the industrial application potential, the OWS performance of the CFPE was evaluated in KOH solutions ranging from 1 M to 6 M at 80 °C. As illustrated in Fig. 5e, the OWS efficiency improves with increasing KOH concentration. Notably, in 5 M KOH, with a voltage of 2.0 V, the CFPE can achieve a current density of 2.0 A cm−2, underscoring its exceptional catalytic activity and significant potential for industrial applicability.
To evaluate the durability of the CFPE under severe conditions, a chronoamperometry test was conducted at 0.5 A cm−2 in 6 M KOH at 80 °C. As illustrated in Fig. 5f, following 100 hours of testing, the cell voltage exhibited an increase of merely 9.8%. The inset image depicts the electrode surface during the test, revealing the formation and rapid overflow of bubbles. These results show that the CFPE can operate stably at high current densities under simulated industrial conditions.
To investigate the charge transfer characteristics of CoFeP with and without phosphorus vacancies, the Bader charge distributions are presented in Fig. 6c, which indicates that Pv result in a substantial redistribution of electron density. Specifically, P atoms adjacent to the vacancy display pronounced charge accumulation, whereas Fe and Co atoms exhibit charge depletion. The incorporation of Pv facilitates synergistic interactions within the crystal structure, thereby refining the electronic configuration and boosting the catalytic efficiency.
The optimization mechanism was explained using the d-band center (Ed) of the metal catalyst as an electronic structure parameter57 and the impact of P vacancies on intermediate adsorption energy was evaluated. Fig. 6d and e show the density of states (DOS) for CoFePv and CoFeP, with Ed values of −0.87 eV and −0.92 eV, respectively. According to d-band center theory,58 an Ed near the Fermi level (Ef) enhances interactions between the catalyst surface and intermediates by increasing anti-bonding orbitals. Furthermore, the spin asymmetry in the 2d orbitals of CoFePv compared to those of CoFeP enhances the adsorption capability of the active sites.
In alkaline media, the OER mechanism involves four steps with multiple intermediates (*OH, *O, *OOH, and O2).59 By DFT calculations, the Gibbs free energy change (ΔG) for each step was analyzed. Based on in situ Raman characterization results, the CoFeP(Pv) and CoFe electrodes undergo structural transformation during the OER process. Therefore, CoFeOOH–PO43− (Fig. S20†) and CoFeOOH (Fig. S21†) models were constructed to calculate the ΔG value for each intermediate on active sites. The step with the highest ΔG value is identified as the RDS. As shown in Fig. 6f, for all optimized models, the RDS corresponds to the conversion from *OOH to O2 (*OOH + OH− → O2 + H2O + e−). The ΔG value of the RDS for CoFeOOH-PO43− is 1.97 eV, which is lower than the 2.28 eV observed for CoFeOOH. This indicates that the presence of PO43− reduces the energy barrier of the RDS, thereby enhancing the catalytic activity for the OER.
For alkaline HER, CoFePv (Fig. S22†) and CoFeP (Fig. S23†) were employed as comparative models in the DFT calculations. The results depicted in Fig. 6g indicate that water adsorption is energetically favorable on both surfaces, with the dissociation of *H2O acting as the RDS. Notably, the energy barrier for the RDS on CoFePv is 0.47 eV lower than that on CoFeP (0.65 eV). This confirms that the introduction of vacancies expedites the H2O dissociation process.
The H2 adsorption energy (ΔG*H) indicates the balance between hydrogen atom adsorption and H2 desorption from active sites. A catalyst with good intrinsic activity typically has a ΔG*H value near 0 eV. Compared to CoFeP (ΔG*H = −0.31 eV), CoFePv shows closer thermodynamic neutrality (−0.10 eV), as seen in Fig. S24.† This suggests that vacancies enhance charge redistribution, improving H adsorption and accelerating HER kinetics. The introduction of vacancies not only enhances H2O adsorption and dissociation but also optimizes *H adsorption energy, thereby significantly improving the HER activity at high current densities in alkaline media.
The outstanding catalytic performance of the CoFePv@NF electrode can be attributed to the introduction of phosphorus vacancies. The Pv optimize the electronic structure of Co–Fe–P, thereby facilitating enhanced electron transfer and fine-tuning the adsorption/desorption of intermediates. At the same time, Pv accelerate the reconstruction of active species during the OER process, ultimately boosting intrinsic catalytic activity.
Meanwhile, the superhydrophilic/superaerophobic properties promote efficient electrolyte penetration and rapid bubble removal, accelerating reaction kinetics and significantly improving catalytic stability at high current densities for both the HER and the OER. The proposed strategy offers a simple and effective method for rapidly fabricating high-performance transition metal phosphide bifunctional electrocatalysts with significant industrial potential for hydrogen evolution.
