Separation of rare earth elements and nickel harnessing electrochemistry and reactive CO₂ capture and mineralization

Abstract

The aim is to probe the chemical mechanisms underlying the use of multifunctional solvents to simultaneously capture and convert CO₂ into insoluble rare earth element (REE)-carbonates, while forming soluble complexes with nickel for separation. Subsequent nickel electrodeposition regenerates the CO₂-loaded solvent for reuse.

---

Advances in technologies that harness CO₂ emissions for the recovery of energy relevant metals are crucial for a sustainable and secure energy future.¹ The growing demand for critical metals such as REEs and nickel, driven by their limited supply and rapid depletion of conventional high grade ores,² has sparked interest in recovering these metals from unconventional sources such as industrial residues³ and recycled materials.⁴ Current methods including pyrometallurgy (heat-based extraction)⁵ and hydrometallurgy (chemical leaching and liquid–liquid extraction) are used for separation.^6–8 Despite significant progress, the greenhouse gas footprint associated with heating, or the use of these reagents is significant,⁹ and alternative environmentally sustainable pathways are needed. One promising approach involves the capture and use of CO₂ for metal separations. Metal chelating amine ligands have been demonstrated for simultaneous CO₂ mineralization and recovery of metals such as Ni, Fe, and Cr in the solution phase.¹⁰ However, the use of CO₂ capture solvents for the separation of REEs and transition metals such as Ni remains less explored.

In this context, it is well-known that REE-carbonates have low solubilities in water and can be preferentially separated via crystallization using CO₂ capture solvents that solubilize CO₂ and regenerate upon REE – carbonate precipitation. The separation of La, Ni, and Co was reported using diethylenetriamine and carbon dioxide – bearing flue gas.⁴ After lanthanum carbonate precipitation, ethanol and CO₂ were used to separate Ni²⁺ and Co²⁺ ions. While effective, this approach relies on multiple solvent-based techniques for sequential separation and requires efficient solvent regeneration for cost-effectiveness. An alternative approach would be to utilize multifunctional solvents that can effectively capture CO₂, precipitate REE-carbonates, and serve as an effective medium for Ni precipitation without undergoing degradation. This approach eliminates the need for additional solvents for Ni recovery and instead regenerates the multifunctional solvent which can be looped multiple times for separating REEs (La³⁺, Pr³⁺, Nd³⁺, Eu³⁺, Dy³⁺) ions from Ni²⁺ ions.

These scientific possibilities and challenges motivate the investigation of CO₂ capture solvents such as aqueous ammonium hydroxide (NH₄OH), aqueous monoethanolamine (MEA), and aqueous diethylenetriamine (DETA). NH₄OH is effective in forming soluble complexes with Ni,¹¹ MEA efficiently captures CO₂ and converts it to REE-carbonates,¹² and DETA has been reported for separating La and Ni in solvent – based extraction⁴ though its effectiveness in electroplating remains unexplored. Despite these advances, the following specific research questions remain unexplored: (1) what are the chemical mechanisms associated with the use of amine bearing CO₂ capture solvents for REE and Ni separations? (2) After the recovery of REE-carbonates, what is the efficacy and associated coulombic efficiencies of Ni electrodeposition? (3) What is the influence of chemical speciation on product yields, purities, and morphologies? Addressing these questions will unlock new insights into the multifunctional role of solvents in capturing CO₂, enabling the separation of REEs as water – insoluble carbonates, and mediating Ni electrodeposition (see Fig. 1).

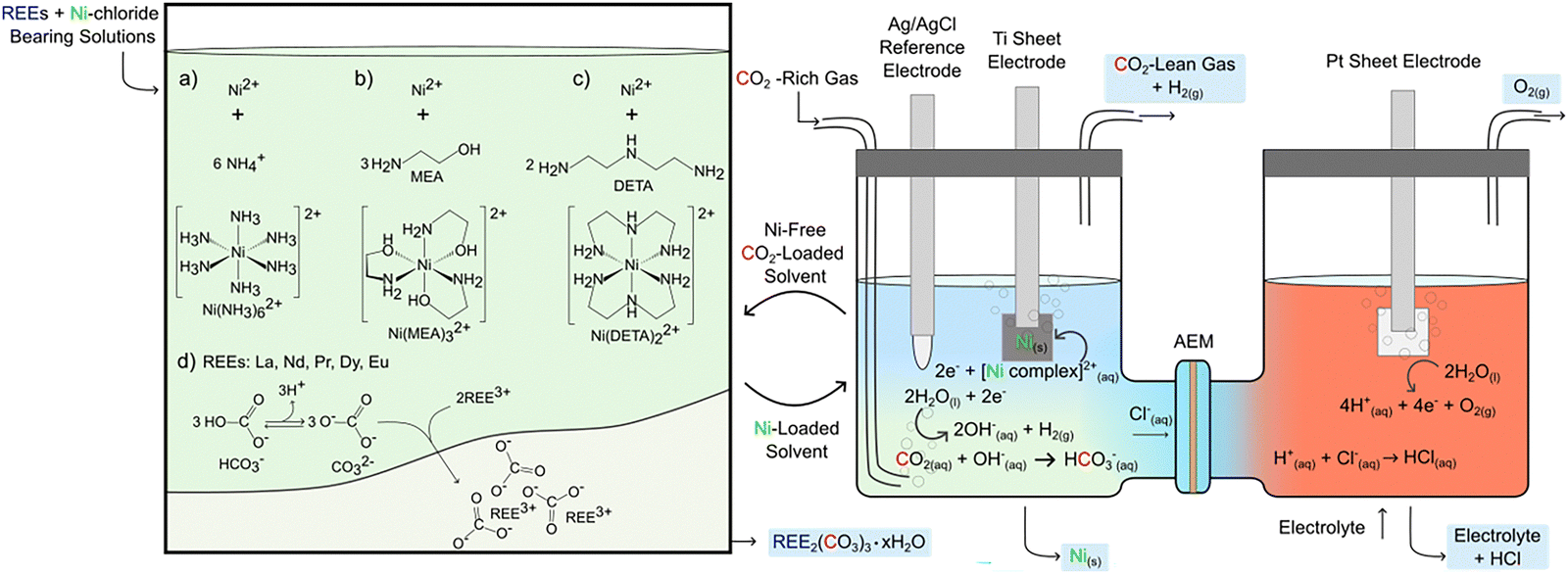

Fig. 1 Proposed approach to separate La and Ni using CO₂ and multifunctional solvents. Preferred reactions illustrated with (a) ammonium hydroxide (NH₄OH), (b) monoethanolamine (MEA) and (c) diethylenetriamine (DETA) are based on the most stable complexes shown in ESI,† Table S2. Products include REE-carbonates, electrodeposited nickel, H₂, O₂, and regenerated solvent for the next cycles. All measurements are performed at room temperature.

To elucidate the importance of CO₂ capture solvents in enhancing CO₂ solubility, and facilitating REE separation, two control experiments are conducted with solutions bearing 588 ppm La and 1176 ppm Ni. In the first control experiment, CO₂ is bubbled directly through the aqueous La/Ni solution for 12 hours resulting in no precipitation. Consequently, no carbonate formation is observed due to the low solubility of CO₂ in pure water, indicating that CO₂ capture solvents are needed. In the second control experiment, equal volumes of CO₂ loaded aqueous NaOH, and aqueous La/Ni solution are mixed, which resulted in La recovery efficiencies as lanthanum carbonate up to 99.9 (±0.1)%. However, this is also accompanied by 70.7% (±0.5)% of Ni precipitation resulting in La-carbonate purity and separation factor (β) of 46.4 (±0.7)% and 370.5 (±8.2), respectively. These base case separation factors are within a similar range of 314.6–3827.8 for La/Ni separation reported using other separation processes.^6–8 Nonetheless, more selective separation of La and Ni can be achieved by co-utilizing CO₂ and soluble metal chelating agents, which motivated the investigation of NH₄OH, MEA, and DETA.

As shown in Fig. 2 and Table S1 (ESI†), La recovery efficiencies exceeding 99.5% are reported with NH₄OH, MEA, and DETA. In addition, suppressed Ni co-extraction is observed (0–17.53% co-recovery efficiencies) at similar conditions with the control experiments (1 : 2 for La : Ni) resulting in separation factors of (4524–11630), (2131–4457), and (8784 – no Ni detected in carbonate phase) for NH₄OH, MEA, and DETA, respectively. Increasing Ni co-extraction efficiency is reported in the order of DETA < NH₄OH < MEA. Notably, this trend in Ni co-extraction efficiency is significantly influenced by the ability for Ni to form stable complexes in solution. Table S2 (ESI†) shows that Ni-DETA complexes have higher stabilities compared to those with NH₄OH or MEA. The formation of this soluble complex is also evident from the change in the colour of the solution bearing Ni from green to purple on DETA addition (Fig. S1(d), ESI†). The effectiveness of harnessing NH₄OH for separating other REEs such as praseodymium (Pr), neodymium (Nd), europium (Eu), and dysprosium (Dy) is also investigated. From a thermodynamic standpoint, the respective stability constants of REE-carbonates are similar, which is an indicator of similar behaviour as with La while keeping all other factors constant. Fig. 2(A) and Table S1 (ESI†) also show that recoveries exceeding 98% are also observed for all the four REEs of interest. Moreover, the regeneration of the CO₂-free solvent can be achieved at higher REE concentrations as demonstrated with MEA in Fig. S2(a)–(d) (ESI†).

Fig. 2 (A) Recovery efficiencies and product purity for REE/Ni separation using NH₄OH at REE : Ni of 1 : 2. (B) The product purity at different concentration ratios for NH₄OH, MEA and DETA.

Evidence of REE carbonate formation is determined by investigating the thermal decomposition behaviour using TGA (Fig. S3, ESI†). Weight losses in the range of 80–240 °C accounts for ∼6.7%, 7.2% and 5.7% of the sample weight in NH₄OH, MEA and DETA respectively are associated with the loss of H₂O molecules implying the presence of hydrated carbonate species.^13,14 Higher loss of H₂O observed with MEA and NH₄OH is likely due to the presence of hydrated Ni-carbonate. This observation is confirmed by the weight loss in the temperature range of 210–430 °C associated with the loss of CO₂ in Ni-carbonate.¹⁴ Fig. S4(a) (ESI†) shows the TGA, DTG and DSC profile of pure hydrated Ni- carbonate for comparison. It is important to note that Ni-hydroxide and Ni-carbonate decompose at overlapping temperature ranges.¹⁴ However, FTIR analyses confirm the absence of the characteristic OH stretching vibrations of Ni(OH)₂ typically observed at 3645 (±3) cm⁻¹ (ref. 15) as shown in Fig. S4(b) (ESI†). In the next step, at temperatures in the range of 260–580 °C, lanthanum carbonate La₂(CO₃)₃ decomposes into La₂O₂(CO₃), releasing CO₂.¹³ The fourth weight loss is perhaps the most distinct characteristic weight loss feature of lanthanum carbonate which represents the decomposition of La₂O₂CO₃ to release CO₂ and produces La₂O₃.¹³ DETA is observed to have the highest weight loss (∼7%) compared with ∼4% in MEA and NH₄OH implying a relatively higher purity of La-carbonate. This observation is further confirmed by the distinct green colour of Ni in the final product recovered from experiments performed using NH₄OH and MEA (Fig. S5, ESI†) contrasted with a product free of any coloration obtained from DETA post separation. SEM images shown in Fig. S3(d)–(f) (ESI†) reveal the presence of aggregated clusters with rosette and flat morphologies in La-carbonate produced.^3,10,16–18

Cathodic reactions E⁰ vs. SHE, pH = 7

N(NH₃)₆Cl_2(aq) + 2e⁻ → Ni_(s) + 6NH_3(aq) + 2Cl_(aq)⁻ E⁰ = −0.48 V (R1)

Ni(H₂NC₂H₄OH)₃Cl_2(aq) + 2e⁻ → Ni_(s) + 3H₂NC₂H₄OH_(aq) + 2Cl_(aq)⁻ (R2)

Ni(C₁₄H₁₃N₃)₂Cl_2(aq) + 2e⁻ → Ni_(s) + 2C₁₄H₁₃N_3(aq) + 2Cl_(aq)⁻ (R3)

2H₂O_(aq) + 2e⁻ → 2OH_(aq)⁻ + H_2(g) E⁰ = −0.41 V (R4)

OH_(aq)⁻ + CO_2(g) → HCO_3(aq)⁻ (R5)

OH_(aq)⁻ + HCO_3(aq)⁻ → CO₃²⁻_(aq) + H₂O (R6)

Anodic reactions E⁰ vs. SHE, pH = 7

H₂O_(aq) → 2H_(aq)⁺ + 1/2O_2(g) + 2e⁻ E⁰ = 0.82 V (R7)

H⁺_(aq) + Cl_(aq)⁻ → HCl_(aq) (R8)

The reactions proposed for Ni recovery are shown in (R1)–(R8). Ni deposition at the cathode is facilitated by decomplexation through a gain of electrons to deposit solid Ni species as shown in (R1)–(R3). Thermodynamic plots shown in Fig. S6 (ESI†) show the possibility for Ni to form complexes of varying oxidation states including [Ni(NH₃)_x]²⁺, [Ni(H₂NC₂H₄OH)_x]²⁺, and [Ni(C₁₄H₁₃N₃)_x]²⁺, where x typically varies from 1–6, 1–3, and 1–2 in NH₄OH, MEA, and DETA, respectively. Nonetheless, the most stable Ni complexes in this study are those with x = 6, 3, and 2 for NH₄OH, MEA, and DETA, respectively (see Table S2, ESI†). One key side reaction to consider is the hydrogen evolution reaction (HER) at the cathode, which competes for electrons (R4). HER requires a similar number of electrons as Ni electrodeposition which implies that neither has a kinetic advantage. However, HER is favoured at higher potentials, and lower Ni concentrations,¹⁹ due to rapidly depleting supersaturation around the electrode surface leading to lower Ni electrodeposition Coulombic efficiencies (CE).¹⁶

To evaluate the effect of NH₄OH, MEA, and DETA on the electrochemical reduction of Ni, linear sweep voltammetry (LSV) curves are obtained in Fig. S7 (ESI†). Two significant differences were observed among the three solvents. First, the reduction potentials for Ni were more negative for DETA (−0.638 V vs. RHE) compared to MEA (−0.496 V vs. RHE) and NH₄OH (−0.454 V vs. RHE). The more negative reduction potential with DETA is attributed to the formation of more stable Ni complexes, requiring greater energy for Ni deposition. Although Ni–MEA complexes are less stable than Ni–NH₃, MEA shows a more negative reduction potential, likely due to slower mass transport of the bulkier Ni−MEA complex, resulting in diffusion-limited behavior. Second, the slopes of the LSV curves decrease in the order: NH₄OH > MEA > DETA, consistent with decreasing mass transport rates of Ni ions toward the electrode surface.¹¹

Since regeneration of the impurity-free CO₂ loaded solvent is of importance, it is essential that these reactions are carried out in a two-chamber cell to facilitate the migration of Cl⁻ ions. It has been reported that the chlorine evolution reactions could occur in a one-chamber cell at the anode leading to the evolution of chlorine gas.¹⁶ Moreover the formation of Cl₂ gas could result in a homogenous reaction with NH₃ to produce N₂ leading to ammonia consumption.¹¹ Ammonia consumption through this reaction has been reported in the order of 0.193 kg of NH₃/kg of Ni.¹¹ Furthermore, the buildup of Cl⁻ ions could lead to increased acidity and solvent degradation. These side reactions can be avoided by the proposed two chamber cell configuration with an AEM to facilitate the migration of Cl⁻ ions to the anode. At the anode, oxygen evolution reaction (OER) occurs producing protons that stabilize the Cl⁻ ions to generate HCl as shown in (R7)–(R8).

Fig. 3(A) shows the (CE) and the yield rate of Ni per unit area of titanium electrode for each solvent at a galvanostatic hold of 100 mA for 1 hour. The highest yield rates and CE of 32 mg h⁻¹ cm⁻¹ and 29% respectively, are obtained with NH₄OH. The CE and rate of deposition of these systems is dependent on the starting concentration of Ni and the electrolyte.¹⁹ CE of 45% have been reported for electrodeposition of 1700 ppm Ni from a single chamber cell in an ammoniacal buffer system consisting of (NH₄)₂SO₄, NH₃ and H₂SO₄.¹⁶ Moreover the CE is observed to slowly decrease with time (Fig. S8, ESI†), which matches the asymptotic behaviour also observed with Ni recovery efficiencies as a function of time shown in Fig. 3(B). Up to 90% of Ni is electrodeposited after 4 hours of electrolysis from NH₄OH and MEA, and up to 4% with DETA. DETA shows early asymptotic behavior, resulting in slower deposition rates, likely due to the transformation of NiDETA into the more stable Ni(DETA)₂ complex as the pH rises due to competing hydrogen evolution reaction (HER) (Table S2, ESI†). A pH increase of 3.64 from neutral conditions is observed, suggesting that Ni(DETA)₂ complex becomes more prominent in this system according to thermodynamic speciation calculations shown in Fig. S6 (ESI†), implying that a buffer system is required. A similar slow pH increase is observed with NH₄OH and MEA which is detrimental for electrodeposition as Ni species undergo hydrolysis at higher pH conditions to precipitate as hydroxides.

Fig. 3 (A) Ni yield rate and coulombic efficiencies in different CO₂ capture solvents at galvanostatic hold of 100 mA for 1 h. (B) Ni recovery efficiency vs. time for NH₄OH, MEA and DETA. (C) Effect of CO₂ loading on Ni recovery. (D) Integrated experiments showing product distribution as carbonates, electrodeposited material and unrecovered metal.

The pH in these systems is typically modulated by adding a buffer, with boric acid commonly used to both regulate pH and reduce overpotential by forming weak Ni borate complex (Ni(H₂BO₃)₂) in solution.²⁰ Alternatively, we propose using CO₂, which dissolves and speciates into carbonate and bicarbonate, consuming OH⁻ ions from the HER (R4)–(R6), and controlling pH. CO₂ also forms carbamate species with amine which could also aid in Ni extraction. As shown in Fig. 3(C), continuous CO₂ supply during electrodeposition improves recovery efficiencies by 1.02, 1.03, and 2.98 times for NH₄OH, MEA and DETA respectively after 120 min. Further, the pH change was −0.01, −0.21, and 0.57 for NH₄OH, MEA and DETA respectively, compared to 2.37, 3.03, and 3.64 obtained without CO₂. The relatively higher ΔpH with DETA compared to MEA and NH₄OH is also an indication of the lower Ni extraction CE obtained in Fig. 3(A) due to HER. The effect of CO₂ on Ni electrodeposition appears to be primarily through pH modulation, not complexation. Experiments performed using CO₂ loaded solvent after REE separation showed no significant enhancement in Ni recovery, despite NMR analysis confirming the presence of similar amine-CO₂ species such as carbamates, HCO₃/CO₃²⁻ ions (Fig. S9, ESI†).

The chemical phases, structural and morphological features of the electrodeposited Ni, is discussed using XRD, SEM and XPS analyses. Fig. S10(a)–(c) (ESI†) shows the formation of dark shiny particles on the surface of the electrode indicating a successful electrowinning process. Ni particles of different sizes are observed in Fig. S11(a)–(f) (ESI†). The Ni deposit obtained for NH₄OH, MEA, and DETA at galvanostatic hold of 100 mA appeared to be a non-compact, silvery dark powder with spherical morphology which could be easily scraped off the titanium sheet electrode (Fig. S11(a)–(f), ESI†). It is important to also disclose that a different sheet-like morphology is observed when working at lower current densities <5 mA (see Fig. S12c, ESI†). XRD analysis on the scraped powder showed the presence of 111, 200, and 220 phases in Fig. S12 (ESI†) associated with pure metallic Ni (PDF 03-065-2865). This is confirmed by high resolution XPS scans which showed the characteristic binding energy of Ni⁰ for 2p^3/2 at 852.7 eV with ΔE of 17.27 from 2p^1/2 indicating the presence of pure metallic Ni. This Ni⁰ peak decreased in intensity when comparing NH₄OH to MEA and could not be detected in the Ni species from DETA. XRD analysis on the Ti electrode bearing Ni for DETA confirms the presence of Ni oxides as opposed to pure metallic Ni observed with NH₄OH and MEA.

To illustrate the flexibility of this concept for integrated CO₂ capture and the separation of REEs and Ni, we performed a stepwise separation of La and Ni using CO₂ loaded aqueous NH₄OH, MEA and DETA. Lanthanum carbonate phases with > 99.5% yield were observed in all solvents (Fig. 3(D)), however, 12.5% and 15.3% Ni-carbonates are also co-recovered. Product purity could be improved by controlling CO₂ concentration in the solution. The similar stability constants of NiCO_3(aq) and Ni-NH₄OH_(aq)/Ni-MEA_(aq) complexes led to partial Ni precipitation as carbonate. However, insignificant quantities of Ni are observed with DETA due to the formation of a significantly stronger complex. This stronger complexation challenges electrochemical Ni recovery in the subsequent step. Ni recovery up to 85% and 81% is obtained using NH₄OH and MEA, but only 11% using DETA. To improve Ni electrodeposition, higher temperatures can enhance electrolyte conductivity, ion diffusivity, and charge transfer rates leading to better recovery efficiencies, however, the risk of solvent decomposition exists. Alternatively, solvents that binds Ni preferentially over REE (log K values 10–18) could be explored, ensuring Ni binding is not too strong to hinder electrodeposition. Additionally, solvents must be chemically stable and efficient in CO₂ capture.

In summary, using CO₂ capture solvents to separate REEs and Ni is highly effective, achieving REE yields up to 99% with product purities of 80%, 79% and 98% for NH₄OH, MEA and DETA, respectively. While DETA is more effective for REE–Ni separation, its strong Ni-complex formation challenges nickel recovery during electrodeposition. Also, the supply of CO₂ during electrodeposition improves Ni recovery by modulating pH and forming alternative complexes. Scalable deployment can be achieved by optimizing this approach to maximize H₂ and O₂ recovery and ensure efficient solvent regeneration over multiple cycles.

This work utilized the Cornell Center for Materials Research Facility. This work is supported by Cornell’s Engineering Learning Initiatives and Sprout Awards, and the Link Foundation Energy Fellowship.

Data availability

The data supporting this article has been included as part of the ESI.†

Conflicts of interest

G. G. co-founded Carbon To Stone to valorize emissions for producing high value products.
