A highly efficient and thermally stable broadband Cr³⁺-activated double borate phosphor for near-infrared light-emitting diodes

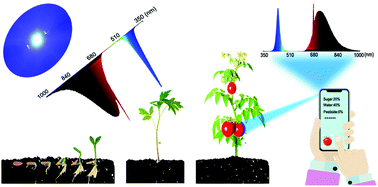

Highly efficient and thermally stable broadband near-infrared (NIR) phosphors are urgently required for phosphor-converted light-emitting diodes (pc-LEDs), which are compact, low cost and promising for applications such as food analysis and agricultural science. Herein, a NIR phosphor, GdAl₃(BO₃)₄:Cr³⁺ (GAB:Cr³⁺), with high emission efficiency and excellent thermal stability is presented. Under blue light excitation, GAB:Cr³⁺ shows a broad emission band covering 650–1000 nm with a full width at half maximum of ∼140 nm. Particularly, the 1.0 at% Cr³⁺ doped sample exhibits a photoluminescence (PL) quantum yield as high as 91%, and no decline of the PL intensity is observed even when the temperature is raised from 298 to 423 K. By combining the GAB:Cr³⁺ phosphor with a commercial blue LED chip, a high-performance NIR pc-LED is fabricated with a NIR radiant flux of 81 mW under a drive current of 350 mA. Furthermore, an aging test was performed on this device at 85 °C and 85% humidity for 480 h, and the radiant flux retained up to 95% of its initial value, which is comparable to the commercial phosphors. These results suggest that GAB:Cr³⁺ is a promising candidate for broadband pc-LEDs in NIR spectroscopy applications.
