Issue 30, 2019

Stress transfer at the nanoscale on graphene ribbons of regular geometry

Abstract

The knowledge of the mechanism of stress transfer from a polymer matrix to a 2-dimensional nano-inclusion such as a graphene flake is of paramount importance for the design and the production of effective nanocomposites. For efficient reinforcement the shape of the inclusion must be accurately controlled since the axial stress transfer from matrix to the inclusion is affected by the axial-shear coupling observed upon loading of a flake of irregular geometry. Herein, we study true axial phenomena on regular- exfoliated-graphene micro-ribbons which are perfectly aligned to the loading direction. We exploit the strain sensitivity of vibrational wave numbers in order to map point-by-point the strain built up along the length of graphene. By considering the balance of shear-to-axial forces, we identify the shear stress at the interface and develop a universal inverse-length parameter that governs the stress transfer process at the nanoscale. An important parameter that has come out of this approach is the prediction and measurement of the transfer length that is required for efficient stress in these systems.

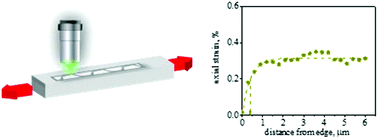

Graphical abstract: Stress transfer at the nanoscale on graphene ribbons of regular geometry

Supplementary files

Article information

Article type
Paper
Submitted
12 এপ্রিল 2019
Accepted
15 জুলাই 2019
First published
15 জুলাই 2019
This article is Open Access
Creative Commons BY-NC license

Nanoscale, 2019,11, 14354-14361

Stress transfer at the nanoscale on graphene ribbons of regular geometry

A. C. Manikas, M. G. Pastore Carbone, C. R. Woods, Y. Wang, I. Souli, G. Anagnostopoulos, M. Hadjinicolaou, K. S. Novoselov and C. Galiotis, Nanoscale, 2019, 11, 14354 DOI: 10.1039/C9NR03166A
