Fabrication of nanocellulose–hydroxyapatite composites and their application as water-resistant transparent coatings

Abstract

Nanosized composite rods ∼300 nm in length and ∼20 nm in width were produced by deposition of 22–77 wt% of a c-axis-oriented hydroxyapatite (HA) on cellulose nanocrystals (CNCs). The CNCs functionalized with sulphonic groups were covered with the HA nanocrystals through controlled nucleation and growth under a moderately supersaturated condition in a solution system based on a simulated body fluid. Water-resistant transparent coatings 2–4 μm thick were obtained via evaporation-induced assembly of CNC–HA nanocomposites by casting their suspension on a glass substrate and the subsequent growth of HA nanocrystals by vapour hydrothermal treatment. The composite coatings exhibited improved mechanical strength compared to that of crustacean exoskeletons, and potential for bone regeneration.

---

1. Introduction

Cellulose, which is a linear polysaccharide composed of glucoses linked by β-1,4-glycoside bonds, is a promising biopolymer due to its renewability and abundance.¹ Controlled surface functionalization of the nanoscaled components² has enabled rational fabrication of functional hybrids and composites with several potential applications.³ Cellulose nanocrystals (CNCs) are obtained from acid hydrolysis of cellulose nanofibers, which removes defective regions. The resulting CNCs are crystalline, rigid and rod-like materials 3–50 nm in diameter and hundreds of nanometres long.^1,4,5 Highly crystalline CNCs have great mechanical properties with various advantages, such as low density, biodegradability, flexibility, and biocompatibility.^1,4,5 CNCs have been widely used as reinforcements of various composite materials and hydrogels.^5–7 Possible applications of CNCs are as fillers for paints and adhesives, additives for foods and cosmetics, optical parts, drug delivery, insulator aerogels, bone or tooth replacement materials, biosensors, transparent conductive films, and functional membranes.^1,4,5 However, CNC films are usually brittle and their strength can be improved by adding inorganic compounds. In this manner, a biocomposite formed from CNCs and amorphous calcium carbonate nanoparticles was obtained at room temperature using the CNCs as nucleating substrates.⁸ However, the composite lacked the order and hierarchy found in natural biocomposites such as bones.⁹

Human bones are a nanoscopically ordered composite material consisting of 69 wt% of inorganic components and 22 wt% of organic components, such as collagen I. The dominant inorganic components are fibrous nanocrystals of hydroxyapatite (HA, Ca₁₀(PO₄)₆(OH)₂) that are precipitated between oriented collagen fibres with c-axis orientation.¹⁰ The hierarchical architecture of the nanocomposites provides great mechanical properties. Several composite materials based on HA nanocrystals have been reported to be possible bone substitutes. Titanium and stainless steel alloys are coated with HA to enhance osteoconductivity.^11,12 Biodegradable polymers, such as polylactic acid and polycaprolactone, are employed as scaffolds for the composites.^13–17 Simulated body fluid (SBF), which Kokubo invented in the 1980s, is a solution composed of the same inorganic ions as in human blood plasma and has been applied to the precipitation of HA on specific substrates and to evaluate the bioactivity of various biomaterials.^18,19 Cellulose, especially bacterial cellulose, has received attention as a substitute for collagen in bone-repairing devices. However, the HA crystals in the composites were in the microscale and were not oriented like the biogenic architectures.^20–22

The hammers of dactyl clubs called Odontodactylus scyllarus are composed of calcium phosphate and biopolymers. Crystalline and amorphous calcium phosphate particles are precipitated on helical chitin fibres of the exoskeletons, and the composite structure leads to extremely high strength.^23,24 Thus, the composites of the crystalline calcium phosphate and polysaccharides, such as chitin and cellulose, are candidates for biodegradable, biocompatible, and high-strength materials. The main purpose of this work is to fabricate ordered nanocomposites with CNCs and HA. An SBF-based solution system was employed to precipitate nanosized HA on the surface of functionalised CNCs. The size and orientation of the HA crystals were controlled by varying the reaction conditions, such as the temperature, pH, and molar ratio of calcium ions per functional groups on the CNC surface. Moreover, transparent water-resistant coatings were prepared on a substrate by casting the suspension of the nanocomposites and subsequent vapour-phase hydrothermal treatment. The novel nanocomposites could be the building units for functional materials in the field of biomedical applications and high mechanical strength films.

2. Experimental

2.1 Synthesis of the nanocomposites

In this study, to precipitate HA effectively, a simplified simulated body fluid (s-SBF), which removes unnecessary elements from the original elements, was employed. On the other hand, it is important when using SBF to maintain a suitable ionic strength, so that the concentrations of sodium ions and chloride ions are kept high. s-SBF was prepared in accordance with previous studies.^25,26 Sodium chloride (Kanto Chemical), calcium chloride hexahydrate (Junsei Chemical), disodium hydrogen phosphate (Junsei Chemical), and hydrochloric acid (Junsei Chemical) were mixed to make the concentrations of sodium ions, calcium ions, chloride ions, and phosphate ions 141.0 mM, 2.5 mM, 165.0 mM, and 1.0 mM, respectively. The s-SBF solution was adjusted to a particular pH between 6.9 and 7.9 with the addition of tris(hydroxymethyl)aminomethane (Junsei Chemical). The preparation of a CNC dispersion and its surface modifications were also performed in accordance with the methods previously established.⁸ The CNCs used for the study were derived from spruce and pine, and they were 5–10 nm wide and 100–300 nm long. Due to acid hydrolysis with sulphuric acid, the fibres had ∼0.34 mmol g⁻¹ of surface sulphonic groups. We also used CNCs with carboxylate and hydroxy groups. The carboxylate groups were prepared via 2,2,6,6-tetramethylpiperidine 1-oxyl (TEMPO) oxidation. The hydroxy groups were prepared by heating the CNCs that had sulphonic groups. A certain amount of the CNC suspension was added to the precursor solution. The molar ratio of the calcium ions and sulphonic groups on the CNC surface was fixed between 30 and 230 with varied amounts of the CNCs in accordance with those in the previous study: the case of amorphous calcium carbonate.⁸ The s-SBF and CNC suspensions were put into an ultrasonic bath for 15 min. After that, the mixtures were stirred in a thermostatic oven at 37 °C for 1 h. The processes of ultrasound and stirring in the oven were repeated 1–3 times. The precipitated products were collected using centrifugation and washed several times with ethanol and pure water. The obtained samples were freeze-dried.

2.2 Preparation of films of the nanocomposites

The suspension synthesised at pH 7.9 was dropped onto superhydrophilic glass substrates that were treated with plasma etching in air for 10 min. The substrates were set with leans of 20°. They were then dried at 60 °C for 3 h, and transparent coatings were obtained. The solution deposition was repeated a certain number of times to increase the film's thickness. Vapour hydrothermal treatment was carried out to induce growth of the HA nanocrystals in the coatings. The hydrothermal treatment was performed by exposure of the samples to water vapour to prevent the degradation of the films by liquid water. The composite coating on the glass substrate was put into a small Teflon vessel (20 cm³). Then, the small vessel that contained the composite coating was put into a large Teflon vessel (60 cm³) with 10 cm³ of pure water. The Teflon vessels were placed in a stainless steel autoclave and then placed in the oven at 100–200 °C for 3–12 h for the vapour hydrothermal reaction. The coating was dried in a constant temperature oven at 60 °C in air.

2.3 Characterisation of nanocomposites

Fabricated coatings were observed using polarisation microscopy (Olympus BX51-FL) in a transmissive condition. The surface morphologies of the coatings were observed using scanning electron microscopy (SEM, JEOL JSM-7600F). The samples were coated with osmium ∼1 nm in thickness before observation. The composite nanorods and coatings were observed using transmission electron microscopy (TEM, FEI Tecnai G² F20). The composition of the samples was examined using TEM affiliated energy dispersive X-ray spectroscopy (EDX) and Fourier transform infrared spectroscopy (FTIR, JASCO FT/IR-4200). The crystallinity of the samples was analysed using X-ray diffraction (XRD, Rigaku MiniFlex II) using CuKα radiation. The content of the organic CNC and inorganic HA in the composites was determined using a thermogravimetric analysis (TGA) test with air using an SII TG/DTA 7200. The transmittance of the obtained coatings was investigated using spectrometry (JASCO V-670ST) in the visible light range. We observed the composite coatings under crossed nicols using polarized light microscopy to characterize the crystallinity of the films. The coating on the glass substrates was pinched with a wooden clip and half of the film was immersed in water for 4 h at 60 °C to test its water resistance. Nanoindentation tests were performed using a nanomechanical test instrument (Hysitron Ubi 1) furnished with a Berkovich diamond tip. Each sample was indented by 1000 μN. The hardness and Young's modulus were calculated from obtained load–displacement curves using the Oliver–Pharr equation.²⁷

3. Results and discussion

3.1 Synthesis of the nanocomposites

We used s-SBF for the preparation of the nanocomposites. In the absence of CNCs, no precipitates were collected in the aged solution at 37 °C for 3 h at pH 7.4. This means that the supersaturated solution is metastable to the deposition of HA crystals under this condition. Fig. 1 shows the products collected in s-SBF with the CNCs that have sulphonic groups after being kept at 37 °C for 3 h. The pristine CNCs were 5–10 nm wide and 100–300 nm long.⁸ After immersion for 3 h, the width became approximately 20 nm by mostly covering the CNC fibril with fine particles of calcium phosphate of ∼5 nm in size. The inorganic part covering the CNCs was identified as HA according to the lattice image (Fig. 1f) and characteristic XRD signals due to the crystal lattice (Fig. 2a). As shown in Fig. 1e and f, the nanorods covered with the tiny HA nanocrystals were produced with a high degree of supersaturation at pH 7.9. The morphologies of the composites were varied by changing the pH of the s-SBF and the initial molar ratio of the calcium ions and the surface functional groups. The specific structure of the nanorods was formed with a high nucleation frequency due to the low solubility of calcium phosphate at pH 7.9. On the other hand, plate-like HA was gradually grown on the CNC fibrils at pH 6.9.

Fig. 1 A typical SEM image (a) and TEM micrographs (b, c) of the CNC–HA composites synthesised for 1 h in s-SBF at pH 7.9 with a molar ratio of 40 of calcium ions and sulphonic groups. TEM images of the pristine CNCs (d), TEM image of the nanocomposites (e), and a high-resolution TEM image of the HA nanocrystals after the removal of CNCs with calcination at 400 °C in air (f).

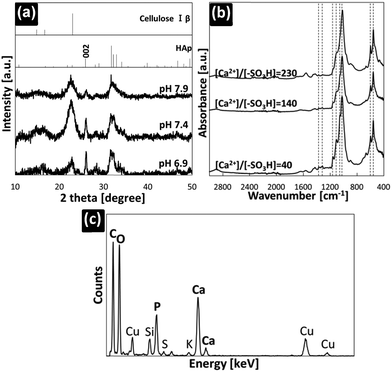

Fig. 2 XRD patterns with ICDD data of cellulose I β (no. 00-056-1718) and HA (no. 00-055-0592) (a), FTIR spectra (b) and an EDX spectrum of the products collected in s-SBF with the CNCs having sulphonic groups. The molar ratio of the calcium ions and sulphonic groups was 40 in (a) and (c). The pH value was 7.9 in (b) and (c).

As shown in the FTIR spectra (Fig. 2b), the absorption bands at 557 and 596, 1043, and 1087 cm⁻¹ are assigned to the vibration, bending, and stretching modes of PO₄³⁻ in HA, respectively.^28–30 They also suggest the presence of HA around the CNCs. The stretching vibration derived from C–O (1016 cm⁻¹), the stretching vibration of C–O–C (1137 cm⁻¹), the wagging vibration of CH₂ (1313 cm⁻¹), and the bending vibration of C–H (1373 cm⁻¹) indicate that the composites contain HA and CNCs.^31–33 The EDX spectrum also indicates all of the elements that were contained in the CNCs and HA. Thus, the nanocomposites were fabricated from the CNCs via coverage with the HA nanocrystals in the supersaturated solution. The c-axis of the HA was aligned along the long direction of the CNCs. Furthermore, the content of HA in the nanorods, which was determined using TGA, could be varied between 22 and 77 wt% by increasing the molar ratio of the calcium ions and the sulphonic groups.

Similar composites were obtained with the CNCs that had carboxylate and phosphate groups. On the other hand, deposition was not observed with CNC fibrils that had hydroxy groups in s-SBF. Thus, the deposition was induced in the metastable solution on the CNC surface with the sulphonic, carboxylate and phosphate groups. These facts suggest that anionic functional groups initiate the nucleation of HA and promote the formation of nanocomposites.

3.2 Coatings of the CNC–HA nanocomposites

Transparent coating of the nanocomposites was achieved by casting their suspension on a glass substrate. A superhydrophilic surface was needed to prepare the homogeneous, transparent films. As shown in Fig. 3, thin coatings with more than 90% transmittance were successfully obtained using nanocomposites with 34 wt% of HA, which were highly dispersive in water. We obtained a single layer coating ∼2 μm in thickness on the substrate. The film thickness increased to ∼10 μm by 10-layer coatings. The composite coatings were observed under crossed nicols using a polarized light microscope. Because extinction was observed on the composite coatings every 45° during rotation, the coated nanocrystals were assembled in the same direction like a single crystal in the coatings. The c-axis of the fibrils was aligned parallel to the surface of the substrate and to the three-phase line consisting of air, the suspension, and the substrate. The (300) diffraction peak derived from HA was clearly observed on the coating of the CNC–HA composite rods. These results indicate that the c-axis of the HA that was made up of the nanocomposites was arranged parallel to the c-axis of the CNC fibrils.

Fig. 3 Appearance (a), SEM images (b, c), polarised optical images (d), transmittance (e), and XRD patterns (f) of the coating of the nanocomposites.

The coating on the glass substrates was immersed in water for 4 h at 60 °C to test its water resistance. Unfortunately, the assembly of the nanocomposites turned to pieces in the water. Thus, we performed hydrothermal treatment in water vapour above 100 °C to improve the properties of the composite coatings. The hydrothermal treatment was performed by exposure of the samples to water vapour to prevent the degradation of the films by liquid water. The treated composite films showed tolerance to water at 60 °C, although their transparent appearance did not change with the exposure to water vapour. As shown in Fig. 3, the (300) diffraction signal from HA increased after the treatment. The lattices of the (300) and (211) planes of the HA were clearly observed in the TEM image of the composite rod in the coating treated at 150 °C for 6 h (Fig. 4). Although the diffraction peaks due to the CNCs were relatively weakened with the increase in the signal intensity of the HA, the coating was not degraded with the treatment. These facts indicate that the HA nanocrystals covering the CNC core were grown in the presence of water vapour. The c-axis of the HA is deduced to elongate through the attachment of the nanocrystals. The durability of the coatings was enhanced by the interconnection of the HA crystals that covered the CNCs. Finally, we obtained water-resistant transparent coatings that consisted of the aligned CNC–HA nanocomposites.

Fig. 4 A TEM image of the CNC–HA composite nanofibril in the coating after vapour hydrothermal treatment.

3.3 Properties of the composite coatings

Crustacean exoskeletons are the nanocomposites of polysaccharides, such as chitin, and calcium carbonates or phosphates. The composite structures provide excellent mechanical properties. For instance, the hardness of the composites is commonly higher than that of conventional polymers. As shown in Table 1, the values of the hardness and the moduli of the composites are comparable to the organic–inorganic composites of lobsters and crabs.^35–37 As compared with the Vickers hardness, the composite coatings are harder than general polymers.

Table 1 Mechanical properties of the coatings evaluated by nanoindentation^a

	Hardness [GPa]	Vickers hardness	Modulus [GPa]
a Averages calculated by 5-time measurements. b 150 °C for 6 h.
CNC–HA composite coating (after hydrothermal treatment^b)	0.121 ± 0.004	12.3 ±0.4	6.31 ± 0.08
CNC–HA composite coating (before hydrothermal treatment)	0.214 ± 0.007	21.9 ± 0.7	7.66 ± 0.49
Cellulose acetate^34	—	4	—
Marsupenaeus japonicus ^35	0.172 ± 0.023	—	1.87 ± 0.41

---

The potential of mineralization on the materials’ surface has been identified as an important phenomenon for bone-bonding capability implanted in bony defects. Kokubo proposed that a type of SBF may be useful for the estimation of the potential of mineralization that is the formation of a bone-like HA layer on the materials.^18,19 In the present study, the water-resistant CNC–HA composite coatings were immersed in the s-SBF at pH 7.4 for 24 h to examine their bone conductivity. The composite coatings became opaque, and their thickness increased to 12 μm with the deposition of the HA nanorods, 10–20 nm wide, on their surface as shown in Fig. 5. This indicates that the composite coatings have a higher potential for HA formation which relates the bone-bonding property of the designed materials for artificial bones. Thus, the transparent composite coatings could be applicable in the field of biomedical applications. Further biological evaluation is required to prove bone conductivity.

Fig. 5 Appearance, SEM images, and XRD profile of the nanocomposite coating after immersion in SBF for 24 h.

4. Conclusions

We produced nanometric composite rods that consisted of cellulose nanocrystals (CNCs) and hydroxyapatite (HA) by using a simplified simulated body fluid. Controlled nucleation with sulphonic and carboxylate groups as well as crystal growth under moderately supersaturated conditions are essential for fabricating the nanocomposites. Transparent thin coatings were successfully fabricated via evaporation-induced assembly of CNC–HA nanocomposites. The c-axes of the CNC and HA in the nanorods were aligned parallel to the surface. Water-resistant, transparent coatings of nanocomposites were achieved by elongating and interconnecting the HA nanocrystals with the vapour hydrothermal process. The composite coatings are expected to be a promising stage for fabricating novel organic–inorganic materials.
