Issue 5, 2019

An integrated multi-molecular sensor for simultaneous BRAFV600E protein and DNA single point mutation detection in circulating tumour cells

Abstract

The analysis of circulating cancer biomarkers in the form of liquid biopsies confers several potential benefits as compared to traditional surgical tissue sampling. As a common key anomaly strongly implicated across several cancer types, the BRAFV600E mutation is one of the most valuable oncogenic biomarkers available in liquid biopsies. Crucially, BRAFV600E is also an actionable mutation which could be arrested by clinically beneficial drug inhibitors. Yet, as is true for most single base disease mutations, current BRAFV600E detection in either its DNA or protein molecular state is still liable to false positive/negative outcomes, thus impacting patient treatment benefit. Here we present an integrated multi-molecular sensor (IMMS) for an entire sample-to-answer workflow from melanoma cell capture to simultaneous quantification of both intracellular BRAFV600E DNA and protein levels on a single platform. The IMMS combines (i) specific capture and release of circulating melanoma cells; (ii) electric field-induced cell lysis; (iii) simultaneous quantification of BRAFV600E DNA and protein levels. We investigated the IMMS system's analytical performance in cell capture, release and lysis, and intracellular BRAFV600E detection by ligase-mediated DNA amplification and antibody-based protein hybridization. As a proof-of-concept, we successfully demonstrated circulating BRAFV600E detection at both DNA and protein molecular levels in simulated melanoma plasma samples. With its capabilities in integrated and miniaturized analysis, the IMMS could lead the emergence of a new generation of multi-molecular lab-on-chip biosensors for enabling more accurate and extensive analysis of powerful circulating biomarkers in patient liquid biopsies.

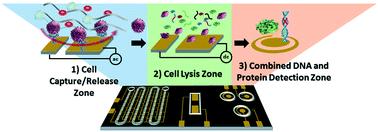

Graphical abstract: An integrated multi-molecular sensor for simultaneous BRAFV600E protein and DNA single point mutation detection in circulating tumour cells

Supplementary files

Article information

Article type
Paper
Submitted
19 Way 2018
Accepted
19 Kax 2018
First published
20 Kax 2018

Lab Chip, 2019,19, 738-748

An integrated multi-molecular sensor for simultaneous BRAFV600E protein and DNA single point mutation detection in circulating tumour cells

S. Dey, K. M. Koo, Z. Wang, A. A. I. Sina, A. Wuethrich and M. Trau, Lab Chip, 2019, 19, 738 DOI: 10.1039/C8LC00991K
