A simple perylene diimide derivative with a highly twisted geometry as an electron acceptor for efficient organic solar cells

Shuixing Li; Wenqing Liu; Chang-Zhi Li; Feng Liu; Yingzhu Zhang; Minmin Shi; Hongzheng Chen; Thomas P. Russell

doi:10.1039/C6TA04232E

A simple perylene diimide derivative with a highly twisted geometry as an electron acceptor for efficient organic solar cells†

Shuixing Li,‡^a Wenqing Liu,‡^a Chang-Zhi Li,^a Feng Liu,*^bc Yingzhu Zhang,^a Minmin Shi,*^a Hongzheng Chen*^a and Thomas P. Russell^d

Author affiliations

* Corresponding authors

^a MOE Key Laboratory of Macromolecular Synthesis and Functionalization, State Key Laboratory of Silicon Materials, Department of Polymer Science and Engineering, Zhejiang University, Hangzhou 310027, P. R. China
E-mail: minminshi@zju.edu.cn, hzchen@zju.edu.cn

^b Department of Physics and Astronomy, Shanghai Jiao Tong University, Shanghai, P. R. China
E-mail: fengliu82@sjtu.edu.cn

^c Materials Sciences Division, Lawrence Berkeley National Laboratory, Berkeley, CA 94720, USA

^d Department of Polymer Science and Engineering, University of Massachusetts, Amherst, MA 01003, USA

Abstract

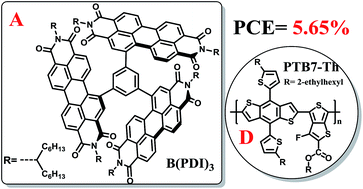

Perylene diimide (PDI), which features intense absorption, a low-lying energy level, and high electron mobility, is a promising building block for electron acceptors in organic solar cells (OSCs). However, this planar molecule has a strong tendency to form large aggregates during film formation which strongly limits its OSC performance. Herein, we report a new and simple PDI derivative, B(PDI)₃, in which a central benzene unit is employed to connect three PDI arms. This compact arrangement of sterically bulky PDI moieties leads to a twisted molecular geometry of the resultant structure. This suppresses the strong crystallization tendency of PDI chromophores, owing to the broken molecular coplanarity and symmetry. Therefore, B(PDI)₃ is applied as a non-fullerene acceptor in OSCs, providing a good power conversion efficiency of 5.65% when blended with the PTB7-Th donor.

This article is part of the themed collection: JMC A Editor’s choice collection: Recent advances in photovoltaics

Supplementary files

Article information

DOI: https://doi.org/10.1039/C6TA04232E
Article type: Paper
Submitted: 21 Cax 2016
Accepted: 13 Qas 2016
First published: 14 Qas 2016

Download Citation

J. Mater. Chem. A, 2016,4, 10659-10665

Permissions

Request permissions

A simple perylene diimide derivative with a highly twisted geometry as an electron acceptor for efficient organic solar cells

S. Li, W. Liu, C. Li, F. Liu, Y. Zhang, M. Shi, H. Chen and T. P. Russell, J. Mater. Chem. A, 2016, 4, 10659 DOI: 10.1039/C6TA04232E

To request permission to reproduce material from this article, please go to the Copyright Clearance Center request page.

If you are an author contributing to an RSC publication, you do not need to request permission provided correct acknowledgement is given.

If you are the author of this article, you do not need to request permission to reproduce figures and diagrams provided correct acknowledgement is given. If you want to reproduce the whole article in a third-party publication (excluding your thesis/dissertation for which permission is not required) please go to the Copyright Clearance Center request page.
