Issue 2, 2014

Determination of radioactive cesium isotope ratios by triple quadrupole ICP-MS and its application to rainwater following the Fukushima Daiichi Nuclear Power Plant accident

Abstract

A method was developed for the determination of 134Cs/137Cs and 135Cs/137Cs in rainwater samples using a triple quadrupole ICP-MS, with the objective of investigating radioactive cesium isotope ratios released by the Fukushima Daiichi Nuclear Power Plant (FDNPP) accident. The high background caused by Ba ions and Xe impurities in argon plasma gas has made it difficult to carry out determination of the 134Cs/137Cs and 135Cs/137Cs ratios on conventional ICP-MS instruments without prior chemical separation. In this study, nitrous oxide was used as the reaction gas for reducing the isobaric interference by 134Ba, 135Ba, 137Ba and 134Xe, and an additional quadrupole in front of the reaction cell was shown to effectively remove Sn and Sb that could have produced possible interference such as SbO and SnO by the N2O reaction. The detection limit for 134Cs, 135Cs and 137Cs in solution containing Ba was successfully improved. In order to confirm the applicability of this method to the measurement of 134Cs/137Cs and 135Cs/137Cs ratios of rainwater, four samples were collected for analysis from 40–200 km away from the FDNPP. The measured 134Cs/137Cs ratios in the samples are consistent with the values determined by Ge semiconductor analysis to within the analytical error, suggesting that the developed method can provide reliable isotopic data without any correction of the mass-discrimination effect. No variation was found in the 135Cs/137Cs ratios of the four samples, suggesting either the same contamination source or a uniformly consistent mixing ratio between contamination sources. The measured 135Cs/137Cs ratios in the samples are different from global fall-out values and from that of Chernobyl. This result indicates that the value of the rainwater samples can be used as a radiocesium tracer in the environment.

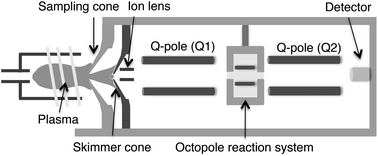

Graphical abstract: Determination of radioactive cesium isotope ratios by triple quadrupole ICP-MS and its application to rainwater following the Fukushima Daiichi Nuclear Power Plant accident

Article information

Article type
Paper
Submitted
10 Way 2013
Accepted
10 Kax 2013
First published
02 Qun 2014

J. Anal. At. Spectrom., 2014,29, 347-351

Determination of radioactive cesium isotope ratios by triple quadrupole ICP-MS and its application to rainwater following the Fukushima Daiichi Nuclear Power Plant accident

T. Ohno and Y. Muramatsu, J. Anal. At. Spectrom., 2014, 29, 347 DOI: 10.1039/C3JA50291K
