Successive energy-transfer catalytic dearomative reactions of quinolines with bicyclo[1.1.0]butanes for the synthesis of pyridine-fused 3D complicated molecules

Abstract

Dearomative photocycloadditions are unique and hard to replace methods for the construction of various polycyclic strained molecules to increase saturation and create three-dimensional (3D) molecular complexity. In this article, we report a facile photochemical strategy for the synthesis of pyridine-fused 3D polycyclic molecules from quinolines and bicyclo[1.1.0]butanes (BCBs) under visible-light conditions. The dearomative reactions proceed via an initial triplet–triplet energy transfer (EnT) enabled [2π + 2σ] cycloaddition to form an adduct, in which the vinylpyridine moiety is still excitable under the same photosensitive conditions. By introducing a suitable alkyl group as an H-donor into a BCB, a 1,6-hydrogen atom transfer (HAT) would occur from the alkyl group to the excited vinylpyridine moiety via a second EnT process, generating a 1,7-diradical; subsequent ring closure produces a seven-membered 2D/3D-fused molecule. The rare 1,6-HAT process was confirmed through dynamic tracking, control experiments, quenching studies and deuterium-labeling experiments. Applying this strategy, we have successfully obtained a series of structurally unique 6-6-5-4-7 ring 3D molecules with wide functional group tolerance and compatibility with various C–H bonds and various quinolines. Meanwhile, it provides a new idea for the construction of polycyclic architectures by utilizing the infrequent 1,6-HAT of an excited olefin to generate 1,7-diradical species.

---

1. Introduction

Polycyclic architectures are frequently found in drugs and bioactive natural products, some of which are important pharmacodynamic carriers.¹ Two-dimensional (2D) aromatic rings such as pyridine and benzene are the most common scaffolds, followed by three-dimensional (3D) aliphatic groups ranging from 3- to 6- or even 7-membered rings.² Owing to their unique structural and physicochemical properties, the 3D aliphatic rings have gained more and more attention in drug discovery, for example, some natural products with 7-membered rings exhibit significant pharmacodynamic activity (Scheme 1a).³ For example, salimabromide originating from marine myxobacteria is a potential inhibitor of Arthrobacter crystallopoietes.^3a For this reason, the methodologies for constructing fused 2D/3D ring molecular architectures have attracted increasing research interest over the past few decades, especially after the concept of “escape from flatland” was proposed in medicinal chemistry.⁴

Scheme 1 Background and our proposal.

Dearomative photocycloaddition (DAPCA) is an effective approach for increasing the saturation of aromatic materials by forming bridging C(sp³)–C(sp³) bonds on the aromatic ring with excellent step/atom economy.⁵ Arenes in the excited state add to the carbon–carbon double bond of a wide variety of alkenes by three modes, 1,2(ortho), 1,3(meta) or 1,4(para) cycloaddition. The 1,3(meta) mode is the only one to be allowed as a concerted pericyclic reaction, and the 1,2(ortho) and 1,4(para) modes proceed via a stepwise pathway of the triplet excited state.⁶ The long-lived triplet excited states of arenes enable intermolecular cycloadditions to occur.⁷ Owing to the inherent chemo- and regioselectivity toward intermolecular DAPCA reactions, the multifaceted chemistry of the photocycloadducts provides a valuable pathway for constructing various complicated carbon frameworks, which would be difficult to synthesize via other routes.⁸

Photosensitization, via triplet–triplet energy transfer (EnT) in the presence of a triplet photosensitizer (or a photocatalyst), is one of the important photochemical activation modes in synthetic chemistry. Recently, using a metal complex [Ir–F] as a photocatalyst, Glorius and coworkers, in collaboration with Brown's and Houk's groups, have successfully achieved the EnT-enabled dearomative para-[4 + 2] cycloaddition of N-heteroarenes, selectively saturating the benzenoid rings.⁹ Subsequently, they reported two types of highly efficient and selective intermolecular cascade dearomative ortho (5,6- or 7,8-) [2 + 2] cycloaddition/rearrangement reactions of quinoline derivatives with alkenes. These reactions commence with the first EnT-enabled [2 + 2] cycloaddition of quinolines, with chloro or ester substitutions at the benzenoid rings, followed by a second EnT-enabled either cyclopropanation or cyclobutane rearrangement (Scheme 1b).¹⁰ The initial EnT-mediated adducts contain a strained four-membered ring and an excitable vinylpyridine moiety, whose photolability consequently limits their synthetic accessibility. For this reason, Glorius, Houk and coworkers proposed a strain-release approach¹¹ as a thermodynamic strategy to conserve the original ortho-adduct by forming cycloaddition products. Using bicyclo[1.1.0]butanes (BCBs) instead of alkenes as 2σ-electron partners, they achieved the dearomative [2π + 2σ] photocycloaddition of bicyclic aza-arenes to enable direct construction of ortho-cycloaddition products with a blocked tendency to undergo downstream rearrangements or cycloreversion (Scheme 1c).¹² A series of stable ortho-selective [2π + 2σ] cycloadducts were obtained in this excellent work; however, the photoactive vinylpyridine moieties still remain. We questioned whether these moieties could be excited via a second EnT process to trigger new reactions such as dimerization and intramolecular or intermolecular [2 + 2] cycloaddition with other olefin partners.

Carbon-to-carbon intramolecular 1,n-HAT (n = 5, 6) processes occur in excited triplet olefins via a visible-light EnT process. These reactions have been used by multiple research groups to construct specific (n − 1)-membered rings.¹³ Inspired by this, we propose the following hypothesis: if an appropriate substituent is introduced into a BCB, the excited triplet vinylpyridine moiety of the first EnT-mediated [2π + 2σ] cycloadduct could undergo a 2nd EnT process, abstracting a hydrogen atom from the substituent via a HAT process to generate a diradical, which subsequently couples to afford a cyclic product. In this article, we have realized this idea, that is, we developed a facile synthetic strategy for producing pyridine-fused polycyclic 3D molecules with high structural complexity via successive EnT-mediated dearomative reactions in simple photochemical systems under mild metal-free catalytic conditions (Scheme 1d).

2. Results and discussion

Reaction optimization

Selecting unsubstituted quinoline 1a and the BCB N,N′-dibenzylbicyclo[1.1.0]butane-1-carboxamide (2a) as starting materials, we performed a model reaction in the presence of thioxanthone (TX) as a triplet photosensitizer under visible-light irradiation (Table 1; for details, see the ESI†). The photochemical reaction of unsubstituted quinoline 1a with the BCB generates two comparable regioisomers (from the 8-to-7 adduct/5-to-6 adduct, rr 3.5 : 1) in a high yield (92%). The whole process seems to be the [2π + 2σ] cycloaddition via the first EnT process, and the N,N′-dibenzyl moiety from 2a can act as an HAT-donor in the second EnT, and cyclization after the HAT process produces transannular products, featuring a structurally unique pyridine-fused 6-6-5-4-7 ring system, in which 4A is the major regioisomer (derived from the 8-to-7 adduct) with a low diastereoselectivity (dr 1.4 : 1). Their constitutions and relative configurations were tentatively assigned based on NMR and later unequivocally corroborated by single-crystal X-ray crystallography.¹⁴ Our initial idea was to perform this reaction under a variety of conditions to find the conditions that would achieve the reaction with high regioselectivity and high diastereoselectivity.

Table 1 Reaction optimization and control experiments^a

Entry	Deviation^b	Yield/%	rr	dr
a Standard conditions: 1a (0.1 mmol, 1.0 equiv.), 2a (2.0 equiv.), thioxanthone (TX, 5 mol%), DCM (0.05 M), N2, and blue LED (λmax = 400 nm) for 2 h, unless otherwise stated. Reported yields are from ^1H NMR total yields of all regioisomers (4A/4a, rr) or all diastereoisomers. The diastereomeric ratio (dr) is given as the ratio of cis-4A/trans-4A, which is defined by the relative position between 5-H (8-H for 4a) and H at methine of benzyl (for details see the ESI†); n.d., not detected. b Triplet energies ET (kcal mol^−1) in parentheses from ref. 15. c 2 mol% [Ir–F], LED (450–460 nm). d For 5 h.
1	None	92	3.5 : 1	1.4 : 1
2	[Ir–F]^c (60.9) instead of TX (65.5)	49	3.6 : 1	1.5 : 1
3	3-MeOTX (67.6) instead of TX	26	4.2 : 1	1.4 : 1
4	3-FTX (67.4) instead of TX	70	4.2 : 1	1.4 : 1
5	2-iPrTX (63.6) instead of TX	71	3.4 : 1	1.4 : 1
6	2-MeOTX (57.8) instead of TX	Trace	—	—
7	2,2′-MeOTX (55.2) instead of TX	n.d.	—	—
8	Adding 1.25 equiv. p-TsOH	19	4.4 : 1	1.0 : 1
9	CHCl3 instead of DCM	71	3.7 : 1	1.5 : 1
10	Kessil LED (427 nm)	41/60^d	3.9 : 1	1.3 : 1
11	Under air	42	4.4 : 1	1.5 : 1
12	Under an O2 atmosphere	9	—	1.2 : 1
13	In the dark	n.d.	—	—
14	No PC	n.d.	—	—

---

Using [Ir–F] as a photosensitizer and Sc(OTf)₃ as an additive, Glorius, Houk and coworkers reported the formation of a [2π + 2σ] ortho-adduct in a high yield of 92% from a photochemical system, comprising 7-methoxyquinoline and a BCB in a molar ratio of 2 : 1.¹² To compare with this result, we evaluated the efficiency of the system by replacing TX with [Ir–F] as the photosensitizer, and obtained a low yield of 49% (entry 2). Further examination of a series of thioxanthones (TXs) with various triplet energies indicated that TX affords the highest yield of 92% within a short irradiation time of 2 h.

The triplet energy (E_T) of quinoline is about 61.7 kcal mol⁻¹,^9a 65.5 kcal mol⁻¹ for TX and 60.9 kcal mol⁻¹ for [Ir–F].¹⁵ The modification of TX can adjust its triplet energy level. For example, a 2-substituted TX has a lower E_T and a longer absorption band, while a 3-substituted one is the opposite.¹⁵ For various TXs in the order of decreasing triplet energy, the yield rises first and then falls rapidly, from 3-MeOTX (26%) to 3-FTX (70%), then 2-iPrTX (71%), and 2-MeOTX (trace) to 2,2′-MeOTX (n.d.) (entries 3–7). The low yield of 3-MeOTX may be due to its short absorption band leading to weaker absorption of the blue LED, and that of 2-MeOTX and 2,2′-MeOTX are due to their lower triplet energies than that of quinoline, preventing them from facilitating the EnT process.

Based on previous reports,^9,12,16 we attempted to add p-TsOH to our system to decrease the triplet energy of 1a for elevating the reaction efficiency. However, a lower yield of 19% and loss of diastereoselectivity were obtained (entry 8). Additionally, using chloroform as the solvent led to a notable decrease in the reaction efficiency (entry 9). The above results were compared with those obtained using a familiar light source, a Kessil LED (427 nm), and a yield of only 41% was obtained under irradiation with this lamp, and up to 60% after an additional 3 h of irradiation (entry 10). The reaction without degassing could also provide a yield of 42% (entry 11), while under an O₂ atmosphere, this reaction was significantly suppressed, giving an extremely low yield of 9% (entry 12). Finally, no desired product was observed in the dark (entry 13) or in the absence of the photocatalyst (entry 14). The results disclose the coerciveness of both visible light and the photosensitizer for this transformation.

Reaction scope

With the optimized conditions identified, we next investigated the substrate scope of our protocol. First, 2a with N,N′-dibenzyl was used as the limiting reagent, reacting with various substituted quinolines (the preparation details are provided in the ESI†). Quinolines bearing 2-, 3-, or 4-methyl groups at the pyridine moiety transformed into the desired products in yields of 76%–98%, which were formed mainly from 8-to-7 ortho-adducts, and the cis-isomers were typically obtained in modest excess. Thus, the methyl group at the pyridine ring has a slight effect on both regioselectivity and diastereoselectivity. However, for 5-, 6-, 7-, or 8-methyl groups at the benzenoid ring of quinolines, a notable regioselectivity of the [2π + 2σ] cycloaddition was observed and the results are shown in Table 2. For 5- or 7-methyl quinolines, 8-to-7 cycloadducts are the major regioisomers (4E, 4G), while regioselective 5-to-6 adducts are the major regioisomers for 6- or 8-substituted quinolines (4f, 4h). The structures of cis-4f and cis-4h have been unequivocally assigned based on their crystal X-ray crystallographic data.¹⁴

Table 2 The scope of quinolines and structures of major target products^a

a Reaction conditions: 1 (0.2 mmol, 1.0 equiv.)), 2 (2.0 equiv.) and TX (5 mol%) in DCM (0.05 M), N₂ and blue LEDs (λ_max = 400 nm) for 2–26 h, unless otherwise stated. Owing to some minor isomers not being isolated, the yields are ¹H NMR yields of all isomers, and only the structures of the major regioisomers are shown, using capital letters for products from 8-to-7 adducts such as 4A and lowercase letters for 5-to-6 adducts such as 4a; and isolated yields are provided in the ESI.† The values of rr and dr were obtained from ¹H NMR analysis of the crude product mixture. The dr values (cis : trans ratio) refer to the major regioisomers. b ortho-Cycloadduct. c 2% [Ir–F], HFIP (0.05 M), blue LED (450–460 nm).

---

As quinoline is excited to its triplet state by EnT from the excited triplet TX, its 5- or/and 8-carbon with a high electron density nucleophilically attacks a BCB, forming a 5-diradical (5-Int-1) or/and an 8-diradical (8-Int-1), respectively.^9b The formation and stability of two diradicals could be critical for the regioselectivity (Fig. 1). The methyl at the 6- or 7-position can stabilize the diradical intermediate 5-Int-1 or 8-Int-1, respectively, and 5- or 8-methyl groups could introduce steric hindrance for the nucleophilic addition of the excited quinoline to a BCB. Thus, combining the two factors, the major regioisomers are derived from 5-to-6 adducts for the methyl group at the 6- or 8-position, and from 8-to-7 adducts for the methyl group at the 5- or 7-position. Besides high regioselectivity, 5- and 8-methyl quinolines displayed high diastereoselectivity (dr 5.3 : 1 for 4E, 8.1 : 1 for 4h) and low values for others (dr 1.5 : 1 for 4f and 4G).

Fig. 1 Substituent effects on the regioselectivity of 8-to-7 vs. 5-to-6 adducts.

For 5,7-dimethyl quinoline, the combined effects, i.e. 5-methyl blocking the formation of 5-Int-1 and 7-methyl stabilizing 8-Int-1, lead to the formation of the regiospecific [2 + 2] cycloadduct (from 8-Int-1) 3I (untransformed 34%) and the corresponding final product 4I in a yield of 10%. This implies a low efficiency of the second EnT-mediated HAT process, possibly due to the steric hindrance of the two methyl groups in 3I. It is worth noting that the diastereospecificity (dr >19 : 1, only cis-4I) could be due to the steric effects of the 5,7-dimethyl group (vs. 4E (5.3 : 1), 4G (1.5 : 1), and 4A (1.4 : 1)). Similar to methyl, both 4-Ph and 4-Br quinolines convert well to the desired products with 66% and 63% yields, respectively, in which the former has a better rr value of 7.3 : 1 than 4-Me quinoline (3.9 : 1). A reverse diastereoselectivity was observed in the 4-Br quinoline system, that is, the trans-diastereomer became predominant (cis-/trans-4K, 1 : 2.1 vs. 4J, 1.4 : 1).

Similar to 6-methyl, a single 6-F atom also leads to reverse regioselectivity (rr 4L/4l 1 : 1.1 vs. 4A/4a 3.5 : 1). For larger 6-groups, including 6-tBu, 6-OCH₃, 6-CF₃, 6-CO₂Me and 6-CO₂CH₂CH=CH₂, only single regioisomers were observed (4m, 4n, 4o, 4p and 4q), among which the crystal structure of trans-4n was determined. Both electron-donating (tBu, OCH₃) and electron-withdrawing (F-, CF₃-, CO₂Me, CO₂CH₂CH=CH₂) groups can well achieve the transformation (55–85%) except for the two carbonyl-containing substituents with low yields (23% for 4p, 25% for 4q), possibly greatly affecting the photophysical properties of quinoline. Other aromatic heterocycles, isoquinoline (52%), quinazoline (70%) and quinoxaline (68%), are compatible with our protocol. Among them, isoquinoline is regiospecific (>19 : 1) and highly diastereoselective (2.1 : 1), while quinazoline shows high regioselectivity (7.8 : 1).

After assessing the feasibility of quinolines, we next evaluated their partners BCBs (2) (Table 3). First, by replacing the N-atom with an O-atom, a BCB ester also achieved the desired reaction in a moderate yield (4U, 43%). Here, p-TsOH was added for suppressing hydrolysis of the ester by neutralizing the alkaline pyridine. Replacing the benzyl group in 2a with one methyl group resulted in 2v, where a significant decrease in the yield (36%) with improved regioselectivity (8.0 : 1) was observed. When the BCB 2v was reacted with 6-tBu-quinoline, the desired product 4wa was obtained in a good yield (74%) with reverse diastereoselectivity (1 : 1.4 vs. 1.3 : 1 (4V) and 2.9 : 1 (4m)). When the methyl group of 2v is replaced by a phenyl group to form 2w, a better diastereoselectivity was observed (1 : 2.9 (4w) vs. 1 : 1.4 (4wa)).

Table 3 The scope of BCBs and structures of major target products^a

a Reaction conditions: see Table 2. b 1.25 equiv. p-TsOH. c 4.0 equiv. BCBs. PMB: p-methoxybenzyl.

---

Considering its high reactivity and regiospecificity, 6-tBu quinoline was selected as the partner for various BCBs. By varying substituents on the amino group of BCBs with phenyl (Ph), methyl (Me), ethyl (Et), isopropyl (iPr) or tert-butyl (tBu) groups, the corresponding products (4w–4wd) could be obtained in yields ranging from 39% to 74%. It is worth highlighting that the BCB with a large tert-butyl group at the amino reacts effectively, converting to cis-4wd as the sole regioisomer and diastereomer with a yield of 60%. The X-ray crystal structure of cis-4wd ¹⁴ shows that the phenyl group of N-benzyl is on another side of 6-tBu and N-tBu. Upon replacing the benzyl group with a more electron-rich 4-methoxybenzyl group, a higher diastereoselectivity (4we, 3.8 : 1 dr) is obtained relative to that of 4m (2.9 : 1 dr).

The above 1,6-HAT process occurs only at the methylene of benzyl possibly due to the low C–H bond dissociation energy (BDE) of the methylene (89 kcal mol⁻¹).¹⁷ To explore the possibility of a 1,6-HAT process for other alkyl groups (Me, Et, iPr and tBu), we prepared N,N′-dialkyl substituted BCB amides 2f, 2g and 2h. Under the same conditions, the desired products 4wf, 4wg and 4wh were obtained in yields of 59%, 38% and 25%, respectively. Unexpectedly, the hydrogen of the N-Me group rather than that (Me₂CH) of the N-iPr group is abstracted to generate a single regioisomer 4wh. The BDEs of the C–H bonds of N-Me, methylene of N-Et and methine of N-iPr are 91,¹⁷ 90.7 ¹⁷ and 88.4 ¹⁸ kcal mol⁻¹, respectively. Obviously, the 1,6-HAT process can occur for the above various C–H bonds. Namely, the BDE of the C–H bond is not a determining factor, but rather the closer spatial distance between the H-acceptor and H-donor. Fouassier et al. have observed similar results.¹⁹

We have had a few unsuccessful cases, and a limited scope of BCBs is available in the ESI.† The BCBs with a methine of iPr and methylbenzyl, or phenyl did not achieve the desired reaction. Combining with the results in Table 3, steric hindrance (or spatial distance) is the main factor for iPr and methylbenzyl, while phenyl may be thermodynamically unfavorable due to its high BDE (113 kcal mol⁻¹).

Additionally, a condition-based sensitivity assessment was performed and is shown in Table 2. No significant effect on most parameters (concentration, water and temperature) was observed, but insufficient light intensity and high O₂ concentration caused adverse effects. Adequate light intensity is pivotal for the effective operation of the reaction. To our delight, the optimized reaction conditions were highly reproducible at large scales (20-fold optimized scale), asserting the practicability of the present protocol.

Synthetic applications

To illustrate the synthetic practicability of this protocol, further transformations and derivatizations of the typical products cis/trans-4A were conducted. As exemplified in Scheme 2, the amide moiety was efficiently reduced to the aldehyde product 5 with a secondary amine using LiAlH₄ in a yield of 78% (reaction (a)), in which two chiral centers are constructed selectively. Using Lawesson's reagent, the thionation of the carbonyl afforded 6 in 86% yield (reaction (b)). Furthermore, the pharmaceutically relevant pyridine N-oxide scaffold 7 can be easily achieved in almost quantitative yield (reaction (c)) through treatment with m-CPBA, which might be facilely transformed into C2-functionalized pyridines, thereby highlighting its utility as a versatile tool for downstream diversification.²⁰ Finally, a C–Br bond was established at the pyridine ring 8 upon treatment with Br₂ (reaction (d)). Obviously, this is beneficial for the late-stage functionalization of active pharmaceutical reagents through both metal-catalyzed cross-coupling reactions and light-mediated processes.

Scheme 2 Synthetic applications. Reagents and conditions: (a) LiAlH₄ (4.0 equiv.), THF (0.1 M), 0 °C to rt, 40 min; (b) Lawesson's reagent (1.5 equiv.), pyridine (0.2 equiv.), toluene (0.1 M), 115 °C, 1.5 h; (c) m-CPBA (2.2 equiv.), CH₂Cl₂ (0.05 M), 0 °C to rt; (d) Br₂ (10.0 equiv.), AcOH (0.1 M), CH₂Cl₂ (0.1 M), rt, overnight.

Mechanistic studies

As mentioned above, the excited triplet energies of quinolines 1 and TXs support that quinolines are excited by the photosensitizer TX via an EnT process, triggering [2π + 2σ] ortho-cycloaddition between quinolines 1 and BCBs 2 to produce cycloadducts 3. For the subsequent process, we propose a mechanism as follows. The vinylpyridine moiety of a cycloadduct is excited via a second EnT process, followed by abstraction of an intramolecular hydrogen atom (HAT) to generate a diradical intermediate, and finally coupling to form the cyclic product 4.

To confirm the hypothesis of successive EnT-mediated dearomative reactions, we carried out the following experiments, and the details are provided in the ESI.† First, quenching experiments were performed using the typical triplet quenchers O₂ atmosphere and (E)-stilbene (2.0 equiv.). The former caused a low yield of 9%, and no desired product was detected for the latter but it led to the E/Z isomerization of (E)-stilbene (see the ESI†), indicating that the excited triplet TX is quenched by (E)-stilbene. Therefore, the dearomative reactions are triggered by the triplet photosensitizer TX via an EnT pathway. On the other hand, the excited reduction potential (E_red(TX*/TX˙⁻) = 1.34 V SCE)²¹ of the photocatalyst appears to be thermodynamically unfavorable for electron transfer from a quinoline (E_ox(1c) = 1.80 V SCE).^9a

Monitoring the reaction of 1a and 2a by ¹H NMR, the intermediate product 3A and final product 4A were directly detected at different times (Fig. 2a), and 3A was isolated and identified as a [2π + 2σ] cycloadduct in 9% yield in a short irradiation time of 10 min. Consistent with previous reports,¹² this cascade transformation is initiated by EnT-mediated dearomative [2π + 2σ] ortho-cycloaddition between a BCB and the benzenoid ring of a quinoline. The kinetic profile shows that 3A is at a low concentration level, first increasing and then decreasing. In addition, the isolated 3A can be converted to the target product cis/trans-4A under standard conditions, with the similar reaction result from 1a and 2a as starting materials, such as a similar yield (68%) and the same dr value of 1.4 : 1 (Fig. 2b). Under direct irradiation without the photosensitizer, 3A can also convert to 4A in a low yield (6%), implying that 4A could be formed from the triplet 3Avia an intersystem crossing (ISC) process of the excited singlet 3A with low efficiency. Meanwhile, this also rules out another possible pathway, H-abstraction of excited triplet TX (³TX*) from the H-donor as the initial reaction of a cascade cyclization. These observations strongly demonstrate that such [2π + 2σ] cycloadducts are intermediates in the whole conversion.

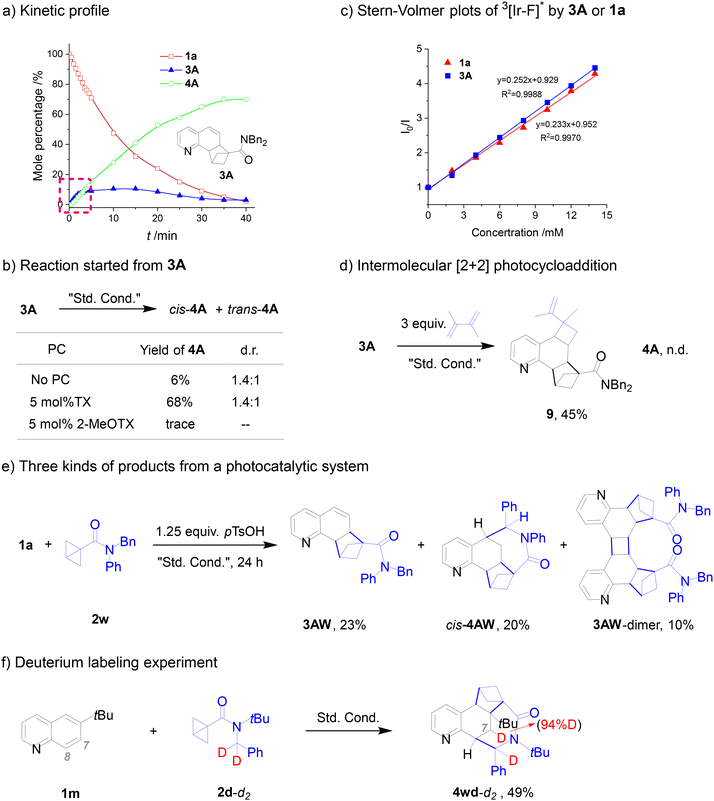

Fig. 2 Mechanistic investigations. Std. Cond.: standard conditions.

To clarify the subsequent processes from ortho-cycloadduct 3A to cis/trans-4A, we performed a Stern–Volmer quenching experiment. The result shows that the emission of the excited triplet photocatalyst (here [Ir–F]) is quenched efficiently by 3A or 1a, and 3A seems to be more efficient than 1a (Fig. 2c). Besides its high reactivity for the intramolecular transformation (from 3A to 4A), the excited triplet vinylpyridine 3A is also reactive in an intermolecular process. For example, 1,2-dimethylbuta-1,3-diene (3.0 equiv.) was added to capture the excited triplet 3A (³3A*) to form an intermolecular [2 + 2] cycloaddition product 9 in a fairly high yield of 45% (Fig. 2d).

Based on the following experiment, the triplet energy of the intermediate 3A is approximately equal to or slightly higher than that of quinoline. Using a low-energy TX, 2-MeOTX (57.8 kcal mol⁻¹) as the photosensitizer, only trace products were obtained from the photochemical system of quinoline (1a) with 2a (Table 1, entry 6), and no intermediate 3A remained. Under the same conditions (2-MeOTX as the photosensitizer), using the intermediate 3A as the starting material, only trace products were also observed (Fig. 2b). Obviously, the triplet energy of intermediate 3A is significantly higher than 57.8 kcal mol⁻¹ like quinoline. Thus, the EnT process cannot occur between low-energy TX and quinoline, and likewise, intermediate 3A does not form.

Furthermore, three kinds of products, the intermediate product (3AW, 23%), the desired product (4AW, 20%) and the [2 + 2] cycloadduct of two 3AW molecules (3AW-dimer, 10%), were obtained from a similar system of 1a, N-phenyl BCB 2w and p-TsOH as an additive (Fig. 2e). This result strongly supports the proposed successive EnT process. Surprisingly, the desired product displays regio- and diastereospecificity, only the 8-to-7 cycloaddition/1,6-HAT/cis-coupling product (cis-4AW) was obtained, and the regio- and diastereospecificity should be from the additive p-TsOH, whose mechanism awaits to be elucidated.

Except for the aforementioned 3I and here 3AW, no intermediate product 3 was obtained from the reaction mixture when 1 was completely consumed. This implies that in most cases, the conversion from 1 to 3 is a slow process, and that from 3 to 4 is a fast process. In general, the intermolecular [2 + 2] cycloaddition should be slower than the intramolecular 1,6-HAT process. The kinetic profile in Fig. 2a also illustrates clearly the above point, that is, 3A is always at a low concentration level under the same photosensitization conditions. For the above two cases, the situation is just contrary, that is, the latter conversion (3 to 4) is a slow process, in particular, the 1,6-HAT process and/or the cyclization of the diradical Int-2.

The carbon-to-carbon HAT mediated by triplet olefins has been used to construct specific ring systems.¹³ The formation of 4-membered^13a–d,f or 5-membered^13e rings occurs through intramolecular 1,5- or 1,6-HAT processes, forming 1,4, or 1,5-diradical intermediates. So far, the synthesis of 7-membered rings from a 1,6-HAT process has not been reported.²² To corroborate that the triplet adducts 3 convert to a 7-membered ring 4via an intramolecular 1,6-HAT process, we performed a deuterium labelling experiment (Fig. 2f). Utilizing double deuterated-benzyl (PhCD₂-) BCB 2d-d₂, the dearomative reaction was carried out, affording the desired product 4wd-d₂ in 49% yield in which one deuterium shifted to the C7 position of the “quinoline” (94% deuterium incorporation). This implies that 1,6-HAT indeed occurs in this photochemical reaction. That is, the hydrogen atom at C7 stems from the methylene of the benzyl moiety. This result confirms that the excited triplet 3 can abstract a hydrogen atom from an intramolecular C(sp³)–H bond in the benzyl. As one example, we determined the quantum yield (Φ) for the reaction of 1a and 2a under the standard conditions, and the result is 0.91. This value indicates that the dearomative reactions are highly efficient; meanwhile, it rules out a free radical chain reaction.

The aforementioned mechanistic studies have demonstrated the mechanism for successive EnT-enabled photocatalytic reactions, as shown in Scheme 3. The first EnT process from the excited triplet photosensitizer ³TX* to a quinoline generates the excited triplet quinoline (³1*). The electron-rich 8- or 5-position carbon of the triplet quinoline nucleophilically attacks a BCB, forming two regioisomeric 8- and/or 5-diradical intermediates (Int-1), which mainly depends on the substituents (location, size) at the benzenoid ring of the quinoline. The triplet diradical intermediates Int-1 undergo ISC and radical–radical recombination to generate the [2π + 2σ] ortho-cycloadduct 3. The adduct 3 is excited via a second EnT process from ³TX* to its excited triplet state, ³3*, followed by the occurrence of an intramolecular carbon-to-carbon 1,6-HAT, one hydrogen from a remote C(sp³)–H bond at N-alkyl to the excited triplet vinylpyridine moiety, forming a triplet 1,7-diradical (Int-2). Finally, the ring closure of Int-2 after undergoing ISC produces the 7-membered ring 4 with certain diastereoselectivity, which is no longer excited by ³TX*, as the final product.

Scheme 3 Proposed mechanisms.

The diastereospecificity in the ring closure of 1,7-diradicals (Int-2) was achieved in four systems, 4I, 4wd, 4wg and 4AW, among which intermediate products 3I (34%) and 3AW (23%) were isolated in relatively high yields from the 4I- and 4AW-systems after irradiation for a long time, 24 h. As mentioned above, these untransformed 3 imply that the ring closure of the 1,7-diradical is a slow process. Obviously, the slow ring closure of the 1,7-diradical allows it to populate its preferred conformation, followed by coupling to form the target product 4 with diastereoselectivity.

3. Conclusions

In summary, we have developed a facile synthetic method for pyridine-fused polycyclic rings with high structural complexity via successive EnT-enabled dearomative reactions in a simple photochemical system under mild metal-free catalytic conditions. The reaction mechanism is proposed as a first EnT-mediated dearomative [2π + 2σ] ortho-cycloaddition followed by a second EnT-enabled intramolecular carbon-to-carbon 1,6-HAT/cyclization process. The regioselectivity of the [2π + 2σ] cycloaddition depends strongly on the substituent (location, size) of the benzenoid ring of quinoline. The ortho-cycloadduct is excited via a secondary EnT process, which then triggers the intramolecular 1,6-HAT and finally cyclizes into a 7-membered ring with certain diastereoselectivity, not only enabling the excitable cycloadducts (vinylpyridine) to become photoinert molecules, but also further increasing the molecular complexity. The synthetic utility of this methodology was demonstrated by broad functional group tolerance and compatibility with various bicyclic aza-arenes. This strategy provides an efficient approach for the synthesis of polycyclic architectures and a new route for the comprehensive utilization of the 1,6-HAT of excited olefins to form 1,7-diradical species.

Author contributions

Yi-Ping Cai: experiments, data curation, formal analysis, writing – original draft; Shi-Ru Chen: experiments; Qin-Hua Song: supervision, administration, analysis, writing – review & editing.

Data availability

Crystallographic data for cis-4A, trans-4A, cis-4f, cis-4h, trans-4n and cis-4wd have been deposited at the CCDC under 2382179, 2382180, 2382181, 2382182, 2382183 and 2382185,† respectively. Additional data supporting this article have been included as part of the ESI.†

Conflicts of interest

There are no conflicts to declare.

Acknowledgements

We are grateful for financial support from the National Natural Science Foundation of China (no. 22074135, 21772188).
