Issue 11, 2010
Previous Article Next Article

Accurate histopathology from low signal-to-noise ratio spectroscopic imaging data

Author affiliations


Fourier Transform Infrared (FT-IR) spectroscopic imaging is emerging as an automated alternative to human examination in studying development and disease in tissue. The technology's speed and accuracy, however, are limited by the trade-off with signal-to-noise ratio (SNR). Signal processing approaches to reduce noise have been suggested but often involve manual decisions, compromising the automation benefits of using spectroscopic imaging for tissue analysis. In this manuscript, we describe an approach that utilizes the spatial information in the data set to select parameters for noise reduction without human input. Specifically, we expand on the Minimum Noise Fraction (MNF) approach in which data are forward transformed, eigenimages that correspond mostly to signal selected and used in inverse transformation. Our unsupervised eigenimage selection method consists of matching spatial features in eigenimages with a low-noise gold standard derived from the data. An order of magnitude reduction in noise is demonstrated using this approach. We apply the approach to automating breast tissue histology, in which accuracy in classification of tissue into different cell types is shown to strongly depend on the SNR of data. A high classification accuracy was recovered with acquired data that was ∼10-fold lower SNR. The results imply that a reduction of almost two orders of magnitude in acquisition time is routinely possible for automated tissue classifications by using post-acquisition noise reduction.

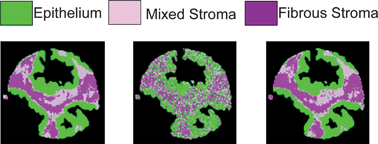

Graphical abstract: Accurate histopathology from low signal-to-noise ratio spectroscopic imaging data

Back to tab navigation

Publication details

The article was received on 25 May 2010, accepted on 22 Jul 2010 and first published on 07 Sep 2010

Article type: Paper
DOI: 10.1039/C0AN00350F
Citation: Analyst, 2010,135, 2818-2825

  •   Request permissions

    Accurate histopathology from low signal-to-noise ratio spectroscopic imaging data

    R. K. Reddy and R. Bhargava, Analyst, 2010, 135, 2818
    DOI: 10.1039/C0AN00350F
