DOI:
10.1039/C6RA13956F
(Paper)
RSC Adv., 2016,
6, 60231-60243
Synthesis of 2,4,5-trisubstituted imidazoles, quinoxalines and 1,5-benzodiazepines over an eco-friendly and highly efficient ZrO2–Al2O3 catalyst†
Received
29th May 2016
, Accepted 15th June 2016
First published on 16th June 2016
Abstract
ZrO2–Al2O3 containing 80 mol% of ZrO2 was prepared by solution combustion, impregnation and precipitation methods. All the prepared catalytic materials were characterized by PXRD, NH3-TPD, N2 adsorption isotherms, FTIR, TEM, SEM, EDAX and ICP-OES techniques. These catalytic materials were used in a rapid, simple, versatile and efficient synthesis of 2,4,5-trisubstituted imidazoles under solvent-free conditions at moderate temperature in shorter reaction time (20 min). This is achieved by three-component cyclo-condensation of benzil, aldehydes and ammonium acetate in excellent yields. The derivatives of quinoxalines and 1,5-benzodiazepines were synthesized effectively by cyclo-condensation of 1,2-diamine with α-diketones and carbonyl compound with O-phenylenediamines respectively over ZrO2–Al2O3 at moderate temperature (80 °C) for the reaction time of 20–40 min in presence of ethanol as a solvent. The present method is experimentally simple, non-toxic and involves inexpensive reagents, clean reaction pathways and an eco-friendly catalyst. The catalytic materials used can be easily separated from the reaction mixture and reused for several reaction cycles without much loss of catalytic activity.
1. Introduction
Metal oxide and mixed metal oxide based solid acid catalysts are most important and widely employed in the largest family of heterogeneous catalysts because they utilize both acid–base and redox properties.1–4 Among various metal oxides, ZrO2 and Al2O3 have been widely used in both acid and base catalyzed reactions in the field of heterogeneous catalysis as catalysts as well as catalytic supports.5–7 The Al2O3–ZrO2 based catalysts were found to exhibit better catalytic properties than either Al2O3 or ZrO2 and are attracting considerable interest because of their potential use as catalysts.8–10 Therefore, ZrO2–Al2O3 has been used in many catalytic processes involving liquid, vapour and gas phase reactions.
Multi-component reactions (MCRs) are powerful and outstanding tool in generating products in medicinal chemistry and modern organic synthesis because MCRs are one-pot process is wherein three or more components are assemble and produce product with high selectivity and high atom efficiency.11,12 MCRs have great contribution and considerable attention since they are performed without the need to isolate any intermediate and save both raw materials and energy and also reduce time.13,14 MCRs find great interest in the synthesis of important and complex organic molecules from simple and readily available starting materials in a single synthetic operation.12,15
N-Heterocyclic compounds represent one of the most valuable building blocks for biologically active molecules, drugs and functional materials.16 Naturally occurring substituted imidazoles as well as synthetic derivatives are most important class of heterocyclic compounds and play an important role in chemical and biological system.17,18 The imidazole and its derivatives are used as antibacterial agent, fungicides and herbicides, antitumor and anti-inflammatory agents, plant growth regulators and therapeutic agents.19–24 Various substituted imidazoles act as inhibitor of B-Raf kinase, p38 MAP kinase and glucagon receptors.25–27 They are also useful building blocks for the synthesis of other classes of compounds. Therefore, the organic synthesis of these imidazole derivatives has a significant impact on synthetic organic and medicinal chemistry.
A number of methods have been developed for the synthesis of 2,4,5-trisubstistuted imidazoles. The best reported route for the synthesis of 2,4,5-trisubstistuted imidazoles is three components cyclo-condensation of benzil, aldehyde and ammonium acetate in the presence of an acid catalyst. There are several methods available to synthesize imidazole derivatives over microwaves, L-proline, acetic acid, ionic liquids, tetrabutylammonium bromide, molecular iodine, montmorillonite K 10, zeolite, nano sulfated zirconia, heteropolyacids, CAN (ceric ammonium nitrate), silica gel/NaHSO4, K5CoW12O40–3H2O, FeCl3·6H2O, silica sulphuric acid, NiCl2·6H2O/Al2O3, ZrCl4, etc.28–34
Quinoxaline derivatives are an important class of benzo heterocyclic compounds, since they have a wide area of biological activities such as anti-HIV, anti-viral, anti-diabetic, anti-fungal, anti-bacterial, anti-cancer, anti-depression, etc.35,36 Numerous methods are available for the synthesis of quinoxaline derivatives which involve cyclo-condensation of 1,2-diamine with α-diketones using MnO2, POCl3, zeolites, iodine, CAN, etc.37,38
Benzodiazepine and its derivatives are another interesting class of heterocyclic compounds, as they are used as drugs, anti-anxiety, anti-convulsant, sedative, analgesic, anti-depressive, hypnotic agents, etc.39,40 The common procedure for the synthesis of 1,5-benzodiazepines is the condensation between carbonyl compound and O-phenylenediamines. Few methods have been reported with reagents such as BF3·OEt2, InBr3, polyphosphoric acid–SiO2, sulfated zirconia, Yb(OTf)3, Sc(OTf)3, molecular iodine, acetic acid, ionic liquids, etc.41,42
Some of these synthetic methods suffer from one or more serious drawbacks such as harsh reaction conditions, moisture-sensitive metallic reagents, laborious and complex work-up and purification, poor yields, significant amount of waste materials, prolonged time periods, high temperatures, occurring side reactions and use of hazardous and often expensive acid catalysts. Moreover, the synthesis of these heterocyclic compounds has been usually carried out in presence of polar solvents like N,N-dimethylformamide, acetic acid and dimethylsulfoxide leading to complex isolation and recovery procedure.
In the present work, an attempt has been made for the synthesis of 2,4,5-trisubstituted imidazoles, quinoxalines and 1,5-benzodiazepines at moderate temperature in a shorter reaction time over ZrO2–Al2O3 as a simple, low cost, eco-friendly, reusable and highly efficient catalyst.
2. Experimental
2.1. Chemicals
Zirconyl nitrate hydrate, aluminium nitrate nonahydrate and urea were supplied by M/S LOBA Chemie, India. Substituted benzil, aromatic aldehydes, ketones, α-diketones and O-phenylenediamines were supplied by Sigma Aldrich or Alfa-Aesar and the solvents were supplied by ChemLabs, India.
2.2. Preparation of ZrO2–Al2O3
2.2.1. Solution combustion method (SCM). ZrO2–Al2O3 mixed oxide consists of 80 mol% of ZrO2 by using urea as a fuel was prepared by solution combustion method by taking aqueous solution containing known amounts of aluminium nitrate nonahydrate, zirconyl nitrate hydrate and a fuel.43 The combustion was carried out by using an aqueous mixture (20 mL) containing 10.0 g of aluminium nitrate nonahydrate, 12.32 g of zirconyl nitrate hydrate and 9.33 g of urea in a pyrex dish. Combustion was carried out in a preheated muffle furnace (400 ± 10 °C) resulting in a flaming type reaction wherein foamy solid was formed.
2.2.2. Impregnation method. 10.0 g of aluminium nitrate nonahydrate was dissolved in 15 mL of deionized water, resulting solution was made into a paste with 12.32 g of zirconyl nitrate hydrate. The resulting paste was dried in a hot air oven at 120 °C for 12 h.
2.2.3. Precipitation method. The aqueous solution of 10.0 g of aluminium nitrate nonahydrate and 12.32 g of zirconyl nitrate hydrate in 200 mL of deionized water was stirred at 60 °C for 1 h. To this hot solution 1:1 aqueous ammonia solution was added drop wise with constant stirring until precipitation is complete. Thus obtained precipitate was filtered and dried in hot air oven at 120 °C for 12 h.These prepared samples were finely powdered and calcined in a muffle furnace at 550 °C for 5 h before their use as a catalytic material. ZrO2–Al2O3 prepared by solution combustion method was abbreviated as ZA-SCM, impregnation method as ZA-IMG and precipitation as ZA-PPT.
2.3. Characterization of catalytic materials
PXRD patterns of these solid acids were obtained from X'pert Pro Philips diffractometer equipped in a Ni filtered Cu-Kα radiation with λ = 1.5418 Å using a graphite crystal monochromator with a scanning range 20–70°. NOVA 1000 Quanta chrome high-speed gas sorption analyzer instrument was used to measure the specific surface area of all the prepared catalytic materials. The values of total surface acidity (TSA) of the catalytic materials were obtained from NH3-TPD method using Mayura TPD unit. The FT-IR spectrums were recorded with 4 cm−1 resolution using a Nicolet IR200 FT-IR spectrophotometer in the range 400–4000 cm−1 using KBr as a standard reference. TEM images of all the prepared catalytic materials were obtained from PHILIPS CM200 electron microscope at an acceleration voltage of 20–200 kV. SEM images and EDAX of all the prepared catalytic materials were obtained from JEOL JXA-8530F microscope. The amount of zirconia present in all the solid acid catalysts was estimated by Inductively Coupled Plasma-Optical Emission Spectrometer (ICP-OES) analysis technique using Thermo-iCAP 6000 Series instrument.
2.4. Catalytic activity studies of ZrO2–Al2O3
To the stirred suspension of benzil (1.43 mmol), aldehydes (1.43 mmol), ammonium acetate (4.29 mmol) in a 5 mL round bottomed flask fitted with water cooled condenser, catalytic material (0.03 g of ZrO2–Al2O3) was added and the resulting mixture was heated at 120 °C. The progress of the reaction was monitored by thin layer chromatography (TLC). After the completion of the reaction, the reaction mixture was cooled, the residue was dissolved in acetone and the resulting solution was filtered, residue was washed with acetone to recover the catalyst. Filtrate was poured to 100 mL of ice cold water, obtained precipitate was filtered, washed with hexane and dried to get the desired product. Thus obtained product was then characterized by melting point (melting points were measured on a Büchi B-540 capillary melting point apparatus and are uncorrected), 1H NMR spectroscopy (Bruker, 400 MHz) and LC-MS (Varian) techniques.
Quinoxalines and 1,5-benzodiazepines were synthesized by stirring the mixture of 1,2-dicarbonyl (1.43 mmol), O-phenylenediamines (1.43 mmol), 0.03 g of ZA-IMG and ethanol (10 mL) at 80 °C and the mixture of O-phenylenediamines (1.43 mmol), ketones (2.86 mmol), 0.03 g of ZA-IMG and ethanol (10 mL) at 80 °C respectively and the progress of the reactions were monitored by TLC.
2.5. Reusability study of ZrO2–Al2O3 catalytic materials
After each reaction cycle of cyclo-condensation reaction, ZrO2–Al2O3 catalytic material was filtered from the reaction mixture, washed with acetone, dried at 120 °C for 1 h and calcined at 550 °C for 0.5 h. Thus reactivated ZrO2–Al2O3 catalytic material was used in the next cycle of the synthesis of imidazole under similar reaction conditions.
The reactivation and reusability of the used ZrO2–Al2O3 catalytic material was repeated for 6 reaction cycles by following the procedure as described above (Section 2.4).
3. Results and discussion
3.1. Characterization of catalytic materials
All the prepared ZrO2–Al2O3 catalytic materials were characterized for their physico-chemical properties such as PXRD, NH3-TPD, N2 adsorption isotherms, FTIR, TEM, SEM, EDAX and ICP-OES techniques.
3.1.1 Crystalinity by powder XRD (PXRD) studies. The crystalline phase of ZrO2–Al2O3 catalytic material was characterized by PXRD technique and the PXRD patterns of ZA-SCM, ZA-IMG and ZA-PPT are shown in Fig. 1. Interestingly, no peaks corresponding to the monoclinic ZrO2 are observed in the PXRD patterns of all ZrO2–Al2O3 samples. However, pure tetragonal phase of ZrO2 is formed in case of ZA-SCM and ZA-IMG due to phase transition from stable monoclinic to tetragonal phase. Very low intense diffraction peaks corresponding to rhombohedral Al2O3 are also observed only in ZA-SCM. In case of ZrO2–Al2O3 catalytic material prepared by precipitation method a small lump was observed at around 30° which corresponds to moderate plateau of tetrahedral ZrO2, which indicates that the presence of an incipient crystalline structure in the synthesized ZrO2–Al2O3 mixed oxides.44–46 Major peaks corresponding to Al2O3 were not observed in all the three ZrO2–Al2O3 catalytic materials which confirm a clear co-ordination between zirconia and alumina metal oxides. More interestingly, it was observed from the PXRD patterns that full crystallization of ZrO2–Al2O3 could be achieved by SCM and impregnation methods and in case of ZA-PPT amorphous nature was observed.
|
| Fig. 1 PXRD patterns of ZrO2–Al2O3 catalytic material prepared by SCM, impregnation and precipitation methods [R – rhombohedral Al2O3; T – tetragonal ZrO2]. | |
3.1.2 Total surface acidity (TSA) by NH3-TPD method. The TSA values of all the prepared ZrO2–Al2O3 catalytic materials obtained by NH3-TPD are listed in Table 1 and the NH3-TPD profiles of all the ZrO2–Al2O3 catalytic materials are shown in Fig. 2. TSA values of the catalytic materials are in the following order: ZA-IMG > ZA-SCM > ZA-PPT. In general the surface acidity of ZrO2–Al2O3 mixed oxide is because of the coordination number of the inserted cation maintained in the host oxide lattice. i.e., when Zr4+ is inserted into the Al3+ lattice, positive charge imbalance is occurred. As a result, Lewis acid sites are generated. Surface acidity can also result due to the charge imbalance formed on the surface of metal oxide and while Lewis acid sites will be formed when the charge imbalance is positive.47
Table 1 Surface properties of ZrO2–Al2O3 catalytic materials
Sl. No. |
Catalytic materials |
Surface area (m2 g−1) |
TSA (mmol g−1) |
Pore diameter (Å) |
Pore volume (cm3 g−1) |
1 |
ZA-SCM |
10.607 |
1.33 |
57.84 |
0.016 |
2 |
ZA-IMG |
119.68 |
1.52 |
39.95 |
0.119 |
3 |
ZA-PPT |
168.98 |
1.27 |
68.97 |
0.291 |
|
| Fig. 2 NH3-TPD profiles of ZA-SCM, ZA-IMG and ZA-PPT catalytic materials. | |
The ZA-IMG catalytic material was comparatively found to possess higher total surface acidity than ZA-SCM or ZA-PPT. This may be due to tetragonal crystalinity. It is very interesting to observe that the total surface acidity is not dependent on the surface area. Desorption peaks of weak, medium, strong and very strong acid sites of ZrO2–Al2O3 catalytic materials are observed in Fig. 2.
3.1.3 Surface area by N2 adsorption isotherm methods. The surface area, pore volume and pore diameter of the all the prepared ZrO2–Al2O3 catalytic materials are given in Table 1. N2 adsorption–desorption isotherms and pore-size distribution of ZrO2–Al2O3 catalysts are given in Fig. 3. The surface area of ZrO2–Al2O3 catalytic materials were found to be in the following order: ZA-SCM < ZA-IMG < ZA-PPT. A 12 and 17 fold higher surface area of ZA-IMG and ZA-PPT respectively was observed than ZA-SCM. This higher surface area may be due amorphous nature of ZrO2–Al2O3 catalytic material. The N2 adsorption–desorption isotherms of these catalysts showed type IV isotherms with well defined H1 hysteresis loop with relative pressure of 0.4 to 1, which is the characteristic of mesoporous structure. This is confirmed by PXRD pattern, TEM and SEM images. The pore diameters of these catalysts were not uniform as indicted from BJH pore size distribution curve shown in Fig. 3. The pore diameters of ZA-SCM, ZA-IMG and ZA-PPT catalysts were found maximum at 36.9 nm, 35.7 nm and 47.8 nm respectively as indicated from pore size distribution curves.
|
| Fig. 3 N2 adsorption–desorption isotherms and corresponding pore size distributions of ZA-SCM, ZA-IMG and ZA-PPT catalysts. | |
3.1.4 FT-IR studies. The FT-IR spectra of all the prepared ZrO2–Al2O3 catalytic materials are presented in Fig. 4. The bands at 690 cm−1, 770 cm−1 and 1050 cm−1 correspond to the O–Al vibrations.48 A broad band at ∼1600 cm−1 is attributed to the vibrations of acidic –OH bending mode and broad band at ∼3450 cm−1 due to stretching mode with hydrogen bonding are present in all the catalytic materials.49
|
| Fig. 4 The FT-IR spectrum of ZA-SCM, ZA-IMG and ZA-PPT catalytic materials. | |
3.1.5 TEM, SEM and EDAX studies. The TEM images of all the prepared ZrO2–Al2O3 catalytic materials are given in Fig. 5a. As seen from the figure, ZA-SCM shows a uniform and compact distribution of particles and spherical geometry with particle size of 34–43 nm. In case of ZA-IMG, particle size is lesser than that of ZA-SCM and in case ZA-PPT the boundary between the particles was not detectable from TEM images which may be due to interactions between the neighboring particles and due to its amorphous nature. This amorphous nature of ZA-PPT and ZA-IMG are in good agreement with the PXRD patterns because, smaller sized particles bring strong adsorption force, because of which most of the particles are aggregated with each other.50 SEM images and EDAX spectrums of all the prepared ZrO2–Al2O3 catalytic materials are presented in Fig. 5b and c respectively. The SEM images confirm that the catalytic materials are non-uniformly sized and are porous in nature. The EDAX spectrum of all the four solid acid catalysts showed that the atomic composition of aluminium, oxygen and zirconia are same. This confirms that all the prepared samples have similar atomic composition.
|
| Fig. 5 (a) TEM images of ZA-SCM, ZA-IMG and ZA-PPT catalytic materials. (b) SEM images of ZA-SCM, ZA-IMG and ZA-PPT catalytic materials. (c) EDAX spectrums of ZA-SCM, ZA-IMG and ZA-PPT catalytic materials. | |
3.1.6 Elemental analysis by ICP-OES. The ICP-OES results indicate that ZA-SCM, ZA-IMG and ZA-PPT consisted of 87.23 weight%, 87.30 weight% and 87.19 weight% of zirconia respectively. Theoretically, ZrO2–Al2O3 containing 80 mol% of ZrO2 must contain 87.25 weight% of zirconia because the atomic weight of zirconia is higher than that of alumina.
3.2. Catalytic activity studies
As a test reaction, the three-component cyclo-condensation of benzil, aldehydes and ammonium acetate with ZrO2–Al2O3 catalytic materials under solvent-free conditions was carried out at optimized reaction conditions at 120 °C (Scheme 1).51 All the three ZrO2–Al2O3 catalytic materials used in the present work were active in this reaction.
|
| Scheme 1 (a) Cyclo-condensation of benzil, aldehyde and ammonium acetate with ZrO2–Al2O3 catalytic material. (b) Cyclo-condensation between O-phenylenediamine and α-diketone over ZrO2–Al2O3 catalytic material. (c) Cyclo-condensation between O-phenylenediamine and ketone over ZrO2–Al2O3 catalytic material. Where, R is alkyl, aryl, alkoxy, N,N-diethyl or halo group. | |
When the reaction was carried out in the absence of ZrO2–Al2O3 catalytic material, there was a negligible amount of formation of the reaction product. This indicates that the cyclo-condensation is a catalyzed reaction.
3.3. Effect of nature of ZrO2, Al2O3 and ZrO2–Al2O3 on the yield 2,4,5 triphenyl-1H-imidazole
In an initial study, the reactions were carried out with 0.03 g of ZA-SCM, ZA-IMG and ZA-PPT in cyclo-condensation reaction of benzil (1.43 mmol), benzaldehyde (1.43 mmol) and ammonium acetate (4.29 mmol). It is interesting to note that a maximum yield (99.2%) of 2,4,5 triphenyl-1H-imidazole (Table 2, entry 1) was observed for ZA-IMG under solvent free condition at 120 °C in 20 min. 95.1% and 89.9% of 2,4,5 triphenyl-1H-imidazole was obtained with ZA-SCM and ZA-PPT catalytic materials respectively. There is no particular correlation observed between the catalytic activity and the surface area. This indicates that the distribution of catalytic active species on the surface plays significant role than the surface area of the catalysts.
Table 2 Surface properties and the yield of triphenyl-1H-imidazole over ZrO2, Al2O3 and ZrO2–Al2O3
Sl. No. |
Catalytic materials |
TSA (mmol g−1) |
Yield of 2,4,5-triphenyl-1H-imidazole (%) |
1 |
Al2O3 |
0.49 |
60.0 |
2 |
ZrO2 |
0.43 |
53.6 |
3 |
10ZA |
0.65 |
65.2 |
4 |
20ZA |
0.76 |
73.5 |
5 |
40ZA |
1.05 |
80.7 |
6 |
ZA-SCM (80ZA) |
1.33 |
95.1 |
7 |
ZA-IMG |
1.52 |
99.2 |
8 |
ZA-PPT |
1.27 |
89.9 |
In order to compare the catalytic activity of ZA-SCM, ZA-IMG and ZA-PPT with similar type of catalytic materials in cyclo-condensation reaction of benzil (1.43 mmol), benzaldehyde (1.43 mmol) and ammonium acetate (4.29 mmol), the reactions were carried out in presence of 0.03 g of Al2O3, ZrO2, 10 mol% ZrO2–Al2O3 (10 ZA), 20 mol% ZrO2–Al2O3 (20 ZA), 40 mol% ZrO2–Al2O3 (40 ZA) and 80 mol% ZrO2–Al2O3 (80 ZA) or ZA-SCM prepared by SCM using urea as a fuel and the results are shown in Table 2. When the catalytic activity of these catalytic materials was compared ZA-IMG showed better yield of 2,4,5 triphenyl-1H-imidazole derivatives than other catalytic materials used for the present study. The better catalytic activity of ZA-IMG can be due to its higher surface acidity when compared to other similar metal oxides.52
Therefore, ZA-IMG catalyst was chosen for further studies for the synthesis of different 2,4,5-tri substituted imidazoles.
3.4. Synthesis of different 2,4,5 tri substituted imidazoles over ZA-IMG
The cyclo-condensation reaction of benzil (1.43 mmol) with various aldehydes (1.43 mmol) bearing electron-donating groups (methyl or diethyl amine) or electron-withdrawing groups (halides) at para or meta position and ammonium acetate (4.29 mmol) was carried out in presence of 0.03 g of ZA-IMG catalytic material at 120 °C and the progress of the reactions were monitored by TLC. Workup procedure for the reaction and characterization of reaction products has been discussed in Section 2.4. The reaction time and isolated yield (%) of desired reaction products are listed in Table 3 and the spectral data of isolated products are presented in Appendix-1.

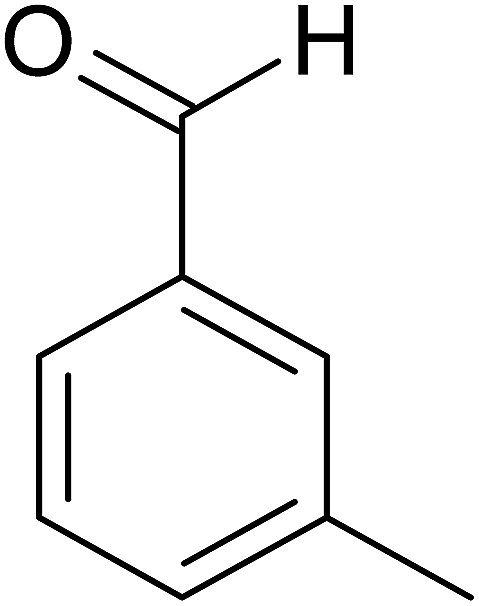

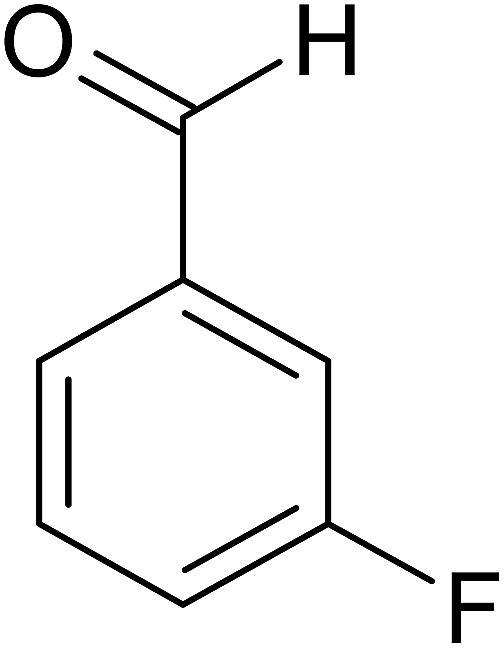

Table 3 List of aldehydes, products, reaction time and yield of imidazole productsa
Entry |
Aldehyde |
Reaction product |
Reaction time (min) |
Yield (%) |
Reaction conditions: 0.03 g of ZA-IMG at 120 °C, benzil (1.43 mmol), aldehyde (1.43 mmol) and ammonium acetate (4.29). |
1 |
|
|
20 |
99.2 |
2 |
|
|
20 |
97.6 |
3 |
|
|
20 |
98.0 |
4 |
|
|
20 |
97.3 |
5 |
|
|
20 |
96.5 |
6 |
|
|
20 |
96.2 |
7 |
|
|
20 |
95.9 |
8 |
|
|
20 |
97.5 |
9 |
|
|
20 |
97.7 |
10 |
|
|
20 |
97.1 |
3.5. Synthesis of different quinoxalines over ZA-IMG
A mixture of 1,2-dicarbonyl (1.43 mmol), O-phenylenediamine (1.43 mmol), 0.03 g of ZA-IMG and ethanol (10 mL) was stirred at 80 °C and the progress of the reactions were monitored by TLC.37c After completion of the reaction, the reaction mixture was filtered to recover the catalytic material, filtrate was evaporated in vacuum to afford crude, which was purified by silica gel column chromatography using suitable solvent (ethyl acetate in hexane) to obtained desired product of quinoxaline. The reaction time and isolated yield (%) of desired reaction products are listed in Table 4 and the spectral data of isolated products are presented in Appendix-1.
Table 4 List of α-diketone, products, reaction time and yield of quinoxaline productsa
Entry |
α-Diketone |
Reaction product |
Reaction time (min) |
Yield (%) |
Reaction conditions: 0.03 g of ZA-IMG at 80 °C, α-diketone (1.43 mmol), O-phenylenediamine (1.43 mmol) and ethanol (10.0 mL). |
1 |
|
|
20 |
90.3 |
2 |
|
|
20 |
91.6 |
3 |
|
|
20 |
91.0 |
3.6. Synthesis of different 1,5-benzodiazepines over ZA-IMG
A mixture of O-phenylenediamine (1.43 mmol), ketone (2.86 mmol), 0.03 g of ZA-IMG and ethanol (10 mL) was stirred at 80 °C and the progress of the reactions were monitored by TLC.41c After completion of reaction, the reaction mixture was filtered to recover the catalytic material, filtrate was evaporated in vacuum to afford crude, which was purified by silica gel column chromatography using suitable solvent (ethyl acetate in hexane) to afford desired product (1,5-benzodiazepine). The reaction time and isolated yield (%) of desired reaction products are listed in Table 5 and the spectral data of isolated products are presented in Appendix-1.
Table 5 List of ketone, products, reaction time and yield of 1,5-benzodiazepine productsa
Entry |
Ketone |
Reaction product |
Reaction time (min) |
Yield (%) |
Reaction conditions: 0.03 g of ZA-IMG at 80 °C, O-phenylenediamine (1.43 mmol), ketone (2.86 mmol) and ethanol (10.0 mL). |
1 |
|
|
30 |
95.7 |
2 |
|
|
30 |
96.1 |
3 |
|
|
40 |
92.3 |
Appendix-1
Spectral data of synthesized esters (refer to Tables 3–5)

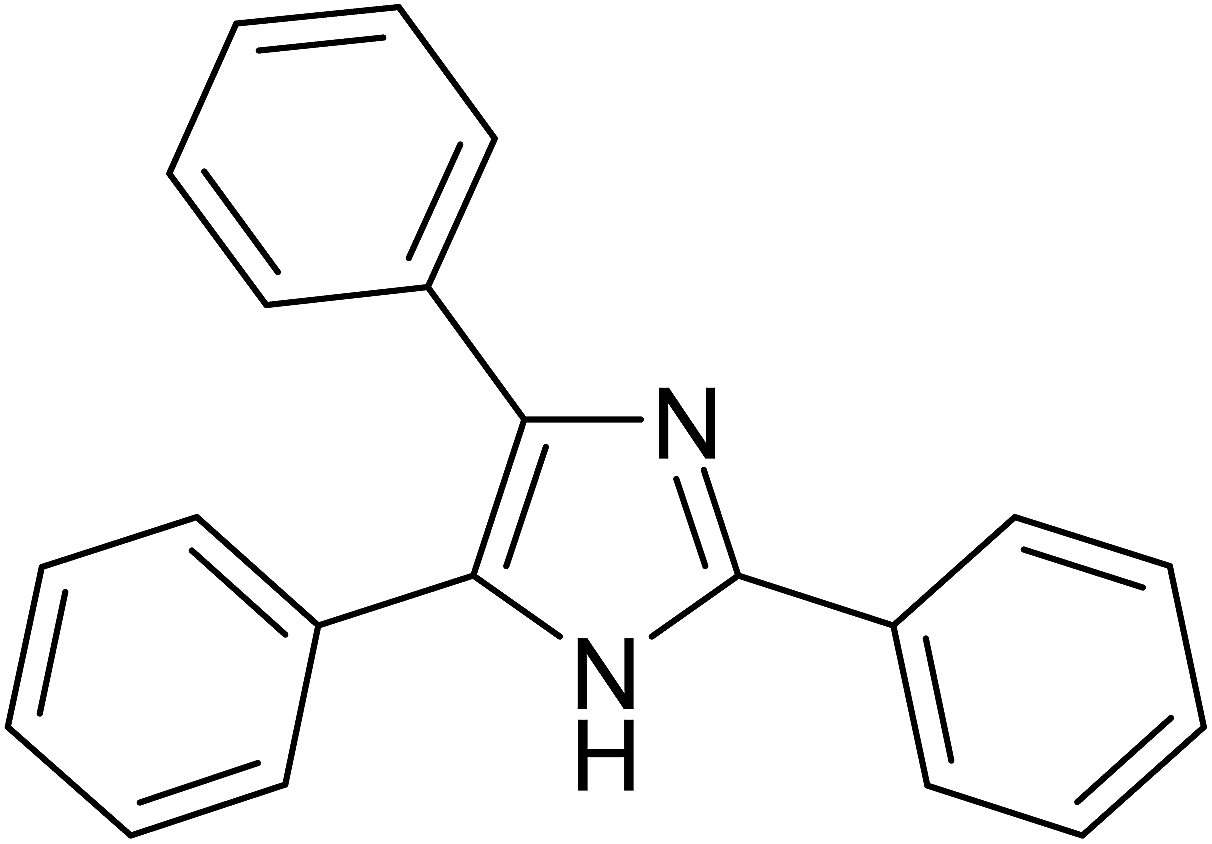

2,4,5-Triphenyl-1H-imidazole (Table 3, entry 1). 1H NMR (DMSO-d6, 400 MHz): δ (ppm) 7.184 (t, 1H, J = 7.2 Hz), 7.286 (t, 2H, J = 7.2 Hz), 7.358 (t, 2H, J = 7.2 Hz), 7.408–7.497 (m, 6H), 7.532 (d, 2H, J = 7.6 Hz), 8.063 (d, 2H, J = 7.6 Hz), 12.641 (br s, 1H, D2O exchangeable). Calculated for C21H16N2 [M + H+]: 297.13, found [M + H+]: 297.1, physical state: off-white solid; melting point: 271–273 °C.
4,5-Diphenyl-2-(o-tolyl)-1H-imidazole (Table 3, entry 2). 1H NMR (DMSO-d6, 400 MHz): δ (ppm) 2.621 (s, 3H), 7.192 (t, 1H, J = 7.6 Hz), 7.262–7.357 (m, 6H), 7.411 (t, 2H, J = 7.6 Hz), 7.489 (d, 2H, J = 7.6 Hz), 7.537 (d, 2H, J = 7.2 Hz), 7.692 (t, 1H, J = 7.6 Hz), 12.426 (br s, 1H, D2O exchangeable). Calculated for C22H18N2 [M + H+]: 311.15, found [M + H+]: 311.1, physical state: off-white solid; melting point: 204–206 °C.
4,5-Diphenyl-2-(m-tolyl)-1H-imidazole (Table 3, entry 3). 1H NMR (DMSO-d6, 400 MHz): δ (ppm) 2.368 (s, 3H), 7.165–7.220 (m, 2H), 7.265–7.370 (m, 4H), 7.422 (t, 2H, J = 7.2 Hz), 4.483 (d, 2H, J = 6.8 Hz), 7.530 (d, 2H, J = 7.6 Hz), 7.852 (d, 1H, J = 7.6 Hz), 7.911 (s, 1H), 12.595 (br s, 1H, D2O exchangeable). Calculated for C22H18N2 [M + H+]: 311.15, found [M + H+]: 311.1, physical state: off-white solid; melting point: 229–231 °C.
4,5-Diphenyl-2-(p-tolyl)-1H-imidazole (Table 3, entry 4). 1H NMR (DMSO-d6, 400 MHz): δ (ppm) 2.340 (s, 3H), 7.261–7.351 (m, 8H), 7.508 (d, 4H, J = 7.2 Hz), 7.959 (d, 2H, J = 7.6 Hz), 12.573 (br s, 1H, D2O exchangeable). Calculated for C22H18N2 [M + H+]: 311.15, found [M + H+]: 311.1, physical state: off-white solid; melting point: 228–230 °C.
2-(3-Fluorophenyl)-4,5-diphenyl-1H-imidazole (Table 3, entry 5). 1H NMR (DMSO-d6, 400 MHz): δ (ppm) 7.164–7.232 (m, 2H), 7.293 (t, 2H, J = 6.8 Hz), 7.372 (t, 1H, J = 6.8 Hz), 7.418 (t, 2H, J = 7.2 Hz), 7.455–7.535 (m, 5H), 7.853 (d, 1H, J = 10.4 Hz), 7.916 (d, 1H, J = 8.0 Hz), 12.755 (br s, 1H, D2O exchangeable). Calculated for C21H15FN2 [M + H+]: 315.12, found [M + H+]: 315.1, physical state: off-white solid; melting point: 284–286 °C.
2-(3-Chlorophenyl)-4,5-diphenyl-1H-imidazole (Table 3, entry 6). 1H NMR (DMSO-d6, 400 MHz): δ (ppm) 7.216 (t, 1H, J = 7.2 Hz), 7.294 (t, 2H, J = 7.6 Hz), 7.369–7.541 (m, 9H), 8.029 (d, 1H, J = 8.0 Hz), 8.131 (s, 1H), 12.783 (br s, 1H, D2O exchangeable). Calculated for C21H15ClN2 [M + H+]: 331.09, found [M + H+]: 331.1, physical state: off-white solid; melting point: 281–283 °C.
2-(3-Bromophenyl)-4,5-diphenyl-1H-imidazole (Table 3, entry 7). 1H NMR (DMSO-d6, 400 MHz): δ (ppm) 7.216 (t, 1H, J = 7.2 Hz), 7.293 (t, 2H, J = 7.2 Hz), 7.350–7.554 (m, 9H), 8.068 (d, 1H, J = 8.0 Hz), 8.277 (s, 1H), 12.780 (br s, 1H, D2O exchangeable). Calculated for C21H15BrN2 [M + H+]: 375.04, found [M + H+]: 375.0, physical state: off-white solid; melting point: 299–301 °C.
2-(4-Chlorophenyl)-4,5-diphenyl-1H-imidazole (Table 3, entry 8). 1H NMR (DMSO-d6, 400 MHz): δ (ppm) 7.209 (t, 1H, 7.6 Hz), 7.286 (t, 2H, J = 7.6 Hz), 7.363 (t, 1H, J = 7.2 Hz), 7.429 (t, 2H, J = 7.6 Hz), 7.485 (d, 2H, J = 7.6 Hz), 7.527 (d, 4H, J = 8.0 Hz), 8.078 (d, 2H, J = 8.4 Hz), 12.735 (br s, 1H, D2O exchangeable). Calculated for C21H15ClN2 [M + H+]: 331.09, found [M + H+]: 331.1, physical state: off-white solid; melting point: 262–264 °C.

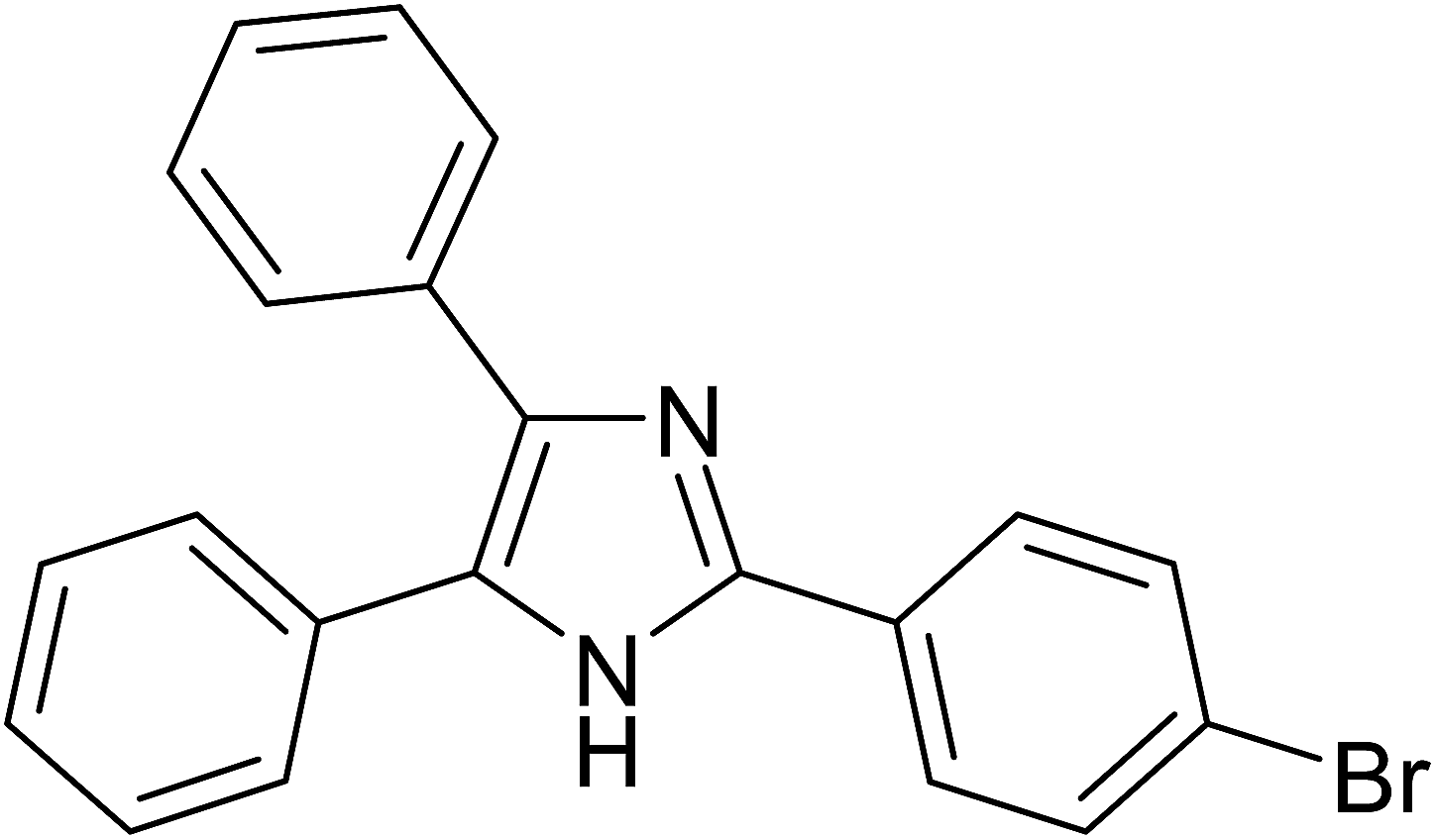

2-(4-Bromophenyl)-4,5-diphenyl-1H-imidazole (Table 3, entry 9). 1H NMR (DMSO-d6, 400 MHz): δ (ppm) 7.208 (t, 1H, J = 7.2 Hz), 7.286 (t, 2H, J = 7.2 Hz), 7.362 (t, 1H, J = 7.2 Hz), 7.428 (t, 2H, J = 7.2 Hz), 7.483 (d, 2H, J = 7.2 Hz), 7.527 (d, 2H, J = 7.2 Hz), 7.663 (d, 2H, J = 7.2 Hz), 8.013 (d, 2H, J = 8.4 Hz), 12.744 (br s, 1H, D2O exchangeable). Calculated for C21H15BrN2 [M + H+]: 375.04, found [M + H+]: 375.0, physical state: off-white solid; melting point: 260–262 °C.

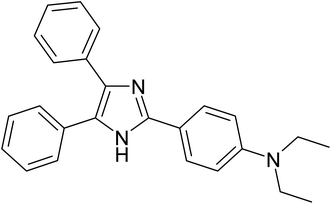

4-(4,5-Diphenyl-1H-imidazol-2-yl)-N,N-diethylaniline (Table 3, entry 10). 1H NMR (DMSO-d6, 400 MHz): δ (ppm) 1.107 (t, 6H, 7.2 Hz), 3.369 (q, 4H, 6.8 Hz), 6.709 (d, 2H, J = 8.8 Hz), 7.177–7.331 (m, 4H), 7.395 (t, 2H, J = 6.8 Hz), 7.459 (d, 2H, J = 7.6 Hz), 7.515 (d, 2H, J = 6.8 Hz), 7.843 (d, 2H, J = 8.4 Hz), 12.214 (br s, 1H, D2O exchangeable). Calculated for C25H25N3 [M + H+]: 368.20, found [M + H+]: 368.2, physical state: off-white solid; melting point: 220–222 °C.
2,3-Diphenylquinoxaline (Table 4, entry 1). 1H NMR (CDCl3, 400 MHz): δ (ppm) 7.332–7.371 (m, 6H), 7.565 (dd, 4H, J1 = 7.8 Hz, J2 = 1.2 Hz), 7.759 (dd, 2H, J1 = 6.3 Hz, J2 = 3.4 Hz), 8.223 (dd, 2H, J1 = 6.3 Hz, J2 = 3.4 Hz). Calculated for C20H14N2 [M + H+]: 283.35, found [M + H+]: 283.3, physical state: off-white solid; melting point: 127–129 °C.
2,3-Di-p-tolylquinoxaline (Table 4, entry 2). 1H NMR (CDCl3, 400 MHz): δ (ppm) 2.401 (s, 6H), 7.180 (d, 4H, J = 7.9 Hz), 7.478 (d, 4H, J = 7.9 Hz), 7.763 (dd, 2H, J1 = 6.3 Hz, J2 = 3.4 Hz), 8.189 (dd, 2H, J1 = 6.3 Hz, J2 = 3.4 Hz). Calculated for C22H18N2 [M + H+]: 311.40, found [M + H+]: 311.4, physical state: yellow solid; melting point: 146–148 °C.
2,3-Bis-(4-methoxyphenyl)-quinoxaline (Table 4, entry 3). 1H NMR (CDCl3, 400 MHz): δ (ppm) 3.831 (s, 6H), 6.889 (d, 4H, J = 8.3 Hz), 7.522 (d, 4H, J = 8.3 Hz), 7.720 (dd, 2H, J1 = 6.1 Hz, J2 = 3.2 Hz), 8.136 (dd, 2H, J1 = 6.05 Hz, J2 = 3.2 Hz). Calculated for C22H18N2O2 [M + H+]: 343.40, found [M + H+]: 343.4, physical state: off-white solid; melting point: 152–153 °C.

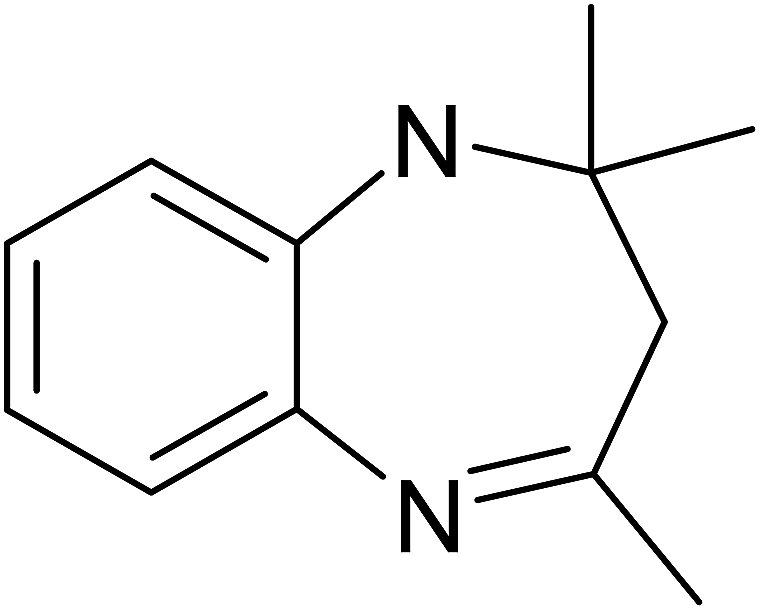

2,2,4-Trimethyl-2,3-dihydro-1H-benzo-1,5-benzodiazepine (Table 5, entry 1). 1H NMR (CDCl3, 400 MHz): δ (ppm) 1.349 (s, 6H), 2.201 (s, 2H), 2.352 (s, 3H), 2.94 (br s, 1H, D2O exchangeable), 6.652–7.302 (m, 4H). Calculated for C12H16N2 [M + H+]: 189.27, found [M + H+]: 189.3, physical state: yellow solid; melting point: 135–136 °C.
2,2,4-Triethyl-3-methyl-2,3-dihydro-1H-1,5-benzodiazepine (Table 5, entry 2). 1H NMR (CDCl3, 400 MHz): δ (ppm) 0.751–1.049 (m, 10H), 1.191–1.380 (m, 4H), 1.501–1.646 (m, 2H), 2.398–2.601 (m, 2H), 2.867 (q, 1H, J = 6.9 Hz), 3.750 (br s, 1H, D2O exchangeable), 6.573 (d, 1H, J = 8.0 Hz), 6.647 (t, 1H, J = 8.0 Hz), 6.904 (t, 1H, J = 8.0 Hz), 7.376 (d, 1H, J = 8.0 Hz). Calculated for C16H24N2 [M + H+]: 245.38, found [M + H+]: 245.4, physical state: off-white solid; melting point: 141–143 °C.
2-Methyl-2,4-diphenyl-2,3-dihydro-1H-1,5-benzodiazepine (Table 5, entry 3). 1H NMR (CDCl3, 400 MHz): δ (ppm) 1.801 (s, 3H), 2.946 (d, 1H, J = 12.8 Hz), 3.152 (d, 1H, J = 12.8 Hz), 3.451 (br s, 1H, D2O exchangeable), 6.555–7.001 (m, 3H), 7.153–7.348 (m, 7H), 7.555–7.649 (m, 4H). Calculated for C22H20N2 [M + H+]: 313.42, found [M + H+]: 313.4, physical state: yellow solid; melting point: 152–153 °C.
Effect of re-usability of ZA-IMG catalytic materials on the yield of 2,4,5-triphenyl-1H-imidazole
In order to study the reusability of ZA-IMG catalyst, the reaction was carried out between benzil, benzaldehyde and ammonium acetate in presence of 0.03 g of ZA-IMG at 120 °C for 20 min. The catalyst (ZA-IMG) was recovered after the each cycle of the reaction, followed by washing with acetone, drying in an oven at 120 °C for 1 h. Thus thermally regenerated ZA-IMG was re-used in the next reaction cycle. Such studies were carried out for 6 consecutive reaction cycles and the results are presented in Fig. 6. It can be seen from the figure that, not much change in yield of 2,4,5-triphenyl-1H-imidazole could be observed. Hence, ZA-IMG catalyst could be reused at least for six or more reaction cycles without much loss of its catalytic activity. PXRD and FTIR patterns of the ZA-IMG obtained after 6th reaction cycle are showed in Fig. S1 and S2† respectively and not much change in the total surface acidity (1.52 mmol g−1) of the ZA-IMG after 6 reaction cycles was observed.
|
| Fig. 6 Effect of reusability of ZA-IMG catalyst on the yield of 2,4,5-triphenyl-1H-imidazole [reaction conditions: 0.03 g of ZA-IMG catalyst at 120 °C for 20 min, benzil = 1.43 mmol, benzaldehyde = 1.43 mmol, ammonium acetate = 4.29 mmol]. | |
4. Conclusion
In conclusion, the authors of this article have prepared an efficient and green ZrO2–Al2O3 catalytic material by following different methods. ZrO2–Al2O3 prepared by impregnation method possesses comparatively high surface acidity than ZrO2–Al2O3 prepared by either solution combustion or precipitation methods. ZrO2–Al2O3 prepared by impregnation method could effectively catalyze the cyclo-condensation of benzil, different aldehydes with ammonium acetate, carbonyl compound with O-phenylenediamines and 1,2-diamine with α-diketones with excellent yield of desired products such as 2,4,5-trisubstituted imidazoles, quinoxalines and 1,5-benzodiazepines respectively at moderate temperature in shorter reaction time under solvent free conditions. ZrO2–Al2O3 catalytic materials could be recovered and reused for at least six reaction cycles without much loss of its activity.
Acknowledgements
The authors thank the VGST, GoK (GRD-375/2014-15) for the part financial support. Authors also thank the authorities of IISc, Bangalore for SEM, TEM, 1H NMR, LCMS and ICP-OES analysis. The authors are thankful to the department of chemistry, St. Joseph's college, Bangalore for PXRD and FT-IR analysis.
