Ratiometric detection of pH fluctuation in mitochondria with a new fluorescein/cyanine hybrid sensor

Yuncong Chen , Chengcheng Zhu , Jiajie Cen , Yang Bai , Weijiang He * and Zijian Guo *
State Key Laboratory of Coordination Chemistry, Coordination Chemistry Institute, School of Chemistry and Chemical Engineering, Nanjing University, Hankou Road No.22, Nanjing 210093, PR China. E-mail: heweij69@nju.edu.cn; zguo@nju.edu.cn; Fax: +86-25-83314502; Tel: +86-25-83597066

Received 28th December 2014 , Accepted 16th March 2015

First published on 16th March 2015


The homeostasis of mitochondrial pH (pHm) is crucial in cell physiology. Developing small-molecular fluorescent sensors for the ratiometric detection of pHm fluctuation is highly demanded yet challenging. A ratiometric pH sensor, Mito-pH, was constructed by integrating a pH-sensitive FITC fluorophore with a pH-insensitive hemicyanine group. The hemicyanine group also acts as the mitochondria targeting group due to its lipophilic cationic nature. Besides its ability to target mitochondria, this sensor provides two ratiometric pH sensing modes, the dual excitation/dual emission mode (Dex/Dem) and dual excitation (Dex) mode, and its linear and reversible ratiometric response range from pH 6.15 to 8.38 makes this sensor suitable for the practical tracking of pHm fluctuation in live cells. With this sensor, stimulated pHm fluctuation has been successfully tracked in a ratiometric manner via both fluorescence imaging and flow cytometry.


Introduction

Different from the acidic organelles, such as the lysosome and endosome, mitochondria display a slightly basic pH,1 and the proton gradient established across its inner membrane is essential to sustain the transmembrane potential for ATP production.2 Therefore, the development of facile and reliable methods to monitor the mitochondrial pH (pHm) in live cells is highly demanded in understanding the physiology and pathology of mitochondria. With the great success of intracellular pH (pHi) fluorescence imaging,3–6 developing a fluorescent pH sensor able to target mitochondria for pHm imaging and flow cytometry should be a reliable approach to acquire the pHm information in situ.7 Although mammalian pHi ranges from slightly acidic in the lysosome and endosome (4.7–6.5) to slightly basic in active mitochondria (∼8.0), the physiological pHm deviation is minor but of great significance for the understanding of mitochondria physiology. However, this minor pHm deviation can be concealed in the case of using turn-on fluorescent sensors since the fluorescence intensity can be affected by local sensor concentration, microenvironment and imaging parameters, etc. Therefore, ratiometric pH sensors, which offer the possibility of self-calibration using dual emission, are more effective and advantageous in reducing the artefacts induced by the factors mentioned above.8 Although many ratiometric sensors for intracellular pH imaging have been reported,5,6 ratiometric sensors for pHm are still rare and their design remains challenging. The nanoparticle-based design rationale for ratiometric pHi sensors has been reported,6 yet they tend to localize in acidic endocytic compartments rather than the slightly basic mitochondria due to their uptake via endocytosis. Besides the successful FRET-based genetically encoded ratiometric pH sensors, which can be selectively expressed in mitochondria,9 small-molecular ratiometric pHm sensors are especially appealing due to their simple staining procedure, easy reproducibility of results, and greater number of alternative emission wavelengths for imaging.3 Moreover, small-molecular sensors can be more readily endowed with pH sensitivity. Therefore, small-molecular sensors are among the most promising approaches to ratiometric pHm imaging and tracking, and the sensing range from pH 6.50 to pH 8.20 is essential for practical pHm tracking. Carboxy SNARF-1/AM, with no intrinsic ability to target mitochondria, has been reported as one of the very few small-molecular sensors for ratiometric pHm imaging,10 its passive mitochondrial accumulation depending on both the higher efflux rate of the dye in the cytosol than in the mitochondria and the long incubation time for ester hydrolysis and efflux equilibrium. It is clear that a small-molecular ratiometric pH sensor with an intrinsic ability to target mitochondria, which has not been reported thus far, is very appealing.

Herein, we report a small-molecular fluorescent sensor, Mito-pH (Scheme 1), for ratiometric pHm imaging. The intrinsic ability of Mito-pH to target mitochondria was confirmed by a co-localization study, which originated from its lipophilic cationic cyanine moiety. It exhibits reversible pH sensing ability and a linear response range from pH 6.15 to 8.38. Besides ratiometric pHm imaging via confocal microscopy, the general pHm fluctuation upon stimulation has also been effectively monitored by flow cytometry in a ratiometric manner with this sensor.


image file: c4sc04021j-s1.tif

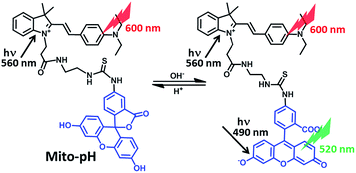

Scheme 1 Chemical structure of Mito-pH and the proposed ratiometric pH sensing mechanism.

Results and discussion

Design and synthesis of Mito-pH

Mito-pH was constructed via hybridizing a pH-sensitive fluorescein (spirolactone form) fluorophore with a pH-insensitive cyanine fluorophore (Scheme 1). Cyanines are well-known for their specific intracellular localization in mitochondria due to their lipophilic cationic nature,11,12 and the cyanine group was incorporated in this sensor as the reference fluorophore for ratiometric sensing as well as the mitochondria targeting group. It is proposed that the non-emissive spiro-xanthen-3-one turns into the emissive fluorescein at high pH, while the hemicyanine displays almost stable emission as the reference for ratiometric sensing.

To prepare this sensor, the cyanine derivative 2 was prepared in a reasonable yield via reacting 1-carboxylethyl-2-methylindolinum with N,N′-dimethylaminobenzaldehyde in reflux. The condensation of compound 2 with N1-Boc-1,2-ethyldiamine followed by treatment with TFA resulted in a cyanine derivative with one amino tail (compound 3). The condensation of compound 3 with fluorescein isothiocyanate (FITC) in the presence of triethylamine afforded the sensor Mito-pH (Scheme 2).


image file: c4sc04021j-s2.tif

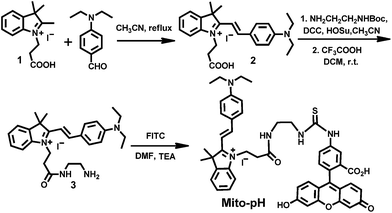

Scheme 2 Synthesis of the compound Mito-pH.

Spectroscopic study and pHapp-sensing behaviour of Mito-pH

Due to the precipitation of Mito-pH from the PBS buffer at acidic pH when the DMSO content is lower than 10%, a PBS buffer mixed with 10% DMSO was utilized as the medium to determine the emission spectra of Mito-pH at different apparent pH (pHapp). As shown in Fig. 1, the emission spectra of Mito-pH upon excitation at 490 nm exhibit the characteristic emission band of FITC centered at 520 nm. A distinct enhancement of this band (>40-fold, Fig. 1a and S4a) was observed upon increasing the pHapp of the medium from 4.85 to 9.65. The high pHapp induced fluorescein formation from spiro-xanthen-3-one is responsible for the enhancement. Its emission spectra upon excitation at 560 nm display the characteristic emission band of cyanine centered at 600 nm, which undergoes a decrement of ∼30% upon increasing the pHapp of the medium from 4.85 to 9.65 (Fig. 1b). The normalized ratio of emission at 520 nm (λex, 490 nm) to that at 600 nm (λex, 560 nm), F520/F600, increases from 0.023 to 0.99 upon increasing the pHapp of the medium from 4.85 to 9.65, and the quantum yield was enhanced from 2.6% to 25%.13 The apparent pKa was determined to be 7.33 ± 0.03 via fitting the pH titration profile based on the normalized F520/F600 (Fig. 1c).14 The linear range for the ratiometric response of Mito-pH is a pHapp of 6.15 to 8.38 (Fig. S5), in which pHm lies, supporting its ability to practically track pHm. This ratiometric pH-sensing behaviour originates from the different pH-sensing behaviours of the two hybridized fluorophores: FITC and the cyanine. In addition, the enhanced F520/F600 value of Mito-pH at pHapp 9.00 can be recovered to the original F520/F600 value at pHapp 5.00, and this reversible ratiometric pH sensing ability can be retained for at least 5 cycles in the pHapp range from 5.00 to 9.00 (Fig. 1d).
image file: c4sc04021j-f1.tif

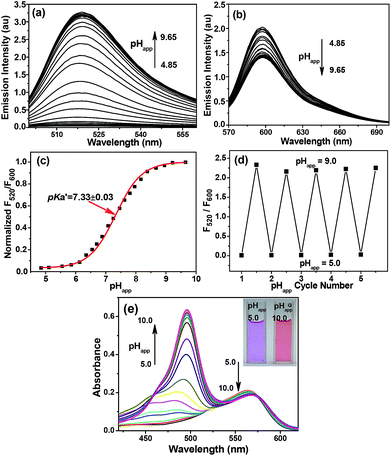

Fig. 1 Emission spectra of 10 μM Mito-pH in DMSO–PBS buffer solutions (1[thin space (1/6-em)]:[thin space (1/6-em)]9, v/v) of different pHapp values determined upon excitation at (a) 490 nm and (b) 560 nm. (c) The related pH titration profile (■) based on the normalized emission ratio F520/F600 calculated from (a) and (b) and the fitting profile (red line). (d) Emission ratio F520/F600 of 10 μM Mito-pH in the same medium determined over consecutive pHapp cycles. (e) Absorption spectra of Mito-pH (10 μM) in the same media of different pHapp. Inset: photograph of the solutions at different pH in ambient light.

The absorption spectrum of Mito-pH at pHapp 9.00 shows a major absorption band centered at 490 nm which can be assigned as the FITC absorption band, and a minor band centered at 565 nm which can be assigned as the cyanine absorption band. However, the absorption spectrum at low pHapp (<5.00), shows only the cyanine band due to the absorption nature of the FITC spiro-form. The FITC band appears gradually and undergoes a significant enhancement with the pHapp of the medium increasing from 5.00 to 10.00, while the cyanine band remains almost stable. This ratiometric response can be clearly visualized from the distinct colour change of the Mito-pH solution from purple to pink during the titration process (Fig. 1e).

On the other hand, the excitation spectra of Mito-pH at different pH demonstrate that the excitation maximum at 560 nm at pHapp 5.02 can be shifted to 490 nm at pHapp 8.55. The ratio of emission at 600 nm upon excitation at 560 nm to that upon excitation at 490 nm, F490/F560, shows a linear enhancement with the pHapp of the medium increasing from 6.04 to 8.25 (Fig. 2). This additional dual excitation ratiometric pH sensing ability implies that Mito-pH is able to offer two ratiometric imaging modes: the dual excitation/dual emission (Dex/Dem) mode and the dual excitation (Dex) mode. Therefore, this sensor possesses the advantage of the flexibility to match the laser/filter sets of microscopes and flow cytometers.


image file: c4sc04021j-f2.tif

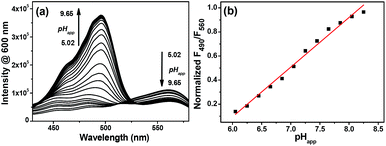

Fig. 2 (a) Excitation spectra of 10 μM Mito-pH in DMSO–PBS buffer solutions (1[thin space (1/6-em)]:[thin space (1/6-em)]9, v/v) with pH ranging from 5.02 to 9.65; λem: 600 nm. (b) Linear fitting (red line) of the related F490/F560 profile (■) of Mito-pH. F490/F560 is the normalized ratio of emission at 600 nm upon excitation at 490 nm to that upon excitation at 560 nm.

The ratiometric fluorescent response of Mito-pH to different biological species was also investigated in PBS buffer (pH 7.40). The emission ratio F520/F600 exhibits a negligible change in the presence of essential metal ions (K+, Ca2+, Na+ and Mg2+ at 10 mM; Zn2+, Cu2+, Fe2+ and Fe3+ at 10 μM) and biologically related redox chemicals (GSH at 10 mM; Cys at 1 mM; H2O2, ClO, NO, O2 and ˙OH at 100 μM), demonstrating the specific ratiometric response of Mito-pH solely to pHapp (Fig. 3). All these suggest that Mito-pH might be a suitable candidate for ratiometric intracellular pH imaging.


image file: c4sc04021j-f3.tif
Fig. 3 Normalized emission ratio F520/F600 of 10 μM Mito-pH in PBS solution (10 mM, pH 7.40, 10% DMSO–H2O, v/v) in the presence of different metal ions and biological redox species. 1: blank; 2: K+; 3: Na+; 4: Ca2+; 5: Mg2+ (2–5: 10 mM); 6: Zn2+; 7: Cu2+; 8: Fe2+; 9: Fe3+ (6–9: 10 μM); 10: GSH (10 mM); 11: Cys (1 mM); 12: H2O2; 13: ClO; 14: NO; 15: O2; 16: ˙OH (12–16: 100 μM). F520/F600 is the ratio of emission at 520 nm (λex, 490 nm) to that at 600 nm (λex, 560 nm).

Ratiometric pHm imaging behaviour of Mito-pH

The intrinsic ability of Mito-pH to target mitochondria was investigated in live MCF-7 cells at pH 7.40 and 8.50. The cells stained with Mito-pH (10 μM, 30 min, 25 °C) were co-stained further with the commercially available mitochondria dye Mito-Tracker Deep Red 633 (1 μM, 30 min) in the culture medium, and the pHi was regulated by a following incubation with high K+ buffers of different pH containing nigericin (10 μM), an H+/K+ ionophore, to homogenize the intra- and extracellular pH. The imaging results show that the green image for the Mito-pH channel obtained upon excitation at 543 nm is almost identical to the red image for the Mito-Tracker channel obtained upon excitation at 633 nm (Fig. 4 and S6). The overlay between the fluorescence images of Mito-pH and Mito-Tracker Deep Red 633 discloses a Pearson's correction coefficient of 0.96 at pH 7.40 and 0.93 at pH 8.50, suggesting the pH-independent ability of Mito-pH to target mitochondria. With this intrinsic ability to target mitochondria, the mitochondria staining equilibrium can be acquired much more quickly by Mito-pH than by carboxy SNARF-1/AM, which depends on the time-consuming dye ester hydrolysis and efflux process.
image file: c4sc04021j-f4.tif

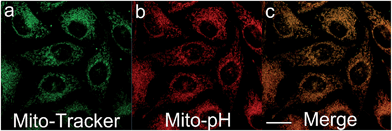

Fig. 4 Pseudo-colour confocal fluorescence images of MCF-7 cells incubated firstly with DMEM containing Mito-pH (10 μM, 60 min) and Mito-Tracker Deep Red 633 (1 μM, 30 min) at 25 °C, followed by incubation with high K+ buffers (30 mM NaCl, 120 mM KCl, 1 mM CaCl2, 0.5 mM MgSO4, 1 mM NaH2PO4, 5 mM glucose, 20 mM HEPES, and 20 mM NaOAc) of pH 7.40 in the presence of 10.0 μM nigericin. (a) Fluorescence image obtained with the band path 660–750 nm upon excitation at 633 nm (Mito-Tracker channel); (b) fluorescence image obtained with the band path 560–640 nm upon excitation at 543 nm (Mito-pH channel); (c) overlay of (a) and (b). Scale bar: 20 μm.

With its intrinsic ability to target mitochondria confirmed, Mito-pH was further studied for its ratiometric pHm imaging ability via a Dex/Dem mode. In this study, the intracellular pH calibration was carried out in MCF-7 cells using a standard procedure. MCF-7 cells were first incubated with the culture medium containing 10 μM Mito-pH for 30 min followed by a further incubation with high K+ buffers of different pH, also containing nigericin (10 μM). As shown in Fig. 5a, the green channel images (green channel: λex 488 nm, band path 500–550 nm for FITC) display a gradually enhanced emission of fluorescein upon increasing the pH from 6.50 to 8.50, while the red channel images (red channel: λex 543 nm, band path 560–650 nm for the hemicyanine) generally show a slightly decreased fluorescence of the hemicyanine. Moreover, the ratio images obtained via mediating the green with the related red channel images at the same pH by the program for ratiometric imaging show that the average ratio of green channel to red channel emission was enhanced linearly with the intracellular pH i.e. pHm in this experiment (Fig. 5b). All these confirm the ratiometric pHm imaging ability of Mito-pHvia the Dex/Dem mode. With the ratiometric imaging calibration curve for pHm (Fig. 5b), the ratiometric imaging of MCF-7 cells incubated with neutral PBS buffer without nigericin disclosed that the pHm of intact cells is 7.9 ± 0.1, which is in agreement with the results determined using the genetically encoded fluorescent pH sensor.4a,7


image file: c4sc04021j-f5.tif

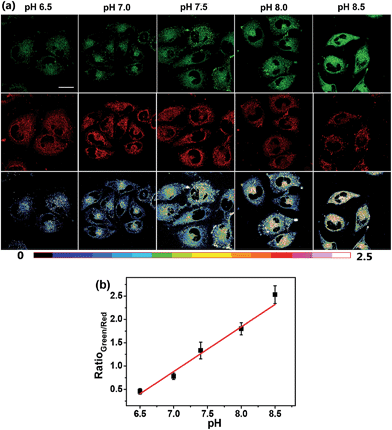

Fig. 5 (a) Ratiometric imaging of MCF-7 cells stained by Mito-pH (10 μM in DEME with 0.1% DMSO, 30 min, 25 °C) upon further incubation with high K+ buffers (30 mM NaCl, 120 mM KCl, 1 mM CaCl2, 0.5 mM MgSO4, 1 mM NaH2PO4, 5 mM glucose, 20 mM HEPES, and 20 mM NaOAc) of different pH (6.50–8.50) in the presence of 10.0 μM nigericin. The green channel images (first row) were collected with a band path of 500–550 nm upon excitation at 488 nm; the red channel images (second row) were collected with a band path of 560–650 nm upon excitation at 543 nm. Pseudo-colour ratio images (third row) were obtained by mediating the green channel image with the red channel at the same pH. The colour strip is the ratio bar. Scale bar: 20 μm. (b) Calibration curve of pHm based on the imaging results shown in (a).

As mentioned above, Mito-pH still displays a ratiometric sensing ability for pH via the Dex mode. Therefore the ratiometric pHm imaging ability was also investigated using the dual excitation imaging mode (channel 1: λex1: 488 nm; channel 2: λex2: 543 nm; band path 560–650 nm) in MCF-7 cells treated in the same way as shown for the Dex/Dem imaging mode. The ratiometric images were obtained via mediating the image obtained from channel 1 with the related channel 2 image at the same pH. These Dex ratiometric images also display a linearly enhanced average ratio value inside the cells with the pH of the nigericin-containing high K+ buffer for cell incubation being raised from 6.50 to 8.50 (Fig. 6). This result also demonstrates the ratiometric pHm imaging ability of Mito-pHvia the Dex imaging mode.


image file: c4sc04021j-f6.tif

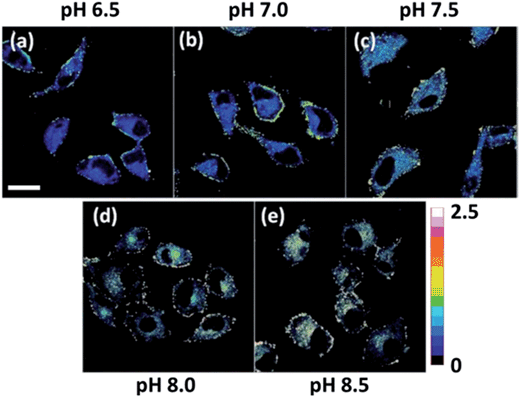

Fig. 6 Pseudo-colour ratio images of MCF-7 cells stained by Mito-pH (10 μM in DEME with 0.1% DMSO, 30 min, 25 °C) upon further incubation with high K+ buffers (30 mM NaCl, 120 mM KCl, 1 mM CaCl2, 0.5 mM MgSO4, 1 mM NaH2PO4, 5 mM glucose, 20 mM HEPES, and 20 mM NaOAc) of different pH (6.50–8.50) in the presence of 10.0 μM nigericin. The imaging was carried out with a dual excitation mode (channel 1: λex: 488 nm; channel 2: λex: 543 nm; band paths for both channels are 560–650 nm) and the ratiometric images were obtained by mediating the channel 1 image with the related channel 2 image at the same pH. Scale bar: 20 μm.

Ratiometric flow cytometry for pHm with Mito-pH

The tracking of pHm in a large number of cells is crucial for understanding the general behavior of mitochondria, and the successful ratiometric pHm imaging with Mito-pH inspires us to explore the possibility of ratiometric pHm detection with this sensor via flow cytometry, which should offer a more reliable pHm measurement due to the observation of a very large number of cells rather than the limited cell numbers in fluorescence imaging. The pHm flow cytometry with this sensor was investigated in MCF-7 cells with a Dex/Dem mode. Therefore, the cells stained with Mito-pH were detected by recording the green channel emission (detection path 530 ± 15 nm, λex: 488 nm) and the red channel emission (detection path 610 ± 10 nm, λex: 561 nm). The cell distribution pattern was analysed via calculating the emission ratio of the green channel to the red channel (Fgreen/Fred). The results demonstrate that the number of cells with Fgreen/Fred higher than 0.5 increases distinctly upon increasing the pH of the incubation medium from 6.50 to 8.50 (Fig. 7a). Moreover, the average Fgreen/Fred ratio also displays a linear enhancement with the pH values (Fig. 7b). The similar ratiometric pH response of Mito-pH in flow cytometry and confocal imaging confirms the effectiveness of this sensor to monitor pHm in live cells via the ratiometric manner.
image file: c4sc04021j-f7.tif

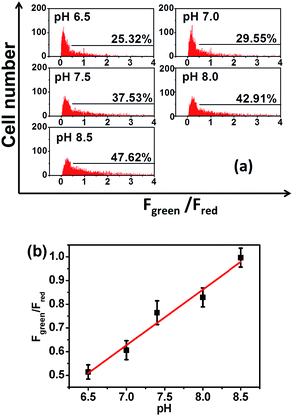

Fig. 7 (a) pHm flow cytometry of MCF-7 cells stained with Mito-pH upon incubation with high K+ buffers (30 mM NaCl, 120 mM KCl, 1 mM CaCl2, 0.5 mM MgSO4, 1 mM NaH2PO4, 5 mM glucose, 20 mM HEPES, and 20 mM NaOAc) of different pH values (6.50–8.50) in the presence of 10.0 μM nigericin. The y-axis is the cell number; the x-axis is the average Fgreen/Fred ratio of the cells. The percentage shown for each tested pH value indicates the proportions of cells with Fgreen/Fred higher than 0.5. Green channel: filter 530 ± 15 nm, λex: 488 nm; red channel: filter 610 ± 10 nm, λex: 561 nm. (b) Average Fgreen/Fred ratio (■) of the MCF-7 cells stained with Mito-pH at different pH according to the data shown in (a) and its linear fitting (red line).

Tracking the stimulated pHm fluctuation by Mito-pHvia fluorescence imaging and flow cytometry

The practical ratiometric pHm imaging ability of Mito-pH was further applied in monitoring pHm fluctuation upon different stimulation (Fig. 8). The MCF-7 cells stained with Mito-pH were incubated with carbonyl cyanide m-chlorophenylhydrazone (CCCP), which is a protonophore to uncouple the mitochondrial proton gradient across the inner membrane.4a The ratiometric imaging via the Dex/Dem mode displays an instant and rapid drop in pHm from 7.9 ± 0.1 to 7.2 ± 0.1 in the initial 5 min of CCCP incubation, and the pHm tends toward stabilization at 7.1 ± 0.1 after 13 min of incubation (Fig. 8d). This result suggests that the CCCP-induced damage to oxidative phosphorylation might be correlated to the impairing of the mitochondria proton gradient. Since most of the intracellular oxidative stress occurs in mitochondria, exploring the influence of oxidative stress on pHm should be helpful in understanding the role of pHm in the electron transport chain and oxidative phosphorylation. Therefore, the pHm fluctuation upon incubation with phorbol myristate acetate (PMA, 5 μg mL−1), which stimulates the generation of intracellular reactive oxygen species (ROS),15 was monitored via ratiometric imaging using Mito-pH as the imaging agent. The imaging demonstrates a rapid pHm drop from 7.9 ± 0.1 to 6.8 ± 0.1 upon incubation with PMA. The temporal pH profile clearly indicates that the mitochondrial acidification stimulated by the PMA-induced oxidative stress can be finished within 5 min (Fig. 8d), and this acidification of the mitochondria might be attributed to the hydroxyl radicals triggered by PMA from the Fenton reaction between H2O2 and Fe2+.16
image file: c4sc04021j-f8.tif

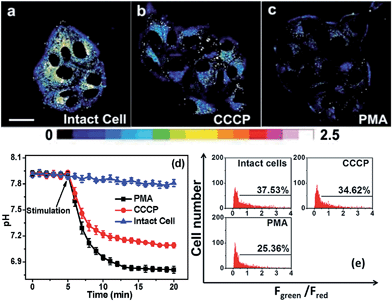

Fig. 8 (a–c) Ratiometric images of MCF-7 cells loaded with Mito-pH in the presence of different stimulation agents. (a) Image of intact cells; (b) image of cells incubated with 10 μM CCCP; (c) image of cells incubated with 5 μg mL−1 PMA. Scale bar: 20 μm. The imaging conditions are the same as that shown in Fig. 5. (d) The calculated temporal pHm profiles of the MCF-7 cells shown in (a–c) based on the calibration curve shown in Fig. 5b. (e) pHm flow cytometry of MCF-7 cells stained with Mito-pH after 30 min of stimulation with 10 μM CCCP or 5 μg mL−1 PMA. The y-axis is the cell number; the x-axis is the average Fgreen/Fred ratio. The percentage shown in each lane indicates the proportions of cells with a Fgreen/Fred ratio higher than 0.5. Green channel: filter 530 ± 15 nm, λex: 488 nm; red channel: filter 610 ± 10 nm, λex: 561 nm.

The pHm deviation in MCF-7 cells upon stimulation with CCCP and PMA has also been determined via ratiometric flow cytometry with Mito-pH. The results demonstrate that the number of cells with Fgreen/Fred higher than 0.5 decreases distinctly after 30 min of incubation in both cases. The average pHm after incubation with CCCP is ∼7.20, while that after incubation with PMA is ∼6.60 according the calibration curve shown in Fig. 7b. This result implies that the improper reduction of O2 in the electron transport chain results in ROS formation to trigger the pHm drop, disfavouring the oxidative phosphorylation.

Conclusions

Hybridizing pH-sensitive FITC with a pH-insensitive cyanine led to the first small-molecular ratiometric pH sensor with an intrinsic ability to target mitochondria. The fluorescent ratiometric response achieved via the self-calibration with the cyanine reference leads to two different ratiometric pH imaging modes: the Dex/Dem mode and the Dex mode, which offer more flexibility in pHm imaging. The linear ratiometric pH response range from pH 6.15 to 8.38, the reversible pH sensing ability, the cell membrane permeability, and the mitochondria-targeting nature make this sensor especially suitable for the practical tracking of pHm fluctuation in live cells via both ratiometric imaging and flow cytometry. Although the ratiometric imaging modes of Mito-pH are not as excellent as that of the single excitation mode in the tracking of very rapid physiological processes, the technological progress in confocal microscopy and flow cytometry can provide the Dex/Dem mode with a promoted scan rate and convenience similar to that of the single excitation mode, just as shown in the successful tracking of pHm upon stimulation with PMA and CCCP. Moreover, this work provides not only a powerful imaging agent for pHm but also an example of a fluorophore hybridizing strategy to construct ratiometric pHm sensors, offering more accurate pHm detection to clarify the physiological processes inside mitochondria.

Experimental section

Materials and general methods

All of the solvents used in sensor preparation were of analytic grade, while the solvents used in the spectroscopic study were of HPLC grade, and the purified water obtained from Millipore (>18.2 MΩ) was used for this study. The stock solutions of all the tested compounds were prepared from NaCl, KCl, MgCl2, CaCl2, ZnCl2, CuCl2, FeCl2, FeCl3, cysteine and glutathione using the purified water. ROS and RNS were prepared according to the reported procedures.17 The 1H NMR and 13C NMR spectra were recorded on a Bruker DRX-500 with TMS as the internal reference. High resolution mass spectrometric data were determined using an Agilent 6540Q-TOF HPLC-MS spectrometer. Fluorescence spectra were determined using a FluoroMax-4 spectrofluorometer with a 5 nm slit for both excitation and emission. Absorption spectra were recorded using a Shimadzu UV-3100 spectrophotometer. All pH measurements of media were accomplished using a Model PHS-3C meter.

Confocal fluorescence imaging

MCF-7 cells were cultured in DMEM (Dulbecco's modified Eagle's medium) supplemented with 10% FBS (fetal bovine serum) in an atmosphere of 5% CO2 and 95% air at 37 °C. The ratiometric imaging of the MCF-7 cells was carried out by laser scanning confocal fluorescence microscopy (Zeiss LSM710).

For the mitochondria co-localization study, MCF-7 cells were stained firstly at 25 °C with the culture media (DMEM) containing 10 μM Mito-pH and 0.1% DMSO for 30 min, then 1 μM Mito-Tracker Deep Red 633 was added into the medium for an additional incubation (30 min). After removing the culture medium, the cells were further incubated with high K+ buffers (30 mM NaCl, 120 mM KCl, 1 mM CaCl2, 0.5 mM MgSO4, 1 mM NaH2PO4, 5 mM glucose, 20 mM HEPES, and 20 mM NaOAc) of pH 7.40 or 8.50 in the presence of 10.0 μM nigericin. The fluorescence images were obtained respectively with band path 560–640 nm upon excitation at 543 nm (Mito-pH) and band path 660–750 nm upon excitation at 633 nm (Mito-Tracker).

For the ratiometric pHm calibration in live MCF-7 cells, the cells were stained with DMEM containing Mito-pH (10 μM) and 0.1% DMSO for 30 min at 25 °C, then the cells were further incubated (30 min) with high K+ buffers (30 mM NaCl, 120 mM KCl, 1 mM CaCl2, 0.5 mM MgSO4, 1 mM NaH2PO4, 5 mM glucose, 20 mM HEPES, and 20 mM NaOAc) of different pH values (6.50–8.50) in the presence of 10.0 μM nigericin. For the Dex/Dem ratiometric imaging mode, the green and red channel images were collected, with the band path of 500–550 nm upon excitation at 488 nm and the band path of 560–650 nm upon excitation at 543 nm, respectively. Pseudo-colour ratiometric images were obtained by mediating the green channel image with the red channel at the same pH. The pHm calibration was finally obtained based on the average intracellular ratio values shown in the ratiometric images. For the Dex ratiometric imaging mode, the fluorescence images from channels 1 and 2 were collected with a band path of 560–650 nm upon excitation at 488 (channel 1) and 543 (channel 2) nm, respectively, and the ratiometric images were obtained via mediating the channel 1 image with the related channel 2 image at the same pH.

For the ratiometric tracking of pHm in MCF-7 cells upon stimulation with CCCP or PMA, the cells were stained with DMEM containing Mito-pH (10 μM) for 30 min at 25 °C. After incubation with Mito-pH, the cells were incubated respectively with CCCP (10 μM) and PMA (5 μg mL−1) for 15 min, and fluorescence images were obtained every 1 min for both the green and red channels with the Dex/Dem mode. The pH values at different times were calculated with the average ratio values obtained from the related ratiometric images according to the pHm calibration shown in Fig. 5b.

Ratiometric flow cytometric study

The flow cytometry tests were completed with a BD FACS AriaII using the Dex/Dem ratiometric mode (green channel: filter 530 ± 15 nm, λex: 488 nm; red channel: filter 610 ± 10 nm, λex: 561 nm). The MCF-7 cells were stained with the same method shown for ratiometric imaging.The stained MCF-7 cells were then incubated further with high K+ buffers (30 mM NaCl, 120 mM KCl, 1 mM CaCl2, 0.5 mM MgSO4, 1 mM NaH2PO4, 5 mM glucose, 20 mM HEPES, and 20 mM NaOAc) of different pH values (6.50–8.50) in the presence of 10.0 μM nigericin for an additional 30 min. After trypsinization with 0.25% pancreatin, all the cells were cooled with ice before the test. The fluorescence data were collected respectively from the green channel and red channels. The ratio of Fgreen/Fred was calculated to give the pHm calibration in the flow cytometric study. For the monitoring of the stimulated pHm fluctuation, the fluorescence data were collected similarly after the MCF-7 cells stained with Mito-pH were treated with CCCP (10 μM) or PMA (5 μg mL−1) for 30 min. The pHm was then obtained according to the detected average Fgreen/Fred ratio based on the pHm calibration for flow cytometry shown in Fig. 7b.

Synthesis and characterization

Synthesis of 2. Compound 1 (3.6 g, 10 mmol) and 4-(dimethylamino)benzaldehyde (1.8 g, 10 mmol) were dissolved in 20 mL CH3CN, and the reaction mixture was refluxed with stirring for 12 h and then evaporated in vacuo. The residue was purified by column chromatography on silica gel (CH2Cl2/MeOH, 20[thin space (1/6-em)]:[thin space (1/6-em)]1 v/v) to give 2 (3.0 g) as a dark purple solid. Yield: 59%. 1H NMR (500 MHz, CD3OD, ppm): δ 1.30 (t, J = 7.5 Hz, 6H), 1.82 (s, 6H), 2.96 (t, J = 7.5 Hz, 2H), 3.64 (q, J = 6.7 Hz, 4H), 4.76 (t, J = 7.5 Hz, 2H), 6.93 (d, J = 10.0 Hz, 2H), 7.30 (d, J = 15 Hz, 1H), 7.49 (t, J = 7.5 Hz, 1H), 7.56 (t, J = 10.0 Hz, 1H), 7.64 (m, J = 8.8 Hz, 2H), 7.97 (d, 10.0 Hz, 2H), 8.33 (d, J = 15.0 Hz, 1H). ESI-HRMS (m/z, positive mode): calcd 391.2386, found 391.2381 for [M − I]+.
Synthesis of 3. Compound 2 (500 mg, 1 mmol), DCC (250 mg, 1.2 mmol), and HOSu (140 mg, 1.2 mmol) were mixed in 25 mL CH3CN, and then tert-butyl(2-aminoethyl)carbamate (160 mg, 1 mmol) was added into the mixture. The solution was stirred at room temperature for 6 hours. After removing the solvent in vacuo, the residue was purified by column chromatography on silica gel (CH2Cl2/MeOH, 10[thin space (1/6-em)]:[thin space (1/6-em)]1 v/v) to give a purple solid. The resulting solid (330 mg, 0.5 mmol) was dissolved in 5 mL CH2Cl2, then 3 mL of TFA was added dropwise into the solution. The mixture was stirred at room temperature for 1 hour. The solvent and TFA were removed in vacuo, and the resulting residue was purified by column chromatography on silica gel (CH2Cl2/MeOH, 9[thin space (1/6-em)]:[thin space (1/6-em)]1 v/v) to give 3 (250 mg). Yield: 54%. 1H NMR (500 MHz, MeOD, ppm): δ 1.30 (t, J = 7.5 Hz, 6H), 1.83 (s, 6H), 2.06 (s, 2H), 2.97 (t, J = 7.5 Hz, 2H), 3.64 (q, J = 8.3 Hz, 4H), 4.76 (t, J = 7.5 Hz, 2H), 6.93 (d, J = 10.0 Hz, 2H), 7.31 (d, J = 15.0 Hz, 1H), 7.49 (t, J = 7.5 Hz, 1H), 7.56 (t, J = 7.5 Hz, 1H), 7.65 (q, J = 8.3 Hz, 2H), 7.96 (d, J = 5.0, 2H), 8.33 (d, J = 15.0 Hz, 1H). 13C NMR (126 MHz, CD3OD, ppm): δ 154.84, 128.90, 127.49, 122.56, 113.29, 112.48, 103.98, 44.97, 41.93, 40.10, 36.67, 33.67, 26.50, 11.95 ppm. ESI-HRMS (m/z, positive mode): calcd 433.2967, found 433.2971 for [M − I]+.
Synthesis of Mito-pH. Compound 3 (560 mg, 1.0 mmol), FITC (389 mg, 1.0 mmol), and triethylamine (1 mL) were dissolved in 15 mL DMF, and the mixture was stirred at room temperature under N2 for 4 hours. The solvent was removed in vacuo, and the resulting residue was purified by column chromatography on silica gel (CH2Cl2/MeOH, 8[thin space (1/6-em)]:[thin space (1/6-em)]1 v/v) to give Mito-pH (120 mg). Yield: 13%. 1H NMR (500 MHz, d-DMSO, ppm): δ 1.16 (t, J = 7.5 Hz, 6H), 1.76 (s, 6H), 2.73 (t, J = 5.0 Hz, 2H), 3.19 (d, J = 10.0 Hz, 2H), 3.54 (q, J = 6.7 Hz, 6H), 4.77 (t, J = 5.0, 2H), 6.58 (q, J = 6.7 Hz, 4H), 6.70 (s, 2H), 6.87 (d, J = 10.0 Hz, 2H), 7.16 (d, J = 5.0 Hz, 2H), 7.30 (d, J = 15.0 Hz, 1H), 7.45 (t, J = 7.5 Hz, 1H), 7.53 (t, J = 7.5 Hz, 1H), 7.69 (d, J = 10.0 Hz, 1H), 7.77 (t, J = 10.0 Hz, 2H), 8.07 (d, J = 10.0 Hz, 2H), 8.32 (t, J = 7.5, 2H), 8.40 (s, 1H), 8.54 (s, 1H). 13C NMR (126 MHz, d-DMSO, ppm): δ 13.01, 27.03, 34.21, 38.43, 42.48, 43.10, 44.92, 51.04, 102.73, 105.05, 110.19, 112.52, 113.08, 113.88, 116.34, 122.63, 123.14, 124.42, 126.99, 127.67, 129.13, 129.42, 131.98, 137.33, 141.49, 142.05, 142.99, 147.29, 149.54, 152.37, 153.16, 154.80, 160.05, 169.07, 169.86, 179.93, 181.18. ESI-HRMS (m/z, positive mode): calcd 822.3325, found 822.3322 for [M − I]+.

Acknowledgements

We thank the National Basic Research Program of China (no. 2015CB856300 and 2011CB935800) and National Natural Science Foundation of China (no. 21271100, 10979019 and 21131003) for financial support. Y. Chen was supported by the Program A for outstanding PhD candidate of Nanjing University (no. 201301A05).

Notes and references

  1. J. R. Casey, S. Grinstein and J. Orlowski, Nat. Rev. Mol. Cell Biol., 2010, 11, 50–61 CrossRef CAS PubMed .
  2. (a) P. Mitchell, Biol. Rev. Cambridge Philos. Soc., 1966, 41, 445–501 CrossRef CAS PubMed ; (b) P. Mitchell and J. Moyle, Nature, 1967, 213, 137–139 CrossRef CAS .
  3. J. Han and K. Burgess, Chem. Rev., 2010, 110, 2709–2728 CrossRef CAS PubMed .
  4. (a) J. Llopis, J. M. McCaffery, A. Miyawaki, M. G. Farquhar and R. Y. Tsien, Proc. Natl. Acad. Sci. U. S. A., 1998, 95, 6803–6808 CrossRef CAS ; (b) F. Galindo, M. I. Burguete, L. Vigara, S. V. Luis, N. Kabir, J. Gavrilovic and D. A. Russell, Angew. Chem., Int. Ed., 2005, 44, 6504–6508 CrossRef CAS PubMed ; (c) Y. Urano, D. Asanuma, Y. Hama, Y. Koyama, T. Barrett, M. Kamiya, T. Nagano, T. Watanabe, A. Hasegawa, P. L. Choyke and H. Kobayashi, Nat. Med., 2009, 15, 104–109 CrossRef CAS PubMed ; (d) M. Yang, Y. Song, M. Zhang, S. Lin, Z. Hao, Y. Liang, D. Zhang and P. R. Chen, Angew. Chem., Int. Ed., 2012, 51, 7674–7679 CrossRef CAS PubMed ; (e) B. Tang, F. Yu, P. Li, L. Tong, X. Duan, T. Xie and X. Wang, J. Am. Chem. Soc., 2009, 131, 3016–3023 CrossRef CAS PubMed ; (f) A. V. Romero, N. Kielland, M. J. Arévalo, S. Preciado, R. J. Mellanby, Y. Feng, R. Lavilla and M. Vendrell, J. Am. Chem. Soc., 2013, 135, 16018–16021 CrossRef PubMed .
  5. (a) T. J. Rink, R. Y. Tsien and T. J. Pozzan, J. Cell Biol., 1982, 95, 189–196 CrossRef CAS ; (b) S. Matsuyama, J. Llopis, Q. L. Deveraux, R. Y. Tsien and J. C. Reed, Nat. Cell Biol., 2000, 2, 318–325 CrossRef CAS PubMed ; (c) J. Han, A. Loudet, R. Barhoumi, R. C. Burghardt and K. Burgess, J. Am. Chem. Soc., 2009, 131, 1642–1643 CrossRef CAS PubMed ; (d) T. Myochin, K. Kiyose, K. Hanaoka, H. Kojima, T. Terai and T. Nagano, J. Am. Chem. Soc., 2011, 133, 3401–3409 CrossRef CAS PubMed ; (e) H. J. Park, C. S. Lim, E. S. Kim, J. H. Han, T. H. Lee, H. J. Chun and B. R. Cho, Angew. Chem., Int. Ed., 2012, 51, 2673–2676 CrossRef CAS PubMed ; (f) M. H. Lee, J. H. Han, J. H. Lee, N. Park, R. Kumar, C. Kang and J. S. Kim, Angew. Chem., Int. Ed., 2013, 53, 6206–6209 CrossRef PubMed ; (g) H. J. Kim, C. H. Heo and H. M. Kim, J. Am. Chem. Soc., 2013, 135, 17969–17977 CrossRef CAS PubMed .
  6. (a) P. T. Snee, R. C. Somers, G. Nair, J. P. Zimmer, M. G. Bawendi and D. G. Nocera, J. Am. Chem. Soc., 2006, 128, 13320–13321 CrossRef CAS PubMed ; (b) H. Peng, J. A. Stolwijk, L. Sun, J. Wegener and O. S. Wolfbeis, Angew. Chem., Int. Ed., 2010, 49, 4246–4249 CrossRef CAS PubMed ; (c) W. Shi, X. Li and H. Ma, Angew. Chem., Int. Ed., 2012, 51, 6432–6435 CrossRef CAS PubMed ; (d) M. J. Marín, F. Galindo, P. Thomas and D. A. Russell, Angew. Chem., Int. Ed., 2012, 51, 9657–9661 CrossRef PubMed ; (e) J. Lei, L. Wang and J. Zhang, Chem. Commun., 2010, 46, 8445–8447 RSC ; (f) S. Wu, Z. Li, J. Han and S. Han, Chem. Commun., 2011, 47, 11276–11278 RSC ; (g) G. Sun, H. Cui, L. Y. Lin, N. S. Lee, C. Yang, W. L. Neumann, J. N. Freskos, J. J. Shieh, R. B. Dorshow and K. L. Wooley, J. Am. Chem. Soc., 2011, 133, 8534–8543 CrossRef CAS PubMed ; (h) S. Chen, Y. Hong, Y. Liu, J. Liu, C. W. T. Leung, M. Li, R. T. K. Kwok, E. Zhao, J. W. Y. Lam, Y. Yu and B. Z. Tang, J. Am. Chem. Soc., 2013, 135, 4926–4929 CrossRef CAS PubMed ; (i) X. Wang, R. J. Meier and O. S. Wolfbeis, Angew. Chem., Int. Ed., 2013, 52, 406–409 CrossRef CAS PubMed ; (j) Y. Chiu, S. Chen, J.-H. Chen, K.-J. Chen, H.-L. Chen and H.-W. Sung, ACS Nano, 2010, 4, 7467–7474 CrossRef CAS PubMed ; (k) Q. Wan, S. Chen, W. Shi, L. Li and H. Ma, Angew. Chem., Int. Ed., 2014, 53, 10916–10920 CrossRef CAS PubMed .
  7. (a) P. Li, H. Xiao, Y. Cheng, W. Zhang, F. Huang, W. Zhang, H. Wang and B. Tang, Chem. Commun., 2014, 50, 7184–7187 RSC ; (b) M. H. Lee, N. Park, C. Yi, J. H. Han, J. H. Hong, K. P. Kim, D. H. Kang, J. L. Sessler, C. Kang and J. S. Kim, J. Am. Chem. Soc., 2014, 136, 14136–14142 CrossRef CAS PubMed .
  8. K. W. Dunn, S. Mayor, J. N. Myers and F. R. Maxfield, FASEB J., 1994, 8, 573–582 CAS .
  9. (a) M. Tantama, Y. P. Hung and G. Yellen, J. Am. Chem. Soc., 2011, 133, 10034–10037 CrossRef CAS PubMed ; (b) M. F. C. Abad, G. D. Benedetto, P. J. Magalhães, L. Filippin and T. Pozzan, J. Biol. Chem., 2004, 279, 11521–11529 CrossRef CAS PubMed .
  10. A. Takahashi, Y. Zhang, V. E. Centonze and B. Herman, BioTechniques, 2001, 30, 804–815 CAS .
  11. A. T. Hoye, J. E. Davoren, P. Wipf, M. P. Fink and V. E. Kagan, Acc. Chem. Res., 2008, 41, 87–97 CrossRef CAS PubMed .
  12. (a) Y. Chen, C. Zhu, Z. Yang, J. Chen, Y. He, Y. Jiao, W. He, L. Qiu, J. Cen and Z. Guo, Angew. Chem., Int. Ed., 2013, 52, 1688–1691 CrossRef CAS PubMed ; (b) F. Liu, T. Wu, J. F. Cao, S. Cui, Z. G. Yang, X. X. Qiang, S. G. Sun, F. L. Song, J. L. Fan, J. Y. Wang and X. J. Peng, Chem.–Eur. J., 2013, 19, 1548–1553 CrossRef CAS PubMed ; (c) X. Wang, J. Sun, W. Zhang, X. Ma, J. Lv and B. Tang, Chem. Sci., 2013, 4, 2551–2556 RSC ; (d) L. Yuan and Q.-P. Zuo, Chem.–Asian J., 2014, 9, 1544–1549 CrossRef CAS PubMed .
  13. J. N. Demasa and G. A. Crosby, J. Phys. Chem., 1971, 75, 991–1024 CrossRef .
  14. Z. Liu, C. Zhang, W. He, F. Qian, X. Yang, X. Gao and Z. Guo, New J. Chem., 2010, 34, 656–660 RSC .
  15. (a) H. Mitsuhashi, S. Yamashita, H. Ikeuchi, T. Kuroiwa, Y. Kaneko, K. Hiromura, K. Ueki and Y. Nojima, Shock, 2005, 24, 529–534 CrossRef CAS ; (b) M. Whiteman, J. S. Armstrong, S. H. Chu, S. Jia-Ling, B. S. Wong, N. S. Cheung and B. Halliwell, J. Neurochem., 2004, 90, 765–768 CrossRef CAS PubMed .
  16. K. L. Tsai, S. M. Wang, C. C. Chen, T. H. Fong and M. L. Wu, J. Physiol., 1997, 502, 161–174 CrossRef CAS PubMed .
  17. D. Srikun, E. W. Miller, D. W. Domaille and C. J. Chang, J. Am. Chem. Soc., 2008, 130, 4596–4597 CrossRef CAS PubMed .

Footnote

Electronic supplementary information (ESI) available: Characterization of Mito-pH, emission spectra and photograph of Mito-pH solutions, linear fitting of the ratiometric response, and co-localization images at pH 8.50. See DOI: 10.1039/c4sc04021j
