Intensive evaluation of radiation stability of phlogopite single crystals under high doses of γ-ray irradiation

Abstract

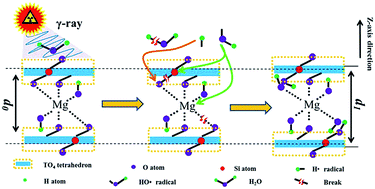

The evaluation of radiation stability of clay is important for the disposal of high-level radioactive waste (HLRW). In this study, phlogopite single crystals were irradiated by Co-60 γ-rays in air at a dose rate of 3.254 kGy h⁻¹ with doses up to 1000 kGy. Subsequently, the radiation stability and mechanism of radiation damage were explored by RS, FT-ATR, XRD, TGA, CA, and SEM techniques. In general, phlogopite single crystals show worthwhile radiation resistance toward their chemical structure but poor radiation stability toward their crystalline structure. Upon irradiation, their chemical structure changed slightly, while their crystalline structure varied obviously. For the 1000 kGy-irradiated sample, the interlayer space d of the (001) lattice plane increased by more than 1% with a value close to 0.13 Å, showing expansion. This could be mainly ascribed to H₂O radiolysis and framework breakage: the former seems more important. These variations had a considerable impact on surface hydrophilicity, while they had marginal impacts on thermal stability and morphology: the effect on surface hydrophilicity is dose-dependent. A lower dose of irradiation sufficiently reduced the hydrophilicity, while a higher dose recovered the hydrophilicity. For instance, the CA increased from 14° to 28° with dose increases from 0 kGy to 200 kGy and then decreased to approximately 20° as the dose continued to increase to 1000 kGy. In general, the crystalline structure is more sensitive toward γ-ray irradiation and phlogopites could be regarded as poorly radiation-resistant. In this procedure, H₂O radiolysis occupies a crucial role and seems to be the dominant factor. This finding is meaningful to evaluate the radiation stability of clay matrixes and to understand the microscopic property variations in clays used in practice when they are under irradiation.
