Power-efficient and solution-processed red phosphorescent organic light-emitting diodes by choosing combinations of small molecular materials to form a well-dispersed exciplex co-host

Author affiliations

Abstract

Exciplexes consisting of a combination of hole-transporting and electron-transporting materials and exhibiting narrow HOMO–LUMO gaps and bipolar transport ability are promising host choices in solution-processed phosphorescent organic light-emitting diodes (s-PhOLEDs). However, till date, there have been just a few reports on power-efficient s-PhOLEDs that use such an exciplex host structure. Herein, we successfully fabricated ultralow driving-voltage and power-efficient red s-PhOLEDs with a common hole-transporting and electron-transporting material combination, i.e. m-MTDATA:OXD-7 as exciplex co-host and Ir(MDQ)2acac as red dopant. The resultant s-PhOLEDs achieve satisfactory overall electroluminescent (EL) performance, i.e., light turn-on voltage at 2.4 V, maximum luminance of 26 385 cd m−2, peak external quantum efficiency (EQE) of 15.5% and peak power efficiency (PE) of 36.9 lm W−1, respectively. However, a s-PhOLED using an exciplex-forming co-host couple of m-MTDATA:TmPyPB displays high turn-on voltage of 4.4 V and low EQE and PE of 9.4% and 10.1 lm W−1, respectively. The mechanism accounting for such an EL difference of s-PhOLEDs using m-MTDATA:OXD-7 or m-MTDATA:TmPyPB exciplex host were explored. It is found that the intrinsic incompatibility between m-MTDATA and TmPyPB does play a key role, which significantly deteriorates the bipolar charge transport capability of the solution-processed exciplex co-host matrix and consequently the EL performance of the resultant s-PhOLEDs.

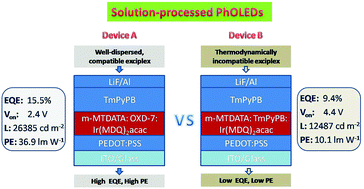

Graphical abstract: Power-efficient and solution-processed red phosphorescent organic light-emitting diodes by choosing combinations of small molecular materials to form a well-dispersed exciplex co-host

Back to tab navigation

Supplementary files

Publication details

The article was received on 03 Feb 2018, accepted on 19 Mar 2018 and first published on 20 Mar 2018


Article type: Paper
DOI: 10.1039/C8TC00592C
Citation: J. Mater. Chem. C, 2018,6, 4409-4417
  •   Request permissions

    Power-efficient and solution-processed red phosphorescent organic light-emitting diodes by choosing combinations of small molecular materials to form a well-dispersed exciplex co-host

    B. Yao, X. Lin, B. Zhang, H. Wang, X. Liu and Z. Xie, J. Mater. Chem. C, 2018, 6, 4409
    DOI: 10.1039/C8TC00592C
