Enhanced insulating and piezoelectric properties of 0.7BiFeO3–0.3BaTiO3 lead-free ceramics by optimizing calcination temperature: analysis of Bi3+ volatilization and phase structures

Author affiliations

Abstract

Herein, we report the significantly enhanced insulating and piezoelectric properties of a lead-free ceramic in a simple composition of 0.7BiFeO3–0.3BaTiO3 (0.7BF–0.3BT) without any addition of MnO2 or other dopants, which is derived by fine-tuning the calcination temperature (Tcal = 760 °C, 780 °C, 800 °C, 820 °C and 850 °C). All the calcined powders have a main perovskite phase with R3c symmetry and a small amount of Bi25FeO40 impurity, whose ceramics become a typical R3m and PC coexisting structure at 760 °C ≤ Tcal ≤ 820 °C, and a single PC phase at Tcal = 850 °C. Tcal is crucial to optimize the volatilization, density and phase structure including perovskite symmetry and impurity phase, thereby enhancing the insulating properties and piezoelectric properties. Benefitting from weak Bi3+ volatilization, low number of Image ID:c8tc00329g-t1.gif, a dense microstructure and appropriate CR/CPC ratio at Tcal = 800 °C, the enhanced insulating and piezoelectric properties of 0.7BF–0.3BT lead-free ceramics are achieved, whose d33 = 210 pC N−1, kp = 0.34, TC = 507 °C, Pr = 40.6 μC cm−2, and EC = 16.4 kV cm−1.

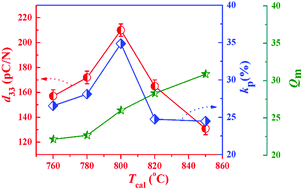

Graphical abstract: Enhanced insulating and piezoelectric properties of 0.7BiFeO3–0.3BaTiO3 lead-free ceramics by optimizing calcination temperature: analysis of Bi3+ volatilization and phase structures

Back to tab navigation

Publication details

The article was received on 20 Jan 2018, accepted on 04 Mar 2018 and first published on 06 Mar 2018


Article type: Paper
DOI: 10.1039/C8TC00329G
Citation: J. Mater. Chem. C, 2018,6, 3982-3989
  •   Request permissions

    Enhanced insulating and piezoelectric properties of 0.7BiFeO3–0.3BaTiO3 lead-free ceramics by optimizing calcination temperature: analysis of Bi3+ volatilization and phase structures

    S. Cheng, B. Zhang, L. Zhao and K. Wang, J. Mater. Chem. C, 2018, 6, 3982
    DOI: 10.1039/C8TC00329G
