Flexible room-temperature volatile organic compound sensors based on reduced graphene oxide–WO3·0.33H2O nano-needles

Author affiliations

Abstract

Flexible sensors have attracted significant attention due to their currently desirable properties and possibility to be applied to any surface and conditions such as wearable electronic devices. Therefore, we prepared volatile organic compound (VOC) sensors based on WO3·0.33H2O nano-needles and their composites with reduced graphene oxide (RGO) on flexible polyethylene terephthalate (PET) substrates. The materials were synthesized via a combination of the ultrasonic spray nozzle (USN) and microwave-assisted hydrothermal (MAH) methods to obtain a single WO3·0.33H2O orthorhombic crystalline phase. The VOC sensing properties of the materials deposited on PET electrodes were studied at room temperature (22 °C) and 55% relative humidity. The materials were exposed to acetone, ethanol, isopropanol, acetic acid, and methanol to determine their selectivity. The materials exhibited a good selectivity for isopropanol. The 5%RGO–WO3·0.33H2O composite presented a superior isopropanol-sensing performance, with a response of 4.96 to 100 ppm, which was ∼1.6 times higher than that of the pure WO3·0.33H2O nano-needles. The materials behaved as p-type semiconductors due to an inversion of the sensitive layer promoted by the adsorption of water molecules on the surface of the material.

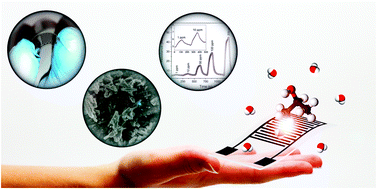

Graphical abstract: Flexible room-temperature volatile organic compound sensors based on reduced graphene oxide–WO3·0.33H2O nano-needles

Back to tab navigation

Supplementary files

Publication details

The article was received on 19 Jan 2018, accepted on 15 Feb 2018 and first published on 15 Feb 2018


Article type: Paper
DOI: 10.1039/C8TC00324F
Citation: J. Mater. Chem. C, 2018,6, 2822-2829
  •   Request permissions

    Flexible room-temperature volatile organic compound sensors based on reduced graphene oxide–WO3·0.33H2O nano-needles

    T. M. Perfecto, C. A. Zito, T. Mazon and D. P. Volanti, J. Mater. Chem. C, 2018, 6, 2822
    DOI: 10.1039/C8TC00324F
