Facile construction of mechanically tough collagen fibers reinforced by chitin nanofibers as cell alignment templates

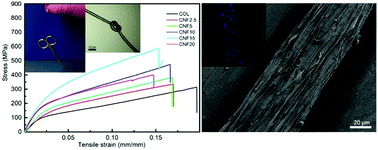

Fiber-shaped cellular architectures have drawn attention due to their structural similarity of the extracellular matrix. For such application, fibers that are both mechanically robust and biocompatible in the targeted biological environment are required. In this work, a facile method has been developed to prepare mechanically tough reconstituted collagen fibers by extrusion of collagen acetic acid solution into a coagulation bath containing sodium alginate. The structure and morphology of the collagen fiber were studied by XPS, FT-IR, SEM, TEM and DSC. The results indicated that the instant electrostatic interaction and hydrogen bonding between sodium alginate and collagen contributed to the formation of the mechanically strong microfiber, which exhibited tensile stress and Young’s modulus of 313.4 MPa and 5848.5 MPa. During fiber formation, the triple-helix structure of collagen remained undamaged, and self-assembled into closely stacked nanofibrous morphology. In addition, positively charged chitin nanofibers (CNFs) were incorporated into the collagen fiber as reinforcing filler. With increasing of the CNFs concentration, the tensile strength and modulus of the air-dried collagen fiber increased and reached highest values of 506.6 MPa and 12109.5 MPa at 15 wt% CNFs. The wet strength of the composite fibers was also significantly improved with addition CNFs, showing mechanical properties (stress and modulus of 47.3MPa and 988.9 Mpa) comparable to the reported post-crosslinked collagen fibers. Yet this has been achieved through physical approach under mild conditions without using toxic chemical crosslinking reagent or causing collagen denaturation, allowing their direct application as promising biomaterials. In vitro tests showed that the addition of CNFs did not induce obvious cytotoxicity of the fibers towards fibroblast cells and the whole composite fibers exhibited cell viability of >80% for culture time up to 72h. Moreover, the fibroblast alignment on the surface of the fibers was observed by confocal and scanning electron microscope imaging, indicating potential application of the fibers as cell alignment template in tissue engineering fields for vascular, muscle and neural engineering application.

Back to tab navigation

Supplementary files

Publication details

The article was received on 12 Nov 2017, accepted on 09 Jan 2018 and first published on 09 Jan 2018

Article type: Paper
DOI: 10.1039/C7TB02945D
Citation: J. Mater. Chem. B, 2018, Accepted Manuscript
  •   Request permissions

    Facile construction of mechanically tough collagen fibers reinforced by chitin nanofibers as cell alignment templates

    L. Chen, Y. Huang, Y. Wang and L. Zhang, J. Mater. Chem. B, 2018, Accepted Manuscript , DOI: 10.1039/C7TB02945D
