Chemical manipulation of phase stability and electronic behavior in Cu4−xAgxSe2

Author affiliations

Abstract

Superionic chalcogenides have gained renewed research interest, within the last decade, as emerging thermoelectric materials due to attractive properties, such as glass-like phonon transport coupled with crystal-like carrier transport. Of particular interest has been p-type coinage metal-based materials (Cu2Se, CuAgSe), which have demonstrated figures-of-merit, ZT, exceeding unity through a broad temperature range. However, the lack of n-type counterparts within this class of compounds limits potential module deployment. Here we show that careful stoichiometry control of the Cu4−xAgxSe2 series enables the formation of stable n-type materials throughout the measured temperature range upon substitution of Cu by Ag (1 ≤ x ≤ 3). Thermopower data show that the sample with x = 1 (Cu3AgSe2) undergoes a transition from n- to p-type conducting behavior, whereas samples with x = 2 (CuAgSe) and x = 3 (CuAg3Se2) exhibit n-type character in the whole measured temperature range. The post superionic transition n-type conductivity of CuAgSe is quite surprising and is contrary to the n- to p-type transition previously reported for this composition. Room temperature X-ray diffraction studies indicate the formation of a two-phase mixture for samples with x = 1 (Cu3AgSe2 = α-Cu2Se + α-CuAgSe) and x = 3 (CuAg3Se2 = α-Ag2Se + α-CuAgSe), whereas a single-phase α-CuAgSe is observed for the sample with x = 2. At 523 K, X-ray diffraction patterns show that Cu3AgSe2 (x = 1) and α-CuAgSe (x = 2) transform into single phase structures with the space group Fm[3 with combining macron]m, while the CuAg3Se2 (x = 3) sample remains a two-phase system (CuAg3Se2 = β-Ag2Se + β-CuAgSe) in contrast to previous studies. This structural study is consistent with the observed gradual evolution of the conduction type of Cu4−xAgxSe2 samples between the p-type character of Cu2Se (x = 0) and the n-type semiconducting behavior of Ag2Se (x = 4). This suggests that the conducting behavior in the Cu4−xAgxSe2 is modulated by the Cu : Ag ratio. All Cu4−xAgxSe2 samples exhibit extremely low thermal conductivity after their phase transitions (<0.5 W m−1 K−1), which result in modest ZT values (∼0.45 at 625 K).

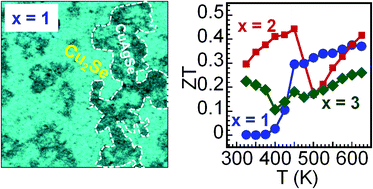

Graphical abstract: Chemical manipulation of phase stability and electronic behavior in Cu4−xAgxSe2

Back to tab navigation

Supplementary files

Publication details

The article was received on 13 Feb 2018, accepted on 26 Mar 2018 and first published on 27 Mar 2018


Article type: Paper
DOI: 10.1039/C8TA01531G
Citation: J. Mater. Chem. A, 2018,6, 6997-7004
  •   Request permissions

    Chemical manipulation of phase stability and electronic behavior in Cu4−xAgxSe2

    A. Olvera, T. P. Bailey, C. Uher and P. F. P. Poudeu, J. Mater. Chem. A, 2018, 6, 6997
    DOI: 10.1039/C8TA01531G
