CuGaS2 nanoplates: a robust and self-healing anode for Li/Na ion batteries in a wide temperature range of 268–318 K

Author affiliations

Abstract

The practical application of batteries in electric vehicles (EVs) and hybrid electric vehicles (HEVs) is hindered by the narrow operating temperature range due to the degradation of the solid–electrolyte interface (SEI) layer at high temperature and poor ion/electron diffusion kinetics at low temperature. Herein, we firstly report CuGaS2 hexagonal nanoplates as a novel and robust anode material working in a wide temperature range. CuGaS2 nanoplates with a lateral size of 2–3 μm and thickness of 180–200 nm have been successfully synthesized by a vapor thermal transformation from the oxide counterpart CuGaO2. The thermal workability of the as-synthesized CuGaS2 benefits from a synergistic effect including the high conductivity of copper and the self-healing nature of liquid metal gallium. Room temperature CuGaS2 as a lithium ion battery anode electrode exhibits a high reversible capacity over 521 mA h g−1 after 600 cycles at a high current density of 5 A g−1. Furthermore, as the temperature is lifted to 318 K, the CuGaS2 electrode exhibits a stable and reversible capacity over 784 mA h g−1 at a high current density of 0.5 A g−1; even at the low temperature of 268 K, a reversible capacity over 407 mA h g−1 can be realized, which is much superior to that of the commercial graphite anode.

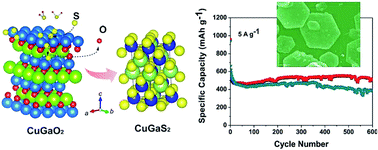

Graphical abstract: CuGaS2 nanoplates: a robust and self-healing anode for Li/Na ion batteries in a wide temperature range of 268–318 K

Back to tab navigation

Supplementary files

Publication details

The article was received on 19 Oct 2017, accepted on 04 Dec 2017 and first published on 06 Dec 2017


Article type: Paper
DOI: 10.1039/C7TA09197D
Citation: J. Mater. Chem. A, 2018,6, 1086-1093
  •   Request permissions

    CuGaS2 nanoplates: a robust and self-healing anode for Li/Na ion batteries in a wide temperature range of 268–318 K

    Y. Song, Y. Li, L. Zhu, Z. Pan, Y. Jiang, P. Wang, Y. Zhou, F. Fang, L. Hu and D. Sun, J. Mater. Chem. A, 2018, 6, 1086
    DOI: 10.1039/C7TA09197D
