Rubber materials from elastomers and nanocellulose powders: filler dispersion and mechanical reinforcement

Author affiliations

Abstract

Rubber materials with well-dispersed fillers and large mechanical reinforcement have been obtained by melt-processing a diene elastomer matrix and tailored nanocellulose powders having both a high specific surface area and a modified interface. Such filler powders with a specific surface area of 180 m2 g−1 and 100 m2 g−1 have been obtained by freeze-drying suspensions of short needle-like cellulose nanocrystals (CNCs) and entangled networks of microfibrillated cellulose (MFC) in tert-butanol/water, respectively. A quantitative and toposelective filler surface esterification was performed using a gas-phase protocol either with palmitoyl chloride (PCl) to obtain a hydrophobic but non-reactive nanocellulose interface, or with 3,3′-dithiopropionic acid chloride (DTACl) to introduce reactive groups that can covalently bind the nanocellulose interface to the dienic matrix in a subsequent vulcanization process. A set of filled materials was prepared varying the filler morphology, interface and volume fraction. Transmission electron microscopy images of ultrathin cryo-sections showed that modified nanocellulose fillers presented a relatively homogeneous distribution up to a volume fraction of 20%. The materials also exhibited a significant modulus increase, while keeping an extensibility in the same range as that of the neat matrix. Strikingly, in the case of the reactive interface, a strong stress-stiffening behavior was evidenced from the upward curvature of the tensile curve, leading to a large increase of the ultimate stress (up to 7 times that of the neat matrix). Taken together, these properties, which have never been previously reported for nanocellulose-filled elastomers, match well the mechanical characteristics of industrial carbon black or silica-loaded elastomers.

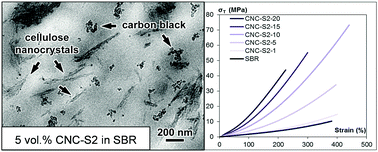

Graphical abstract: Rubber materials from elastomers and nanocellulose powders: filler dispersion and mechanical reinforcement

Back to tab navigation

Supplementary files

Publication details

The article was received on 29 Jan 2018, accepted on 08 Mar 2018 and first published on 09 Mar 2018


Article type: Paper
DOI: 10.1039/C8SM00210J
Citation: Soft Matter, 2018,14, 2638-2648
  •   Request permissions

    Rubber materials from elastomers and nanocellulose powders: filler dispersion and mechanical reinforcement

    M. Fumagalli, J. Berriot, B. de Gaudemaris, A. Veyland, J. Putaux, S. Molina-Boisseau and L. Heux, Soft Matter, 2018, 14, 2638
    DOI: 10.1039/C8SM00210J
