Syntheses, characterizations and functions of cationic polyethers with imidazolium-based ionic liquid moieties

Author affiliations

Abstract

Cationic polyethers with imidazolium-based ionic liquid moieties were synthesized and characterized thoroughly for their properties and functions. Poly(epichlorohydrin) (poly(ECH)) was quaternized by 1-methylimidazole to provide poly(N-glycidyl-N′-methylimidazolium chloride) (poly(ECH-MeIm+Cl)). Anion exchange of the poly(ECH-MeIm+Cl) with Li salts provided other cationic polyethers: hydrophobic poly(N-glycidyl-N′-methylimidazolium bis(trifluoromethanesulfonyl)imide) (poly(ECH-MeIm+TFSI)) and hydrophilic poly(N-glycidyl-N′-methylimidazolium tetrafluoroborate) (poly(ECH-MeIm+BF4)). The 5% thermal decomposition temperatures of these cationic polyethers are quite high (300–400 °C). Contrary to poly(ECH) (glass transition temperature (Tg) = −49 °C), the poly(ECH-MeIm+Cl) is a polymer plastic (Tg = 92 °C) when completely dry. Poly(ECH-MeIm+TFSI) is elastomeric (Tg = −12 °C), whereas poly(ECH-MeIm+BF4) is a plastic (Tg = 67 °C). Poly(ECH-MeIm+Cl) rapidly absorbed a large amount of moisture from the atmosphere, changing its appearance from solid to a viscous fluid even under relatively dry conditions (23 °C, and 40% relative humidity (RH); water uptake = 29 wt%), suggesting its highly deliquescent nature. The hydrated poly(ECH-MeIm+Cl) possesses neither a glass transition nor a phase transition between −60 °C and 80 °C. The ionic conductivity of the hydrated polymer is as high as 1.8 × 10−2 S cm−1 under humid conditions (23 °C, and 80% RH; water uptake = 72 wt%) and is dependent mainly on water uptake. The miscibility between the cationic polyethers and ionic liquids is quite high; mixtures of ethylmethylimidazolium bis(trifluoromethanesulfonyl)imide and the cationic polyethers had no phase transitions between −70 °C and 100 °C. Since the cationic polyethers were miscible with each other to exchange anions, random copolymers with desired copolymerization ratios can be prepared through simple mixing.

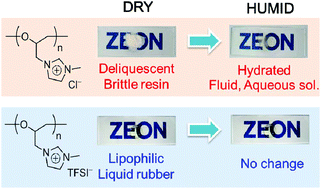

Graphical abstract: Syntheses, characterizations and functions of cationic polyethers with imidazolium-based ionic liquid moieties

Back to tab navigation

Supplementary files

Publication details

The article was received on 24 Nov 2017, accepted on 24 Jan 2018 and first published on 24 Jan 2018


Article type: Paper
DOI: 10.1039/C7PY01985H
Citation: Polym. Chem., 2018,9, 948-960
  • Open access: Creative Commons BY-NC license
  •   Request permissions

    Syntheses, characterizations and functions of cationic polyethers with imidazolium-based ionic liquid moieties

    S. Hayano, K. Ota and H. T. Ban, Polym. Chem., 2018, 9, 948
    DOI: 10.1039/C7PY01985H
