Doping-stabilized two-dimensional black phosphorus

Author affiliations

Abstract

Two-dimensional (2D) black phosphorus (BP) has attracted broad interests but remains to be synthesized. One of the issues lies in its large number of 2D allotropes with highly degenerate energies, especially 2D blue phosphorus. Here, we show that both nitrogen and hole-carrier doping can lift the energy degeneracy and locate 2D BP in a deep global energy minimum, while arsenic doping favours the formation of 2D blue phosphorus, attributed to a delicate interplay between s–p overlapping and repulsion of lone pairs. Chemically inert substrates, e.g. graphene and hexagonal boron nitride, can be synergic with carrier doping to stabilize the BP further over other 2D allotropes, while frequently used metal substrates severely reduce the stability of 2D BP. These results not only offer new insight into the structural stability of 2D phosphorus but also suggest a promising pathway towards the chemical synthesis of 2D BP.

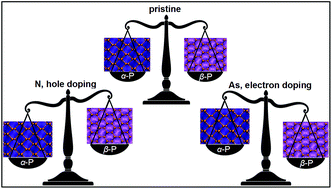

Graphical abstract: Doping-stabilized two-dimensional black phosphorus

Back to tab navigation

Supplementary files

Publication details

The article was received on 17 Jan 2018, accepted on 02 Apr 2018 and first published on 02 Apr 2018


Article type: Communication
DOI: 10.1039/C8NR00445E
Citation: Nanoscale, 2018, Advance Article
  •   Request permissions

    Doping-stabilized two-dimensional black phosphorus

    X. Xuan, Z. Zhang and W. Guo, Nanoscale, 2018, Advance Article , DOI: 10.1039/C8NR00445E
